Main Image
USB31000S2H

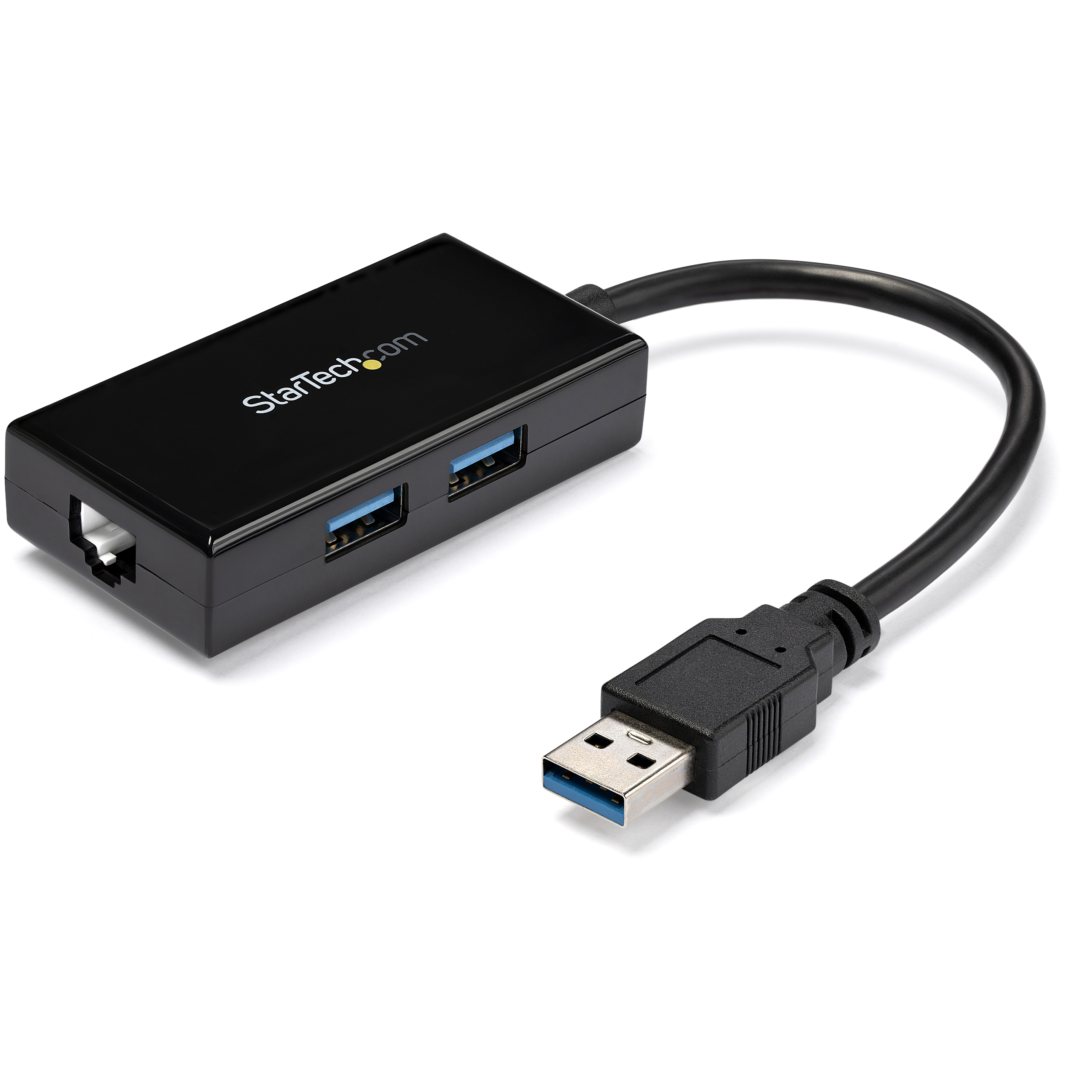

USB 3 0 to Ethernet network adapter 2 pt USB hub
Add Gigabit Ethernet connectivity and two USB 3.0 ports to your laptop or tablet through a single USB port
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 0 to Ethernet network adapter 2 pt USB hub Product Number USB31000S2H UPC 065030862400 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-A Ethernet Adapters Family Classic Connect Ethernet+Hub Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) USB3 Network Adapter Product Title (Short) USB 3 to Gigabit Network Adapter & Hub Product Title (Medium) USB 3.0 to Gigabit Network Adapter with Built-In 2-Port USB Hub - Native Support Product Title (Standard) USB 3.0 to Gigabit Network Adapter with Built-In 2-Port USB Hub - Native Driver Support (Windows, Mac and Chrome OS) Product Title (Long) USB 3.0 to Gigabit Network Adapter with Built-In 2-Port USB Hub Product Title (AMZ) 2 Port USB 3.0 Hub with Ethernet - USB 3.0 x 2 - Gigabit Ethernet Network Adapter for Windows / Mac / Chrome (USB31000S2H) Title Ingram (Part 1) USB 3.0 Ethernet Adapter with 2 Title Ingram (Part 2) -Port Hub - Native Driver Support Website Product Headline Add Gigabit Ethernet connectivity and two USB 3.0 ports to your laptop or tablet through a single USB port Bullet 1 Achieve full Gigabit bandwidth support for your laptop or tablet through a USB 3.0 host connection Bullet 2 Provides wired network access with a 10/100/1000 RJ45 Ethernet port fully compatible with IEEE 802.3i/u/ab standards Bullet 3 Connect additional peripherals with two USB 3.0 ports Bullet 4 Native driver support (Windows, Mac and Chrome OS) Bullet 5 Wake on LAN support Bullets (Compact) Add Gigabit Ethernet connectivity and two USB 3.0 ports to your laptop or tablet through a single USB port - USB Ethernet NIC network adapter with native driver support (Windows, Mac, Chrome OS) - USB network adapter and charging hub w/ Realtek chip Bullets (Consolidated) Add Gigabit Ethernet connectivity and two USB 3.0 ports to your laptop or tablet through a single USB port - USB Ethernet NIC network adapter with native driver support(Windows, Mac, Chrome OS) - USB network adapter and charging hub w/ Realtek chip - USB powered for easy portability - Provides wired network access with a 10/100/1000 RJ45 Ethernet port - Compatible with IEEE 802.3i/u/ab standards - Up to 9K jumbo frame support - Wake on LAN - Auto MDIX - Full duplex flow control - VLAN tagging Marketing Copy Marketing Copy (No HTML) Applications - Ideal for an Ultrabook, tablet or slim laptop that doesn't have an RJ45 port
- The ideal replacement for an older LAN port

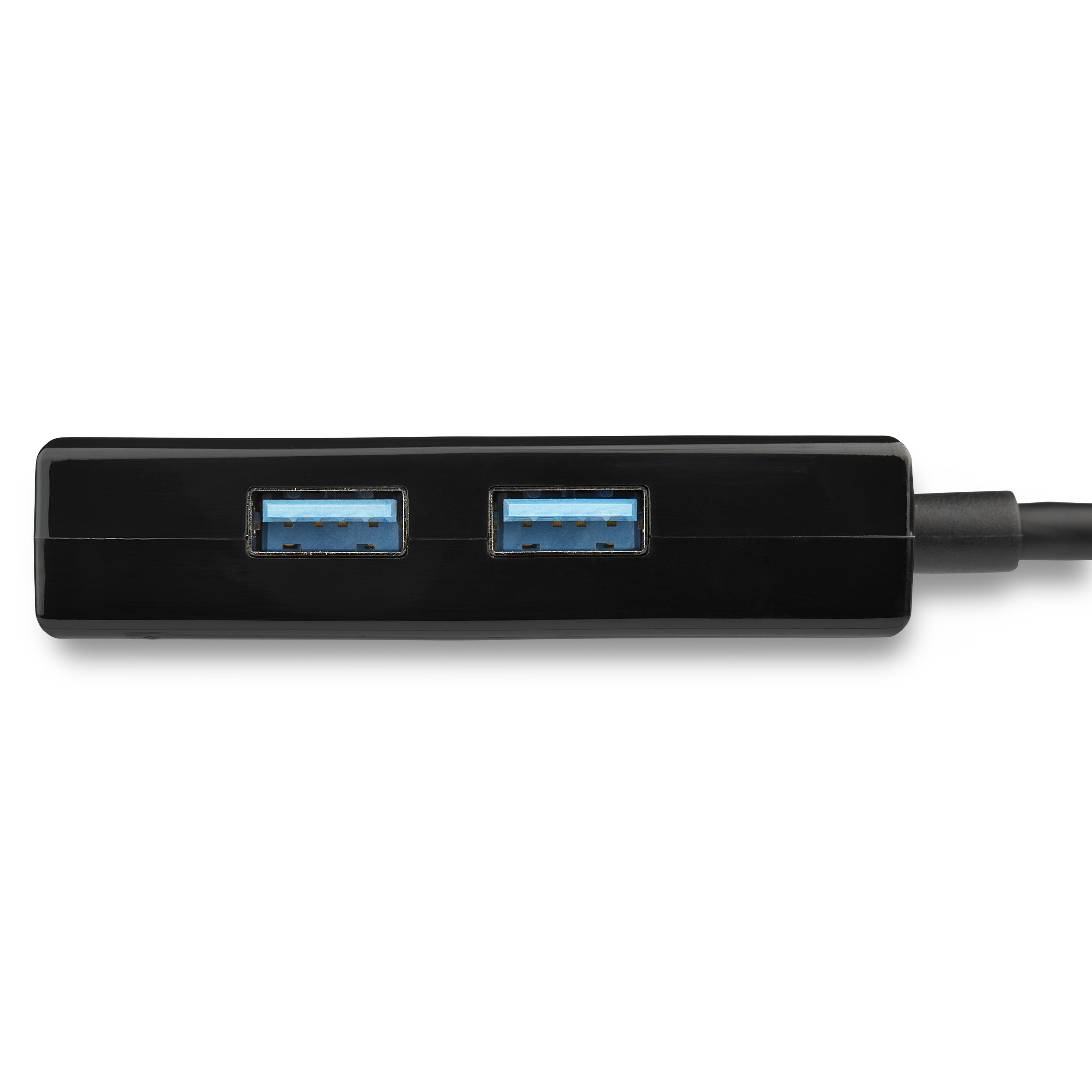

- Connect peripherals like printers or external SSD/HDD enclosures to the integrated two-port USB hub
- Take the adapter with your laptop as a portable USB-powered accessory
Website Search Keyword - usb network adapter
- usb gigabit adapter
- usb gigabit nic
- usb network port
- usb 3.0 hub
- usb gigabit dongle
- usb network dongle
- Gigabit Ethernet adapter
- U336-U03-GB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes Jumbo Frames are no longer supported in macOS Accessory Products - USB3SAUB3
- C6PATCH15BK
- PEXUSB3S400
- ECUSB3S22
Related Products - ST3300U3S
- USB31000S
- USB32000SPT
- USB31000SA
- USB31000SW
- USB31000NDS
- ST4300USB3
- ST7320USBC
- ST7300USBM
- ST2300CUSB3
- ST3300GU3B
Constrained SKU Alternatives (Limited Stock) USB31000SPTB Power Consumption (In Watts) Max 1092mA Color Black Humidity Storage humidity range: 5% ~ 90% RH(no condensation) Operating humidity range: 50% ~ 80% RH Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 250.000 Product Width (mm) 37.5 Product Height (mm) 17.3 Product Weight (g) 42 Storage Temperature -10°C to 55°C (14°F to 131°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications Max Power Draw: 150mA Jumbo Frame Support 9K max. Maximum Data Transfer Rate 5 Gbps - USB 3.0 / 2 Gbps - Full Duplex Gigabit Ethernet MTBF (hours) 637,901 hours OS Compatibility - Windows Server 2012
- Windows 7
- Linux
- Windows CE
- Windows 2008
- Windows Server 2008 R2
- Windows Embedded
- Windows 8
- Chrome OS
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025

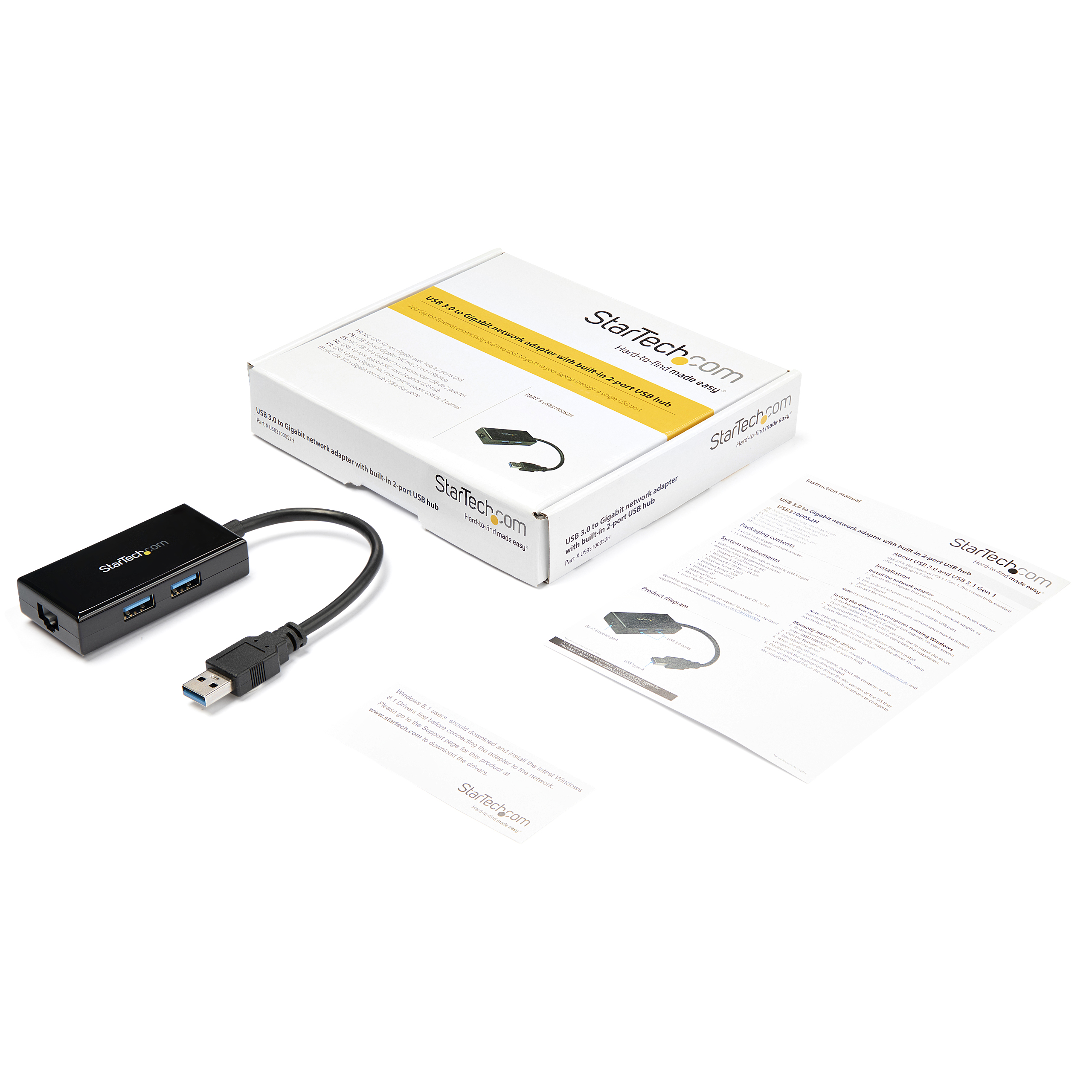

Surge Protection 5KV USB Type and Rate USB 3.0 (5Gbps) Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Realtek - RTL8153 Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX and IEEE 802.3X Full Duplex Interface/Bridge USB 3.2 Gen 1 (5Gbps) Network Adapter Host USB 3.0 - USB-A Network Adapter LAN Ports 1 USB Pass-Through Yes Carton Depth (mm) 355 Carton Height (mm) 270 Carton Quantity 70 Carton Weight Gross (g) 6794 Included in Package - 1 - USB 3.0 to Gigabit network adapter
- 1 - instruction manual
Included In Package for Label - 1 - USB 3.0 To Gigabit Network Converter
- 1 - Instruction Manual
Number of Sub-Cartons 7 Package Depth (mm) 145 Package Height (mm) 31 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 104 Packaging Description USB 3.0 to Gigabit NIC with 2-port USB hub Packaging Description India USB 3.0 to Gigabit NIC with 2-port USB hub Sub-Carton Depth (mm) 74 Sub-Carton Height (mm) 37 Sub-Carton Width (mm) 250 Sub-Carton Quantity 10 Sub-Carton Weight (g) 250 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-04-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-07-03 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
