USB31000SPTW
USB 3 Gigabit LAN adapter - External Network Card
Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 Gigabit LAN adapter - External Network Card Product Number USB31000SPTW UPC 065030851909 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-A Ethernet Adapters Family Classic Connect Ethernet+Hub+MACID Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) Gigabit USB 3.0 NIC Product Title (Short) Gigabit USB 3.0 NIC w/ USB Port Product Title (Medium) x Product Title (Standard) USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - White Product Title (Long) USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - White Product Title (AMZ) USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port (White) - USB 3.0 NIC - 10/100/1000 Mbps USB 3.0 LAN Adapter (USB31000SPTW) Title Ingram (Part 1) USB 3.0 10/100/1000 Gigabit LAN Title Ingram (Part 2) adapter - External Network Card Website Product Headline Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port Bullet 1 Integrated USB 3.0 pass-through port Bullet 2 IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible Bullet 3 Crossover Detection & Auto-Correction (Auto MDIX) Bullet 4 IEEE 802.1Q VLAN Tagging support Bullet 5 Up to 4K Jumbo Frame support Bullets (Compact) Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port - USB 3.0 to Gigabit Ethernet Adapter with USB Port (White) - 10/100/1000 Mbps USB 3.0 LAN Adapter - External USB Network Card Bullets (Consolidated) Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port - USB 3.0 to Gigabit Ethernet Adapter with USB Port (White) - 10/100/1000 Mbps USB 3.0 LAN Adapter - External USB Network Card - USB 3.0 to Gigabit NIC Network Adapter - Integrated USB 3.0 pass-through port - White Marketing Copy Applications - Replacement for a failed built-in Gigabit Ethernet port on a laptop
- Add Gigabit Ethernet capabilities to a desktop or laptop
Website Search Keyword U336-U03-GB Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Jumbo Frames are no longer supported in macOS System and Cable Requirements Available USB Port Accessory Products - C6PATCH6BL
- N6PATCH10BK
- M45PATCH15YL
- M45PATCH7GN
- M45PATCH10PL
- C6PATCH6OR
Related Products - USB31000SPTB
- ST3300U3S
- EC1000S
- EC2000S
- USB31000NDS
- USB32000SPT
Constrained SKU Alternatives (Limited Stock) USB31000SPTB Power Source USB-Powered Cable Length (mm) 155 Color White Humidity 5~85% RH Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 126 Product Width (mm) 35 Product Height (mm) 17 Product Weight (g) 44 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 4K max. Max Distance 100m [328ft] Maximum Data Transfer Rate OS Compatibility - Windows 8
- Ubuntu
- Windows Server 2012
- Windows 7
- Chrome OS
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Industry Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - 10/100 Link/Activity (Green)
- 1 - Gigabit Link/Activity (Amber)

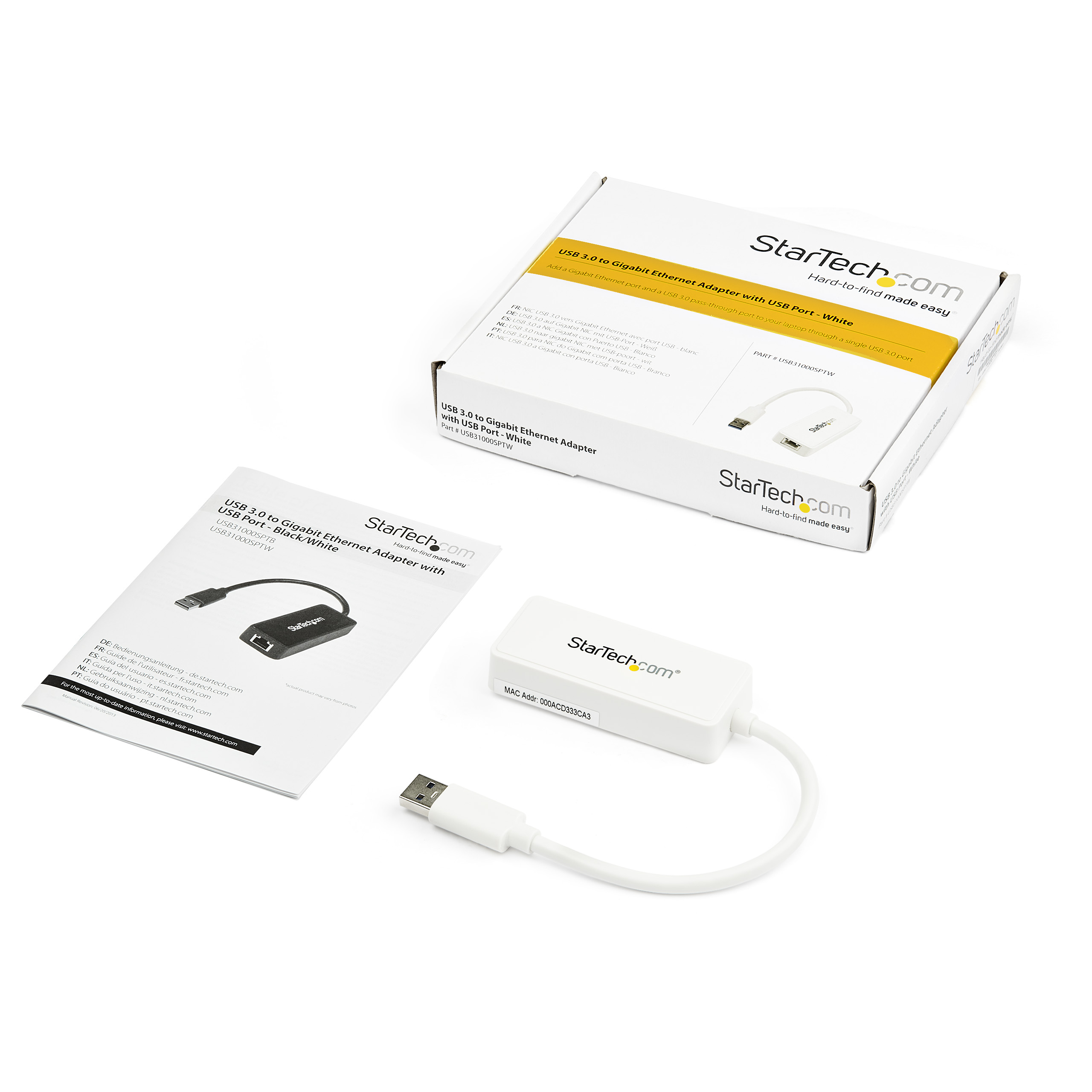

Network Adapter Host USB 3.0 - USB-A Network Adapter LAN Ports 1 USB Pass-Through Yes Carton Depth (mm) 308 Carton Height (mm) 364 Carton Quantity 80 Carton Weight Gross (g) 10878 Included in Package - 1 - Instruction Manual
- 1 - Driver CD
- 1 - USB 3.0 Network Adapter
Included In Package for Label - 1 - USB 3.0 Network Converter
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 169 Package Quantity 1 Package Weight (g) 126 Packaging Description USB 3.0 to Gigabit NIC w/ USB Port - White Packaging Description India USB 3.0 to Gigabit NIC w/ USB Port - White Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-06-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
