USB31C2SAT3

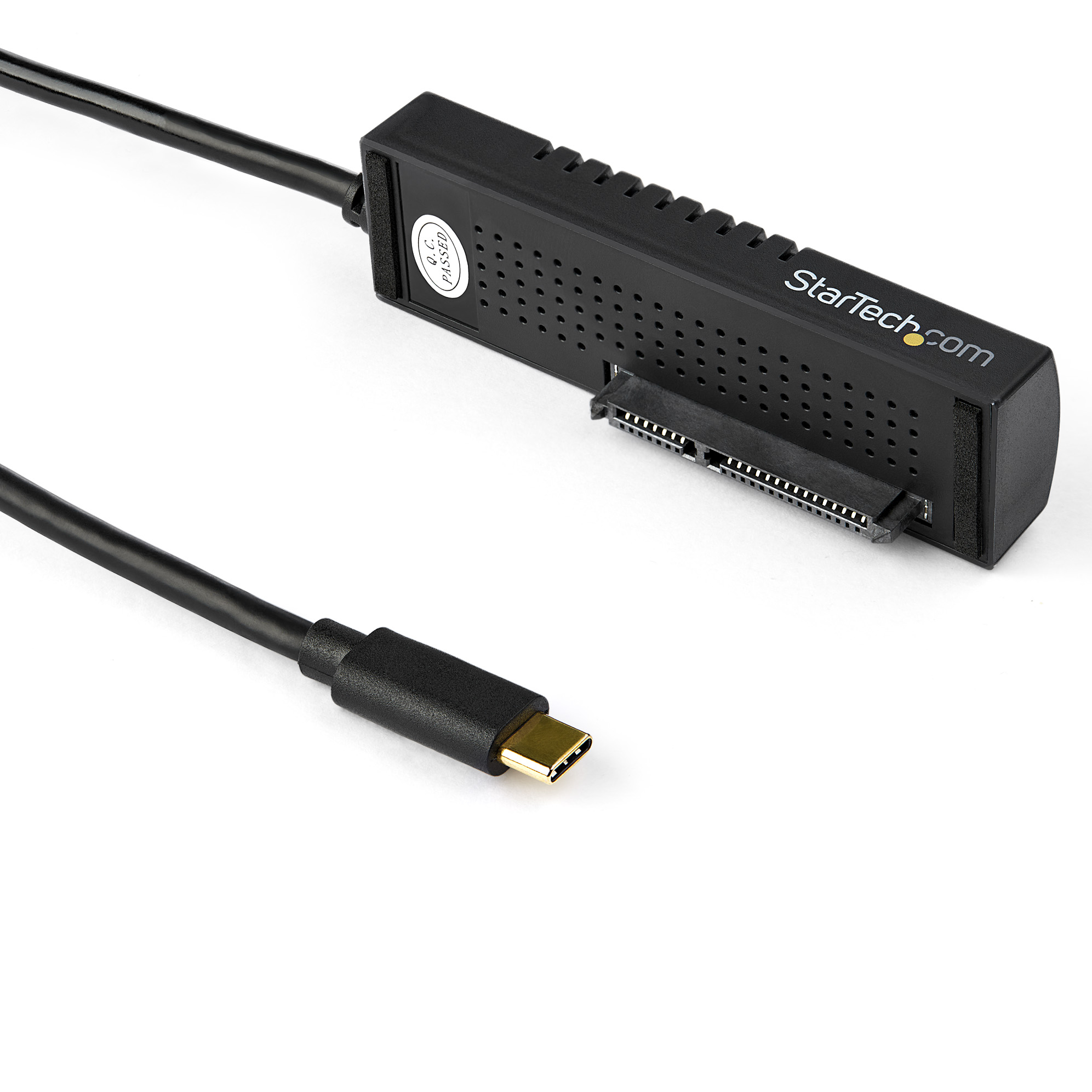

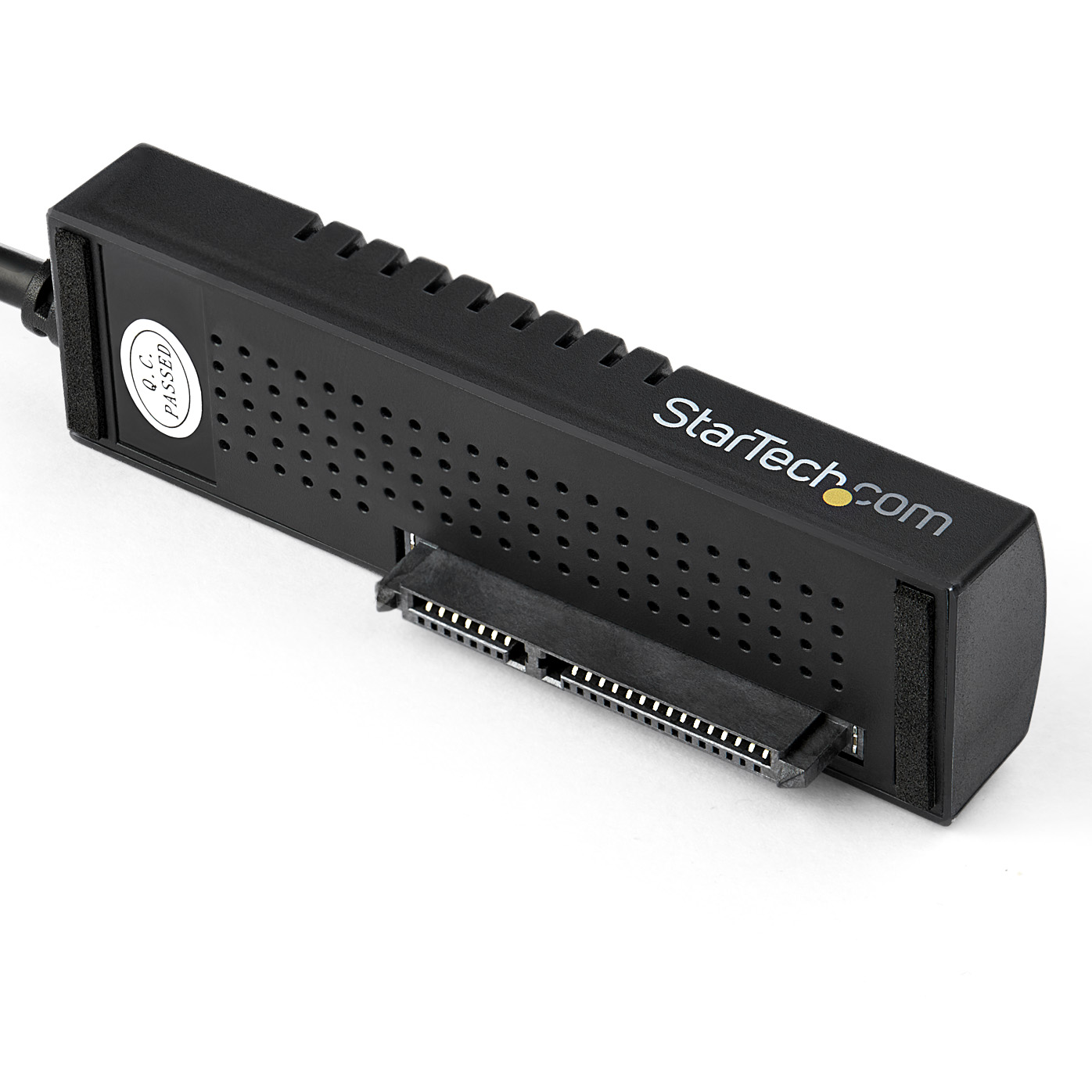

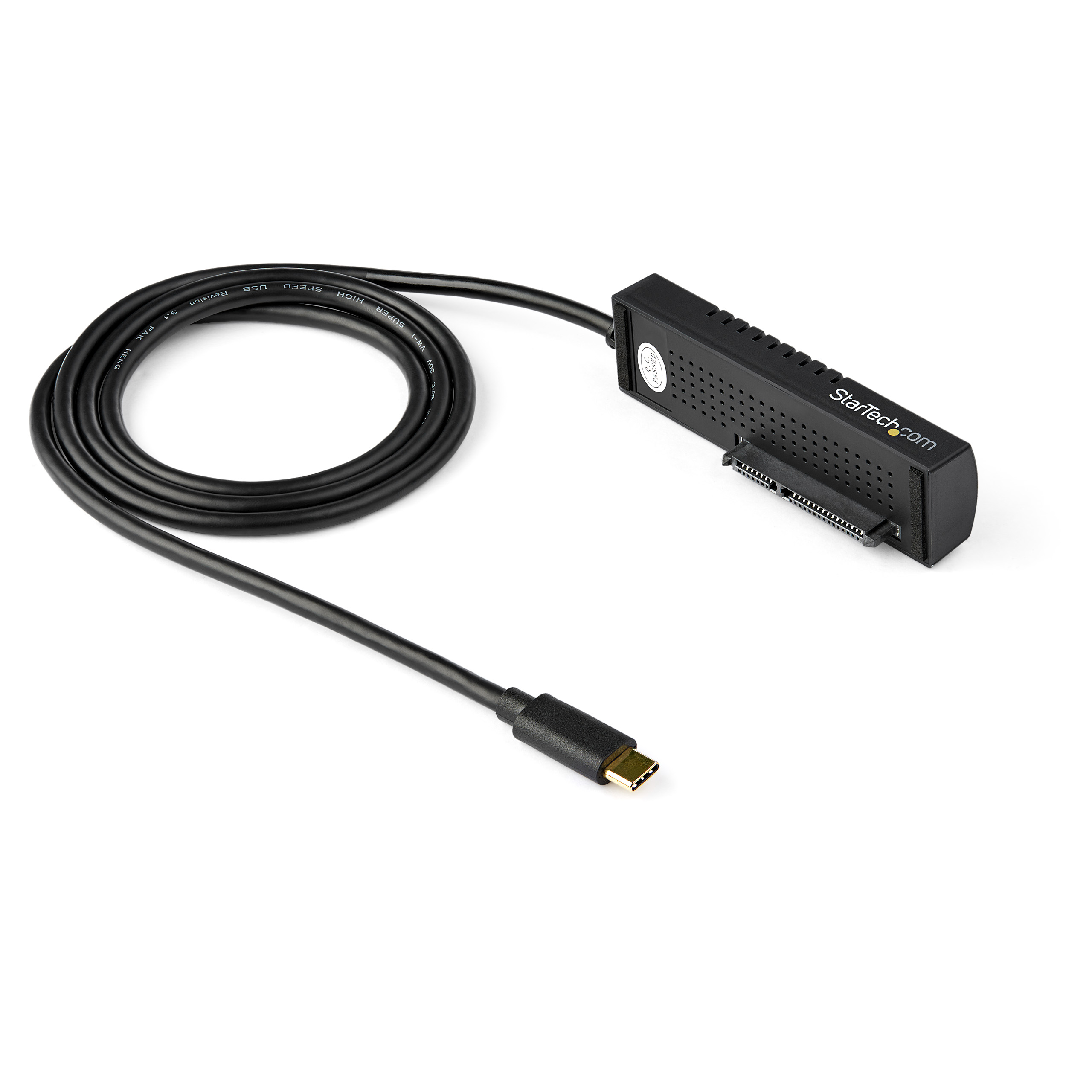

USB C to SATA Adapter Cable for 2 5 SSD HDDs

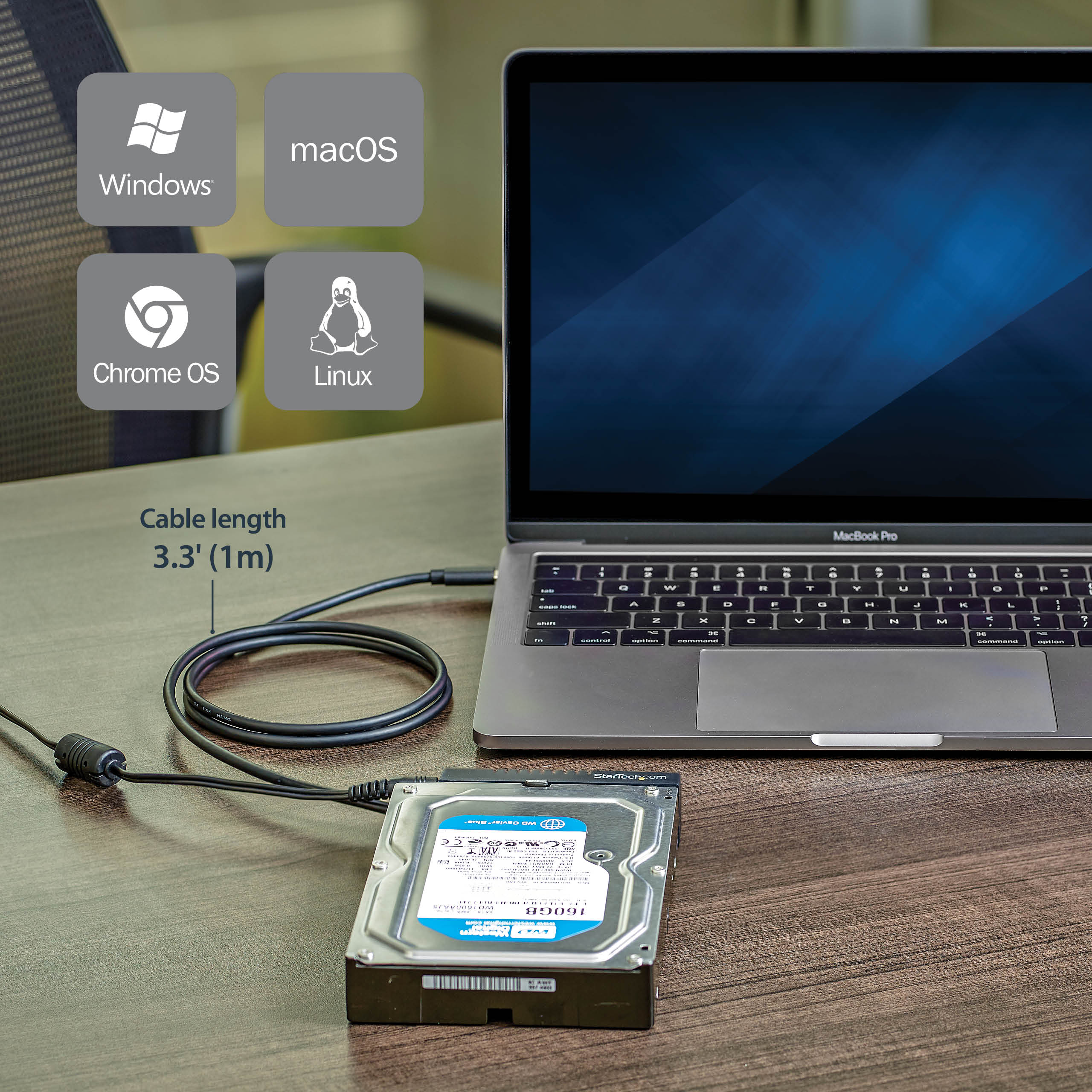

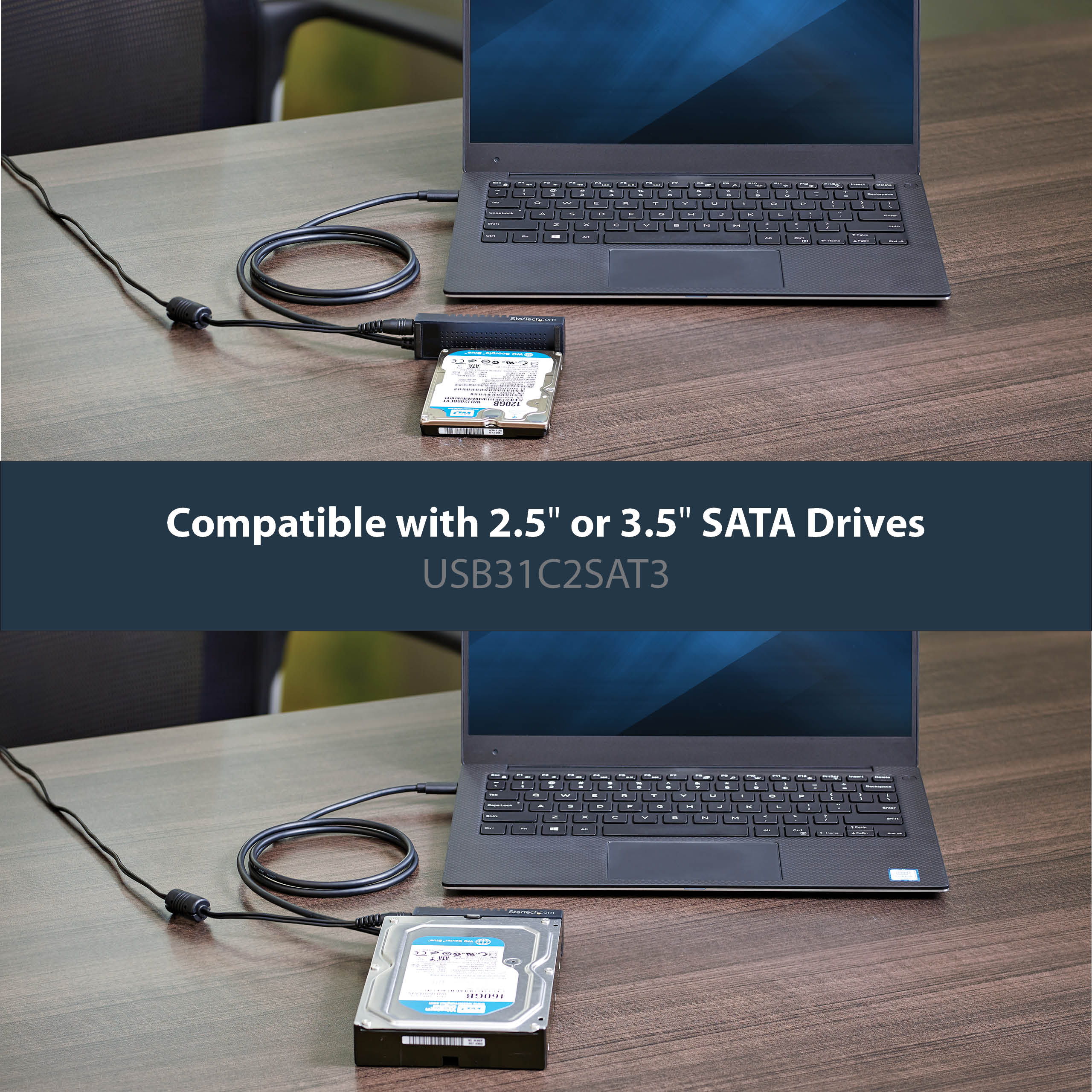

Connect a 2.5” or 3.5” SATA SSD/HDD to your USB-C enabled computer, with this USB 3.1 adapter cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB C to SATA Adapter Cable for 2 5 SSD HDDs Product Number USB31C2SAT3 UPC 065030872805 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-C Adapters Family USB to 2.5"/3.5" SATA Cable Adapter Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) USB C SATA Adapter Product Title (Short) Adapter, USB C - 2.5/3.5" SATA, USB 3.1 Product Title (Medium) USB C to SATA Adapter Cable for 2.5"/3.5" SSD/HDD Drives - USB 3.1 (10Gbps) Product Title (Standard) SATA to USB-C Cable, USB 10Gbps to 2.5in and 3.5in SATA I II III Hard Drive Adapter, Converter for SSD or HDD Data Transfer Product Title (Long) SATA to USB-C Cable, USB 10Gbps to 2.5in and 3.5in SATA I II III Hard Drive Adapter, External Converter for SSD or HDD Data Transfer Product Title (AMZ) SATA to USB-C Cable, USB 10Gbps to 2.5in and 3.5in SATA I II III Hard Drive Adapter, External Converter for SSD or HDD Data Transfer Title Ingram (Part 1) USB C to SATA Adapter Cable for Title Ingram (Part 2) 2.5"/3.5" SSD/HDDs - USB 3.1 Gen 2 Website Product Headline Connect a 2.5” or 3.5” SATA SSD/HDD to your USB-C enabled computer, with this USB 3.1 adapter cable Bullet 1 QUICKLY ACCESS A SATA SSD OR HDD: Connect to a 2.5in or 3.5in SATA SSD (solid state drive) or HDD (hard disk drive) to add storage, perform backups, create disk images, recover data, and transfer content to your laptop Bullet 2 COMPATIBILITY: USB 10Gbps interface delivers high-speed data access for modern SSDs and HDDs; Supports TRIM, 4Kn, and S.M.A.R.T. features; Note → Not compatible with optical drives such as CD, DVD, or Blu-ray readers/writers (ATAPI protocol) Bullet 3 FAST TRANSFER SPEEDS: The SATA hard drive adapter cable lets users experience enhanced performance and super-fast data transfer speeds with support for USB 10Gbps and UASP Bullet 4 UNIVERSAL POWER ADAPTER: You can connect directly to a 2.5in SATA solid-state drive (SSD) or hard drive (HDD) using USB power; The universal power adapter lets you connect to drives requiring additional power such as 3.5in drives Bullet 5 SAVE TIME: The hard drive transfer cable lets you conveniently swap between drives with no need to install the drive inside an enclosure, just plug and play into a USB-C host system; No driver-install required; OS-Independent Bullets (Compact) Connect to a 2.5in or 3.5in SATA SSD or HDD to your USB-C laptop - USB 10Gbps; UASP, TRIM, 4Kn, S.M.A.R.T - USB power for 2.5" drives; Included power adapter for 3.5" drives - Easy drive swapping - Plug and play; No driver-install; OS-Independent Bullets (Consolidated) Connect to a 2.5in or 3.5in SATA SSD or HDD to add storage, perform backups, create disk images, recover data, and transfer content to your laptop - USB 10Gbps Sata adapter supports UASP, TRIM, 4Kn, and S.M.A.R.T; Note → Not compatible with optical drives (ATAPI protocol) - USB power for 2.5in drives, or use the included power adapter for 3.5in drives - Portable hard drive USB-C adapter lets you conveniently swap between drives - Plug and play; No driver-install required; OS-Independent Marketing Copy Applications - Access any SATA 2.5 in. or 3.5 in. SSD/HDD from a USB-C enabled laptop or desktop computer, for easy data migration or drive cloning
- Ideal for technicians who need a quick, easy way to access data on 2.5 in. and 3.5 in. solid-state drives and hard drives
- Back up important data to an external storage device
- Restore your computer from a backup hard drive
- Archive media content such as photos and videos to a bare external drive
Website Search Keyword - USB C to SATA Adapter Cable
- USB C to SATA Adapter
- USB C SATA Adapter Cable
- SATA Adapter Cable
- SATA Adapter
- SATA to USB adapter
- SATA to USB adapter cable
- adapter cable
- USB 3.1 SATA Adapter Cable
- External hard drive cable
- Laptop hard drive adapter
- USB 3.1 to SATA adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
- This device does not support the ATAPI protocol, and therefore is incompatible with optical drives such as CD, DVD, or Blu-ray readers/writers.
Accessory Products - PEXUSB312A
- PEXUSB311A1C
- PEXUSB311EI
- SAT32MSAT257
- SAT32M225
- HDDCASE25BK
- HDDSLEV25
- SVA12M2NEUA
- SVA12M5NA
Related Products - USB312SAT3
- S251BMU313
- S351BU313
- SDOCK2U313
- SDOCKU313
- USB3S2SATA3
- S2510BPU33
- S2510BMU33
- SAT2510B12U3
- S2510BU3PWPS
- S3510WMU33T
- S3520BU33ER
- S3520WU33ER
- S2510BU3ISO
- S2510BU3PW
- S3510SMU33
- USB3SSATAIDE
- S3510BMU33

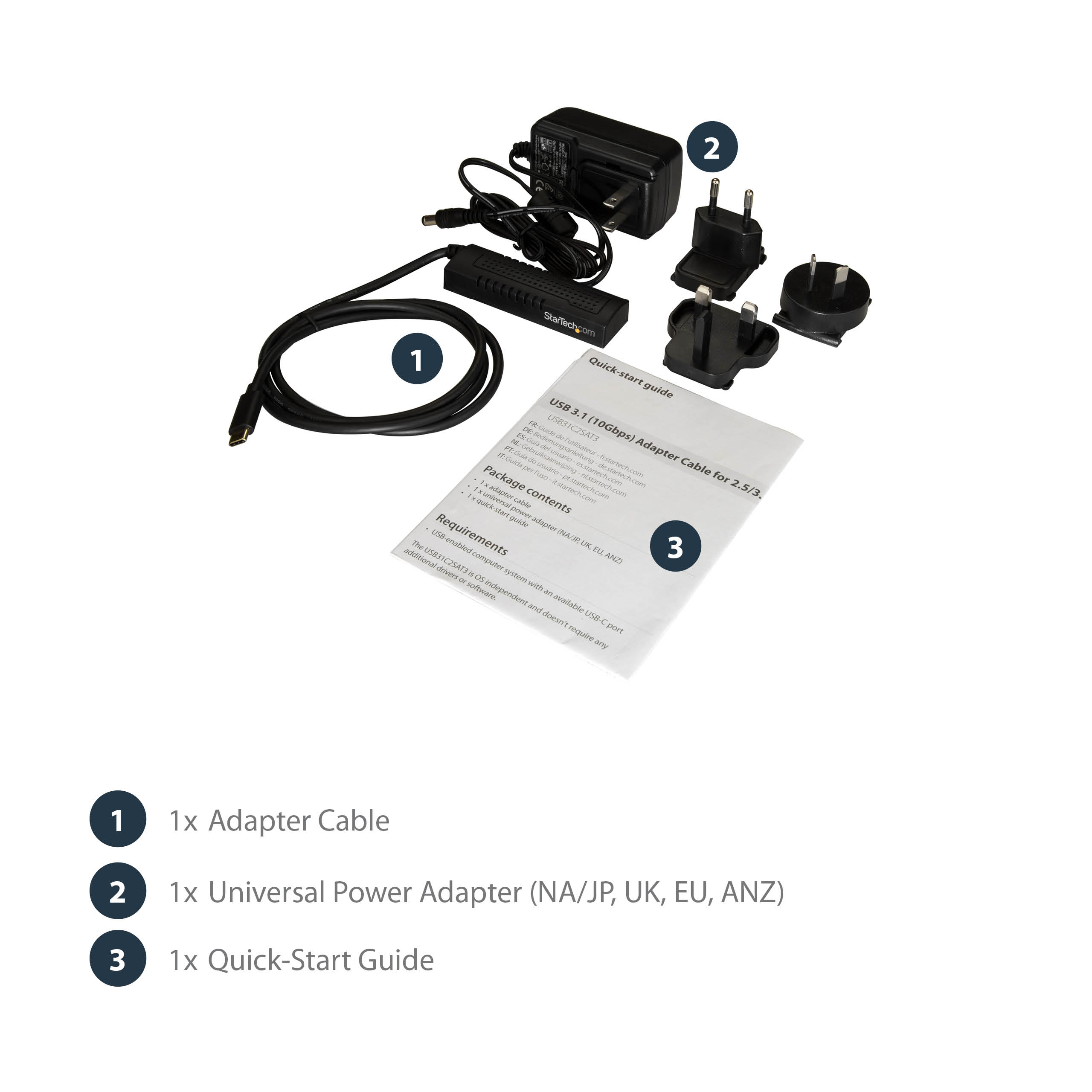

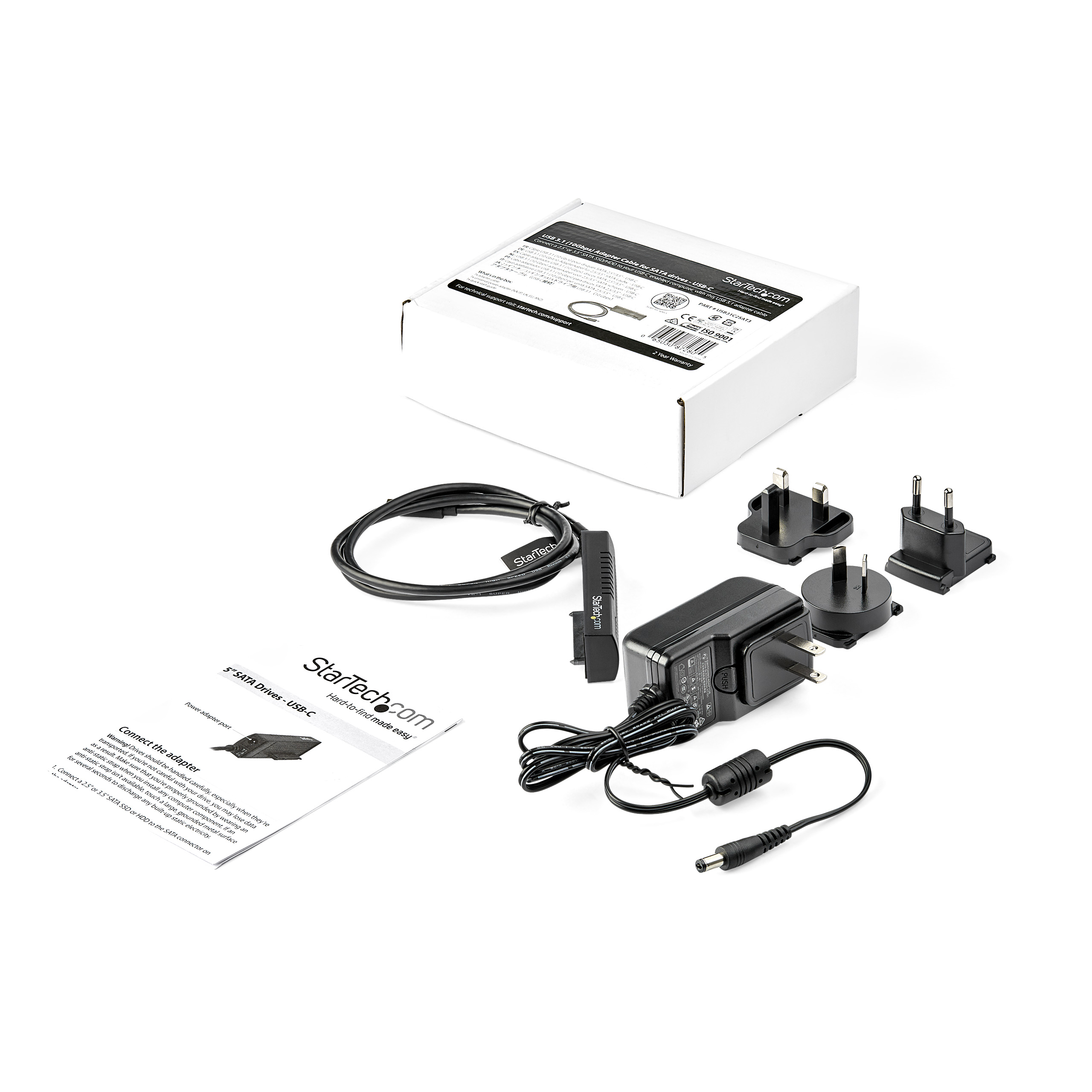

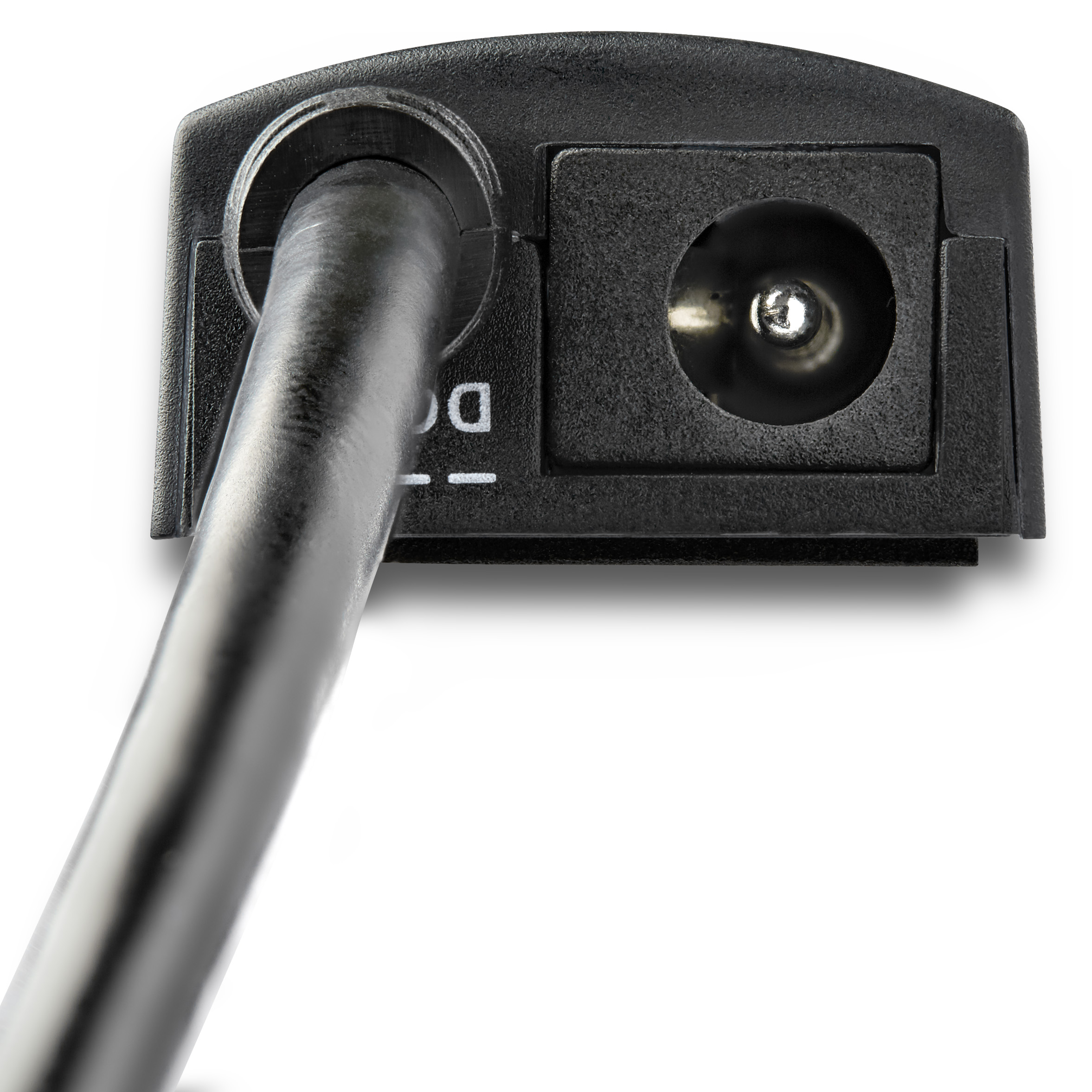

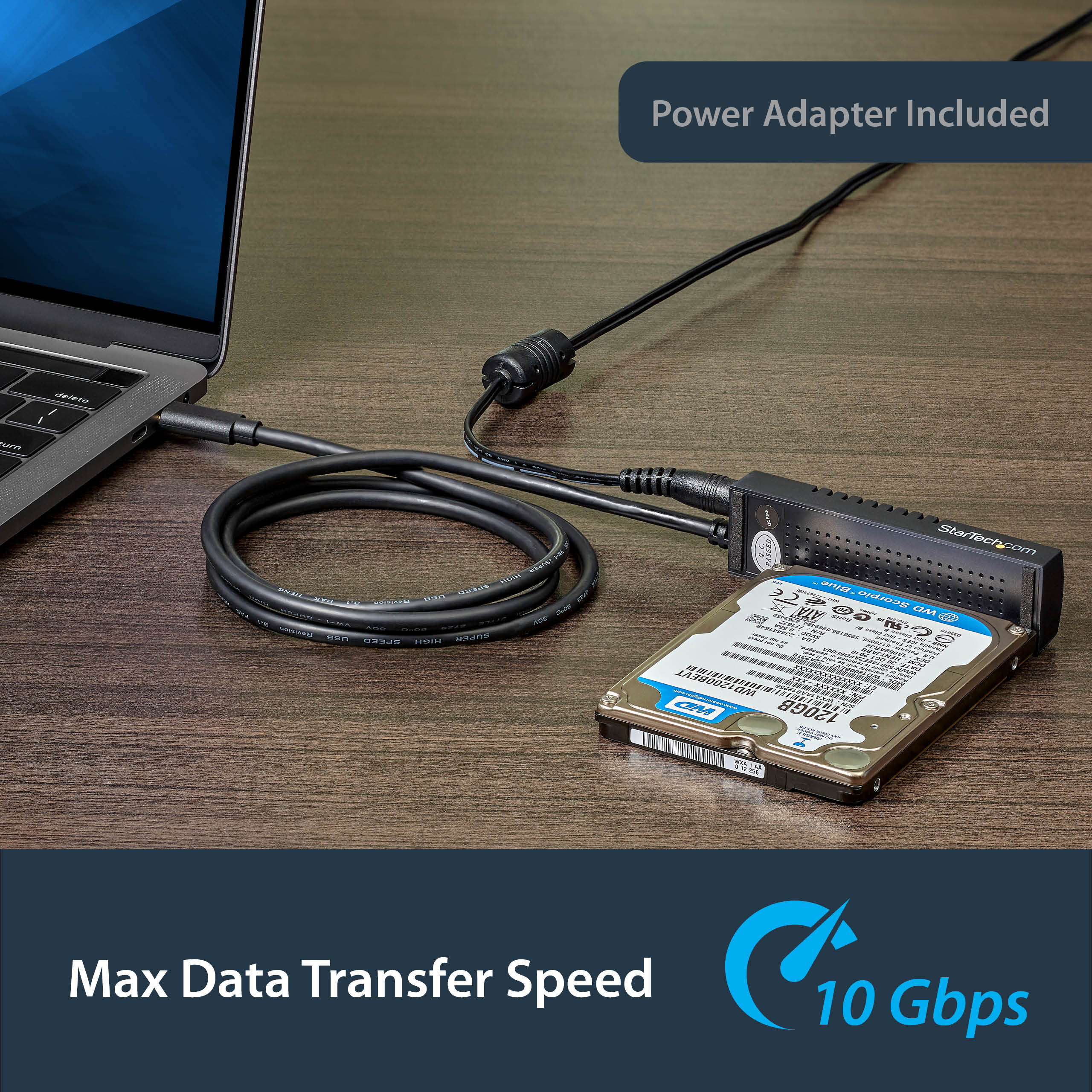

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 0% ~ 80% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 87 Product Width (mm) 25 Product Height (mm) 20 Product Weight (g) 60 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity Currently tested with hard drives up to 10TB Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power and Activity Number of Drives 1 Carton Depth (mm) 471 Carton Height (mm) 380 Carton Quantity 30 Carton Weight Gross (g) 10114 Included in Package - 1 - adapter cable
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - quick-start guide
Package Depth (mm) 145 Package Height (mm) 56 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 322 Packaging Description USB 3.1 (10Gbps) Adapter Cable for 2.5/3.5" SATA Drives - USB-C Packaging Description India USB 3.1 (10Gbps) Adapter Cable for 2.5/3.5" SATA Drives - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-04-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-06-02 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-17 Target Production Release 2017-04-13 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
