USB31CCTLKV50CM

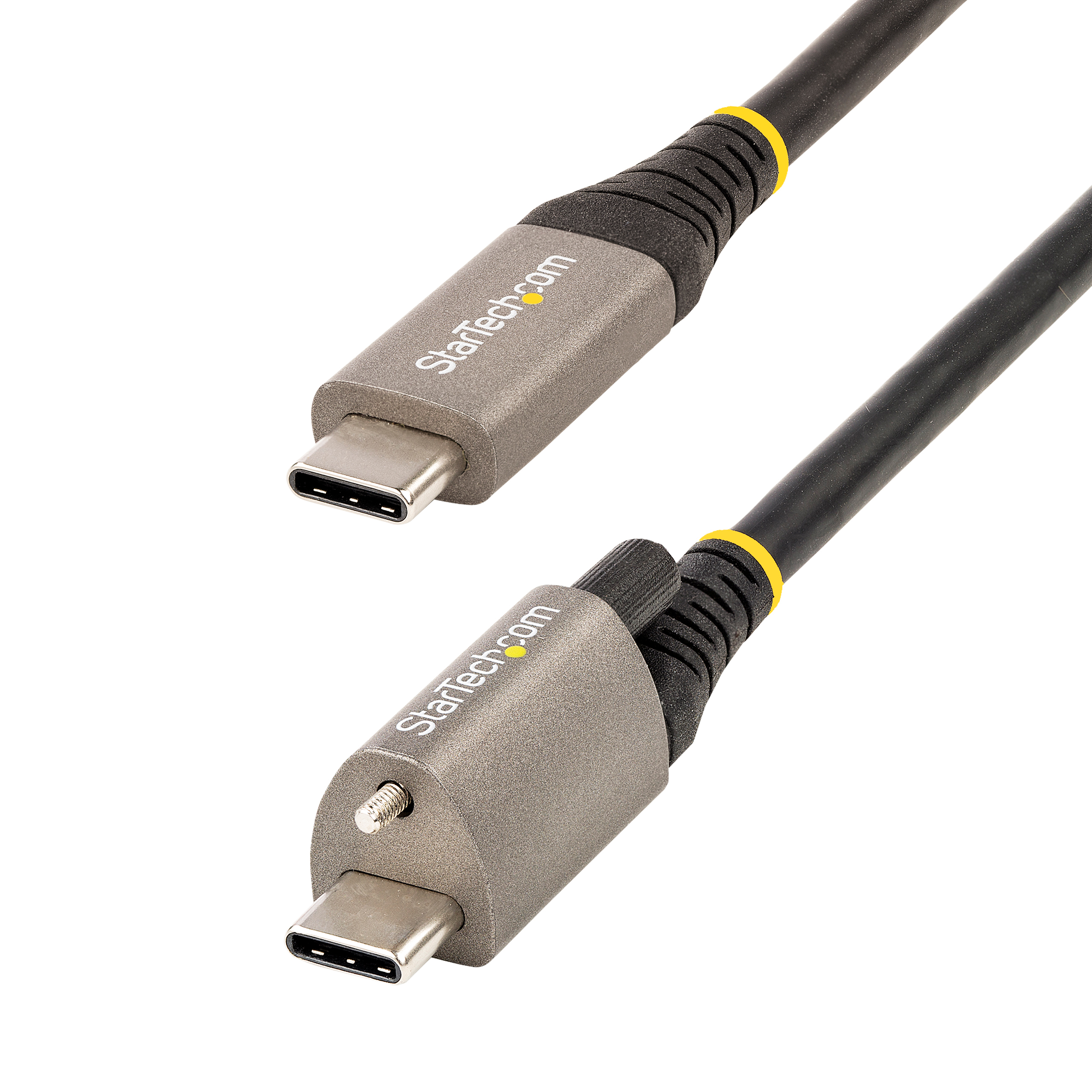

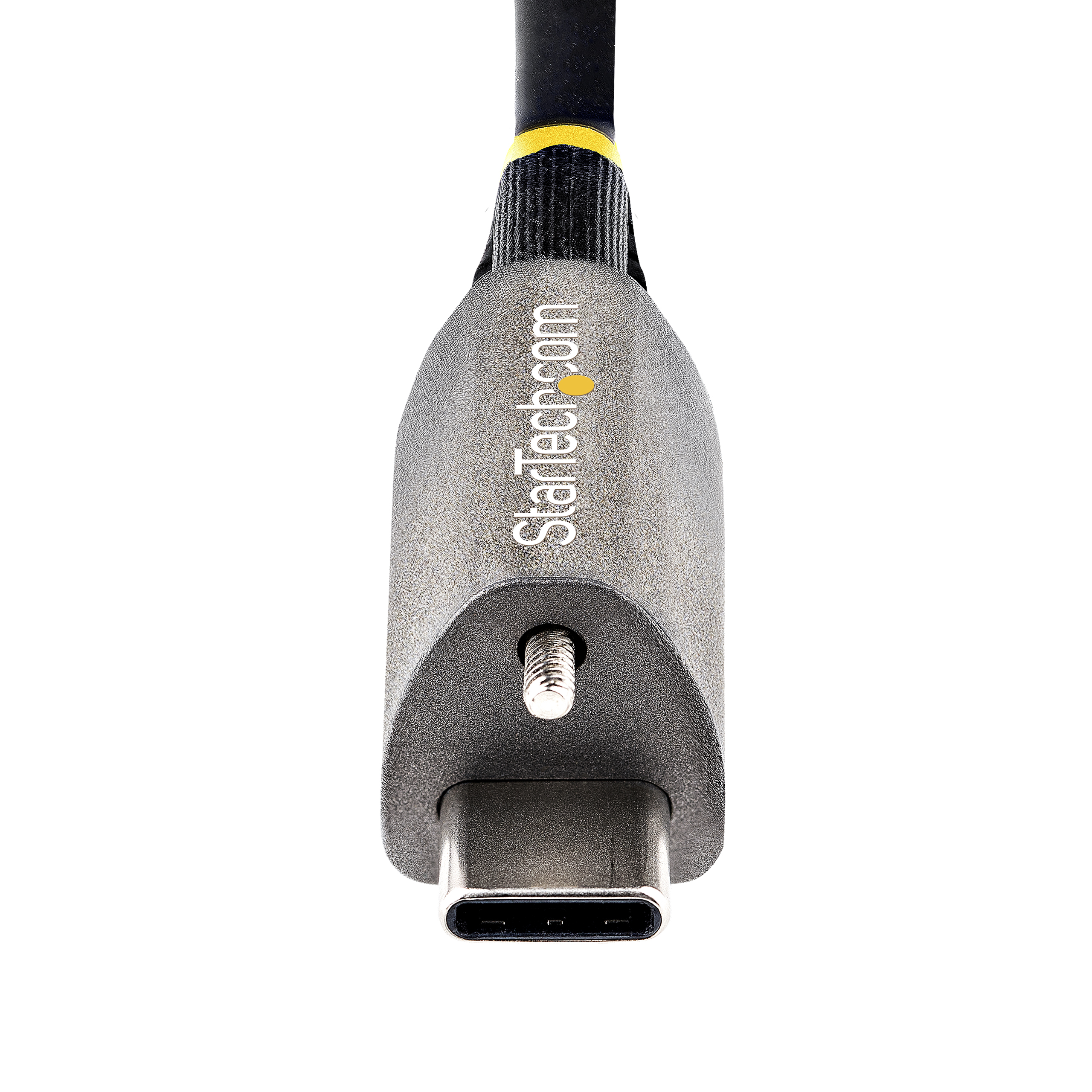

USB C to C Gen 2 10Gbps top screws locking type 50cm VB

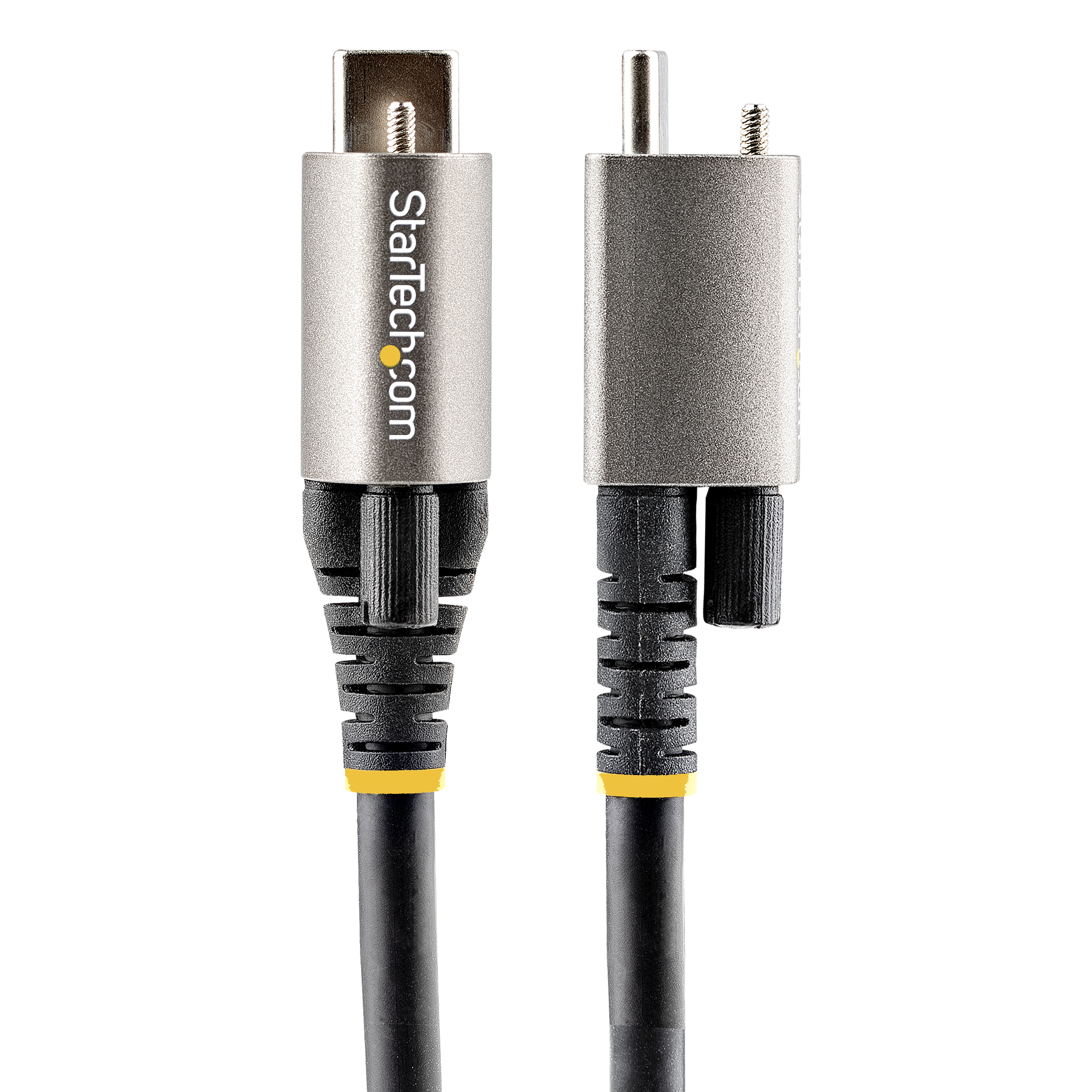

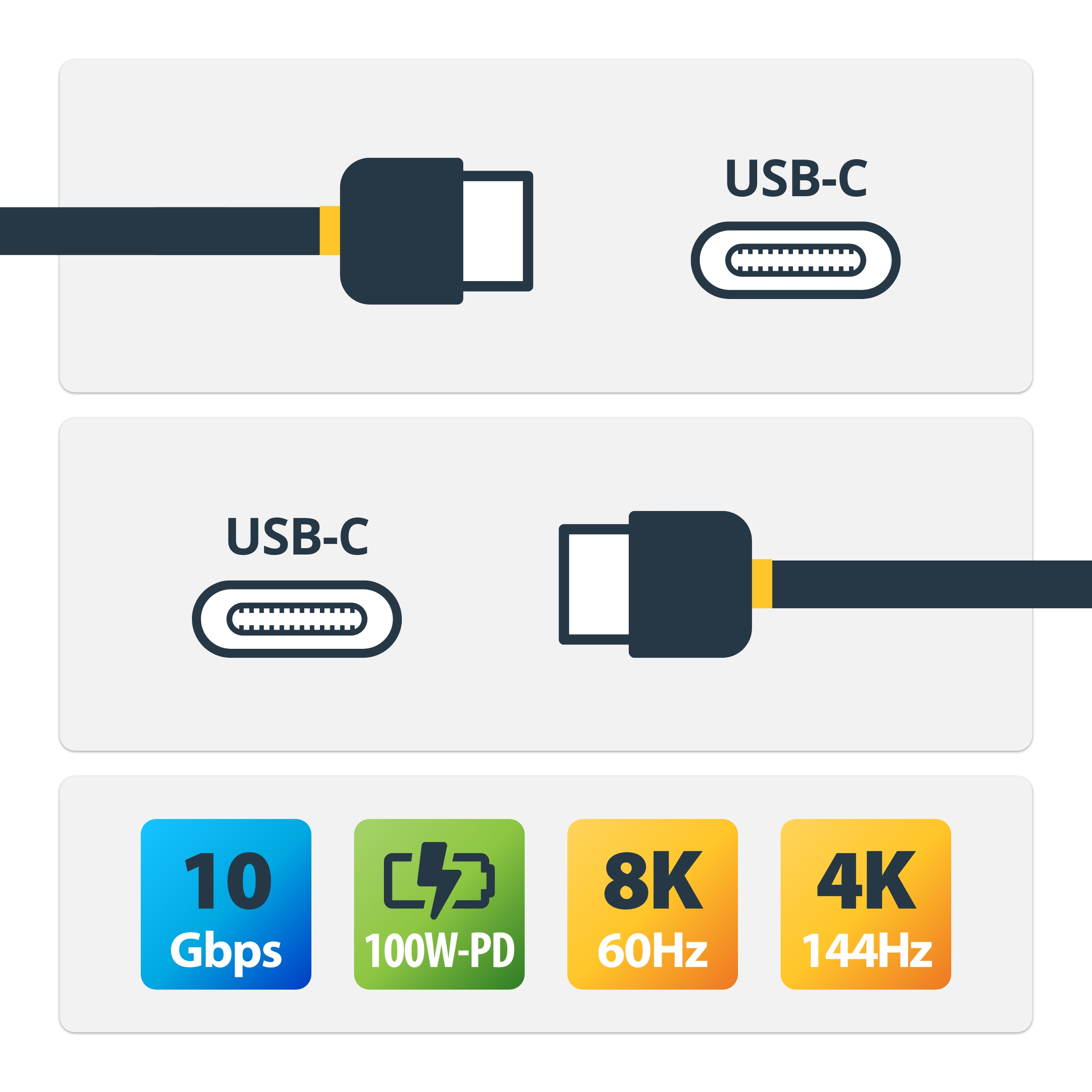

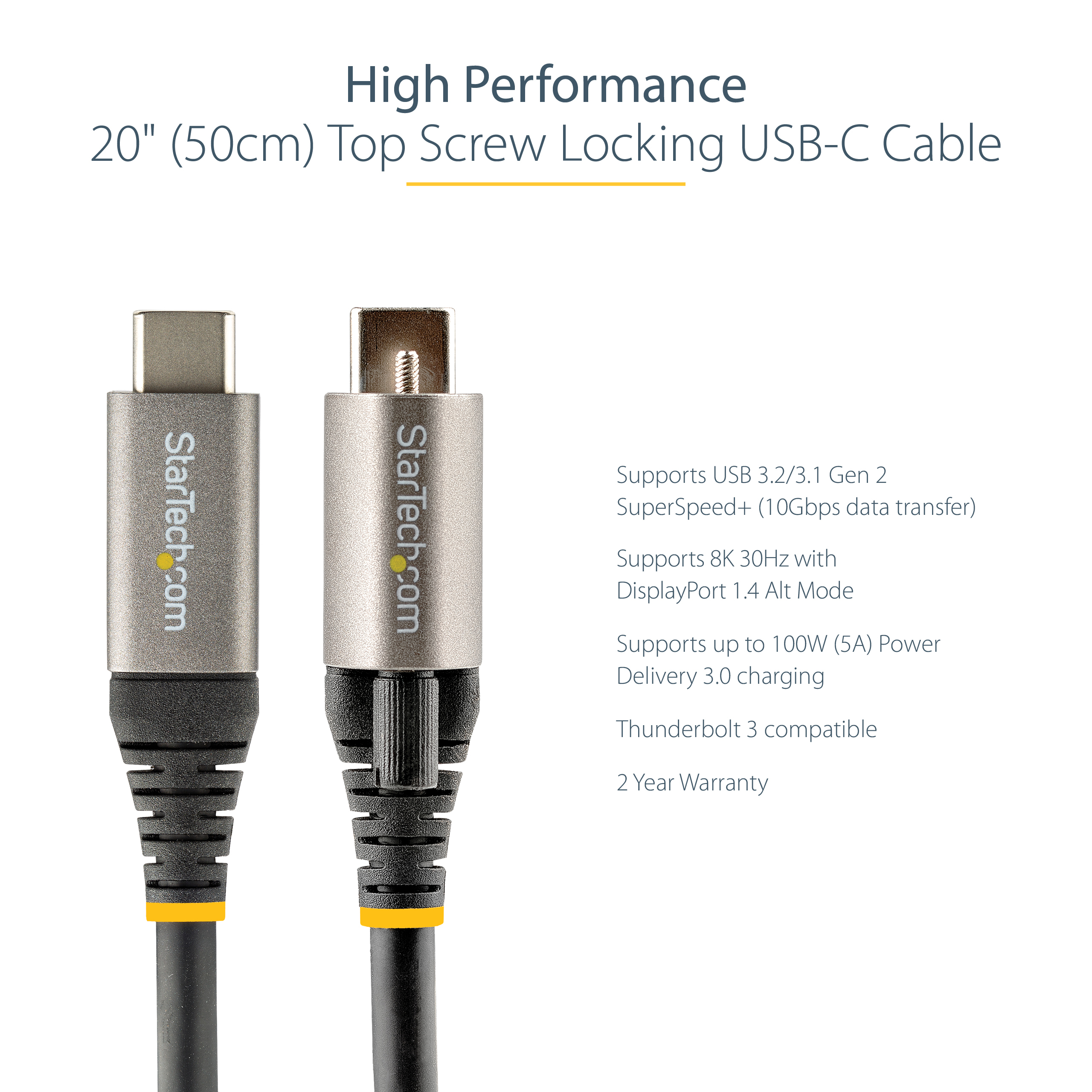

Top Screw Locking USB C Cable 10Gbps | 100W (5A) Power Delivery | DP Alt Mode
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name USB C to C Gen 2 10Gbps top screws locking type 50cm VB Product Number USB31CCTLKV50CM UPC 065030892964 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 10Gbps Family Top-Locking Cables, USB 3.2 10G / 8K60 / 100W Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX048X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX184X Product Title (Ultra-Short) 20" Locking USB C Product Title (Short) 50cm Top Screw Locking USB C Cable Product Title (Medium) 20"/50cm Top Locking USB C Cable 10Gbps - Type-C - 100W (5A) - Single Screw Product Title (Standard) 50cm (20in) USB-C Cable, Top Screw Locking, USB 10Gbps, 100W (5A) PD, 8K 60Hz / 4K 144Hz DP Alt Mode, Thunderbolt Compatible Product Title (Long) 50cm (20in) USB-C Cable, Top Screw Locking, USB 10Gbps, 100W (5A) Power Delivery, 8K 60Hz / 4K 144Hz DP Alt Mode - Thunderbolt Compatible Product Title (AMZ) 50cm (20in) USB-C Cable, Top Screw Locking, USB 10Gbps, 100W (5A) PD, 8K 60Hz / 4K 144Hz, Thunderbolt Compatible Title Ingram (Part 1) 50cm Locking USB C Cable Title Ingram (Part 2) 10Gbps - 20" Website Product Headline Top Screw Locking USB C Cable 10Gbps | 100W (5A) Power Delivery | DP Alt Mode Bullet 1 HIGH PERFORMANCE CABLE: The 20" (50cm) Top Screw Locking USB C to C cable complies with SuperSpeed USB 3.2 Gen 2 (10Gbps); USB-C cable supports DisplayPort 1.4 Alt mode up to 8K 60Hz & up to 100W (5A) Power Delivery 3.0; Thunderbolt 3 compatible Bullet 2 DURABLE BUILD: Locking USB C Cable is tested to withstand 10,000+ insertions & 4000+ bend angle of +/- 60°; Long lasting flexible TPE jacket & strain relief; TPE is non-toxic, halogen free & RoHS certified for environmental sustainability; Bullet 3 QUALITY CONSTRUCTION: 32 AWG conductors; Al-Mylar foil with 85% Braid coverage EMI Shield for improved signal integrity; M2 screw (1.2"/30.5mm long) with knurled grip for easy installation/removal; Charging USB C Cord works with USB 3.2 & earlier versions Bullet 4 APPLICATIONS: USB Type-C cable for docking stations w/ single top locking USB C port like DK31C3HDPD; Removable screw for hard drive enclosures & external storage devices; Charge a TB3/USBC workstation laptop MacBook/Surface Book/ThinkPad Bullet 5 SPECS: 20 inch (50 centimeter); USB 3.2 Gen 2 (10Gbps) data transfer; Up to 8K 60Hz, 4K 144Hz; PD 3.0, 20V (max), 5A (max); USB C Screw Locking Male to USB C Male; 0.19" (4.8 mm) Outer Diameter, 32 AWG; Jacket: TPE; EMI Shield: Al-Mylar Foil, Braid Bullets (Compact) 1.6ft/50cm Screw Locking USB-C cable - USB 10Gbps; 100W (5A) PD 3.0 charging - DP 1.2 Alt mode (8K 60Hz/4K 144Hz) - USB Type-C cable w/durable TPE jacket; Removable screw - USB C Cord for StarTech.com's DK31C3HDPD; Thunderbolt/USB-C laptop/MacBook Bullets (Consolidated) - 1.6ft/50cm Top Screw Locking USB C cable 10Gbps; USB 3.2 Gen 2; Up to 100W (5A) PD 3.0 charging; DP 1.4 Alt mode up to 8K 60Hz or 4K 144Hz - USB Type-C cable withstands 10000+ insertions/4000+ bends; Durable TPE jacket - 32 AWG; Al-Mylar foil w/85% Braid EMI Shield; M2 screw (1.2" long) - USB-C to USB-C Cable for docks w/top locking USBC port like StarTech.com DK31C3HDPD; Removable screw for external hard drive enclosures - USB-C Charge cord for Thunderbolt 3/USB-C laptop MacBook/Surface Book Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 20" usb c cable
- 50cm usb c cable
- locking usb c cable
- thunderbolt 3 usb c cable
- usb 3.1 gen 2 type c cable
- usb 3.2 gen 2 type c cable
- usb c cable 10Gbps
- usb c cable male to male
- usb c charging cable
- usb c cord
- usb c data transfer cable
- usb c screw locking
- usb c to c cable
- usb-c to usb-c cable
- amazon usb c cable
- anker usb c cable
- apple usb c cable
- asus zenscreen usb c cable
- belkin usb c
- dell usb c charging cable
- high quality usb c cable
- hp usb c charger
- ipad pro usb c cable
- macbook air usb c charger
- macbook cable
- macbook charging cable
- usb c cable for lenovo docking station
- usb c charging cable samsung
- usb c to usb c cable for macbook pro
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016

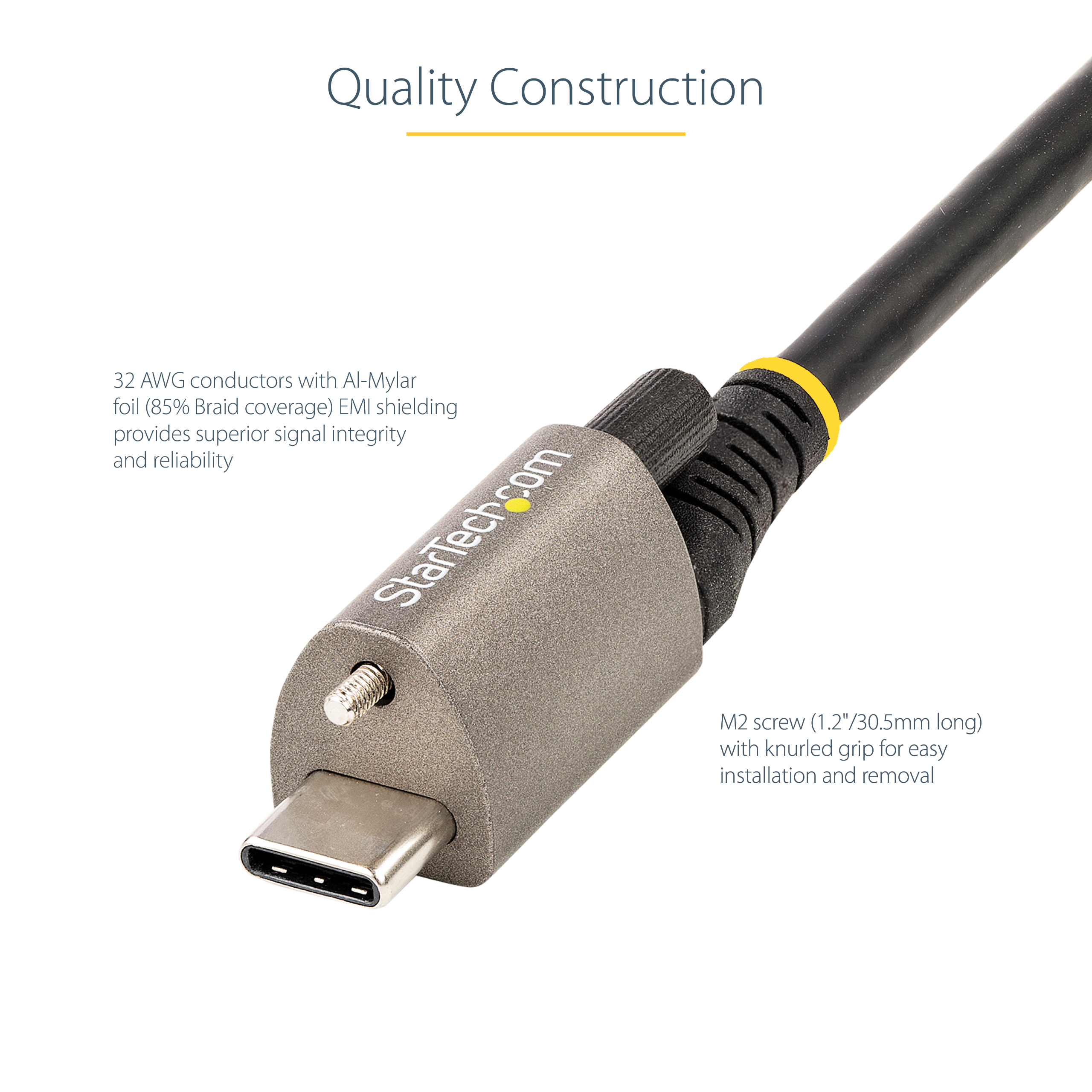

Power Delivery 100W Cable Length (mm) 500 Cable OD 4.8 Color Gray and Black Connector Style Straight Humidity 0% ~ 95% RH Operating Temperature 0°C to 80°C (32°F to 176°F) Product Length (mm) 500.000 Product Width (mm) 12.400 Product Height (mm) 13.400 Product Weight (g) 29.000 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant No Wire Gauge 30/32 AWG Maximum Cable Length (mm) 500 Maximum Data Transfer Rate 10Gbps Maximum Digital Resolutions 8K @ 60Hz USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Video Support Yes Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 380 Carton Height (mm) 290 Carton Quantity 250 Carton Weight Gross (g) 9650 Included in Package 1 - 50cm Top Screw Locking USB-C 10 Gbps Cable Included In Package for Label 1 - 50Cm Top Screw Locking USB-C 10 Gbps Cable Number of Sub-Cartons 25 Package Depth (mm) 126 Package Height (mm) 20 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 34 Packaging Description 1.6ft (50cm) USB-C Cable, Top Locking Screws, USB 20Gbps, 240W (5A) Packaging Description India 1.6ft (50cm) USB-C Cable, Top Locking Screws, USB 20Gbps, 240W (5A) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-C (10Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-04-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2021-08-19 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2021-04-01 Target Production Release 2021-04-22 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
