USB31CSAT3M2E

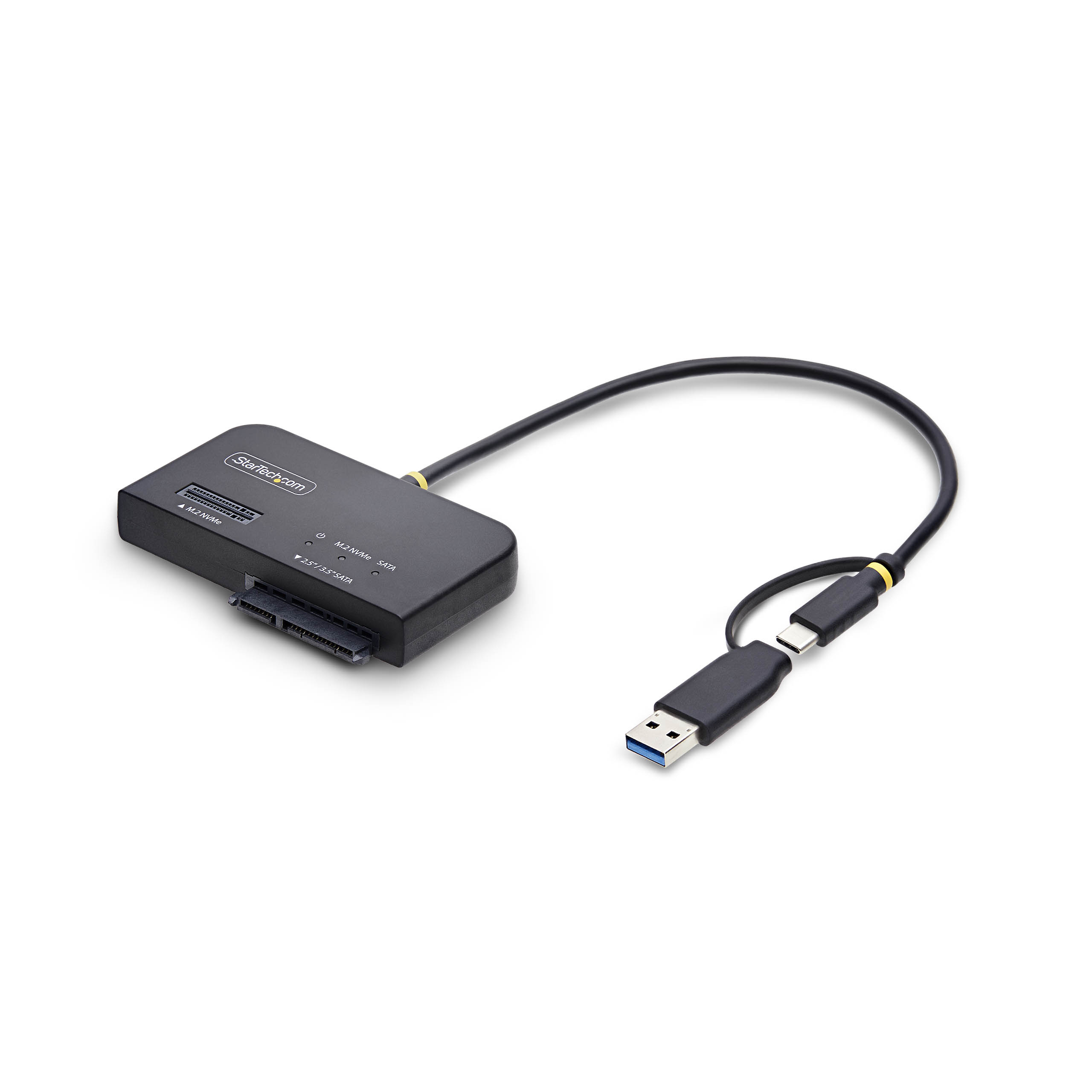

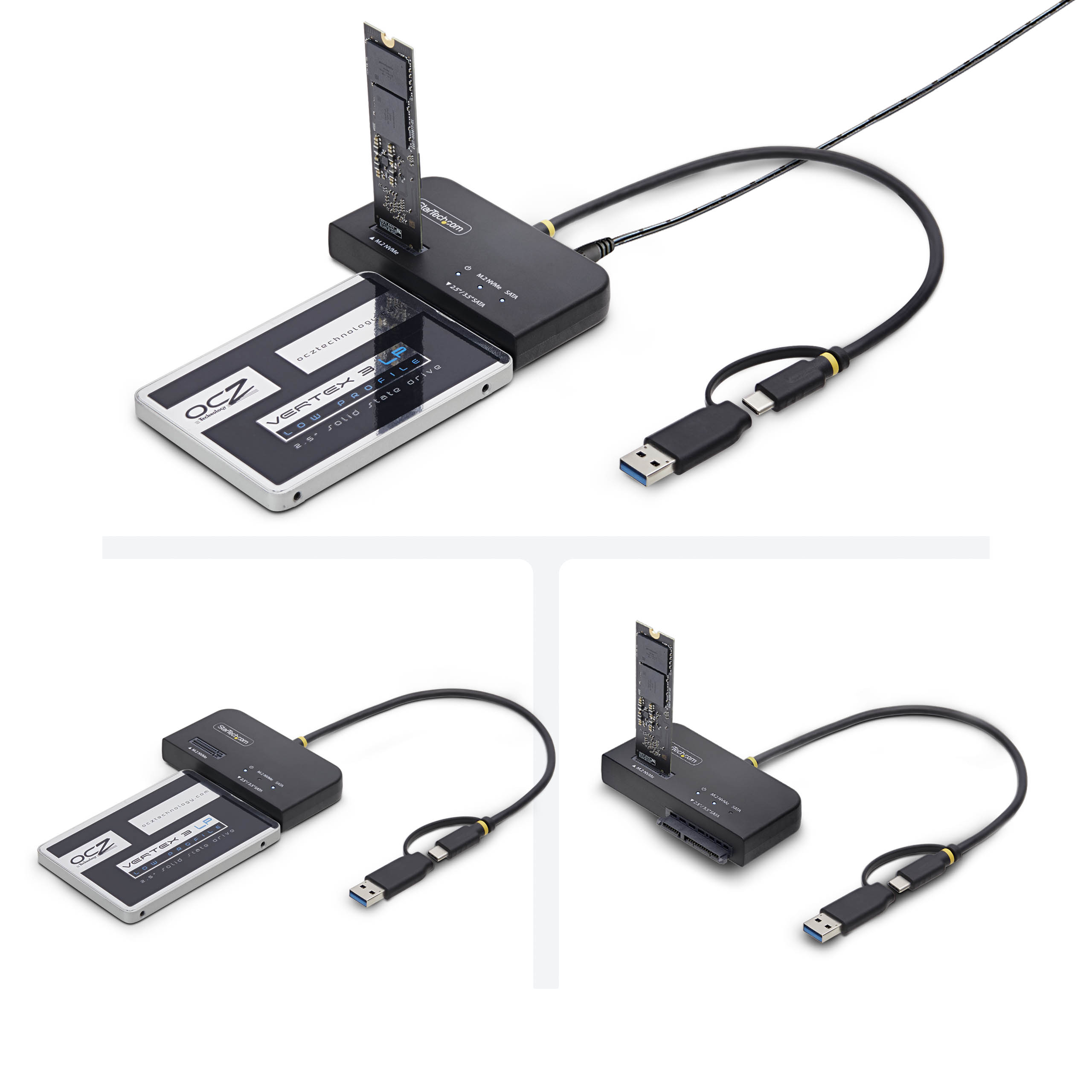

USB-C 10Gbps M.2 NVMe & SATA drive adapter
Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB-C 10Gbps M.2 NVMe & SATA drive adapter Product Number USB31CSAT3M2E UPC 065030920575 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-C Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX177X Product Title (Ultra-Short) M.2 and SATA Adapter Product Title (Short) USB to M.2 NVMe and SATA SSD Adapter Product Title (Medium) USB-C/USB-A to M.2 NVMe and 2.5/3.5in SATA Adapter, 10Gbps, External SSD Reader Product Title (Standard) USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key Product Title (Long) USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key Product Title (AMZ) USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key Title Ingram (Part 1) M.2 NVMe and SATA SSD Adapter Title Ingram (Part 2) USB-C/USB-A 10Gbps, SSD/HDD Reader Website Product Headline Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) USB-C/USB-A to NVMe and SATA adapter supports up to 10Gbps; Driverless setup for seamless compatibility across laptops/workstations; Tool-free design for quick drive access; Supports B+M/M-Key M.2 NVMe and 2.5in/3.5in SATA drives Bullets (Consolidated) Access M.2 NVMe and 2.5in/3.5in SATA drives via USB-C or USB-A at up to 10Gbps - Driverless setup for seamless compatibility - Supports B+M/M-Key M.2 NVMe and 2.5in/3.5in SATA drives including Samsung EVO/Kingston/Seagate/Western Digital/HP/Intel; NOTE: M.2 SATA not supported - Tool-free design for quick access; Bus powered w/included power adapter for high-draw drives - Perform quick backups/data transfers or disk imaging; ideal for IT pros requiring fast external SSD/HDD connectivity Marketing Copy Marketing Copy (No HTML) Applications - Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection
- Open-top M.2 slot maintains airflow for consistent performance
- Lightweight and portable, the adapter fits easily into any IT toolkit or workspace
Website Search Keyword - nvme adapter
- USB NVMe Enclosure
- USB NVMe cable
- USB to NVMe and SATA Adapter
- USB to M.2 and SATA Adapter
Required Marketing Compliance Marks FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages) Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Special Notes - Always eject the drive(s) safely through the Operating System before disconnecting. Avoid hot-swapping drives to prevent data loss or device damage.
- You can use most M.2 NVMe or 2.5in drives without connecting the universal power adapter, as the USB connection provides sufficient bus power. The included universal power adapter is required when using a 3.5in SATA drive, connecting two drives at the same time, or if your M.2 NVMe drive requires more power than the USB connection can provide.
- M.2 SATA drives are not supported

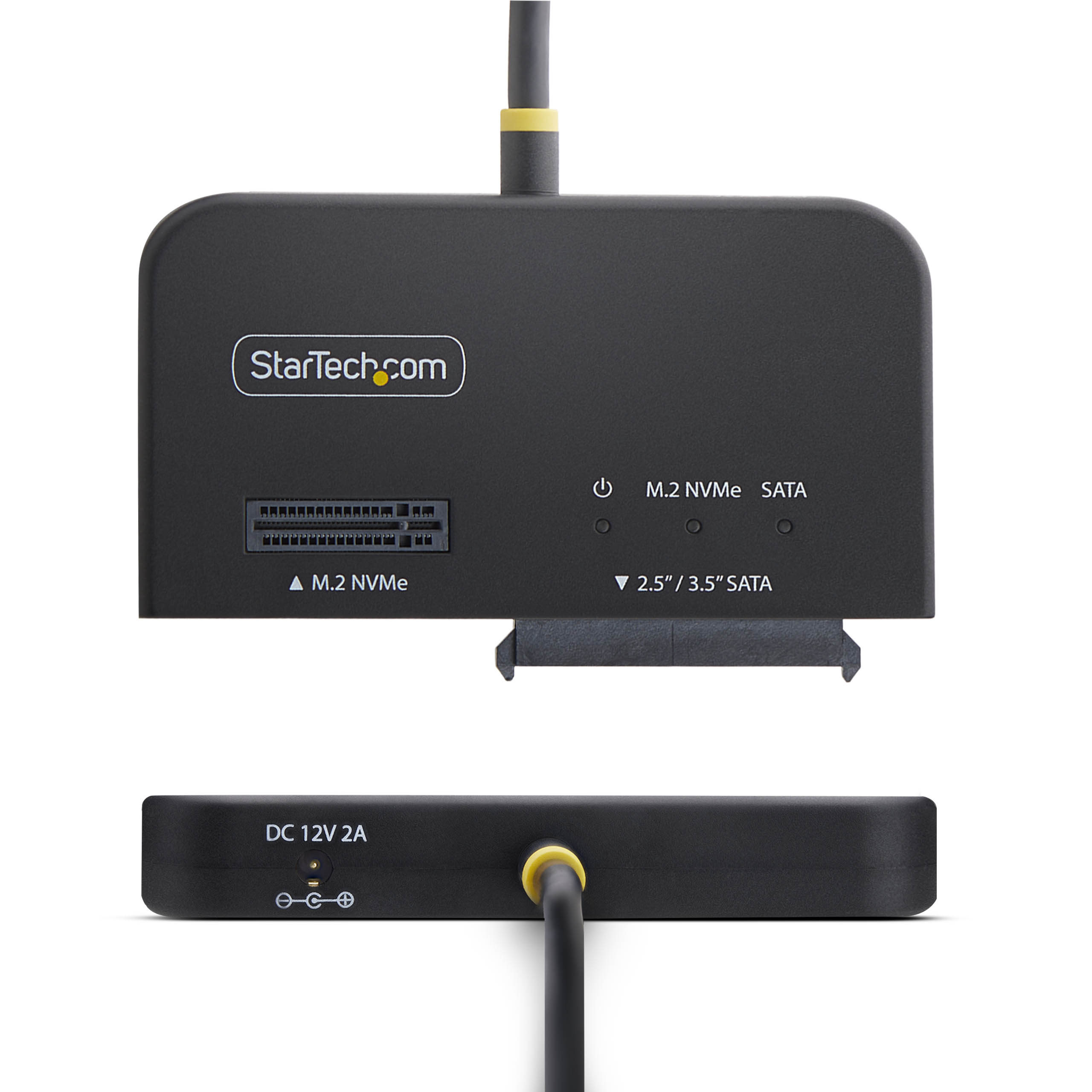

Input Current 2A Input Voltage 12V DC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type H Cable Length (mm) 300 Color Black Humidity Max 90% RH Material ABS Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 410 Product Width (mm) 88.4 Product Height (mm) 14.1 Product Weight (g) 55 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity 2 Maximum Data Transfer Rate 10 Gbps SATA Type and Rate - NVMe (PCIe Gen 4)
- SATA III (6 Gbps)

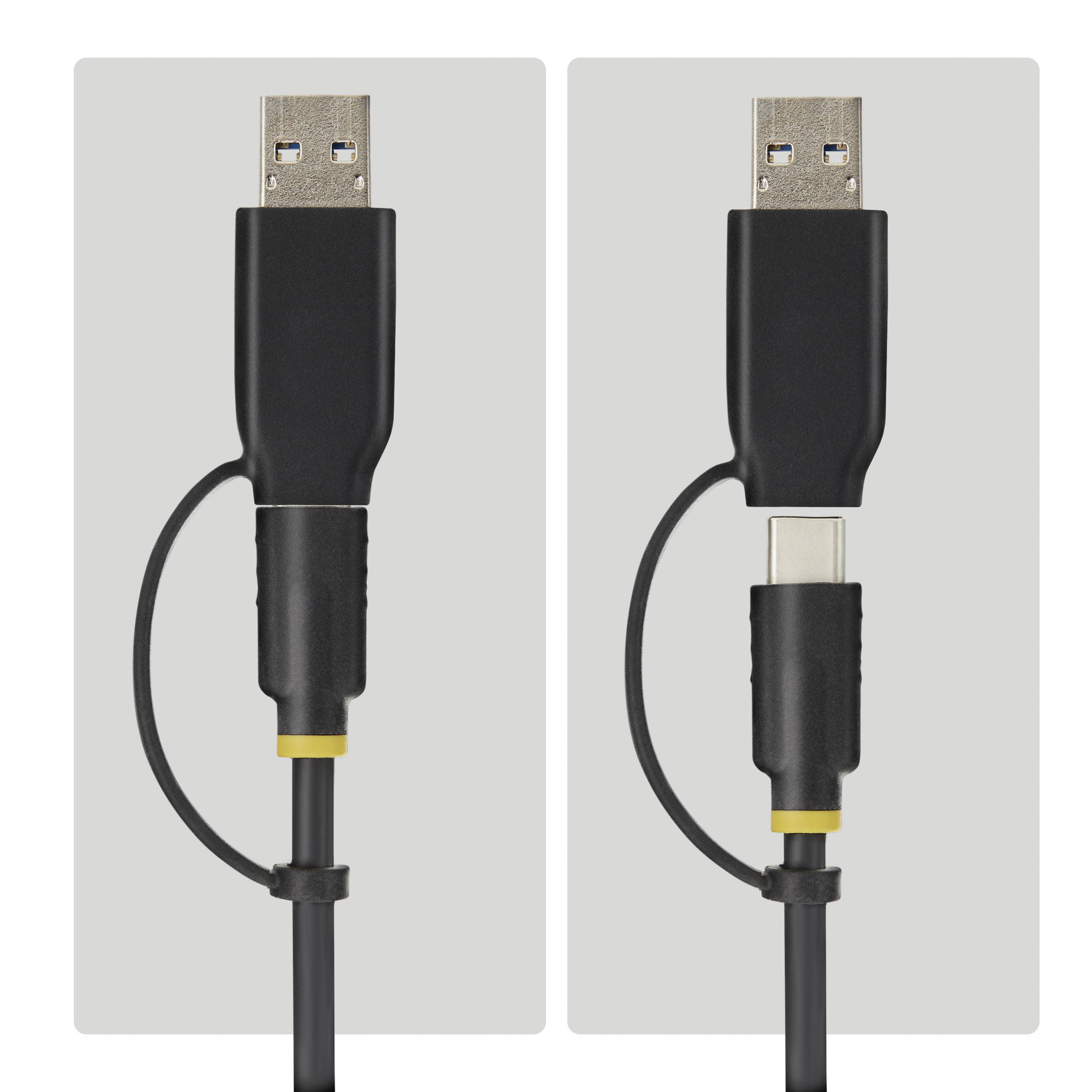

TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type - USB-C
- USB-A
Chipset ID JMicron - JMS581DC Compatible Drive Types - M.2 NVMe
- 2.5in / 3.5in SATA
Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 (10 Gbps) LED Indicators Number of Drives 2 Supported Drive Height(s) - Full Size
- 2230
- 2242
- 2260
- 2280

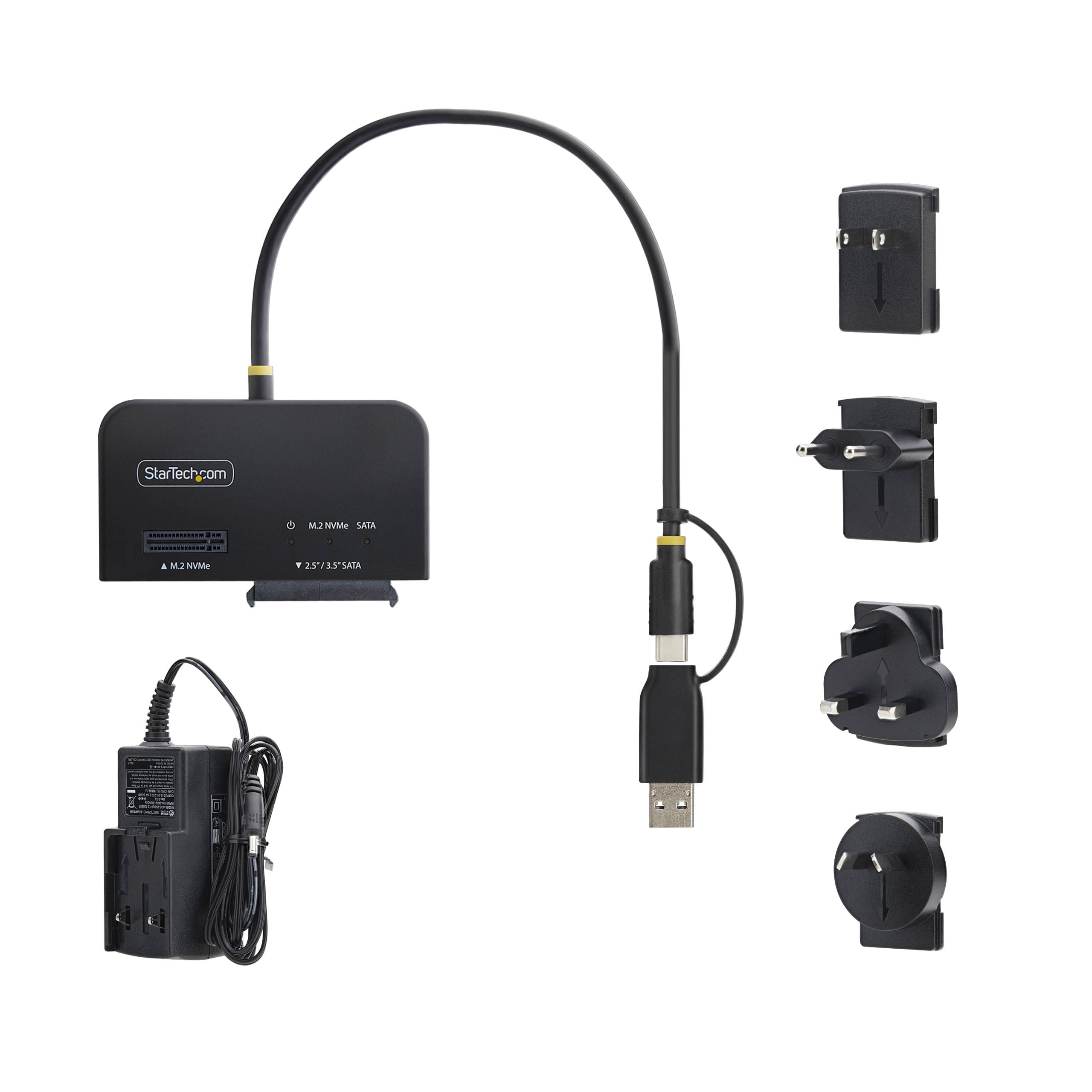

Carton Depth (mm) 400 Carton Height (mm) 275 Carton Quantity 20 Carton Weight Gross (g) 6600 Included in Package - 1 - USB to NVMe & SATA Adapter
- 1 - Universal Power Supply - NA/JP, EU, UK, ANZ
- 1 - Quick-Start Guide
Package Depth (mm) 190 Package Height (mm) 54 Package Width (mm) 123 Package Weight (g) 330 Packaging Description USB-C & USB-A to M.2 NVMe and 2.5/3.5in SATA Adapter - 10Gbps Packaging Description India USB-C & USB-A to M.2 NVMe and 2.5/3.5in SATA Adapter - 10Gbps Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 M.2 B+M-Key (PCIe, AHCI / NVMe) Connector 2 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (10Gbps, 4.5W) Host Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Veronica Ye Amazon Visual Content Level Gold Application Photos Uploaded Artwork Due Date 2025-09-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Connect a 2.5” or 3.5” SATA SSD/HDD to your USB-C enabled computer, with this USB 3.1 adapter cable Comparable SKU 2 Comment SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" or 3.5" SSD or HDD | Portable Digital Content Due Date 2025-11-05 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology - USB 3.2 Gen 2 / 10Gbps
- USB-C
Priority New Product Medium Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-07-25 Target Production Release 2025-08-01 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Video Not Required
