Main Image
USB31GEHD

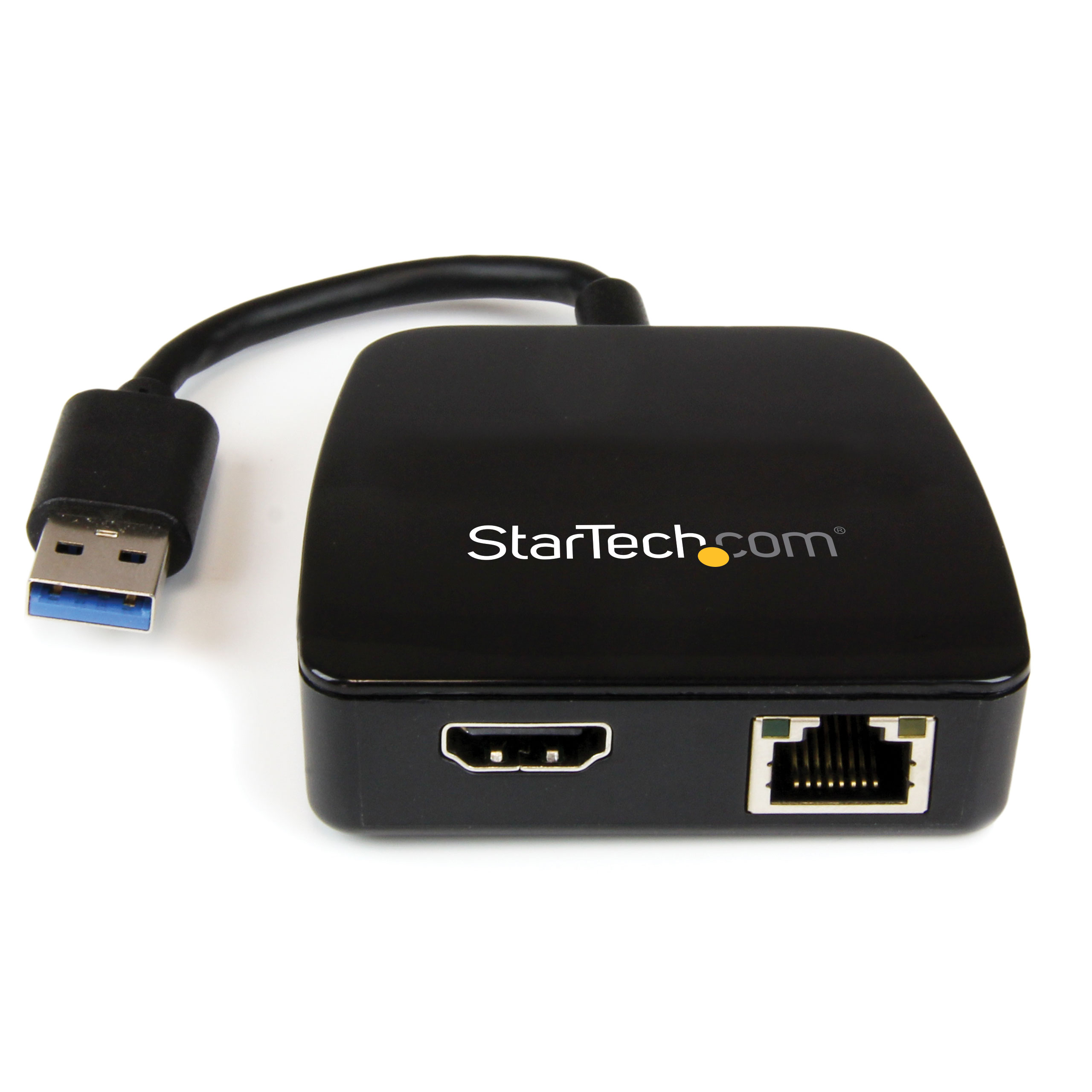

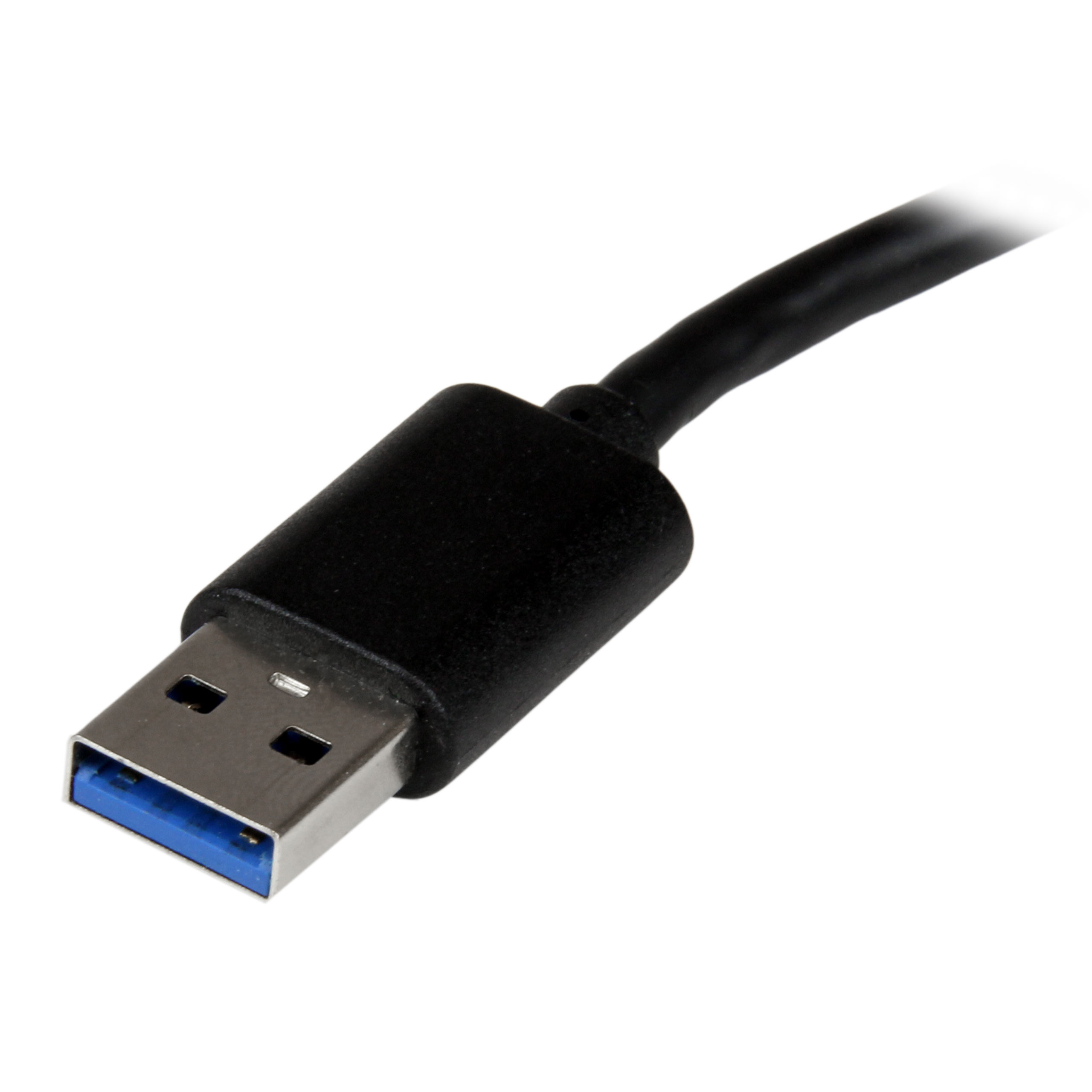

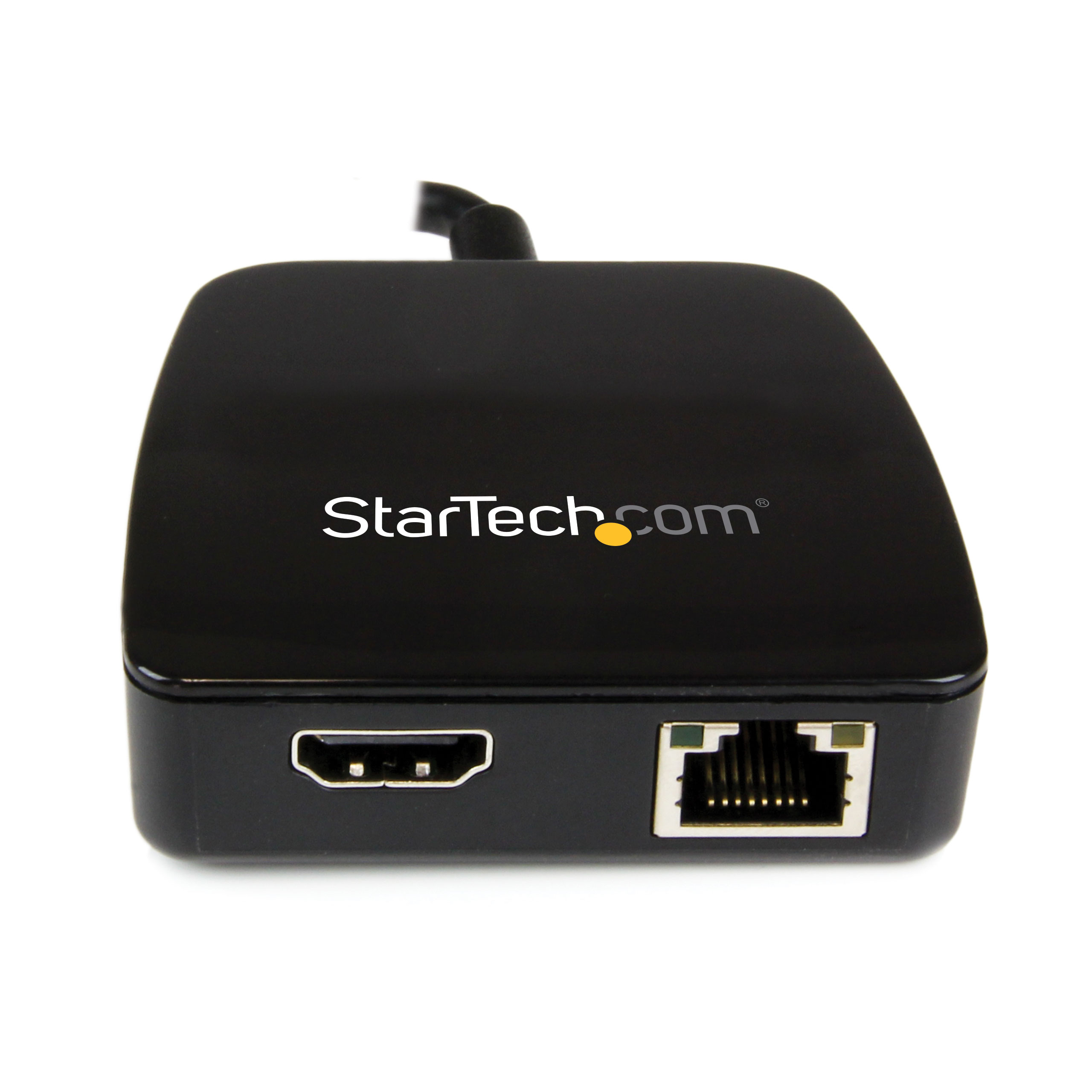

Portable Laptop Travel Adapter - USB 3 to HDMI GbE
Add a Gigabit Ethernet RJ45 port and HDMI output to your port-limited laptop, through a single USB 3.0 port
Main Image
Product Images
Product Images
BOM Image
Product Name Portable Laptop Travel Adapter - USB 3 to HDMI GbE Product Number USB31GEHD UPC 065030856751 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) Laptop Adapter HDMI Product Title (Short) Adapter, Travel, USB 3.0, HDMI + GbE Product Title (Medium) Travel Adapter for Laptops - HDMI & Gigabit Ethernet - USB 3.0 - Portable Dock Product Title (Standard) Travel Adapter for Laptops - HDMI and Gigabit Ethernet - USB 3.0 - Portable Universal Laptop Mini Docking Station Product Title (Long) Travel Adapter for Laptops - HDMI and GbE - USB 3.0 Product Title (AMZ) Travel Adapter for Laptops - HDMI and Gigabit Ethernet - USB 3.0 - Portable Universal Laptop Mini Docking Station (USB31GEHD) Title Ingram (Part 1) Portable Laptop Travel Adapter Title Ingram (Part 2) - USB 3.0 to HDMI & GbE Adapter Website Product Headline Add a Gigabit Ethernet RJ45 port and HDMI output to your port-limited laptop, through a single USB 3.0 port Bullet 1 1x 10/100/1000 Mbps Network Port, 1x HDMI Output Bullet 2 USB bus-powered - No external power adapter required Bullet 3 SuperSpeed USB 3.0 (5 Gbps) interface, backward compatible with USB 2.0 Bullet 4 Compact, slim, and lightweight design for maximum portability Bullet 5 IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible Bullets (Consolidated) Add a Gigabit Ethernet RJ45 port and HDMI output to your laptop - Travel Adapter for Laptops - HDMI and GbE - USB 3.0 - Portable Universal Laptop Mini Docking Station - Compatible with Microsoft Surface Pro 3/2/HP EliteBook Folio - Laptop Dock with Built-in Cable/Mobile USB to HDMI Adapter/USB to Ethernet - USB 3.0 dock lets you create a mobile workstation or hotdesk - Compact lightweight travel dock laptop accessory - Extended-length cable for distance flexibility/BYOD Workstation Marketing Copy Applications - Overcome connection limitations by adding two essential connection ports to your laptop
- Complete work on-the-run, an ideal travel companion for your Ultrabook™, laptop, or netbook
- Connect your laptop to a wired Gigabit network in situations where a WiFi connection isn't available, such as in classrooms, offices, and hotels
- Replace a failed built-in Ethernet port on a laptop, or upgrade to 1000Mbps Gigabit connectivity
- Add one additional display to your computer with external monitor support - check email on your laptop display while searching the web on an external monitor
- Connect to your HDMI-equipped projector and display engaging presentations or multimedia content
Website Search Keyword - usb to ethernet
- usb to hdmi
- usb to gbe
- usb 3.0 lan adapter
- mini docking station
- USB 3.0 mini docking station
- usb 3.0 laptop mini dock
- laptop mini dock
- ultrabook docking station
- portable docking station
- mobile docking station
- macbook mini dock
- travel docking station
- macbook docking station
- usb 3.0 docking station
- carbon mini dock
- lenovo mini dock
- lenovo docking station
- notebook mini dock adapter
- notebook mini docking station
- universal laptop mini docking station
- usb docking station
- docking station hdmi
- usb to gigabit hdmi
- usb to rj45 hdmi
- usb gigabit hdmi
- usb to hdmi and gigabit
- usb to gigabit and hdmi
- usb to hdmi gigabit
- usb to gigabit with video
- usb to gigabit with hdmi
- usb hdmi dongle
- usb mini dock adapter
- mini docking adapter
- usb video adapter
- usb 3 mini dock
- compact docking station
- compact mini docking station
- compact dock
- portable dock
- port replicator
- laptop accessory
- usb to gigabit
- usb gigabit
- usb hdmi gigabit
- usb gigabit ethernet hdmi
- usb to gigabit ethernet
- USB 3.0 to HDMI gigabit ethernet
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions. System and Cable Requirements USB enabled computer system with available USB 3.0 port Accessory Products - C6PATCH15BK
- C6PATCH10BK
- C6PATCH6BK
- C6PATCH6BL
- C6PATCH15BL
- C6PATCH25BL
- HDMM6
- HDMM10
- HDMM25
- USB3SEXT1MBK
- USB3SEXT6BK
- HDDVIMF8IN
- HDDVIMM3
- USB31CAADP
Related Products - USB3SDOCKHDV
- USB3SDOCKHD
- USB31000SPTB
- USB31000SPTW
- USB31000NDS
- USB32000SPT
- USB32HDES
- USB32HDEH
- USB32HDDVII
- USB32HDE
- USB31GEVG
- USB3SMDOCKV
- USB3SMDOCKHV
- USB3DOCKH2DP
Power Source USB-Powered Cable Length (mm) 111 Color Black Humidity 10-90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 65.000 Product Width (mm) 65.000 Product Height (mm) 19.000 Product Weight (g) 43.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Maximum Data Transfer Rate Maximum Digital Resolutions OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID DisplayLink - DL-3700 Industry Standards Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Link
- 1 - Activity

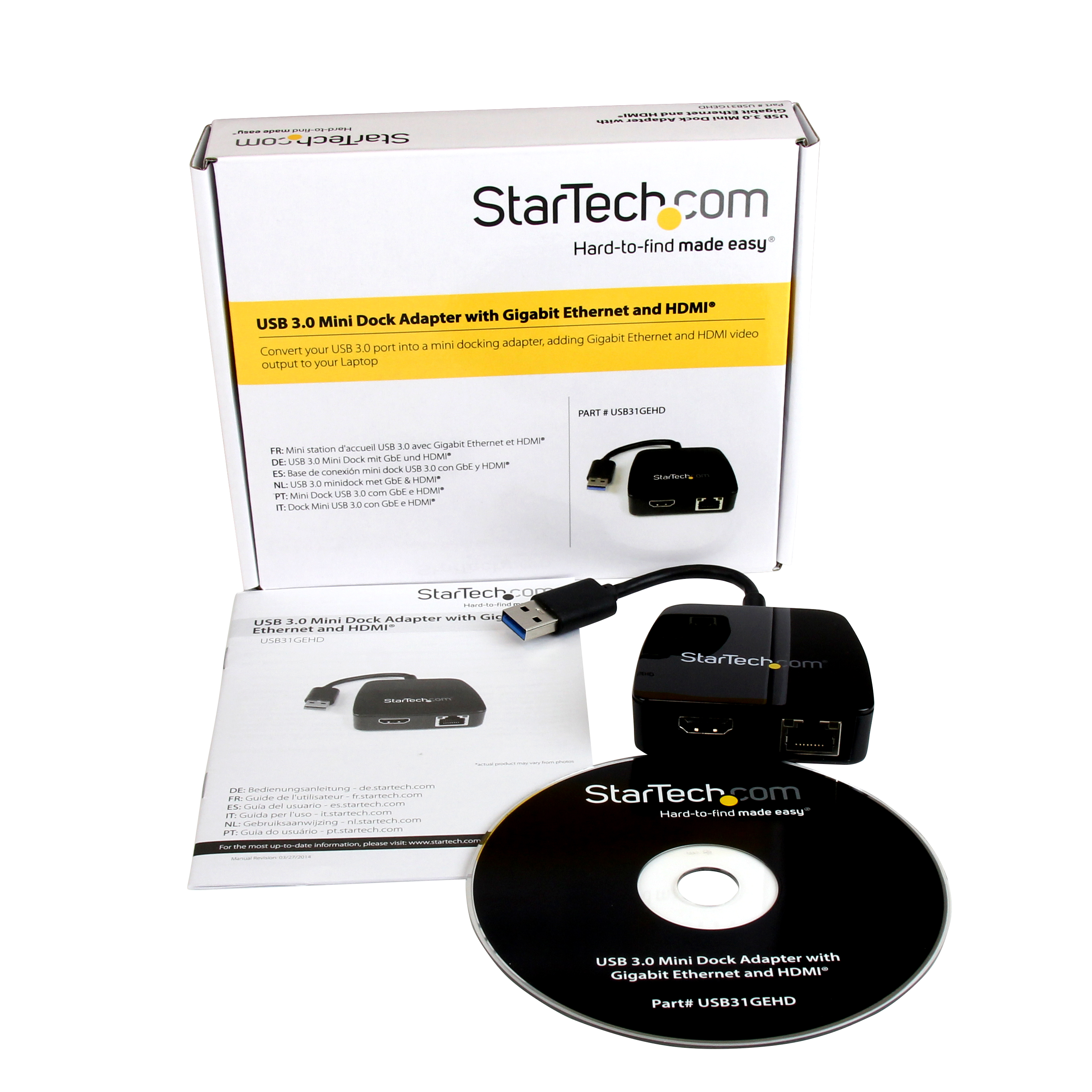

Carton Depth (mm) 335 Carton Height (mm) 316 Carton Quantity 40 Carton Weight Gross (g) 6890 Included in Package - 1 - USB 3.0 Mini Docking Adapter
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 172 Package Height (mm) 33 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 152 Packaging Description USB 3.0 Mini Dock with GbE & HDMI® Packaging Description India USB 3.0 Mini Dock with GbE & HDMI® Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-02-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None
