USB31GEVG

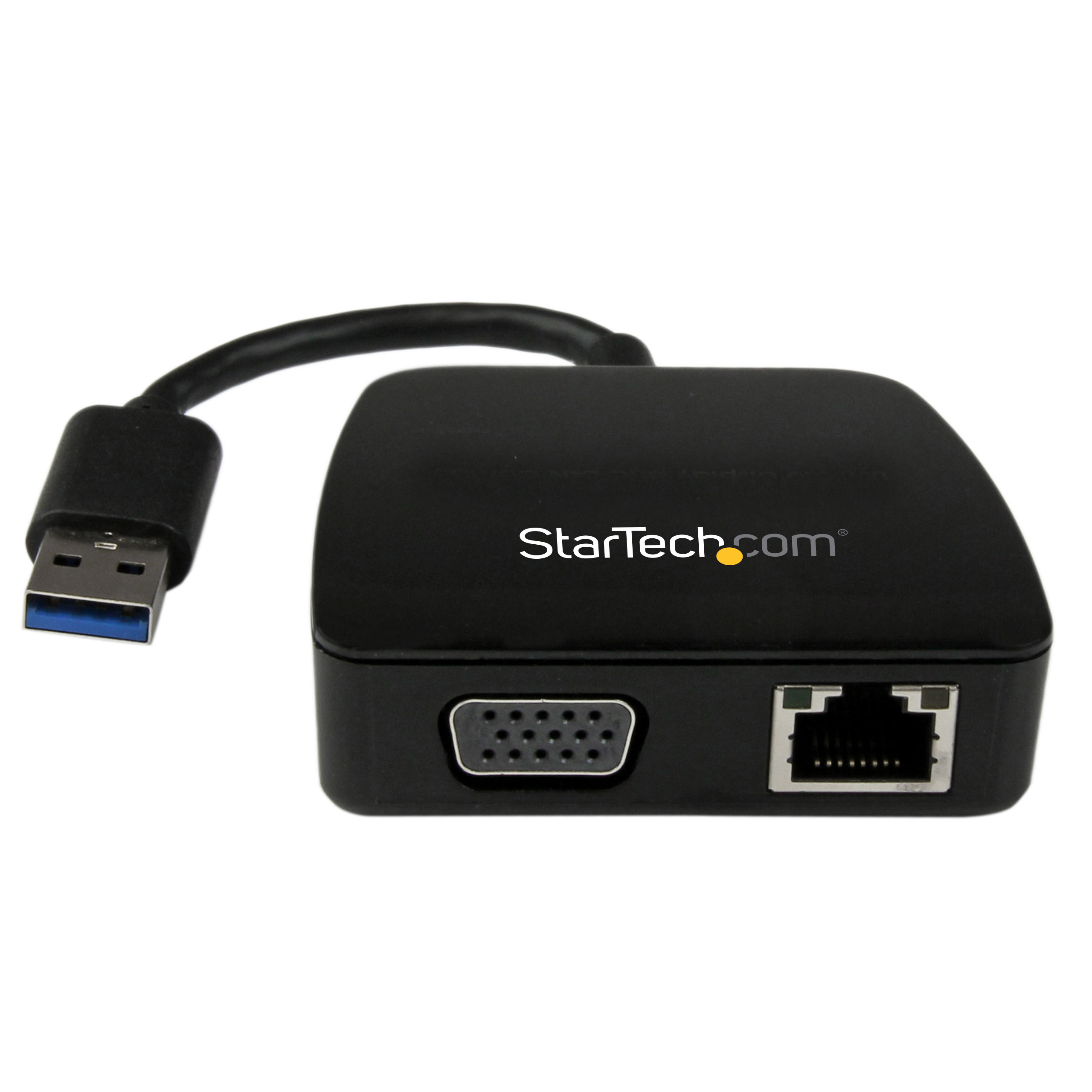

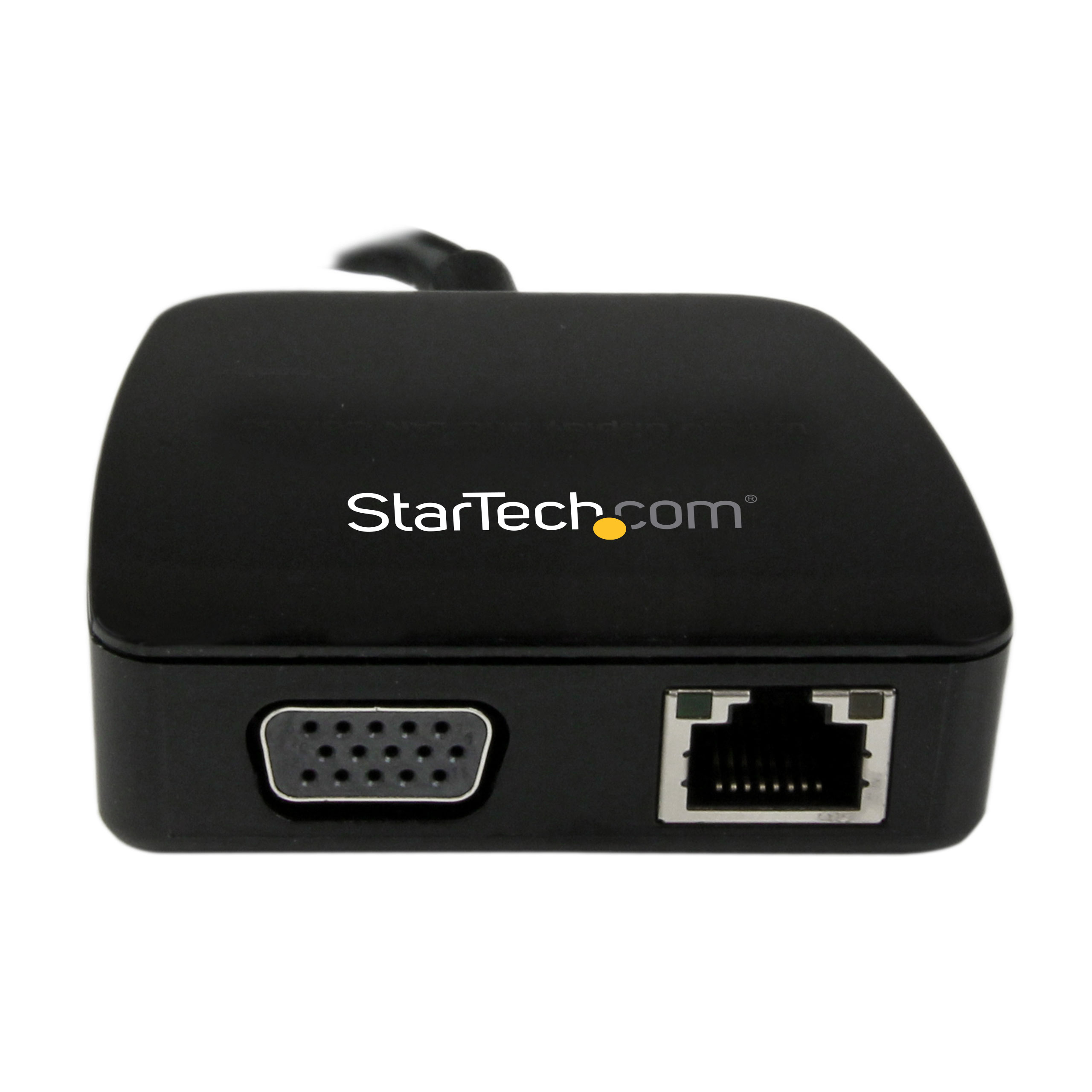

USB 3.0 to Gigabit Ethernet and VGA Combo Adapter
Add a Gigabit Ethernet RJ45 port and VGA output to your port-limited laptop, through USB 3.0
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3.0 to Gigabit Ethernet and VGA Combo Adapter Product Number USB31GEVG UPC 065030859332 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) Laptop Adapter VGA Product Title (Short) Travel Adapter for Laptops VGA GbE USB 3 Product Title (Medium) Travel Adapter for Laptops - VGA & Gigabit Ethernet - USB 3.0 - Portable Dock Product Title (Standard) Travel Adapter for Laptops - VGA and Gigabit Ethernet - USB 3.0 - Portable Universal Laptop Mini Docking Station Product Title (Long) Travel Adapter for Laptops - VGA and GbE - USB 3.0 Product Title (AMZ) Travel Adapter for Laptops - VGA and Gigabit Ethernet - USB 3.0 - Portable Universal Laptop Mini Docking Station (USB31GEVG) Title Ingram (Part 1) Portable Laptop Travel Adapter Title Ingram (Part 2) - USB 3.0 to VGA and GbE Adapter Website Product Headline Add a Gigabit Ethernet RJ45 port and VGA output to your port-limited laptop, through USB 3.0 Bullet 1 VGA output and a 10/100/1000 Mbps network port through just a single USB 3.0 connection Bullet 2 Compact and lightweight - two connection options in a travel-friendly casing designed for maximum portability Bullet 3 USB bus-powered, with built-in USB 3.0 cable - No external power adapter required Bullet 4 Hassle-free setup - Latest drivers are automatically downloaded in Windows® systems when an active network connection is present Bullet 5 Gigabit Ethernet RJ45 port - IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible Bullets (Consolidated) Add a Gigabit Ethernet RJ45 port and VGA output to your laptop - Travel Adapter for Laptops - VGA and GbE - USB 3.0 - Portable Universal Laptop Mini Docking Station - Compatible with Microsoft Surface Pro 3/2/HP EliteBook Folio - Laptop Dock with Built-in Cable/Mobile USB to VGA Adapter/USB to Ethernet - USB 3.0 dock lets you create a mobile workstation or hotdesk - Compact lightweight travel dock laptop accessory - Extended-length cable for distance flexibility/BYOD Workstation Marketing Copy Applications - Work from your Ultrabook or laptop easily, while you’re on the run or on the road, by adding essential connectivity options
- Use your Ultrabook or laptop as a multi-display workstation, through external monitor support, and run multiple applications on different screens
- Add an extra display as well as wired Gigabit network access to your slimline laptop
- Connect to your VGA-equipped projector and display multimedia content at home, or engaging presentations in boardrooms
- Connect your laptop to a wired Gigabit network in situations where a WiFi connection isn't available, such as in classrooms, and offices
Website Search Keyword - mini docking station
- USB 3.0 mini docking station
- usb 3.0 laptop mini dock
- laptop mini dock
- ultrabook docking station
- portable docking station
- mobile docking station
- macbook mini dock
- travel docking station
- macbook docking station
- usb 3.0 docking station
- carbon mini dock
- lenovo mini dock
- lenovo docking station
- notebook mini dock adapter
- notebook mini docking station
- universal laptop mini docking station
- usb docking station
- docking station vga
- usb to vga gigabit
- usb to gigabit with video
- usb to gigabit with vga
- usb to gigabit and vga
- usb vga dongle
- usb mini dock adapter
- mini docking adapter
- usb video adapter
- usb 3 mini dock
- usb to gigabit vga
- usb to vga
- compact docking station
- compact mini docking station
- compact dock
- portable dock
- port replicator
- laptop accessory
- usb gigabit vga
- usb to gigabit
- usb gigabit
- usb vga gigabit
- usb gigabit ethernet vga
- usb vga gigabit ethernet
- usb to gigabit ethernet
- USB 3.0 to vga
- USB 3.0 to vga gigabit ethernet
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions. System and Cable Requirements USB enabled computer system with available USB 3.0 port Accessory Products - C6PATCH6BK
- C6PATCH10BK
- C6PATCH15BK
- C6PATCH6BL
- C6PATCH15BL
- C6PATCH25BL
- USB3SEXT1MBK
- USB3SEXT6BK
- MXT101MMHQ3
- MXT101MMLP6
- MXT101MMLP15
- DVIVGAFMBK
- USB31CAADP
Related Products - USB31GEHD
- USB3SMDOCKV
- USB3SMDOCKHV
- USB3SDOCKDD
- USB32VGAEH3
- ST3300GU3B
- USB31000SPTB
- USB3DDOCKFT
Power Source USB-Powered Cable Length (mm) 111 Color Black Humidity 10-90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 65 Product Width (mm) 65 Product Height (mm) 19 Product Weight (g) 48 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Maximum Analog Resolutions Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- Chrome OS
- macOS High Sierra (10.13)
- Mac OS X Yosemite (10.10)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID DisplayLink - DL-3700 Industry Standards Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Link
- 1 - Activity

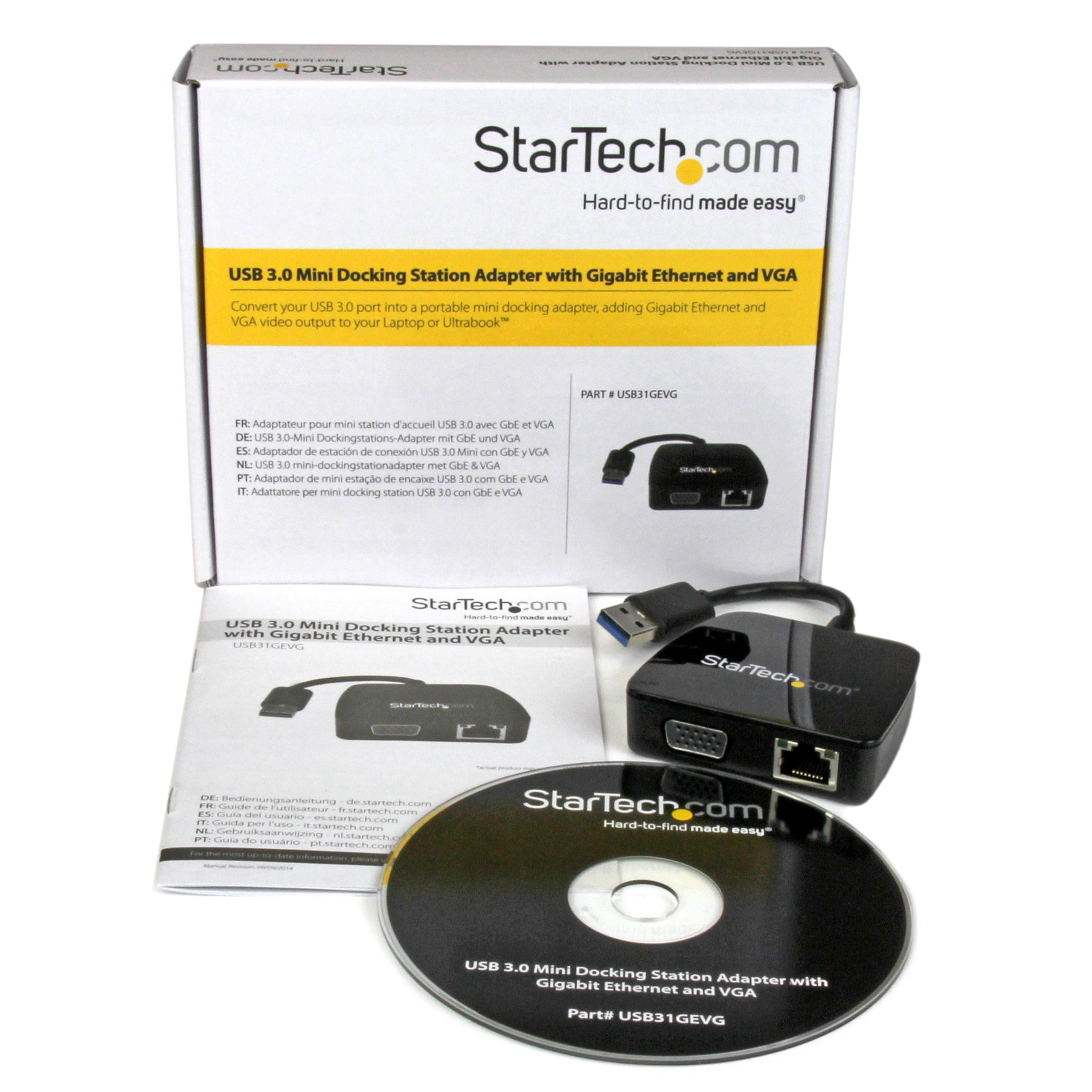

Carton Depth (mm) 334 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 6990 Included in Package - 1 - USB 3.0 Mini Docking Station Adapter
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 145 Package Height (mm) 32 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 166 Packaging Description USB 3.0 Mini Docking Station Adapter w/ GbE & VGA Packaging Description India USB 3.0 Mini Docking Station Adapter w/ GbE & VGA Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-07-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None
