USB32DP4K

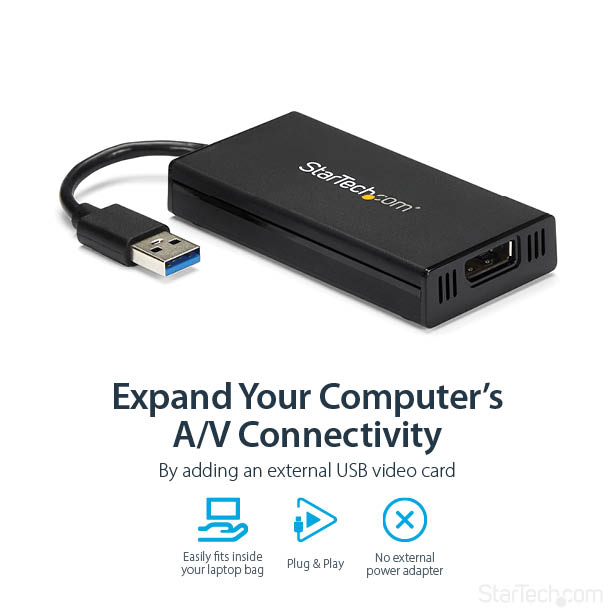

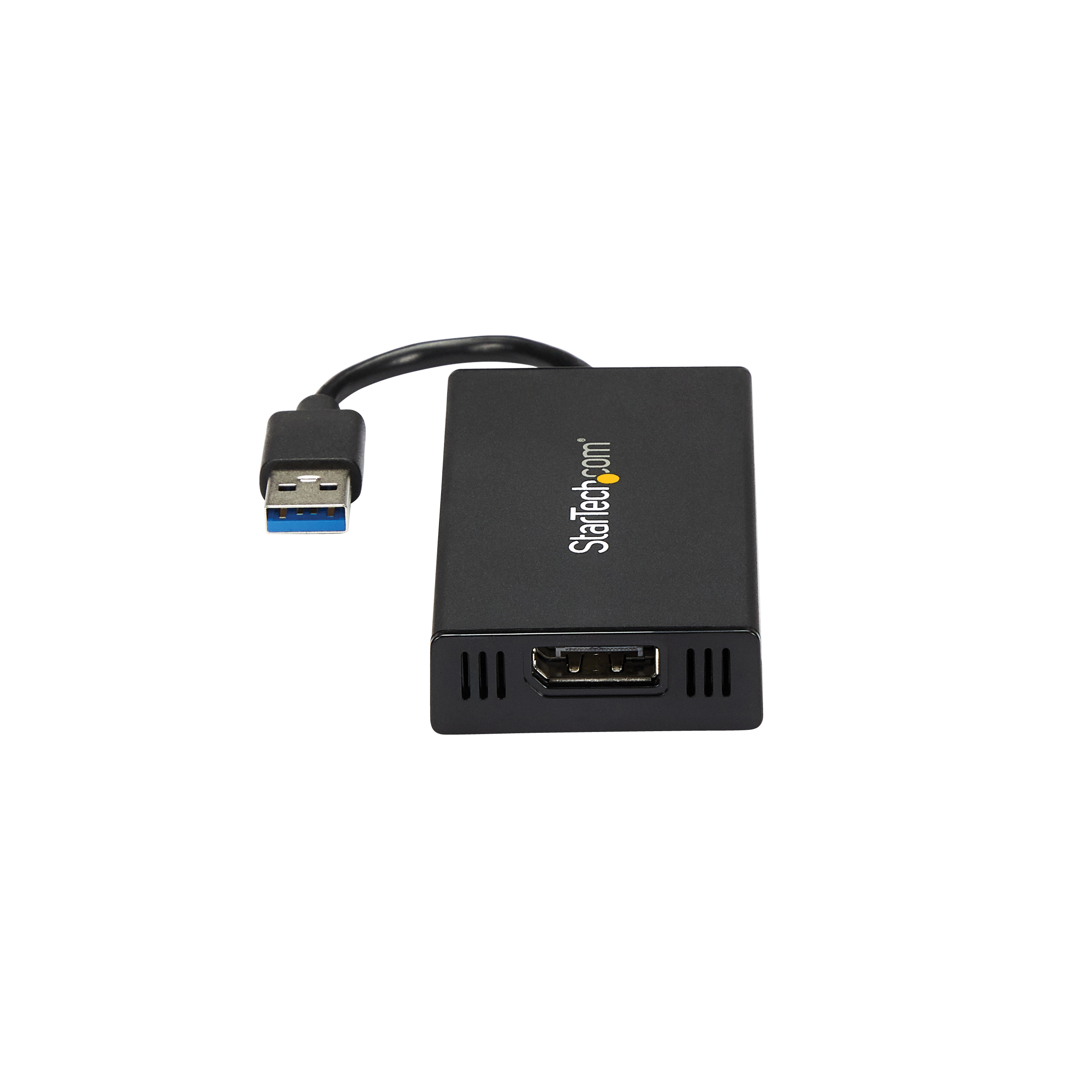

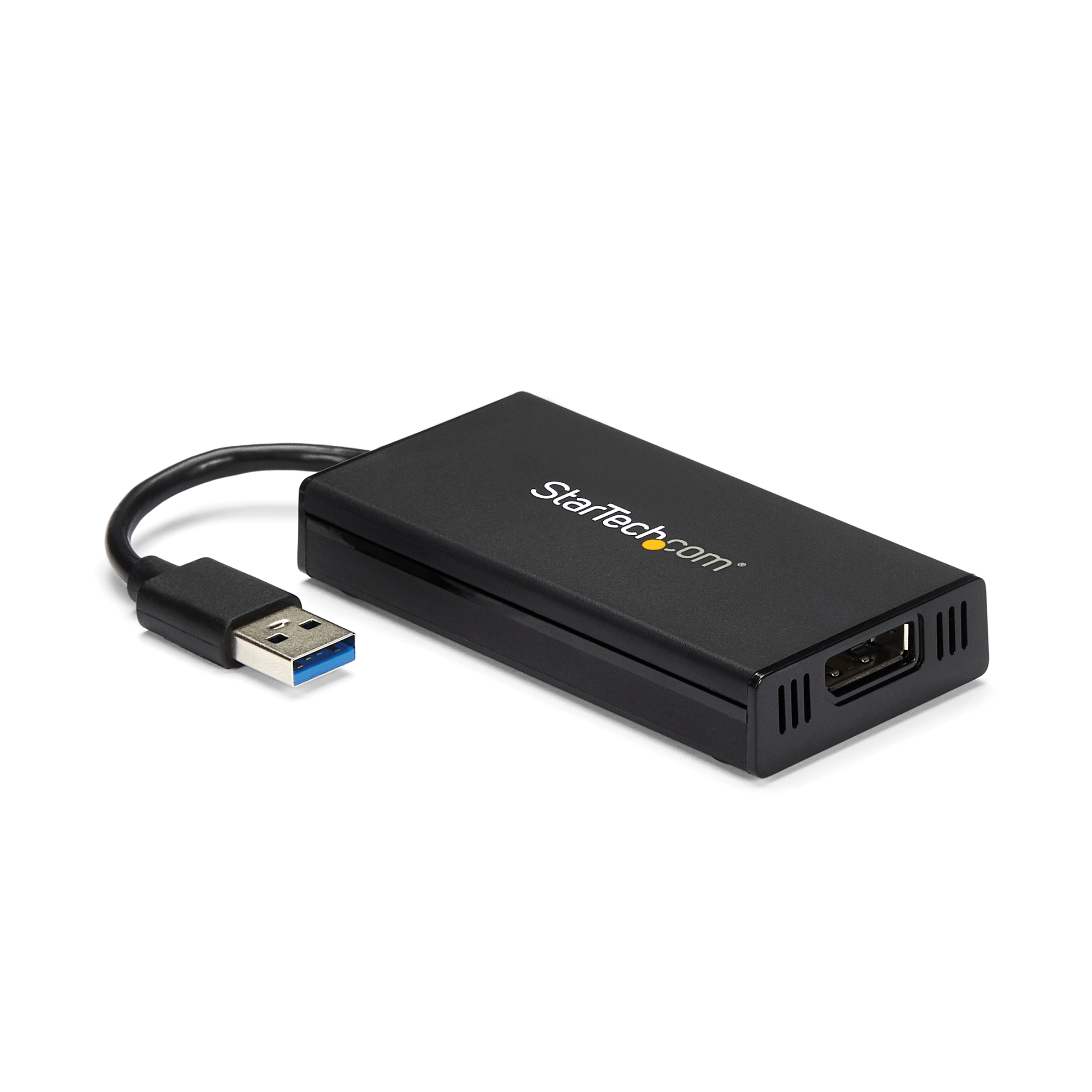

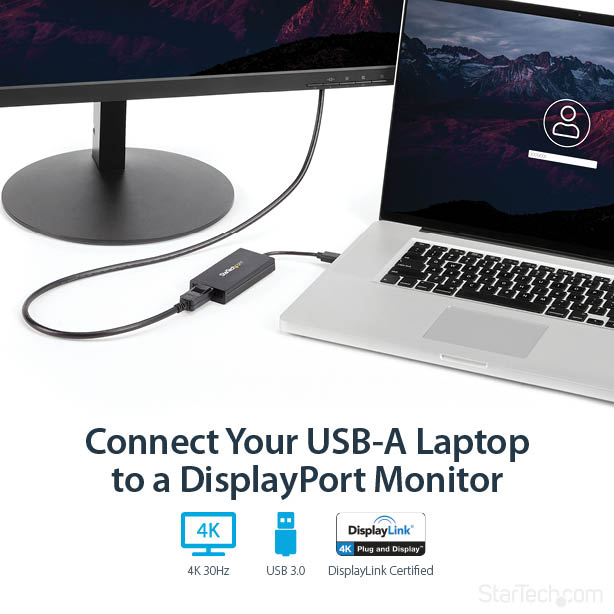

USB 5Gbps to DisplayPort External Video Card – 4K
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB 5Gbps to DisplayPort External Video Card – 4K Product Number USB32DP4K UPC 065030858380 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-A Display Adapters Category Level 3 USB 3.0 to DP Family USB 3.0 to Display Adapters, DisplayLink Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) USB 3.0 to DP - 4K Product Title (Short) USB to DisplayPort Adapter - Mac/PC - 4K Product Title (Medium) USB 3.0 to 4K DisplayPort External Graphics Adapter – DisplayLink – Ultra HD 4K Product Title (Standard) USB 3.0 to DisplayPort Adapter, 4K 30Hz UHD, USB to DP Display Adapter, External Video/Graphics Card for Mac & Windows, TAA Product Title (Long) USB 3.0 to DisplayPort Adapter, 4K 30Hz UHD, DisplayLink Certified, USB to DP Display Adapter, USB to DP Adapter for Mac & Windows - TAA Product Title (AMZ) USB 3.0 to DisplayPort Adapter, 4K 30Hz UHD, USB to DP Display Adapter, External Adapter for Mac & Windows, TAA Title Ingram (Part 1) 4K USB Video Card - USB 3.0 to Title Ingram (Part 2) DisplayPort Graphics Adapter - 4K Website Product Headline USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows® Bullet 1 PERFORMANCE: This USB 3.2 5Gbps to DisplayPort dongle lets you connect your laptop / desktop computer to an DisplayPort monitor using a single USB Type-A port; Up to 4K 30Hz (UHD); HDCP 2.2; USB bus-powered; Compatible with 1080p Bullet 2 INCREASE PRODUCTIVITY: USB-A to DP adapter lets you add a display in extended mode (2 displays total incl. laptop screen) through an available USB-A port; Supports ultrawide displays up to 3440x1440; Enable extended display on Apple M1/M2/M3 MacBooks Bullet 3 COMPATIBILITY: Works with Windows, macOS 10.14+, ChromeOS and Linux; Ensured compatibility with any USB-A laptop, Ultrabook, PC desktop or small form factor system; Works with systems even if 4K output is not natively supported by laptops/video cards Bullet 4 NOTE: This adapter will not work with macOS version 10.13.4 to 10.13.6; We recommend users to update to 10.14 or later to ensure compatibility with DisplayLink; Driver required for macOS and Windows; Auto-driver install with ChromeOS Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB Type-A to DisplayPort adapter dongle is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) - USB 3.2 5Gbps to DisplayPort adapter connects your USB-A computer to a DisplayPort monitor/projector; Up to 4K 30Hz; Works w/ 1080p - Extend your desktop by adding a DP display; Supports ultrawide 3440x1440 - DisplayLink certified; Bus-powered external graphics card works with USB Type-A laptop/desktop - Windows/macOS/Chrome/Ubuntu; Video converter works even if 4K is not natively supported by laptop/video card - Driver required for macOS and Windows; Auto-driver install with ChromeOS Marketing Copy Marketing Copy (No HTML) Applications - Connect a 4K television, monitor or projector to your computer system
- View large or multiple spreadsheets across multiple displays
- Increase productivity by running multiple applications on different displays; check your email on one display while editing a document on the other
Website Search Keyword - 4K USB video card
- external video card
- usb video card
- usb video adapter
- 4k video card
- 4k support
- external video cards
- dual display adapter
- dual video adapter
- external monitor adapter
- displaylink 4k
- usb displayport adapter
- external 4k video card
- usb displayport converter
- 4k
- U344-001-DP-4K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes This USB video adapter is not intended for graphical intensive applications, such as gaming System and Cable Requirements Accessory Products - DISPLPORT1L
- DP14MM1M
- DP14MM2M
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- DISPLPORT35L
- DISPLPORT50L
- DP14VMM2M
Related Products - USB32DPPRO
- USB32DPES
- USB32HDPRO
- USB32HD4K
- USB32HDDVII
- USB32HDES
- USB32HDEH
- USB32HDE
- USB32HDEH3
- USB32HD2
Power Source USB-Powered Cable Length (mm) 63.5 Color Black Humidity <85% RH Non-Condensing Material Plastic Operating Temperature 10°C to 40°C (50°F to 104°F) Primary Material Plastic Product Length (mm) 90.000 Product Width (mm) 45.000 Product Height (mm) 15.000 Product Weight (g) 60.000 Storage Temperature -10°C to 80°C (14°F to 167°F) TAA Compliant Yes Maximum Digital Resolutions 4K x 2K @ 30Hz Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- Linux
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

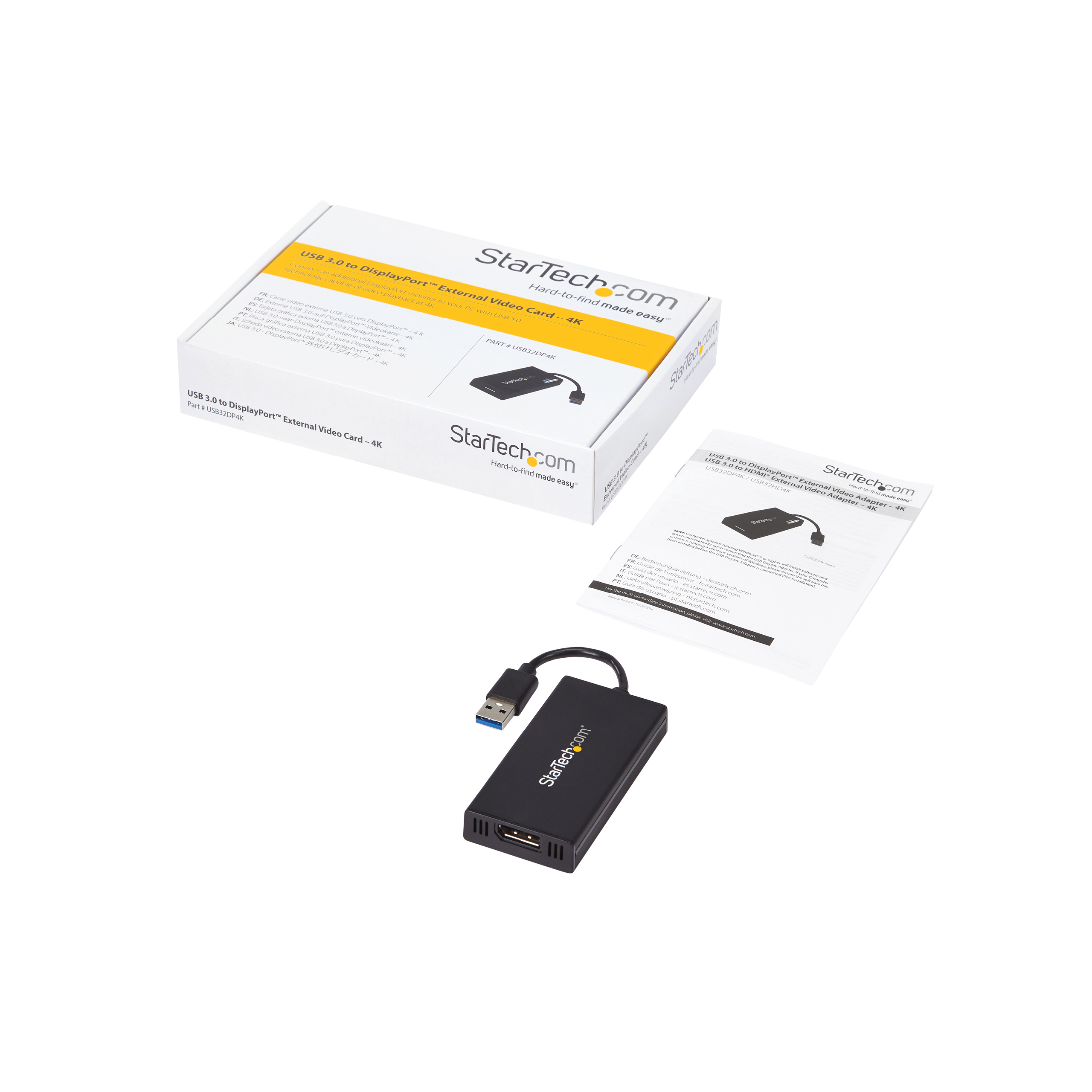

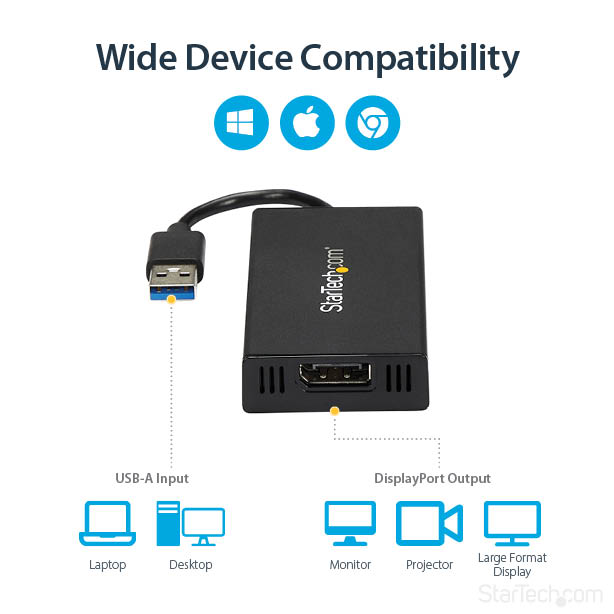

Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Audio Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output DisplayPort Chipset ID DisplayLink - DL-5500 Memory 1GB Number of Displays 1 USB Pass-Through No Carton Depth (mm) 421 Carton Height (mm) 331 Carton Quantity 20 Carton Weight Gross (g) 4510 Included in Package - 1 - USB 3.0 to DisplayPort Video Card
- 1 - Software Installation Disc
- 1 - Instruction Manual
Package Depth (mm) 146 Package Height (mm) 41 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 206 Packaging Description USB 3.0 to DisplayPort™ External Video Card – 4K Packaging Description India USB 5Gbps to DisplayPort External Video Card – 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-05-23 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
