USB32DPPRO

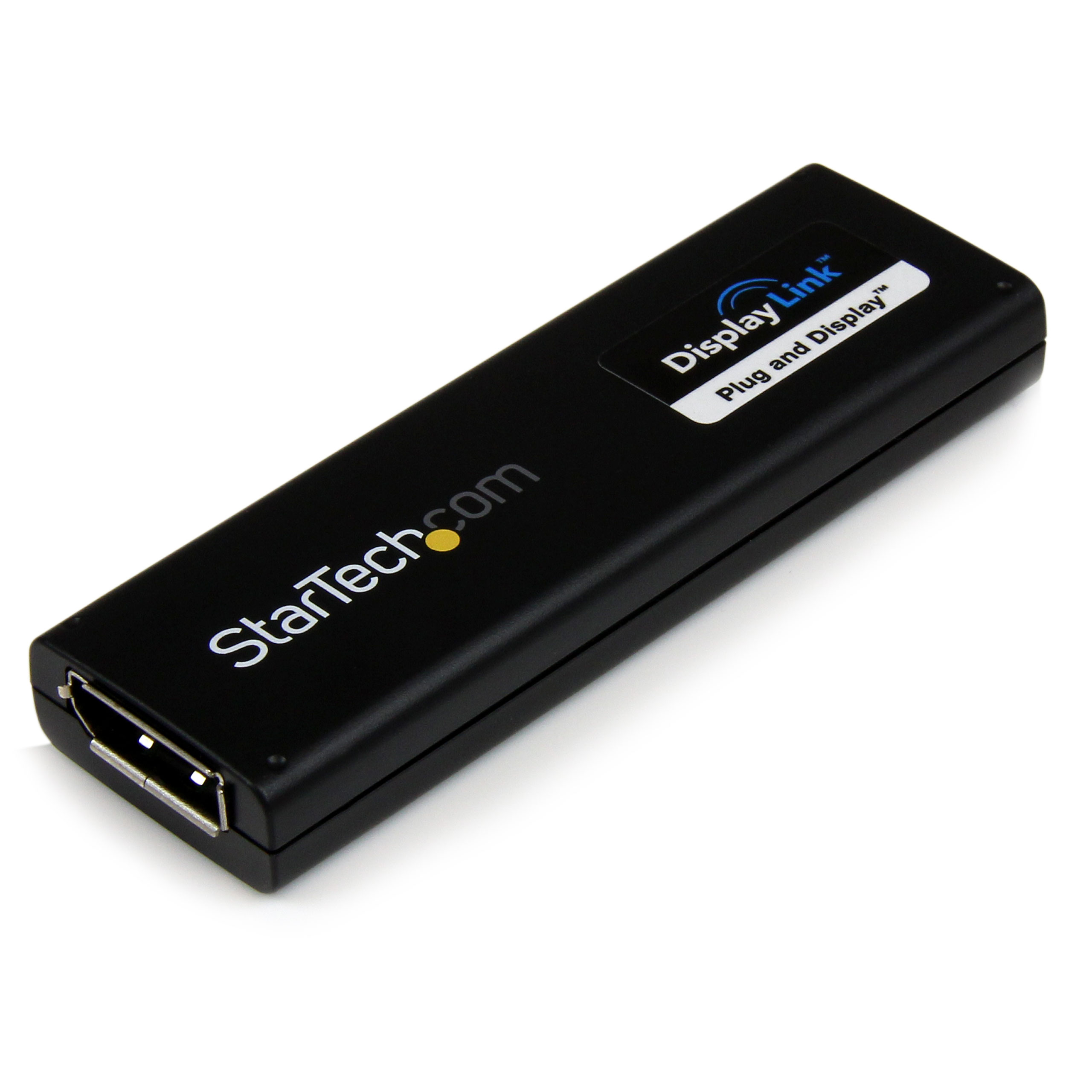

USB3.0 to DisplayPort DP Graphics Adapter
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
Main Image
Product Images
Product Images
BOM Image
Product Name USB3.0 to DisplayPort DP Graphics Adapter Product Number USB32DPPRO UPC 065030847438 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 USB-A Display Adapters Category Level 3 USB 3.0 to DP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Short) USB 3 to DisplayPort External Video Card Product Title (Medium) x Product Title (Standard) USB 3.0 to DisplayPort External Video Card Multi Monitor Adapter – 2560x1600 Product Title (Long) USB 3.0 to DisplayPort Adapter - 2560x1600 Product Title (AMZ) USB 3.0 to DisplayPort Adapter - 4K 30Hz - External Video & Graphics Card - Dual Monitor Display Adapter - Supports Mac & Windows (USB32DPPRO) Title Ingram (Part 1) USB 3 to DisplayPort External Vi Title Ingram (Part 2) deo Card Multi Monitor Adapter Website Product Headline USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows® Bullet 1 Supports resolutions up to 2560x1600 Bullet 2 DisplayLink 4K Plug-and-Display certified - automatic driver installation and updates Bullet 3 Choose between Mirrored, Extended or Primary display configurations Bullet 4 Driver software supports display rotation Bullet 5 Supports the Windows® Aero interface Bullets (Consolidated) Connect a DisplayPort-equipped display through USB 3.0 for an HD external multi-monitor solution - Compatible with Mac OSX and Windows 7/8 USB equipped computers and DisplayPort equipped HD monitors such as Apple Cinema HD Display - USB Video/Multi Monitor Adapter/USB Video Card/USB to Video Converter/USB to DisplayPort - Dual or Triple monitor for home office or BOYD (Bring your own Device) work stations Marketing Copy Applications - Add a secondary DisplayPort display and extend your desktop, without taking apart your computer to install a new video card
- View large or several spreadsheets across multiple displays
- A compact, lightweight solution for traveling business associates using USB 3.0-capable laptop PCs, enabling connection to a secondary display/projector
- Add multi-monitor capability to a single computer, to enhance multimedia presentations
- Increase productivity by running multiple applications on different screens - check your email on one display and search the web on the other
- Great for researchers and writers, offering the ability to have reference material on one display while working on a separate document on another
Website Search Keyword - graphics card
- graphics adapter
- usb graphics
- usb video
- video card
- display adapter
- USB 3 to Displayport
- USB 3 video
- USB 3.0 to Displayport
- external video adapter
- usb video card
- usb 3 multi-monitor
- usb 3 multi monitor
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - This USB video adapter uses a DisplayLink® family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as Trigger or Fresco Logic®
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - DISPLPORT10L
- DISPLPORT6L
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT20L
- DISPLPORT15L
Related Products - USB2DVIPRO
- USB2DVIMM6
- USB2VGAMM6
- USB2VGAE2
- IPUSB2HD2
- USB2HDMI
- USB32VGAE
- USB32HDE
Power Source USB-Powered Color Black Humidity 20°C to 80°C (68°F to 176°F) Material Plastic Operating Temperature 0°C to 35°C (32°F to 95°F) Product Length (mm) 81.000 Product Width (mm) 26.000 Product Height (mm) 11.000 Product Weight (g) 18.000 Storage Temperature -5°C to 40°C (23°F to 104°F) TAA Compliant Yes General Specifications - Note: If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed.
- This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset.
Maximum Digital Resolutions 2560x1600 OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

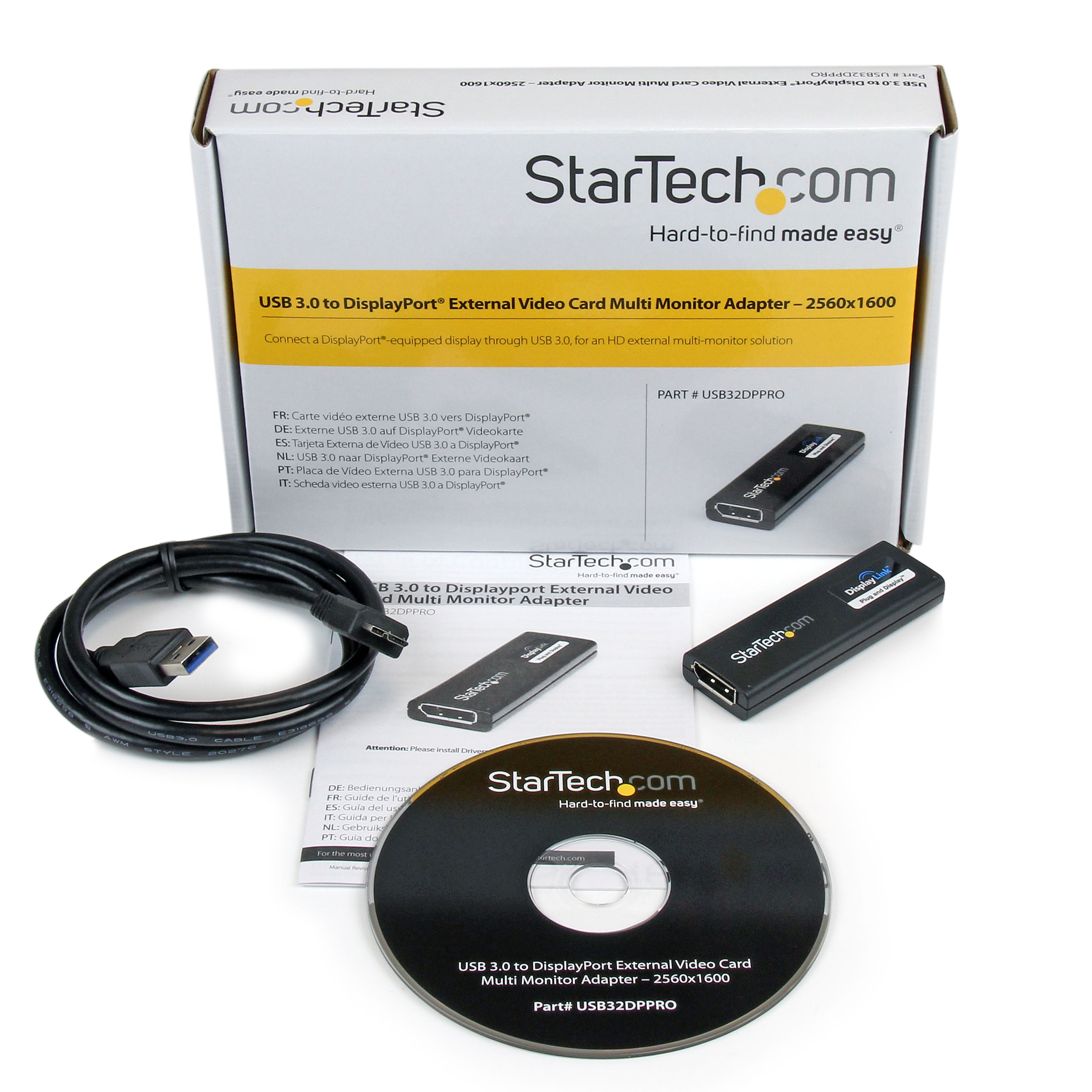

Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output DisplayPort Chipset ID DisplayLInk - DL-3500 Industry Standards Standard DisplayPort, SuperSpeed USB 3.0, USB 2.0 Memory 64MB USB Pass-Through No Carton Depth (mm) 465 Carton Height (mm) 465 Carton Quantity 72 Carton Weight Gross (g) 14570 Included in Package - 1 - installation guide
- 1 - driver CD
- 1 - USB 3.0 to Displayport adapter
- 1 - USB cable (39.25 inches)
Package Depth (mm) 206 Package Height (mm) 39 Package Width (mm) 149 Package Quantity 1 Package Weight (g) 177 Packaging Description USB 3.0 to Displayport External Video Card Packaging Description India USB 3.0 to Displayport External Video Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-02-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
