USB32DVCAPRO

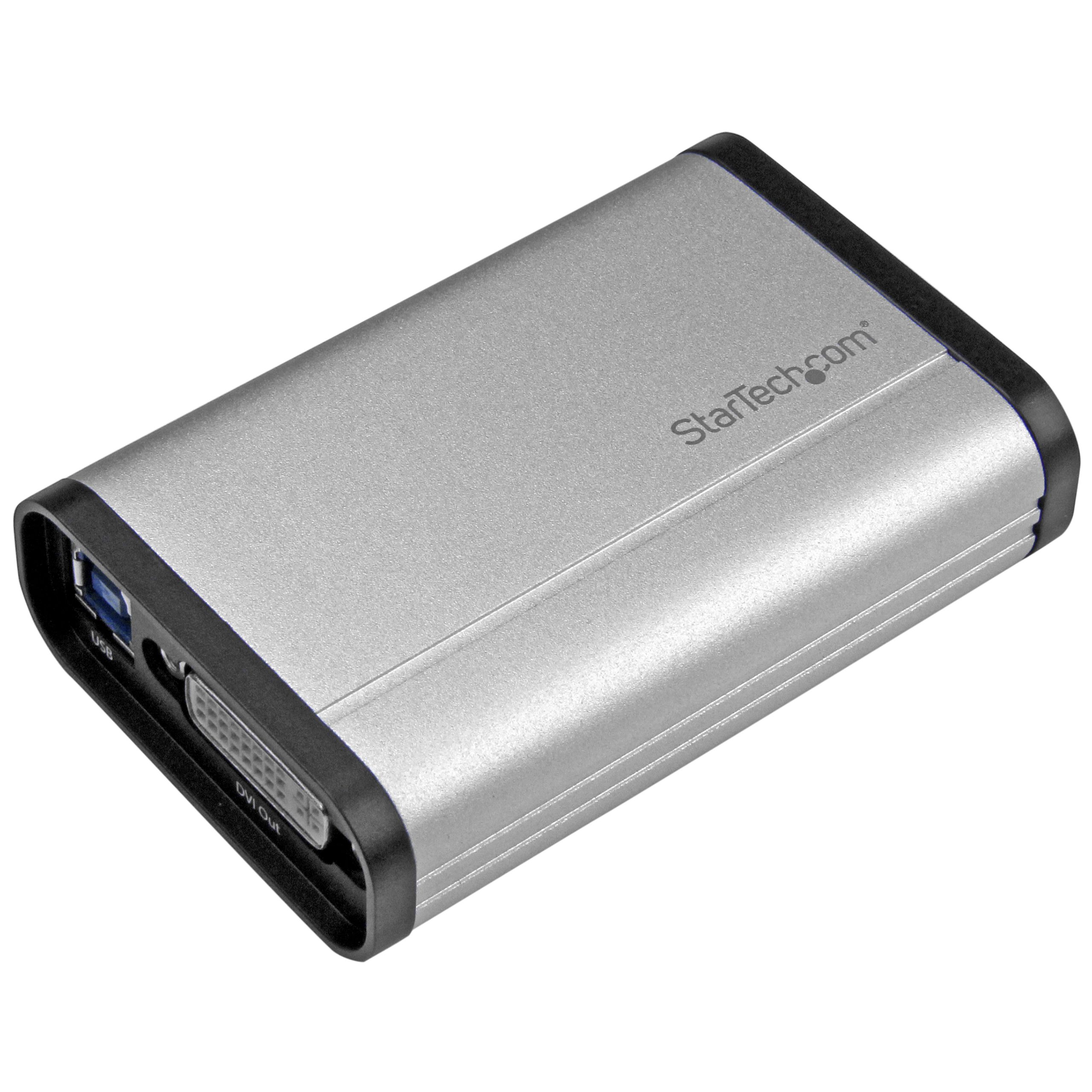

DVI to USB 3 0 Capture device

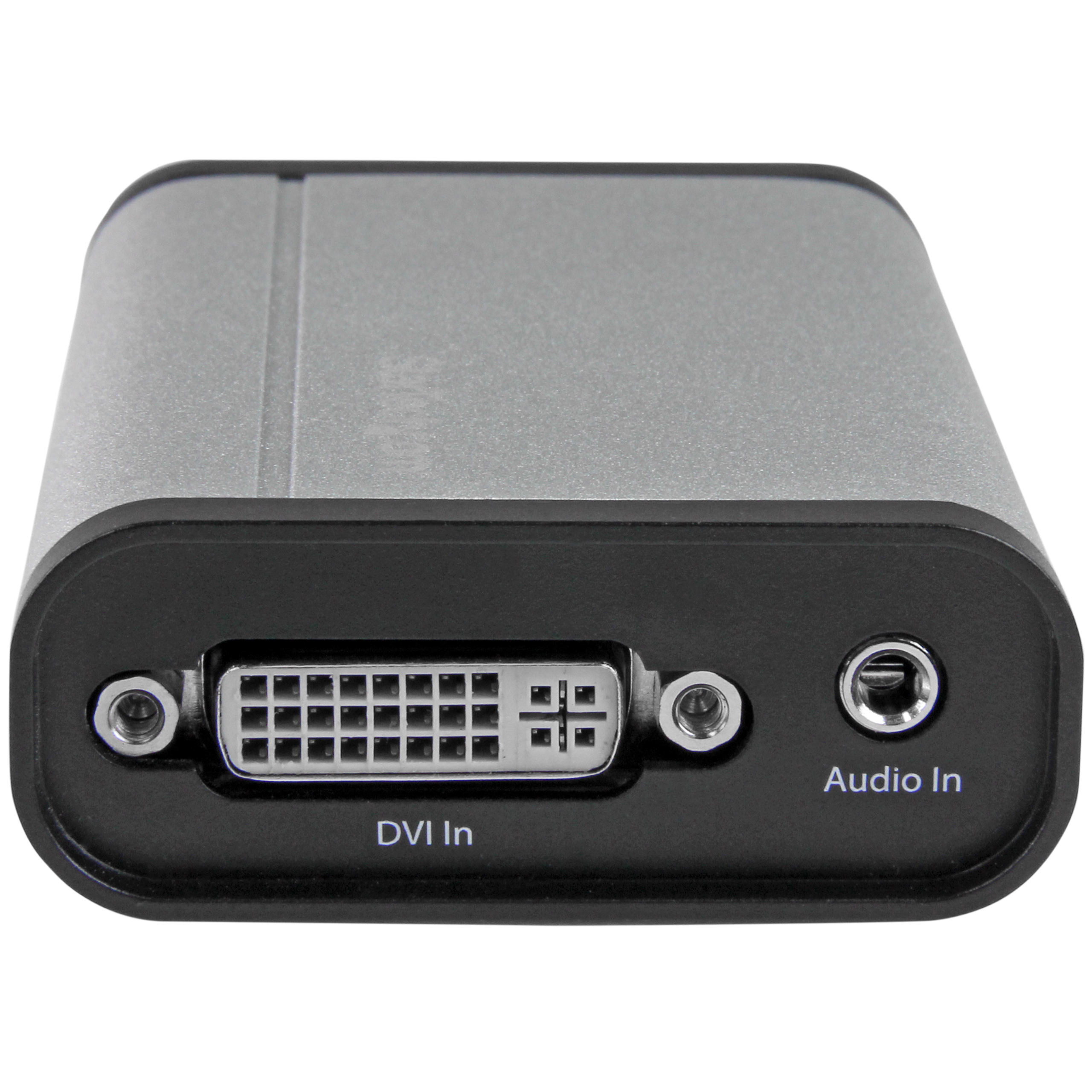

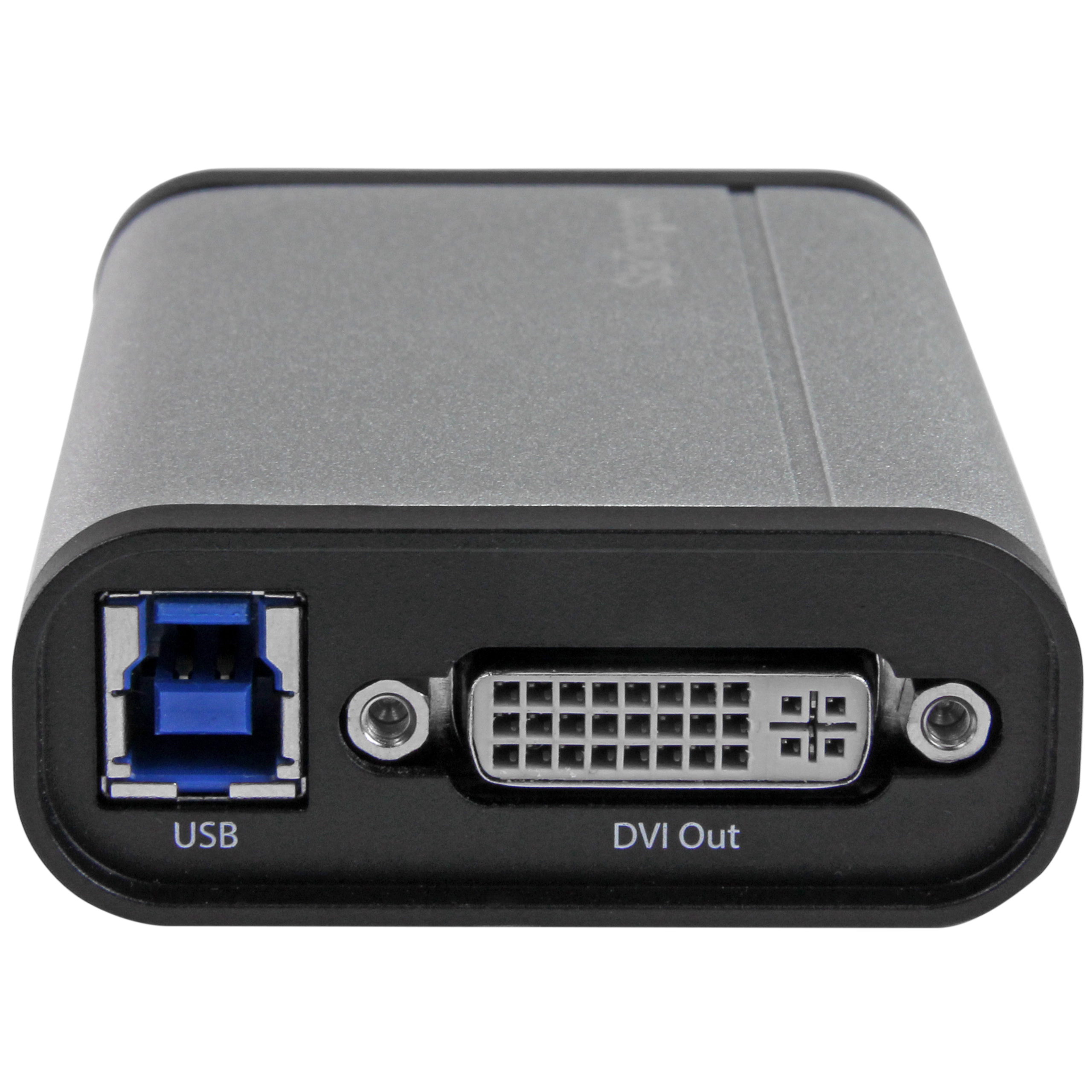

Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name DVI to USB 3 0 Capture device Product Number USB32DVCAPRO UPC 065030864855 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Video Capture Devices Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-C Capture Family USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) DVI to USB Capture Product Title (Short) USB 3.0 Video Capture Device - DVI Product Title (Medium) USB 3.0 Capture Device for High-Performance DVI Video - 1080p 60fps - Aluminum Product Title (Standard) DVI Video Capture Card – 1080p 60fps Game Capture Card – Aluminum – Game Capture Card – HD PVR – USB Video Capture Product Title (Long) USB 3.0 Capture Device for High-Performance DVI Video - 1080p 60fps - Aluminum - TAA Product Title (AMZ) DVI Video Capture Card - 1080p 60fps Game Capture Card - Aluminum - Game Capture Card - HD PVR - USB Video Capture (USB32DVCAPRO) Title Ingram (Part 1) Compact USB 3.0 DVI Video Title Ingram (Part 2) Recorder - 1080p 60fps Website Product Headline Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution Bullet 1 Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution Bullet 2 DVI Video Capture Card / Raw Video Capture / USB 3.0 DVI Video Capture / Aluminum / Compact HD Video Recorder / DVI capture card / Game capture card / HD PVR / USB 3.0 video capture card / USB capture card / USB video capture card / Video capture device Bullet 3 Record video for training and tutorial purposes Bullet 4 Capture raw video using your preferred DirectShow compatible software; Separate 3.5 mm audio input Bullets (Compact) Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution - Record video for training & tutorial purposes - Capture raw video using your preferred DirectShow compatible software Bullets (Consolidated) Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution - DVI Video Capture/Raw Video Capture/USB 3.0 DVI Video Capture/Aluminum/Compact HD Video Recorder - Record video for training and tutorial purposes - Capture raw video using your preferred DirectShow compatible software - Wide device playback support with H.264 encoded video files - Separate 3.5 mm audio input - StarTech.com 2-year warranty Marketing Copy Applications - Record video for training and tutorial purposes from technologies that output DVI
- Capture raw, uncompressed video using your preferred DirectShow compatible software

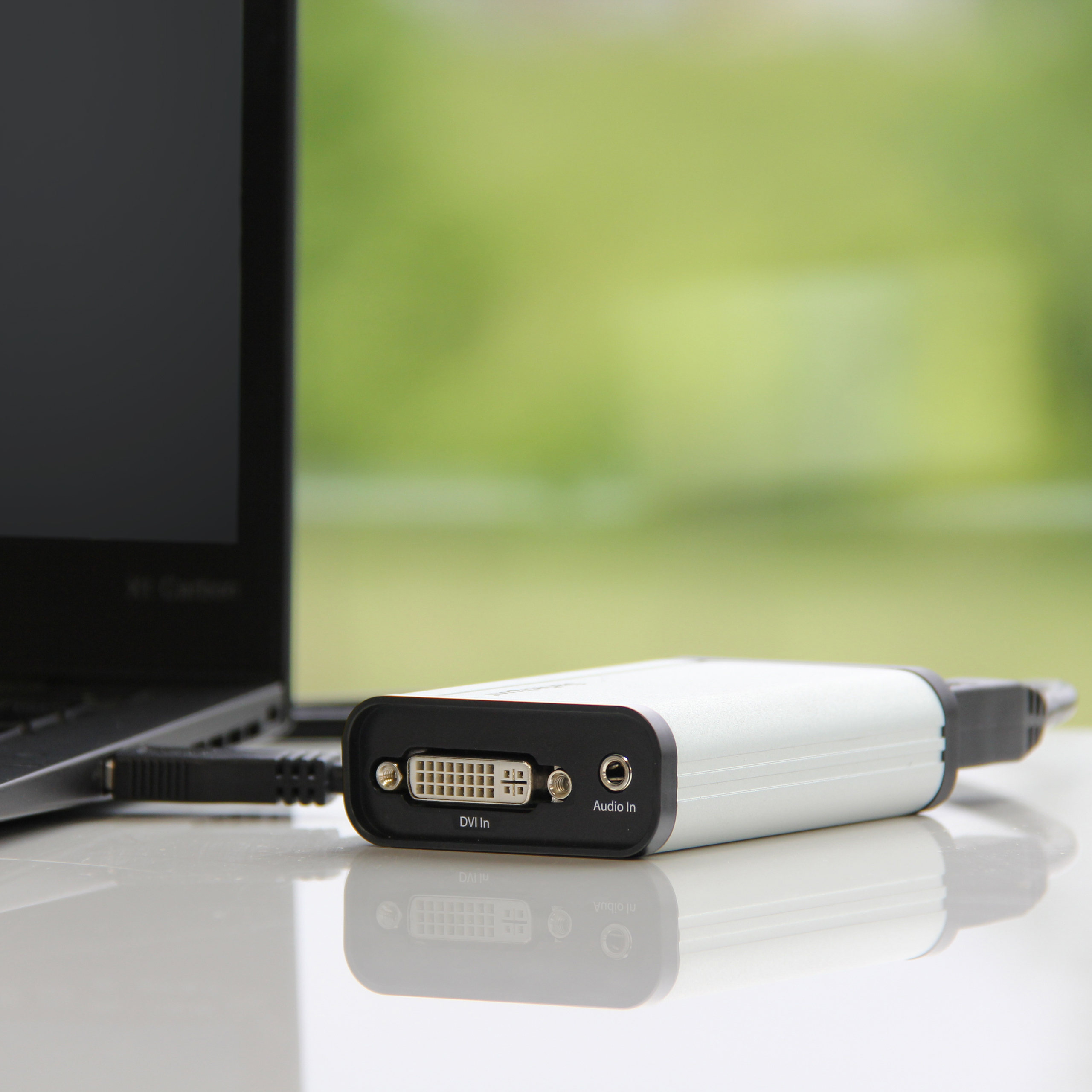

- Great for recording the output from your PC, server, or POS station, when creating software training and tutorial videos
- Add your own independent audio source for voice-over commentary
Website Search Keyword - raw video capture
- usb 3.0 dvi video capture
- usb 3.0 raw dvi capture
- usb 3.0 raw video capture
- Video capture adapter
- Video frame capture
- Video frame grabber
- Uncompressed dvi video capture
- USB 3.0 dvi capture
- Raw dvi video capture
- Lossless dvi video capture
- Compact video capture
- 1080p dvi video capture
- dvi capture
- dvi video capture
- dvi capture device
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes This video capture device requires a USB 3.0 port (or higher). The video capture device does not work with USB 2.0 ports (or lower). Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- USB3SAB10
Power Source USB-Powered Color Black & Silver Humidity 20% to 80% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 92.210 Product Width (mm) 61.100 Product Height (mm) 24.270 Product Weight (g) 102.000 Storage Temperature -5°C to 40°C (23°F to 105°F) TAA Compliant Yes Maximum Analog Resolutions 1920 x 1080 60 FPS Maximum Digital Resolutions 1920 x 1080 60 FPS MTBF (hours) 504,825 Hours OS Compatibility - Windows 8
- Windows 10
- Windows 11
Supported Resolutions 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 Wide Screen Supported Yes Audio Yes AV Input DVI AV Output USB Chipset ID Mstar - MST3363CNK-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PA
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

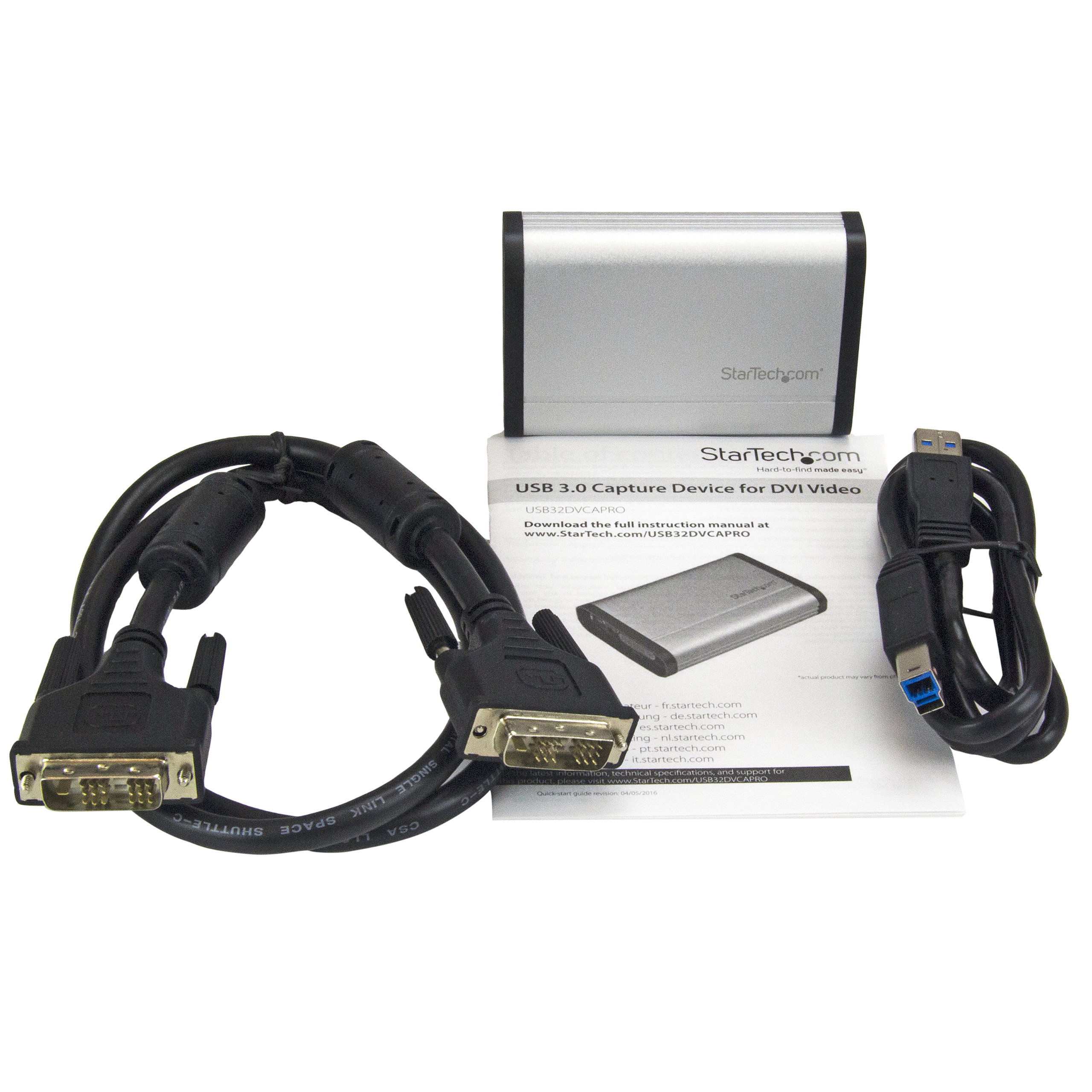

Carton Depth (mm) 466 Carton Height (mm) 467 Carton Quantity 48 Carton Weight Gross (g) 24020 Included in Package - 1 - USB 3.0 capture device for DVI video
- 1 - USB 3.0 cable
- 1 - quick start guide
Package Depth (mm) 152 Package Height (mm) 56 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 482 Packaging Description USB 3.0 Capture Device for DVI Video Packaging Description India USB 3.0 Capture Device for DVI Video Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 USB-B (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-02-16 Buying Center - AV & Collaboration Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-06-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2016-04-15 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
