Main Image
USB32HDCAPRO
HDMI to USB 3.0 Capture device
Record HDMI video and audio, with the option for an additional 3.5mm embedded audio source, to your computer at 1080p 60fps resolution
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI to USB 3.0 Capture device Product Number USB32HDCAPRO UPC 065030864831 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) HDMI to USB Capture Product Title (Short) USB 3.0 Video Capture Device - HDMI Product Title (Medium) USB 3.0 Capture Device for High-Performance HDMI Video - 1080p 60fps - Aluminum Product Title (Standard) USB 3.0 Video Capture Card – 1080p 60fps Game Capture Card – Aluminum – Game Capture Card – HDMI Capture Card Product Title (Long) USB 3.0 Capture Device for High-Performance HDMI Video - 1080p 60fps - Aluminum Product Title (AMZ) USB 3.0 Video Capture Card - 1080p 60fps Game Capture Card - Aluminum - Game Capture Card - HDMI Capture Card (USB32HDCAPRO) Title Ingram (Part 1) Compact USB 3.0 HDMI Video Title Ingram (Part 2) Recorder - 1080p 60fps Website Product Headline Record HDMI video and audio, with the option for an additional 3.5mm embedded audio source, to your computer at 1080p 60fps resolution Bullet 1 Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60 FPS Bullet 2 Wide device playback support with universally encoded video files Bullet 3 Raw/lossless video capture ensuring DirectShow™ compatibility on Windows devices Bullet 4 Separate 3.5 mm audio input, for adding voice commentary or audio tracks Bullet 5 Features an HDMI pass-through port, for watching the video as it is captured Bullets (Compact) Record HDMI video & audio, with the option for an additional 3.5mm embedded audio source, to a computer at 1080p 60fps resolution - Record video for training & tutorial purposes - Capture raw video using your preferred DirectShow compatible software Bullets (Consolidated) Record HDMI video and audio with the option for an additional 3.5mm embedded audio source to your computer at 1080p 60fps resolution - HDMI Video Capture/Raw Video Capture/USB 3.0 HDMI Video Capture/Aluminum/Compact HD Video Recorder - Record video for training and tutorial purposes - Capture raw video using your preferred DirectShow compatible software - Wide device playback support - Separate 3.5 mm audio input - StarTech.com 2-year warranty Marketing Copy Applications - Record video for training and tutorial purposes from devices that output HDMI
- Great for video producers that may have a camera connected directly to the capture device
- Great for recording the output from your PC, server, or POS station
- Add your own independent audio source for voice-over commentary
Website Product Alert Website Search Keyword - raw video capture
- usb 3.0 hdmi video capture
- usb 3.0 raw hdmi capture
- usb 3.0 raw video capture
- Video capture adapter
- Video frame capture
- Video frame grabber
- Uncompressed hdmi video capture
- USB 3.0 hdmi capture
- Raw hdmi video capture
- Lossless hdmi video capture
- Compact video capture
- 1080p hdmi video capture
- hdmi capture
- hdmi video capture
- hdmi capture device
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes This video capture device requires a USB 3.0 port (or higher). The video capture device does not work with USB 2.0 ports (or lower). Accessory Products - MU3MMS
- MU6MMS
- MU10MMS
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU15MMS
- USB3SAB10
- USB3SAB10BK
Related Products - USB2HDCAPS
- USB2HDCAPM
- USB2HDCAP
- PEXHDCAP2
- PEXHDCAP60L
- ECHDCAP
- SVID2USB23
- SVID2USB2
Replacement Product UVCHDCAP Power Source USB-Powered Humidity 20% to 80% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 92 Product Width (mm) 58 Product Height (mm) 28 Product Weight (g) 88 Storage Temperature -5°C to 40°C (23°F to 105°F) TAA Compliant Yes Maximum Digital Resolutions 1920 x 1080 60 FPS MTBF (hours) 3,104,896 Hours OS Compatibility - Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows 11
Supported Resolutions 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output USB Chipset ID Mstar - MST3363CNK-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PA
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

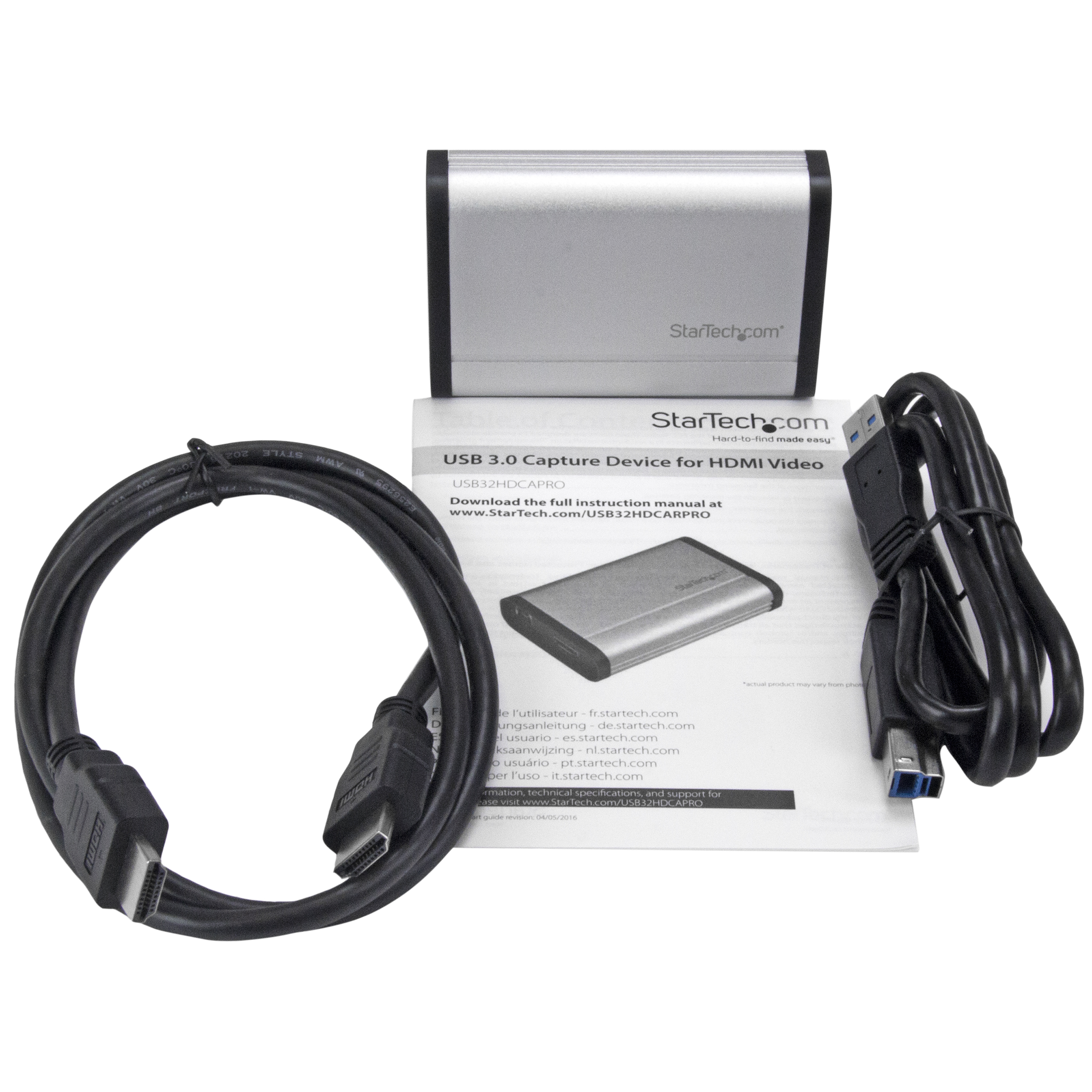

Carton Depth (mm) 465 Carton Height (mm) 472 Carton Quantity 48 Carton Weight Gross (g) 17670 Included in Package - 1 - USB 3.0 capture device for HDMI video
- 1 - 3.3 ft [1 m] USB 3.0 cable
- 1 - quick start guide
- 1 - 3.3 ft [1 m] HDMI cable
Package Depth (mm) 215 Package Height (mm) 53 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 334 Packaging Description USB 3.0 Capture Device for HDMI® Video Packaging Description India USB 3.0 Capture Device for HDMI® Video Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB-B (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-02-16 Digital Content Due Date 2016-06-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2016-04-15 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Legacy
