Main Image
USB32HDE

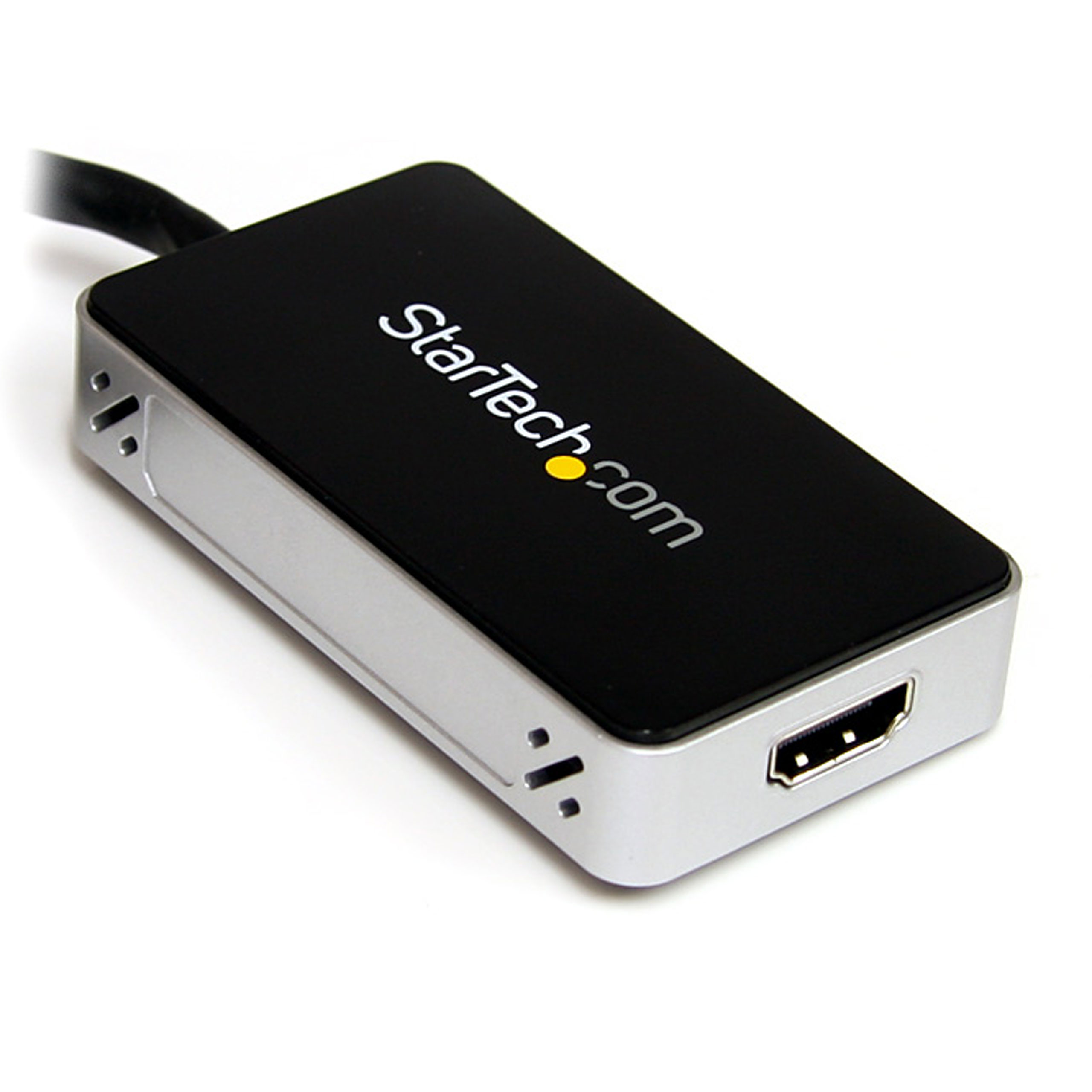

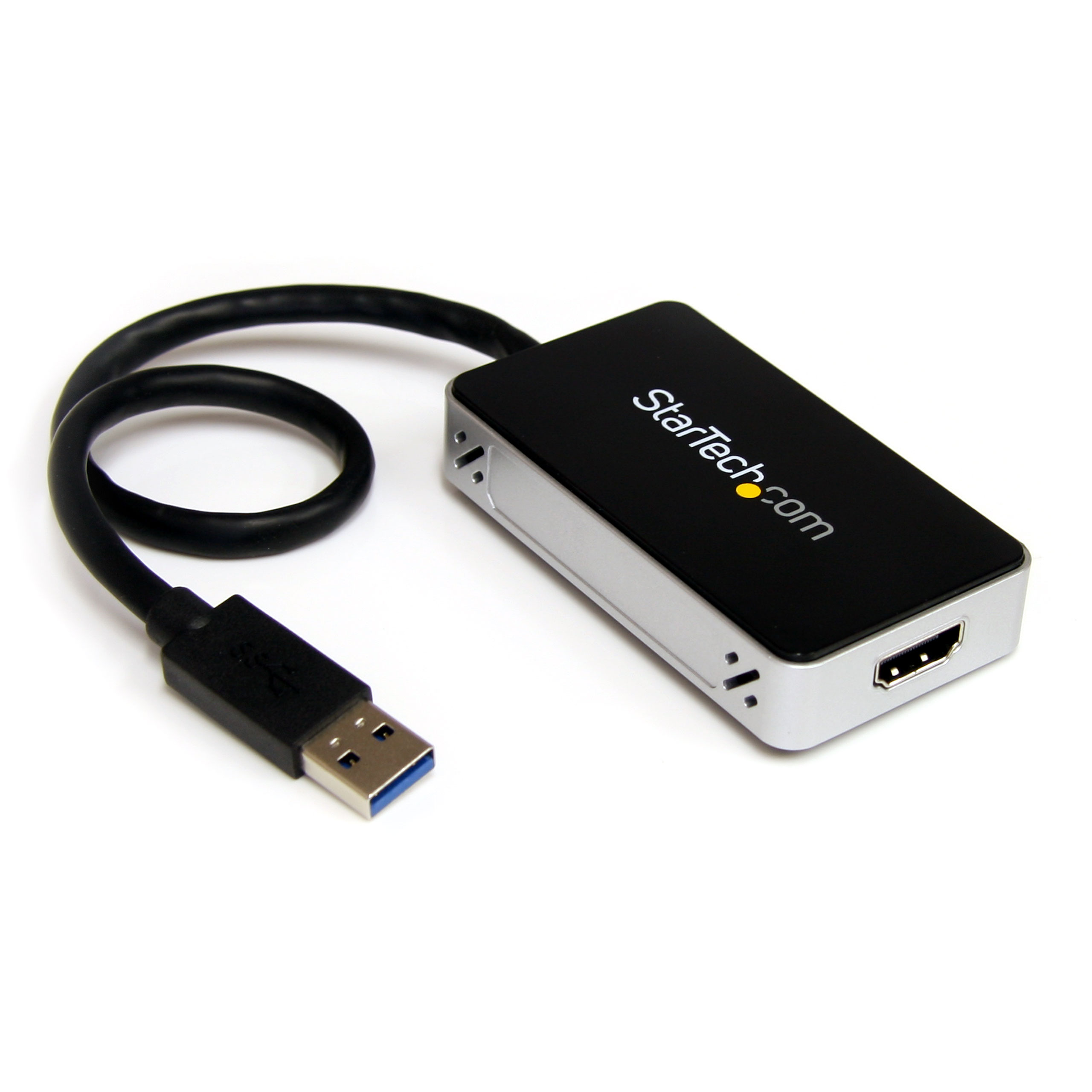

USB 3.0 to HDMI Graphics Adapter
Connect an HDMI®-equipped display through USB 3.0 for an accelerated 1080p HD external multi-monitor solution
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3.0 to HDMI Graphics Adapter Product Number USB32HDE UPC 065030845687 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 USB-A Display Adapters Category Level 3 USB 3.0 to HDMI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Short) USB 3 to HDMI / DVI External Video Card Product Title (Medium) x Product Title (Standard) USB 3.0 to HDMI® / DVI External Video Card Multi Monitor Adapter – 1920x1080 Product Title (Long) USB 3.0 to HDMI / DVI External Video Card Multi Monitor Adapter – 1920x1080 Product Title (AMZ) USB 3.0 to HDMI / DVI External Video Card Multi Monitor Adapter - 1920x1080 - USB HDMI graphics Adapter (USB32HDE) Title Ingram (Part 1) USB 3 to HDMI DVI External Video Title Ingram (Part 2) Card Multi Monitor Adapter Website Product Headline Connect an HDMI®-equipped display through USB 3.0 for an accelerated 1080p HD external multi-monitor solution Bullet 1 Supports resolutions up to 1920x1200 Bullet 2 Quick, easy installation Bullet 3 Choose between Mirrored, Extended or Primary display configurations Bullet 4 Driver software supports display rotation Bullet 5 Supports the Windows® Aero interface Bullets (Consolidated) Connect an HDMI-equipped display through USB 3.0 for an accelerated 1080p HD external multi-monitor solution - Compatible with Windows 7 and Windows 8 USB equipped computers and HDMI equipped televisions and projectors - USB Video/Multi Monitor Adapter/USB Video Card/USB to Video Adapter Converter/USB to HDMI - HD playback - Dual or Triple monitor setup for home office or BOYD (Bring your own Device) work stations Marketing Copy Applications - Add a secondary HDMI or DVI display and extend your desktop without taking apart your computer to install a new video card
- View large or multiple spreadsheets across multiple displays
- A compact, lightweight solution for traveling business associates using laptop PCs, enabling connection to a secondary display/projector
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- Use the adapter to connect your PC to your HDMI-equipped HDTV for viewing family pictures and movies
- Increase productivity by running multiple applications on different screens - check your email on one display and search the web on the other
- Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
Website Search Keyword - graphics card
- graphics adapter
- usb graphics
- usb video
- video card
- display adapter
- USB 3 to HDMI
- USB 3 video
- USB 3.0 to HDMI
- external video adapter
- usb video card
- usb 3 multi-monitor
- usb 3 multi monitor
- USB2HDMI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic®
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
Related Products - USB2DVIPRO
- USB2DVIMM6
- USB2VGAMM6
- USB2VGAE2
- IPUSB2HD2
- USB2HDMI
- USB32VGAE
Replacement Product USB32HDES Cable Length (mm) 160 Color Black Humidity <85% RH Non-Condensing Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 78 Product Width (mm) 43.5 Product Height (mm) 15.5 Product Weight (g) 60 Storage Temperature -10°C to 75°C (14°F to 167°F) TAA Compliant Yes General Specifications This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. Maximum Digital Resolutions 1920x1200 OS Compatibility - Windows 7
- Windows 8
- Windows Vista
- Windows XP
- Windows 10
- Windows 11

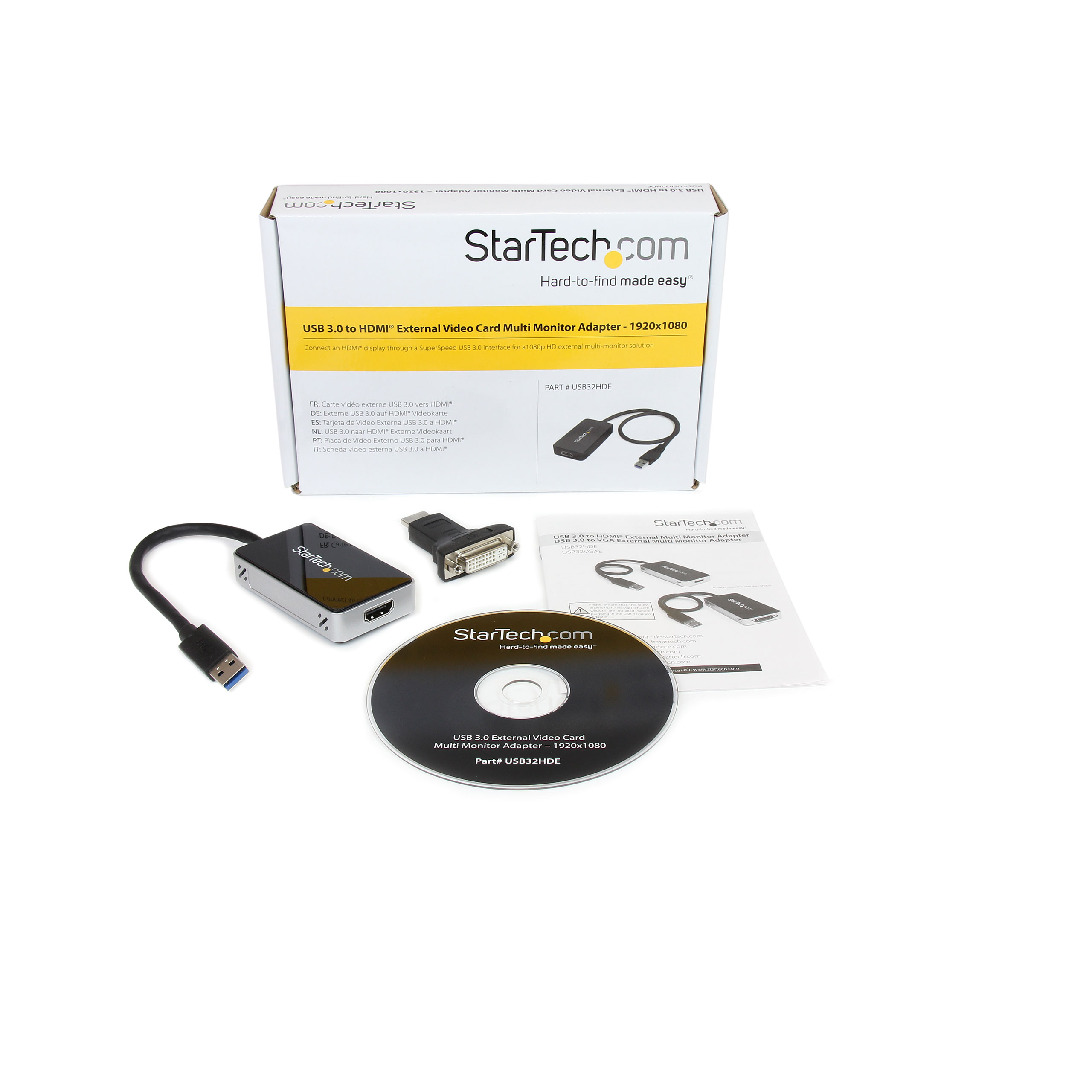

Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output HDMI Chipset ID Trigger - T5-302A Industry Standards Standard HDMI®, SuperSpeed USB 3.0, USB 2.0 Memory 16MB USB Pass-Through No Carton Depth (mm) 310 Carton Height (mm) 430 Carton Quantity 40 Carton Weight Gross (g) 10400 Included in Package - 1 - USB 3.0 to HDMI® Adapter
- 1 - Installation guide
- 1 - Driver CD
- 1 - HDMI to DVI-D Adapter
Package Depth (mm) 144 Package Height (mm) 38 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 240 Packaging Description USB 3.0 to HDMI® External Video Card Packaging Description India USB 3.0 to HDMI® External Video Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
