USB32HDEH

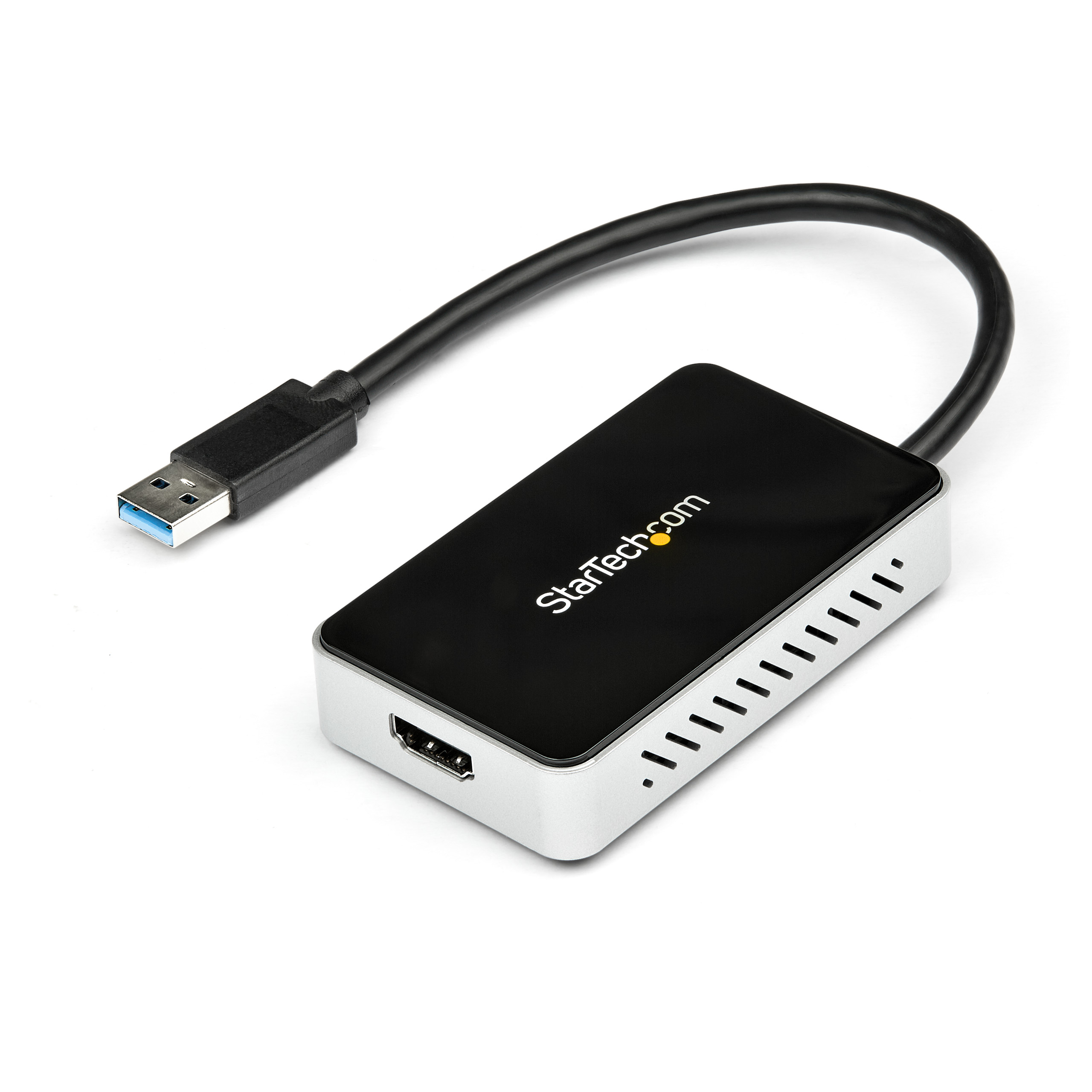

USB 3 to HDMI External Video Card w USB Hub
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB 3 to HDMI External Video Card w USB Hub Product Number USB32HDEH UPC 065030850629 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Family USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Manual Driver Product Title (Ultra-Short) USB 3 to HDMI w/ Hub Product Title (Short) Adapter, USB 3.0 to HDMI +1-Port USB Hub Product Title (Medium) x Product Title (Standard) USB 3.0 to HDMI Adapter w/ 1x USB, USB to VGA Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA Product Title (Long) USB 3.0 to HDMI Adapter w/ 1x USB, USB to HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA Product Title (AMZ) USB 3.0 to HDMI Adapter w/ 1x USB, HDMI Monitor Converter for Windows , TAA (no support for macOS/ChromeOS/Linux) Title Ingram (Part 1) USB 3 to HDMI External Graphics Title Ingram (Part 2) Adapter with 1-Port USB Hub Website Product Headline USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows® Bullet 1 EXTENDED CONNECTIVITY: The TAA compliant USB 3.0 to HDMI adapter turns a USB 3.0 port into an HDMI output port; an ideal workaround when only a limited number of USB ports are available; TAA Compliant Bullet 2 HIGHLY PRODUCTIVE WORKSTATION: The portable travel adapter can be used to mirror/extend your desktop to increase productivity; Included HDMI to DVI adapter allows you to use this device with a DVI display Bullet 3 INCREASE YOUR PRODUCTIVITY: USB to HDMI monitor adapter lets you extend your desktop by adding an HDMI monitor to your laptop or desktop computer; Ideal for your workstation setup in the office or working from home Bullet 4 FAST SPEEDS: Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB 3.0 laptop docking station delivers smooth, high-definition content to your HDMI display / projector Bullet 5 COMPATIBILITY: This adapter is only compatible with Windows and does not support macOS, ChromeOS or Linux; Works with all Windows X86/X64/ARM platforms: Intel, AMD, and Snapdragon X Copilot+ PC; Administrator rights are required to install the drivers Bullets (Compact) Windows only; No support for macOS, ChromeOS or Linux - Works w/ Windows X86/X64/ARM (Intel, AMD, Snapdragon X Copilot+ PC) - Connect an HDMI display while keeping the USB 3.0 port available - 1x 1080p 60Hz; Included HDMI to DVI adapter - USB powered Bullets (Consolidated) - Adapter is only compatible w/ Windows and does not support macOS, ChromeOS or Linux - Works with all Windows X86/X64/ARM platforms: Intel, AMD, and Snapdragon X Copilot+ PC - USB 3.0 to HDMI adapter turns a USB 3.0 port into an HDMI output port; Ideal workaround when limited USB ports are available - Portable travel adapter can be used to mirror/extend your desktop to increase productivity; Included HDMI to DVI adapter - Adapter is USB powered and doesn't require any additional cords or plugs Marketing Copy Marketing Copy (No HTML) Applications - Add a secondary HDMI display with full HD capability
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- View large or multiple spreadsheets across several displays
- Use the adapter to connect your PC to your HDMI-equipped projector or display for viewing family pictures and movies
- Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
- Run multiple applications on different screens - check your email on one display and search the web on the other
Website Product Alert Website Search Keyword - usb 3 to hdmi adpater
- usb 3.0 graphics card
- external video card
- external graphics card
- usb 3.0 to hdmi
- usb 3.0 video adapter
- U344-001-HDMI-R
- Docking Stations
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDMM25
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDDVIMM25
Related Products - USB32HDPRO
- USB32HD4K
- USB32HDDVII
- USB32HDES
- USB32HDE
- USB32HDEH3
- USB32HD2
Power Source USB-Powered Cable Length (mm) 160 Color Black Humidity < 85% non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 85.000 Product Width (mm) 49.000 Product Height (mm) 17.000 Product Weight (g) 66.000 Storage Temperature -10°C to 75°C (14°F to 167°F) TAA Compliant Yes Maximum Digital Resolutions 1920x1200 Maximum Supported Resolution 1080p OS Compatibility - Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 10
- Windows 11

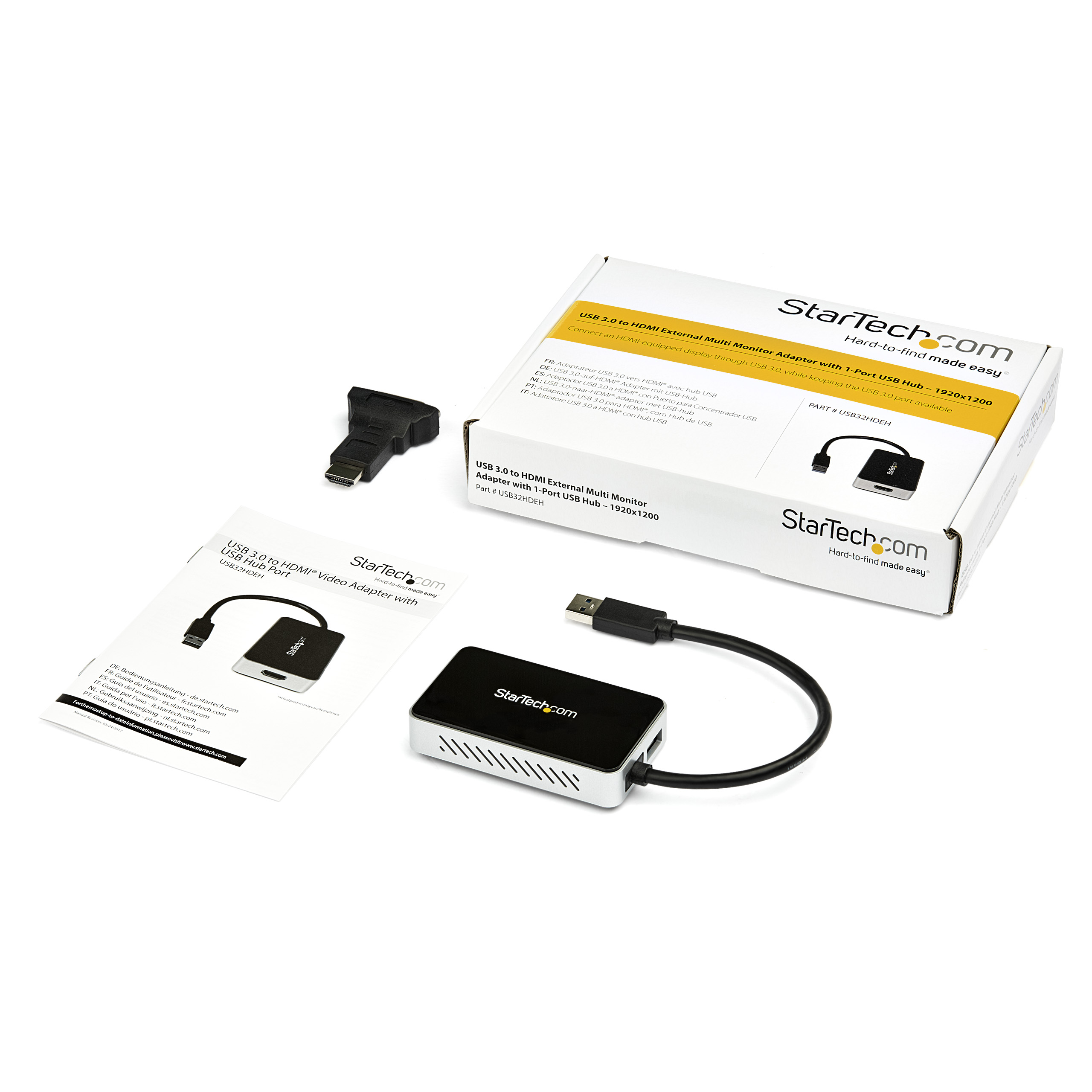

Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Audio Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output HDMI Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Trigger - T6-688SL Host Connection Port USB-A Industry Standards SuperSpeed USB 3.0, USB 2.0 Laptop Dock Number of Displays 1 Memory 16MB Number of Displays 1 USB Pass-Through Yes Carton Depth (mm) 320 Carton Height (mm) 438 Carton Quantity 40 Carton Weight Gross (g) 10730 Included in Package - 1 - USB 3.0 to HDMI Adapter
- 1 - Manual
- 1 - Software CD
- 1 - HDMI to DVI adapter
Included In Package for Label - 1 - HDMI To DVI Converter
- 1 - Software CD
- 1 - Manual
- 1 - USB 3.0 To HDMI Converter
Package Depth (mm) 147 Package Height (mm) 43 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 244 Packaging Description USB 3.0 to HDMI® Adapter with USB Hub Port Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 244 Amazon Merchandising Manager Veronica Ye Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
