USB32HDEH3

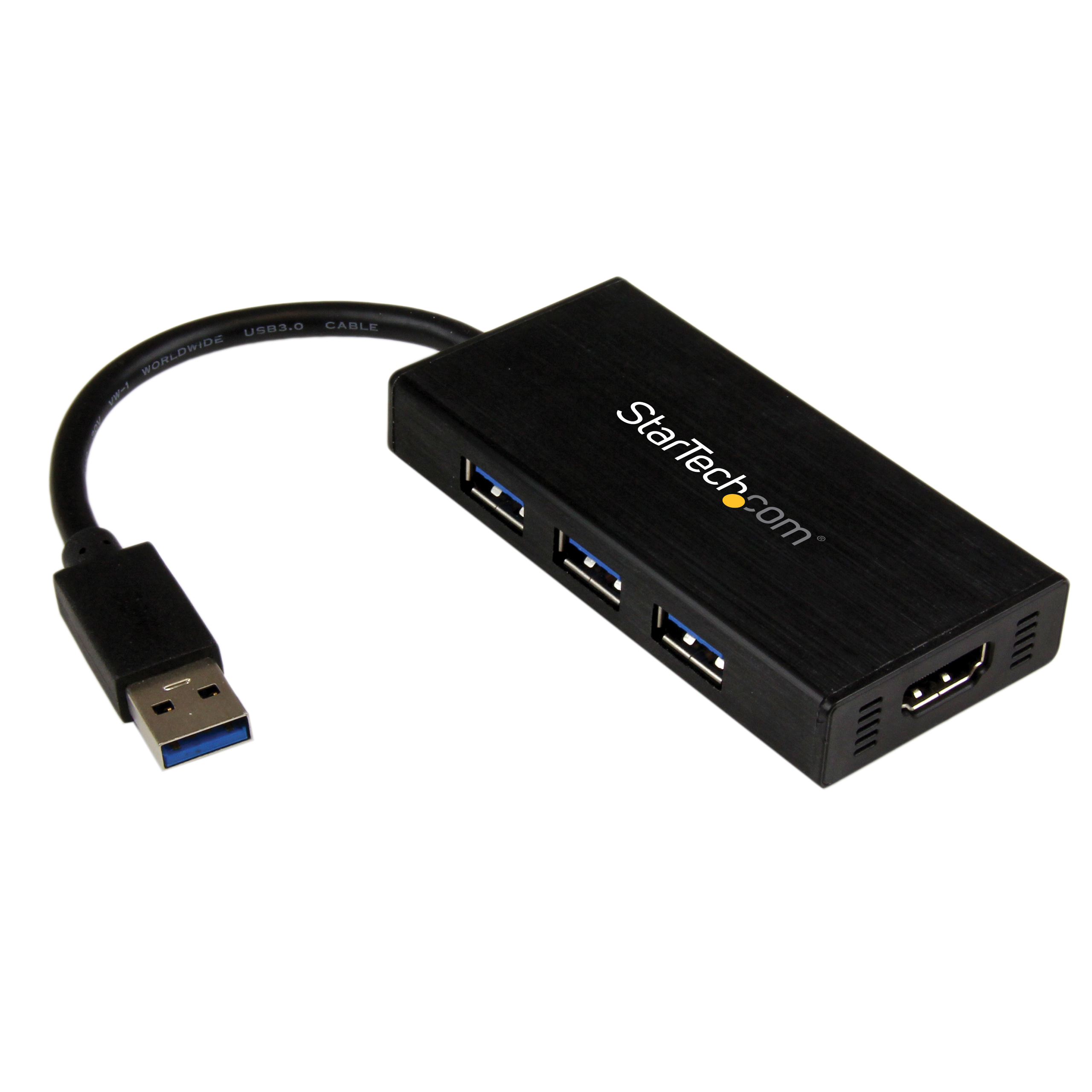

USB 3.0 to HDMI Graphics Adapter w/ 3-Port USB Hub
Connect an HDMI-equipped display through USB 3.0, and add three additional USB devices to the same USB 3.0 port with a built-in USB 3.0 hub
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 to HDMI Graphics Adapter w/ 3-Port USB Hub Product Number USB32HDEH3 UPC 065030858434 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) USB 3.0 HDMI Adapter Product Title (Short) USB 3.0 HDMI Graphics Adapter w/ USB Hub Product Title (Medium) USB 3.0 to HDMI External Graphics Adapter with 3-Port USB Hub – 1920x1200 Product Title (Standard) USB 3.0 to HDMI External Multi Monitor Graphics Adapter with 3-Port USB Hub – HDMI and USB 3.0 Mini Dock – 1920x1200 / 1080p Product Title (Long) USB 3.0 to HDMI External Multi Monitor Graphics Adapter with 3-Port USB Hub – HDMI and USB 3.0 Mini Dock – 1920x1200 / 1080p Product Title (AMZ) USB 3.0 to HDMI External Multi Monitor Graphics Adapter with 3-Port USB Hub – HDMI and USB 3.0 Mini Dock – 1920x1200 / 1080p (USB32HDEH3) Title Ingram (Part 1) USB 3.0 HDMI Graphics Adapter Title Ingram (Part 2) w/ 3-Port USB Hub - 1920x1200 Website Product Headline Connect an HDMI-equipped display through USB 3.0, and add three additional USB devices to the same USB 3.0 port with a built-in USB 3.0 hub Bullet 1 High-bandwidth USB 3.0 host connection, for reliable high-definition video playback Bullet 2 Built in 3-Port USB 3.0 hub offers improved connectivity options on your slimline laptop or Ultrabook Bullet 3 Fast, easy installation Bullet 4 USB-powered - No external power adapter required Bullet 5 Choose between Mirrored, Extended or Primary display configurations Bullets (Consolidated) Connect an HDMI-equipped display through USB 3.0 and add three additional USB devices to the same USB 3.0 port with a built-in USB 3.0 Hub - Compatible with USB 3.0 equipped computer systems and HDMI equipped Televisions Monitors and Projectors - USB to HDMI cable/USB to HDMI Converter/USB to HDMI Adapter/USB Video Card/HDMI to USB Adapter - Use as a Mini Dock to easily connect and remove your laptop or Ultrabook from your work station - Add additional connectivity ports to your laptop Marketing Copy Applications - Add a secondary HDMI display and extend your desktop
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- Run multiple applications on different screens - check your email on one display and search the web on the other
- Simultaneously view large or multiple spreadsheets across several displays
- Connect your PC to your HDMI-equipped projector or display for viewing family pictures and movies
- Great for boosting productivity for researchers and writers, offering the ability to have reference material on one display and a working document copy on the other

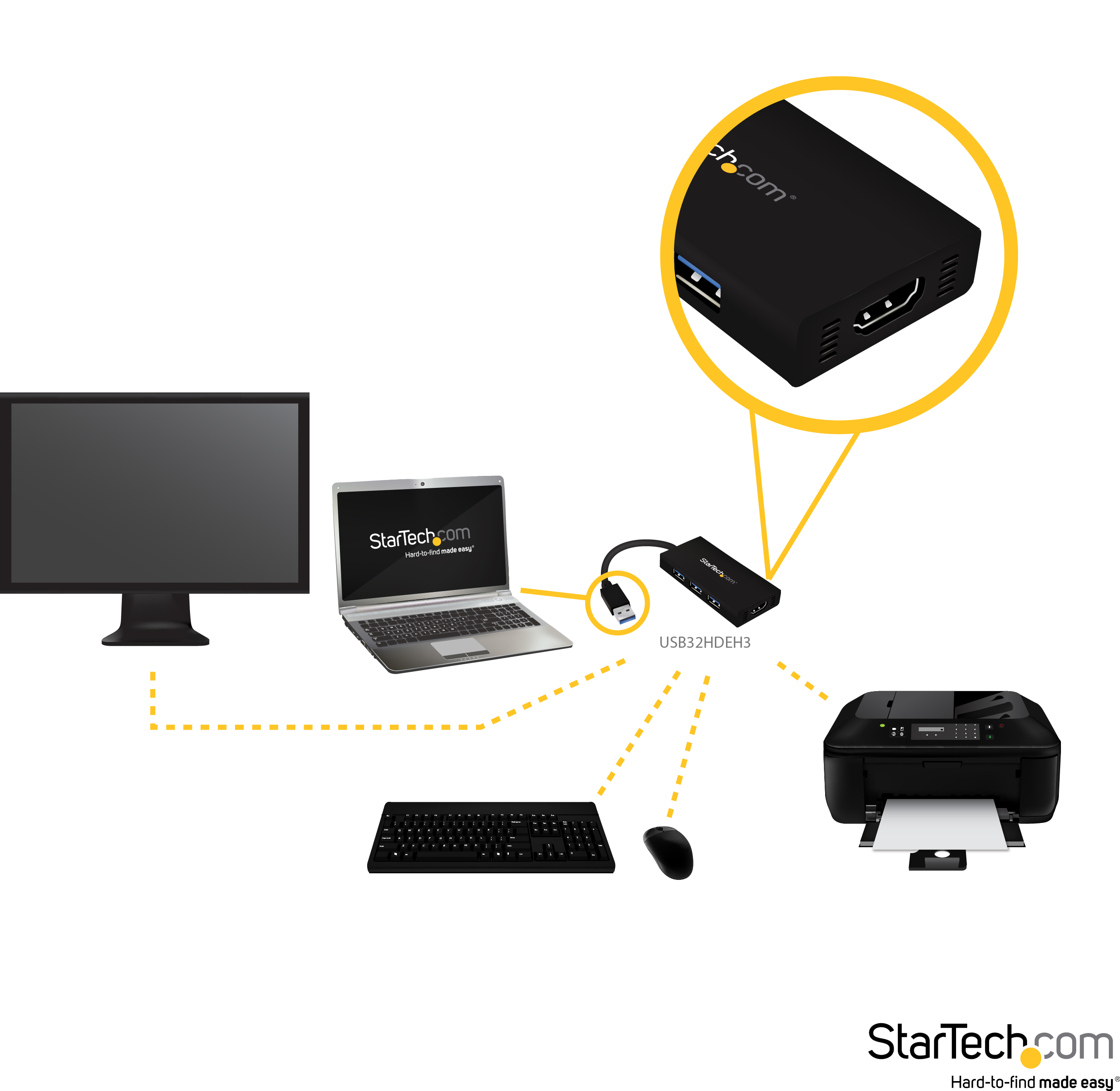

- Add an extra display and 3 additional USB devices to an Ultrabook or laptop computer with limited USB and video output ports
Website Search Keyword - USB dock
- USB 3.0
- SuperSpeed USB3
- universal docking station
- laptop docking station
- notebook docking station
- port replicator
- HDMI docking station
- USB to HDMI
- External Video Card
- USB to HDMI Adapter
- USB port replicator
- USB 3.0 docking station
- Docking Stations
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic®
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - HDMM6
- HDMM10
- HDMM15
- USB3SAA6
- USB3SAA6BK
- USB3SAA3MBK
Related Products - USB32VGAEH
- USB32HDE
- USB32VGAE
- USB2DVIMM6
- USB2VGAE2
- USB2VGAMM6
- USB2DVIPRO
- IPUSB2HD2
- USB2HDMI

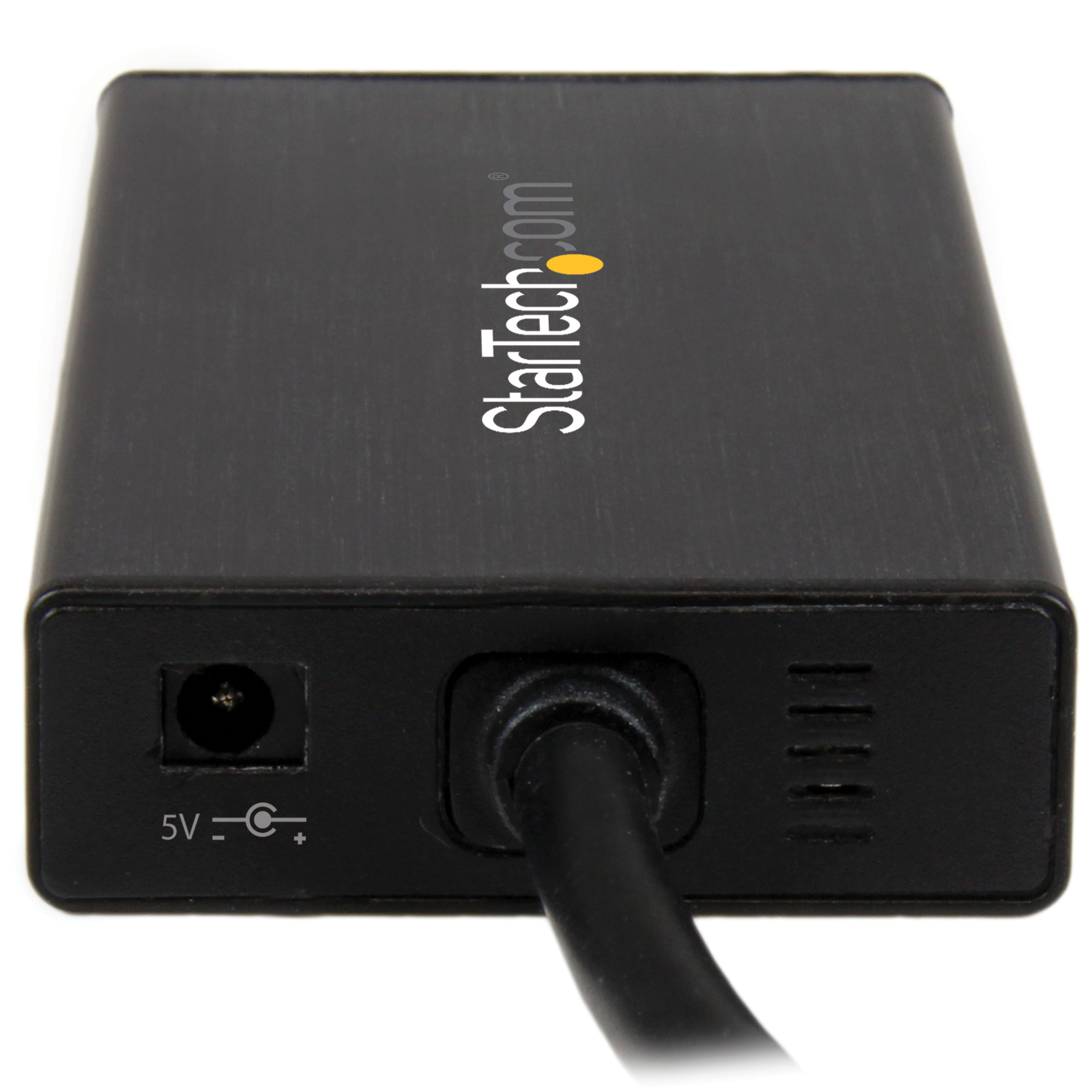

Input Voltage 5 DC Power Source Not Included (not required for standard applications) Plug Type H Cable Length (mm) 146 Color Black Humidity < 85% non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 235 Product Width (mm) 44 Product Height (mm) 14 Product Weight (g) 63 Storage Temperature -10°C to 75°C (14°F to 167°F) TAA Compliant No General Specifications This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. Maximum Analog Resolutions 1920x1200 OS Compatibility - Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 10
- Windows 11

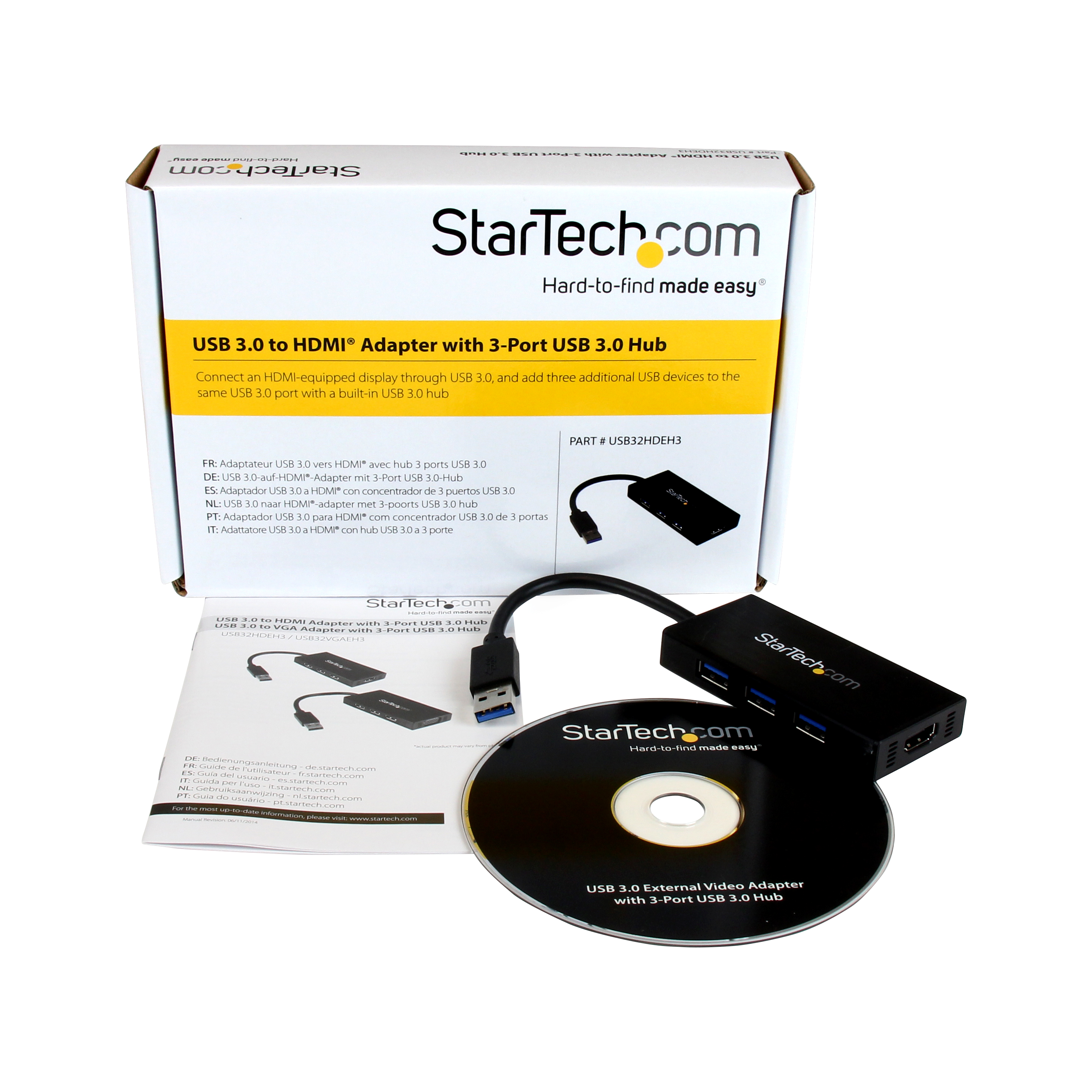

Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output HDMI Chipset ID Trigger - T5-302 Industry Standards SuperSpeed USB 3.0, USB 2.0 Memory 32MB USB Pass-Through Yes Carton Depth (mm) 310 Carton Height (mm) 440 Carton Quantity 40 Carton Weight Gross (g) 9421 Included in Package - 1 - USB 3.0 to HDMI Adapter w/ 3-Port USB 3.0 Hub
- 1 - Software Installation Disc
- 1 - Instruction Manual
Package Depth (mm) 145 Package Height (mm) 38 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 212 Packaging Description USB 3.0 to HDMI® Adapter w/ 3-Port USB 3.0 Hub Packaging Description India USB 3.0 to HDMI® Adapter w/ 3-Port USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-04-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
