USB32VGAEH
USB 3.0 to VGA Graphics Adapter with 1 port HUB
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 to VGA Graphics Adapter with 1 port HUB Product Number USB32VGAEH UPC 065030850612 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) USB 3 to VGA w/ Hub Product Title (Short) Adapter, USB 3.0 to VGA + 1-Port USB Hub Product Title (Medium) x Product Title (Standard) USB 3.0 to VGA External Video Card Multi Monitor Adapter with 1-Port USB Hub – 1920x1200 Product Title (Long) USB 3.0 to VGA Adapter with 1-Port USB Hub - 1920x1200 Product Title (AMZ) USB 3.0 to VGA Adapter with 1 Port USB Hub - 1920x1200 - External Video & Graphics Card - Dual Monitor Display Adapter - Supports Windows (USB32VGAEH) Title Ingram (Part 1) USB 3 to VGA External Graphics Title Ingram (Part 2) Adapter with 1-Port USB Hub Website Product Headline USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows® Bullet 1 SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0 Bullet 2 Quick, easy installation Bullet 3 USB-powered - No external power adapter required Bullet 4 Choose between Mirrored, Extended or Primary display configurations Bullet 5 Built in 1-Port USB 3.0 Hub Bullets (Consolidated) Connect a VGA-equipped display through USB 3.0, while keeping the USB 3.0 port available - USB 3 to VGA graphics card - USB 3.0 to VGA External Video Card Multi-Monitor Graphics Adapter with Built in 1-Port USB Hub - Works with USB 3.0 equipped computer systems and VGA equipped Televisions Monitors and Projectors - Resolutions up to 1920x1200/1080p - USB to VGA Adapter/USB Video Card/VGA to USB Adapter - Replace the USB 3.0 port that the adapter uses, and connect another USB 3.0 device Marketing Copy Applications - Add a secondary VGA display and extend your desktop
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- Run multiple applications on different screens - check your email on one display and search the web on the other
- Simultaneously view large or multiple spreadsheets across several displays
- Connect your PC to your VGA-equipped projector or display for viewing family pictures and movies
- Great for boosting productivity for researchers and writers, offering the ability to have reference material on one display and a working document copy on the other
Website Search Keyword - usb 3 to VGA adpater
- usb 3.0 graphics card
- external video card
- external graphics card
- usb 3.0 to VGA
- usb 3.0 video adapter
- Docking Stations
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic®
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- USB3SAA6BK
- USB3SAA6
- USB3SAA3MBK
Related Products - USB32VGAE
- USB2DVIMM6
- USB2VGAE2
- USB2VGAMM6
- USB2DVIPRO
- USB32HDE
- IPUSB2HD2
- USB2HDMI
- USB32HDEH
Power Source USB-Powered Cable Length (mm) 160 Color Black Humidity < 85% non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 85.000 Product Width (mm) 49.000 Product Height (mm) 17.000 Product Weight (g) 74.000 Storage Temperature -10°C to 75°C (14°F to 167°F) TAA Compliant Yes General Specifications This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. Maximum Analog Resolutions 1920x1200 OS Compatibility - Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 10
- Windows 11

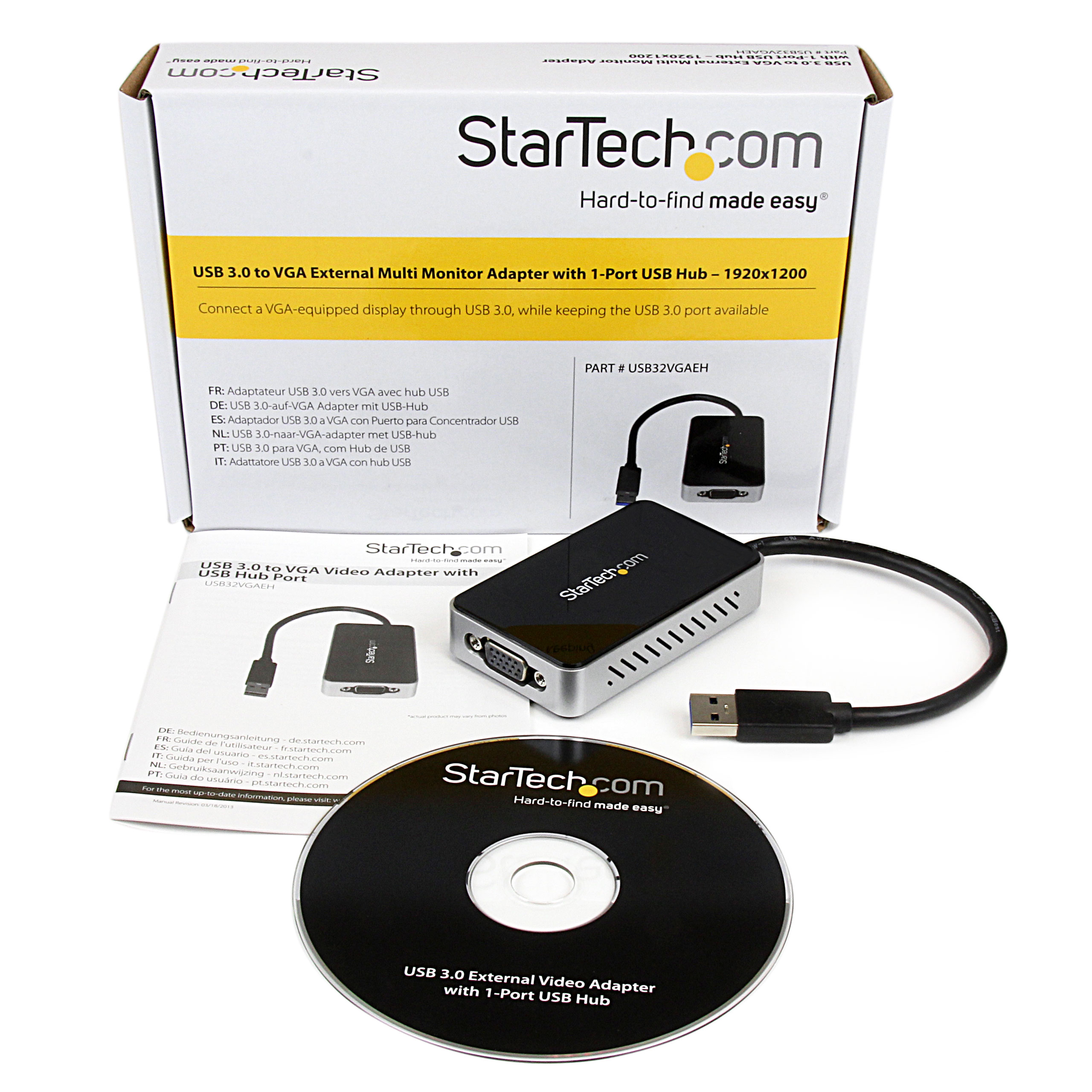

Supported Resolutions Wide Screen Supported Yes Audio No AV Input USB 3.2 Gen 1 (5Gbps) AV Output VGA Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Trigger - T5-302 Industry Standards SuperSpeed USB 3.0, USB 2.0 Laptop Dock Number of Displays 1 Memory 16MB USB Pass-Through Yes Carton Depth (mm) 321 Carton Height (mm) 435 Carton Quantity 40 Carton Weight Gross (g) 9837 Included in Package - 1 - USB 3.0 to DVI Adapter
- 1 - Manual
- 1 - Software CD
Package Depth (mm) 209 Package Height (mm) 41 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 227 Packaging Description USB 3.0 to VGA Adapter with USB Hub Port Packaging Description India USB 3.0 to VGA Adapter with USB Hub Port Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-27 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None
