USB32VGAEH3

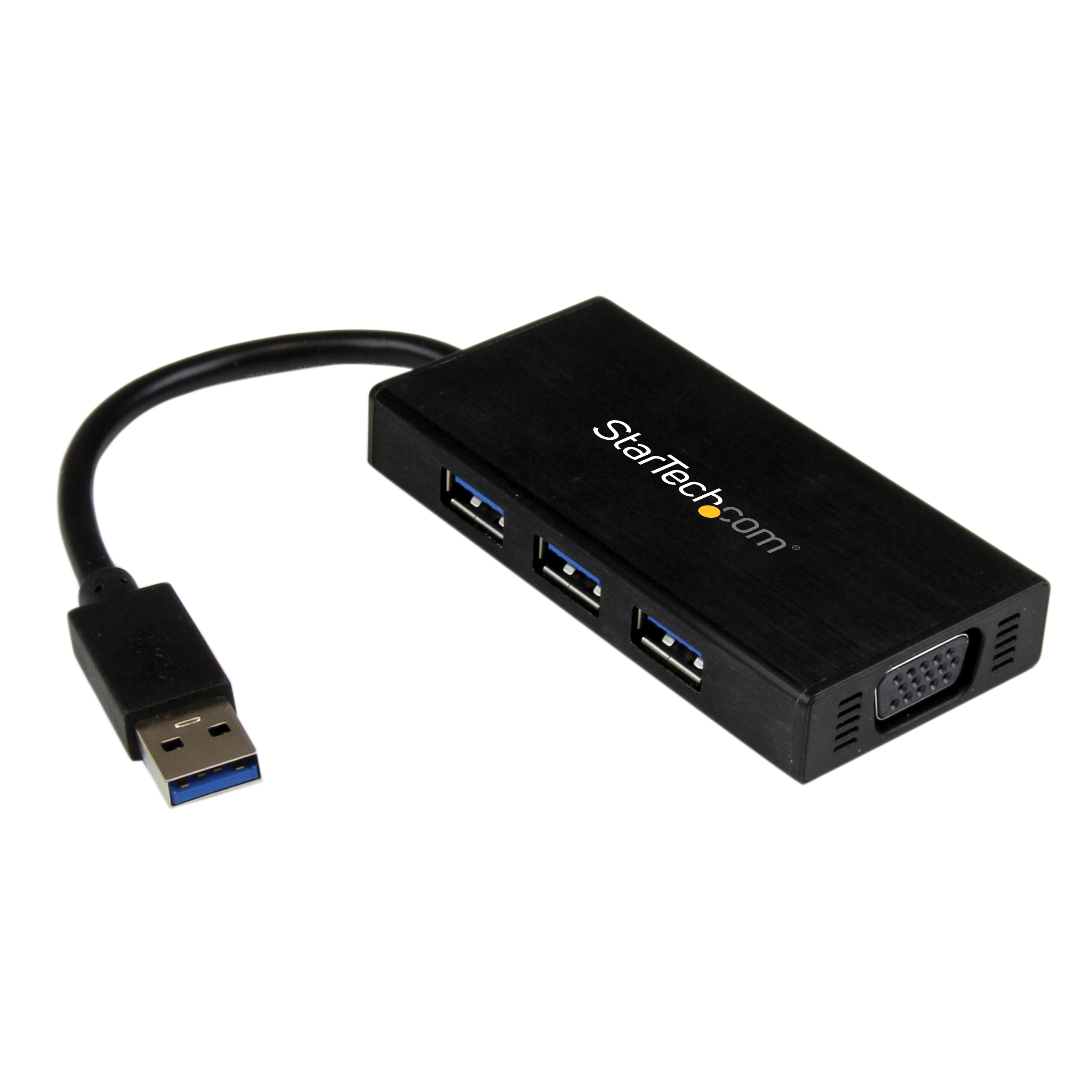

USB 3.0 to VGA Graphics Adapter w/ 3-Port USB Hub
Connect a VGA-equipped monitor/projector through USB 3.0, and add three additional USB devices to the same USB 3.0 port with a built-in 3-port USB 3.0 hub
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 to VGA Graphics Adapter w/ 3-Port USB Hub Product Number USB32VGAEH3 UPC 065030858441 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) USB 3.0 VGA Adapter Product Title (Short) USB 3.0 VGA Graphics Adapter w/ USB Hub Product Title (Medium) USB 3.0 to VGA External Graphics Adapter with 3-Port USB Hub – 1920x1200 Product Title (Standard) USB 3.0 to VGA External Multi Monitor Graphics Adapter with 3-Port USB Hub – VGA and USB 3.0 Mini Dock – 1920x1200 / 1080p Product Title (Long) USB 3.0 to VGA External Multi Monitor Graphics Adapter with 3-Port USB Hub – VGA and USB 3.0 Mini Dock – 1920x1200 / 1080p Product Title (AMZ) USB 3.0 to VGA External Monitor Graphics Adapter with 3-Port USB Hub 3.0 Mini Dock - Supports Windows (USB32VGAEH3) Title Ingram (Part 1) USB 3.0 to VGA Graphics Adapter Title Ingram (Part 2) w/ 3-Port USB Hub - 1920x1200 Website Product Headline Connect a VGA-equipped monitor/projector through USB 3.0, and add three additional USB devices to the same USB 3.0 port with a built-in 3-port USB 3.0 hub Bullet 1 High-bandwidth USB 3.0 host connection, for reliable high-definition video playback Bullet 2 Built in 3-Port USB 3.0 hub offers improved connectivity options on your slimline laptop or Ultrabook Bullet 3 USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0 Bullet 4 Fast, easy installation Bullet 5 USB-powered - No external power adapter required Bullets (Consolidated) Connect a VGA-equipped monitor/projector through USB 3.0 and add three additional USB devices to the same USB 3.0 port with a built-in 3-port USB 3.0 hub - Compatible with USB 3.0 equipped computer systems and VGA equipped Televisions Monitors and Projectors - USB to VGA Adapter/External Video Card/USB Video Card/VGA to USB Adapter - Use as a Mini Dock to easily connect and remove your laptop or Ultrabook from your work station - Add additional connectivity ports to your laptop Marketing Copy Applications - Add a secondary VGA display and extend your desktop
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- Run multiple applications on different screens - check your email on one display and search the web on the other
- Simultaneously view large or multiple spreadsheets across several displays
- Connect your PC to your VGA-equipped projector or display for viewing family pictures and movies
- Great for boosting productivity for researchers and writers, offering the ability to have reference material on one display and a working document copy on the other

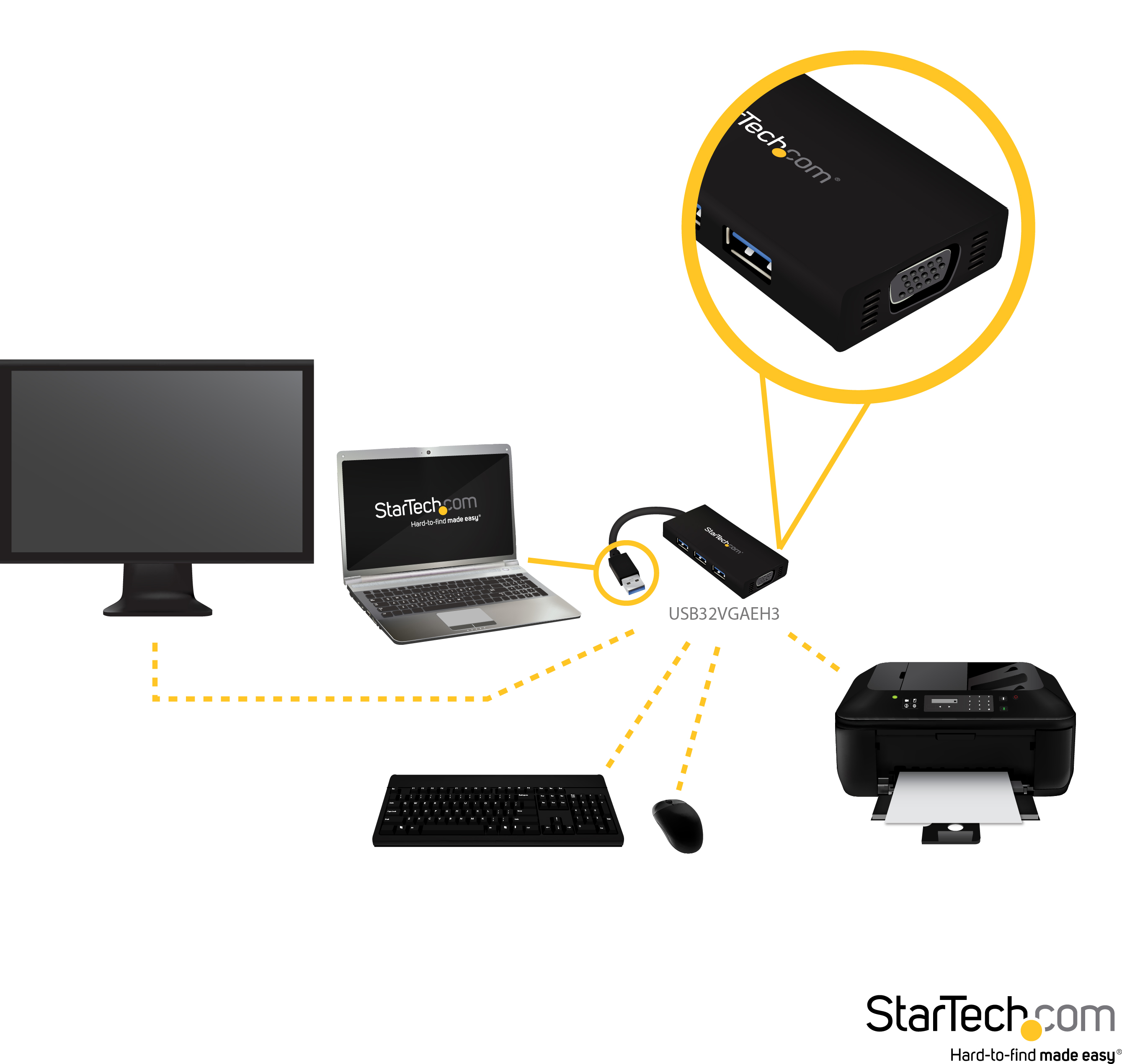

- Add an extra VGA display and 3 additional USB devices to an Ultrabook or laptop computer with limited USB and video output ports
Website Search Keyword - USB dock
- USB to VGA
- External Video Card
- USB to VGA Adapter
- USB port replicator
- USB 3.0 docking station
- USB 3.0
- SuperSpeed USB3
- universal docking station
- laptop docking station
- notebook docking station
- port replicator
- VGA docking station
- Docking Stations
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- USB3SAA6BK
- USB3SAA6
- USB3SAA3MBK
Related Products - USB32HDEH
- USB32HDE
- USB32VGAE
- USB2DVIMM6
- USB2VGAE2
- USB2VGAMM6
- USB2DVIPRO
- IPUSB2HD2
- USB2HDMI
Power Source USB-Powered Cable Length (mm) 152.5 Color Black Humidity < 85% non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 235 Product Width (mm) 44 Product Height (mm) 14 Product Weight (g) 212 Storage Temperature -10°C to 75°C (14°F to 167°F) TAA Compliant No Maximum Analog Resolutions 1920x1200 OS Compatibility - Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 10
- Windows 11

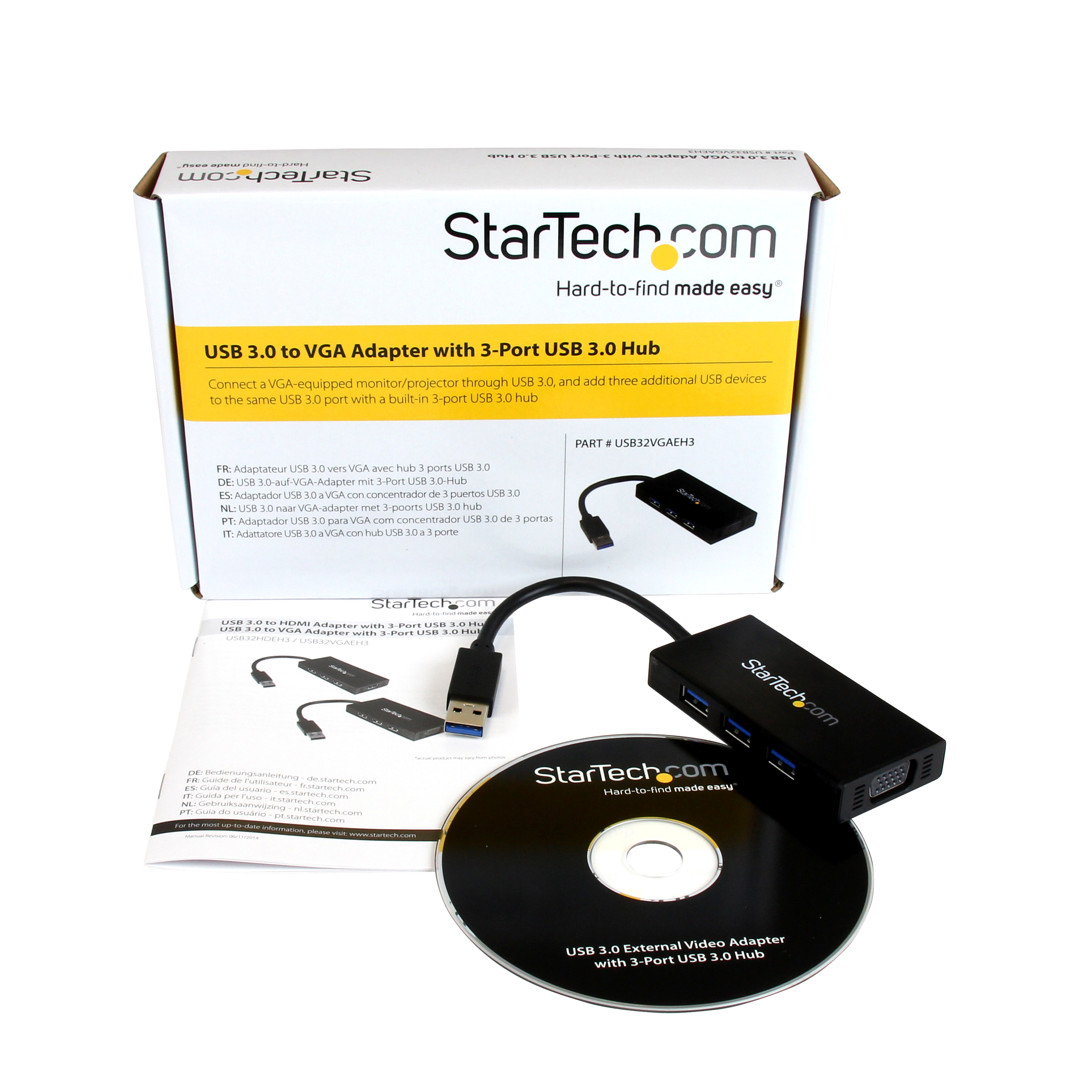

Supported Resolutions Wide Screen Supported Yes Audio No AV Input USB 3.2 Gen 1 (5Gbps) AV Output VGA Chipset ID Trigger - T5-302 Industry Standards SuperSpeed USB 3.0, USB 2.0 Memory 16MB USB Pass-Through Yes Carton Depth (mm) 310 Carton Height (mm) 440 Carton Quantity 40 Carton Weight Gross (g) 9189 Included in Package - 1 - USB 3.0 to VGA Adapter w/ 3-Port USB 3.0 Hub
- 1 - Instruction Manual
- 1 - Software Installation Disc
Package Depth (mm) 145 Package Height (mm) 38 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 212 Packaging Description USB 3.0 to VGA Adapter w/ 3-Port USB 3.0 Hub Packaging Description India USB 3.0 to VGA Adapter w/ 3-Port USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 3 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-04-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
