Main Image
USB32VGAPRO
USB3 0 to VGA graphics adapter
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB3 0 to VGA graphics adapter Product Number USB32VGAPRO UPC 065030854894 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-A Display Adapters Category Level 3 USB 3.0 to VGA Family USB 3.0 to Display Adapters, DisplayLink Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) USB 3.0 VGA Adapter Product Title (Short) USB to VGA Adapter - Mac & PC Product Title (Medium) USB 3.0 to VGA External Video Card Adapter, 1920x1200 - replaced by USB2VGAPRO2 Product Title (Standard) USB 3.0 to VGA External Video Card Multi Monitor Adapter for Mac / PC, USB Graphics Card, 1920x1200 - replaced by USB2VGAPRO2 Product Title (Long) USB 3.0 to VGA External Video Card Multi Monitor Adapter for Mac and PC, External USB 3.0 VGA Graphics Card - being replaced by USB2VGAPRO2 Product Title (AMZ) USB 3.0 to VGA External Video Card Multi Monitor Adapter for Mac / PC, 1920x1200 - replaced by USB2VGAPRO2 Title Ingram (Part 1) USB 3.0 to VGA External Multi Title Ingram (Part 2) Monitor Video Adapter - 1080p Website Product Headline USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows® Bullet 1 SuperSpeed USB 3.0 (5 Gbps) Bullet 2 Supports video resolutions up to 1920x1200/1080p Bullet 3 USB-powered - No external power adapter required Bullet 4 Supports Mirrored, Extended or Primary display configurations Bullet 5 Supports display rotation Bullets (Consolidated) Connect a VGA monitor or projector through USB 3.0 for an external multi-monitor solution at resolutions up to 1920x1200 - USB 3.0 to VGA Adapter - USB to VGA Monitor Adapter - DisplayLink Graphics Adapter - USB VGA Display Adapter - USB Video Card Marketing Copy Marketing Copy (No HTML) Applications - Add a secondary VGA display and extend your desktop without taking apart your computer to install a new video card
- Add multi-monitor capability to a single computer, to create engaging multimedia presentations
- Use the adapter to connect your PC to your VGA-equipped TV, for showing family pictures and movies
- Great for researchers and writers, offering the ability to have reference material on one display and a working document copy on the other
- Increase productivity by running multiple applications on different screens, check your e-mail on one display and search the web on the other
- View a large spreadsheet or several individual spreadsheets across multiple displays
- A compact, lightweight solution for traveling business associates using laptop PCs, enabling connection to a secondary display/projector
Website Search Keyword - USB Video Card
- usb vga display adapter
- usb 3.0 vga adapter
- usb 3 to vga adapter
- usb 3.0 vga
- usb vga adapters
- usb 3.0 to vga graphics adapter
- displaylink usb graphics adapter
- usb to vga monitor adapter
- usb 3.0 to vga adapter
- USB 3.0 to VGA
- U344-001-VGA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- MXT101MMHQ30
Related Products - USB2VGAPRO2
- USB2VGAE2
- USB2VGAE3
- USB32VGAES
- USB32VGAV
- USB32VGAEH
- USB32VGAEH3
- USB32VGAE
Power Source USB-Powered Cable Length (mm) 158.7 Color Black Humidity <85% RH Non-Condensing Material Plastic Operating Temperature 10°C to 40°C (50°F to 104°F) Primary Material Plastic Product Length (mm) 255.000 Product Width (mm) 55.000 Product Height (mm) 20.000 Product Weight (g) 64.000 Storage Temperature -10°C to 80°C (14°F to 167°F) TAA Compliant No General Specifications Note: If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. Maximum Analog Resolutions 1920x1200/1080p Maximum Supported Resolution 1080p OS Compatibility - Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Chrome OS
- macOS Mojave (10.14)
- Mac OS X El Capitan (10.11)
- Ubuntu
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

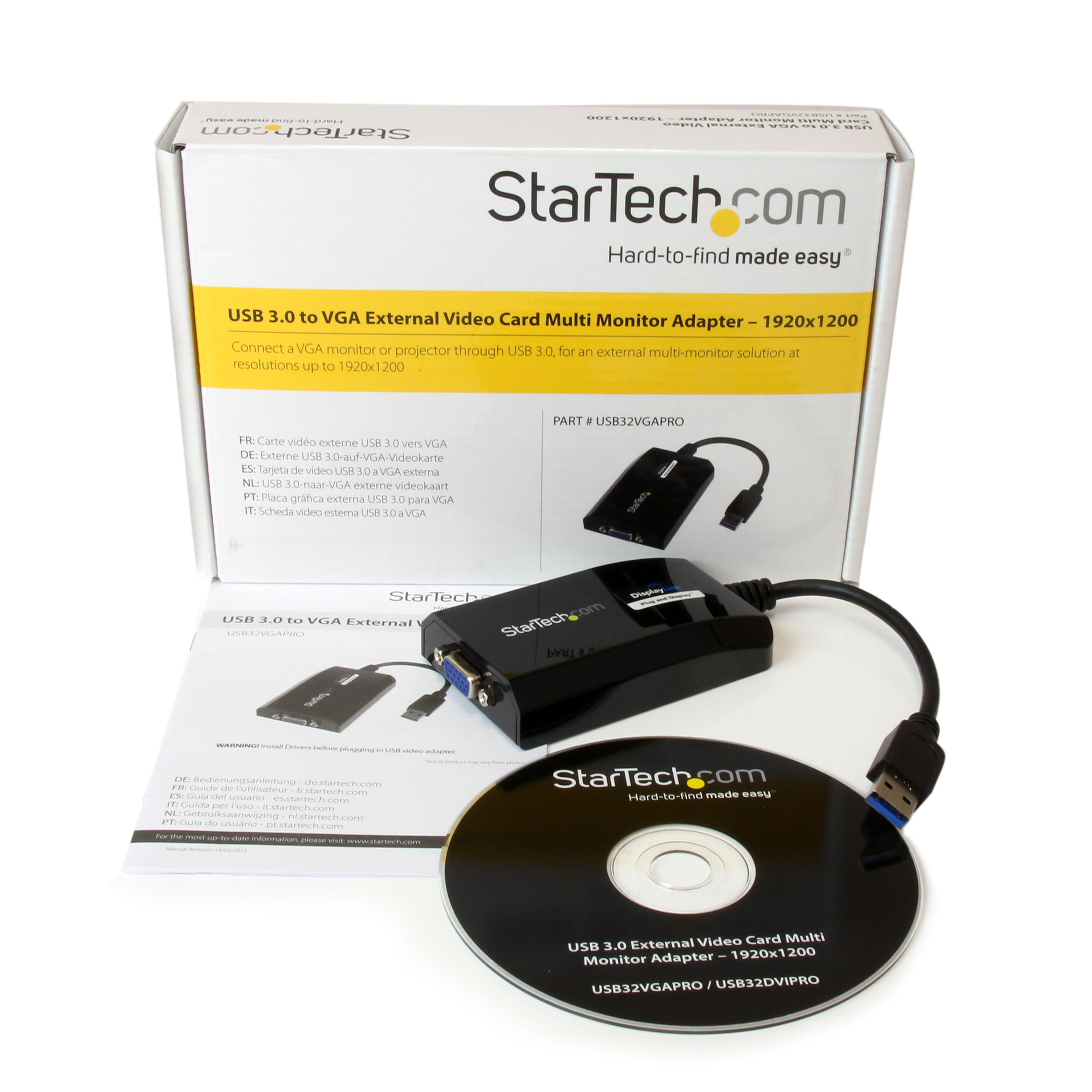

Supported Resolutions Video Output Port VGA Wide Screen Supported Yes AV Input USB 3.2 Gen 1 (5Gbps) AV Output VGA Chipset ID DisplayLink - DL-3100N Memory 512MB Number of Displays 1 USB Pass-Through No Carton Depth (mm) 449 Carton Height (mm) 332 Carton Quantity 40 Carton Weight Gross (g) 8812 Included in Package - 1 - USB 3.0 to VGA Video Adapter
- 1 - Driver/Software CD
- 1 - Instruction Manual
Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 204 Packaging Description USB 3.0 to VGA External Video Card Packaging Description India USB 3.0 to VGA External Video Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
