USB32VGCAPRO
VGA to USB 3.0 Capture device
Record VGA video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name VGA to USB 3.0 Capture device Product Number USB32VGCAPRO UPC 065030864848 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) VGA to USB Capture Product Title (Short) USB 3.0 Video Capture Device - VGA Product Title (Medium) USB 3.0 Capture Device for High-Performance VGA Video - 1080p 60fps - Aluminum Product Title (Standard) VGA Video Capture Card – 1080p 60fps Game Capture Card – Aluminum – Game Capture Card – HD PVR – USB Video Capture Product Title (Long) USB 3.0 Capture Device for High-Performance VGA Video - 1080p 60fps - Aluminum Product Title (AMZ) VGA Video Capture Card - 1080p 60fps Game Capture Card - Aluminum - Game Capture Card - HD PVR - USB Video Capture (USB32VGCAPRO) Title Ingram (Part 1) Compact USB 3.0 VGA Video Title Ingram (Part 2) Recorder - 1080p 60fps Website Product Headline Record VGA video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution Bullet 1 Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60 FPS Bullet 2 Wide device playback support with universally encoded video files Bullet 3 Raw/lossless video capture ensuring DirectShow™ compatibility on Windows devices Bullet 4 Separate 3.5 mm audio input, for adding voice commentary or audio tracks; Features a VGA pass-through port, for watching the video as it is captured Bullet 5 PRODUCT ALERT: Latest Streamcatcher Pro software (included & available for download), with refreshed GUI, now adds simultaneous connection of multiple capture devices; Streamcatcher Pro is compatible with Windows 10 (Windows 8 and up) Bullets (Compact) Record VGA video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution - Record video for training & tutorial purposes - Capture raw video using your preferred DirectShow compatible software - External VGA capture card Bullets (Consolidated) Record VGA video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution - USB 3.0 video capture card/VGA video capture card/VGA capture card/VGA video capture for Mac/1080p VGA capture card/HD capture card/PC capture card/USB Capture card/Video game capture/USB video capture card/USB video capture device/Game capture card/Game recorder/HD PVR - Record video for training and tutorial purposes - DirectShow compatible - Separate 3.5 mm audio input Marketing Copy Applications - Record video for training and tutorial purposes from technologies that output VGA
- Convert analog video to digital, in professional video archiving applications
- Capture raw, uncompressed video using your preferred DirectShow compatible software
- Great for recording the output from your PC, server, or POS station, when creating software training and tutorial videos
- Add your own independent audio source for voice-over commentary
Website Product Alert Website Search Keyword - raw video capture
- usb 3.0 vga video capture
- usb 3.0 raw vga capture
- usb 3.0 raw video capture
- Video capture adapter
- Video frame capture
- Video frame grabber
- Uncompressed vga video capture
- USB 3.0 vga capture
- Raw vga video capture
- Lossless vga video capture
- Compact video capture
- 1080p vga video capture
- vga capture
- vga video capture
- vga capture device
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes This video capture device requires a USB 3.0 port (or higher). The video capture device does not work with USB 2.0 ports (or lower). Accessory Products - MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MU6MMS
- MU10MMS
- MU3MMS
- MXT105MMHQ
- MU15MMS
- USB3SAB10
Related Products - USB32HDCAPRO
- USB2HDCAPS
- USB2HDCAPM
- USB2HDCAP
- PEXHDCAP2
- PEXHDCAP60L
- ECHDCAP
- SVID2USB23
- SVID2USB2
Power Source USB-Powered Humidity 20% to 80% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 92.000 Product Width (mm) 61.000 Product Height (mm) 24.000 Product Weight (g) 100.000 Storage Temperature -5°C to 40°C (23°F to 105°F) TAA Compliant Yes Maximum Analog Resolutions 1920 x 1080 60 FPS MTBF (hours) 2,543,711 Hours OS Compatibility - Windows 8
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows 11
Supported Resolutions 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 Wide Screen Supported Yes Audio Yes AV Input VGA AV Output USB Chipset ID Mstar - MST3363CNK-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PA
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

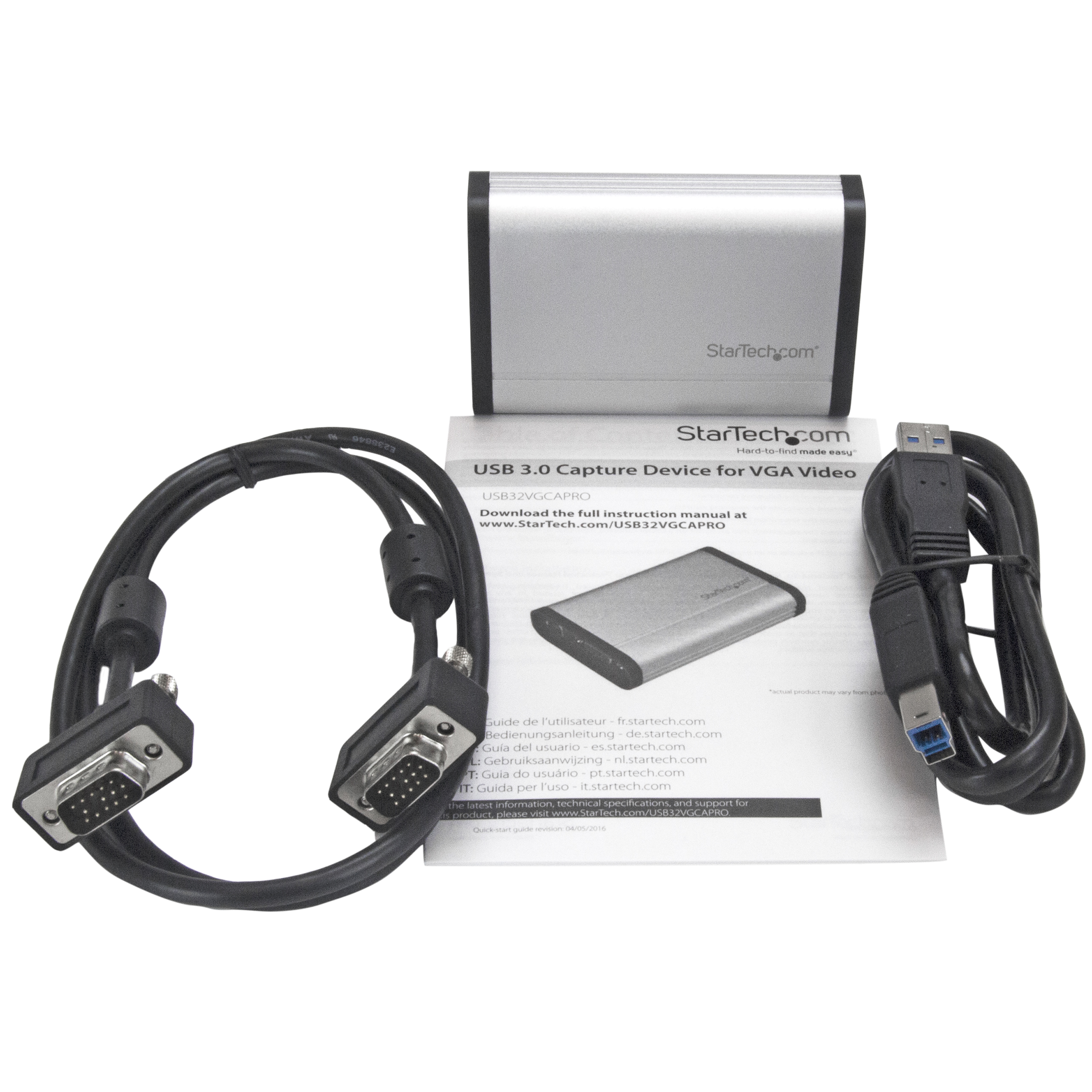

Carton Depth (mm) 473 Carton Height (mm) 463 Carton Quantity 48 Carton Weight Gross (g) 19250 Included in Package - 1 - USB 3.0 capture device for VGA video
- 1 - 3.3 ft [1 m] USB 3.0 cable
- 1 - quick start guide
- 1 - 3.3 ft [1 m] VGA cable
- 1 - 6ft [2m] USB-C to USB-B Cable
Package Depth (mm) 152 Package Height (mm) 54 Package Width (mm) 217 Package Quantity 1 Package Weight (g) 400 Packaging Description USB 3.0 Capture Device for VGA Video Packaging Description India USB 3.0 Capture Device for VGA Video Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB-B (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-02-16 Digital Content Due Date 2016-06-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2016-04-15 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
