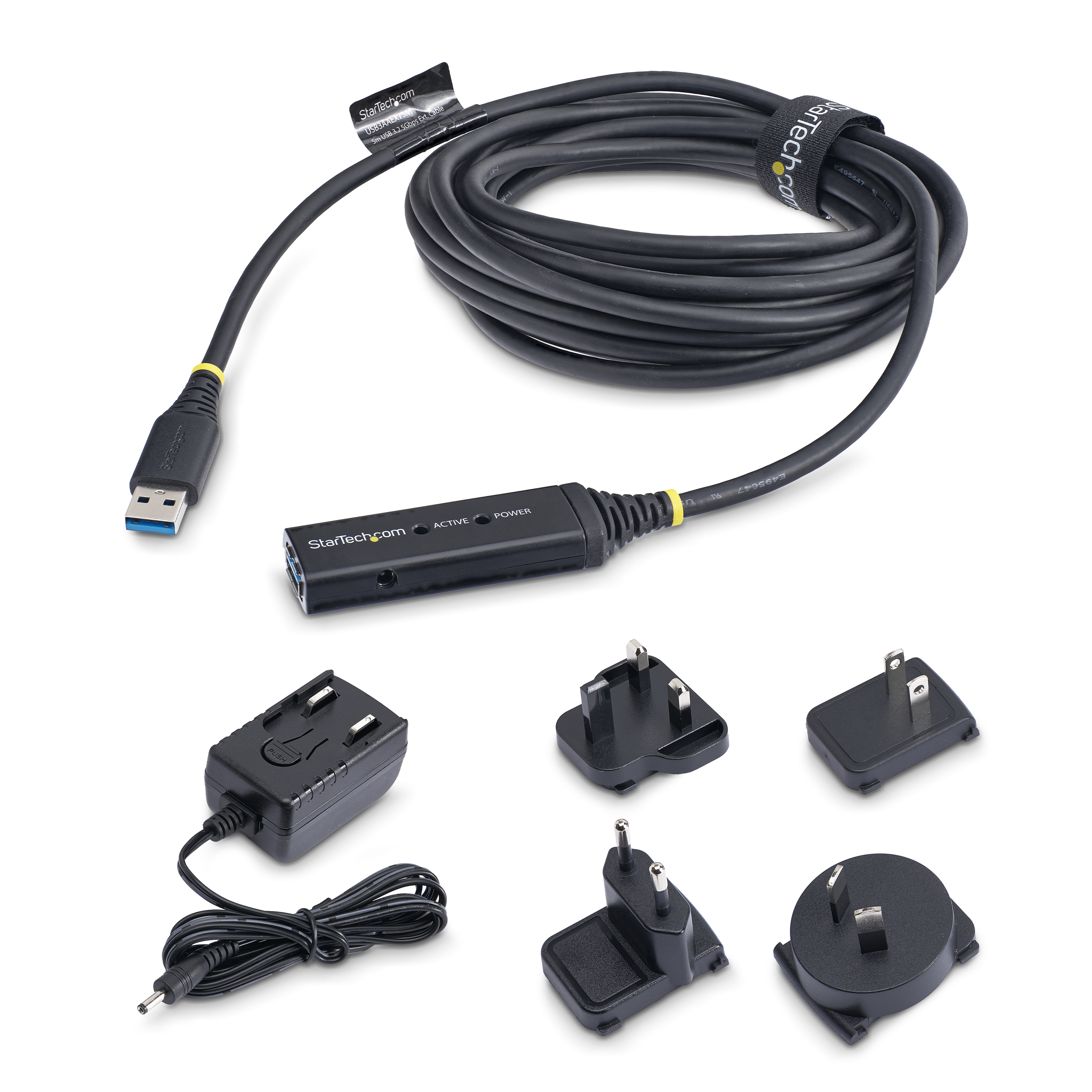

Main Image
USB3AAEXT5M
5 m USB 3 0 Active Extension Cable M F
Extend the distance between a computer and a USB 3.2 Gen1 device by an additional 5 meters
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 5 m USB 3 0 Active Extension Cable M F Product Number USB3AAEXT5M UPC 065030846301 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-A Cables Category Level 3 USB-A Extension Cables - 5Gbps Active Family USB Extension Cables Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX042X Product Title (Short) 5m USB 3.0 Active Extension Cable - M/F Product Title (Standard) 5m USB 3.0 (5Gbps) Active Extension Cable, M/F, TAA Product Title (Long) 5m USB 3.0 (5Gbps) Active Extension Cable - M/F - TAA Product Title (AMZ) 16.4ft Active USB 3.0 (5Gbps) Extension Cable with AC Power Adapter - Shielded - Male to Female USB USB 3.2 Gen1 Type A Extender , TAA (USB3AAEXT5M) Title Ingram (Part 1) 5m USB 3.0 Active Extension Cabl Title Ingram (Part 2) e - M/F Website Product Headline Extend the distance between a computer and a USB 3.2 Gen1 device by an additional 5 meters Bullet 1 Fully shielded for error-free connections Bullet 2 USB bus-powered Bullet 3 Plug-and-play, no driver required Bullet 4 Blue LED indicator x1 for Extension Cable and USB port connection status monitoring Bullet 5 Universal external power source also included Bullets (Compact) Extend the distance between a computer and a USB 3.0 device by an additional 5 meters - usb 3.0 repeater cable - 5m usb 3.0 extension cable - usb 3.0 active extension cable Bullets (Consolidated) USB extension cable - USB Type A (M) to USB Type A (F) - USB 3.0 - 16.4 ft - active - black - for P/N: PEXUSB3S44V Marketing Copy Marketing Copy (No HTML) The 5-meter Active USB 3.0 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.0 devices of up to 5-meters (16-feet). An all in one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable. The extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty. Applications - Cascade up to 4 levels
- Backwards compatible with USB 2.0/1.1 devices
- Extend the distance of USB peripherals beyond the USB 3.0 3-meter limitation
Website Search Keyword - USB Extender
- active usb cable
- 5mt USB-A 3.0 cable
- 5m USB-A 3.0 cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Cascade up to 4 USB3AAEXT5M devices together for further extension Accessory Products - USB3SAB10
- SVA5H2NEUA
Related Products - USB3AAEXT3M
- USB3AAEXT10M
Input Current 0.35 A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Cable Length (mm) 5000 Color Black Primary Material Plastic Product Length (mm) 86.5 Product Width (mm) 22 Product Height (mm) 12 Product Weight (g) 221 TAA Compliant Yes OS Compatibility OS Independent Cable Jacket Material PVC - Polyvinyl Chloride Connector Plating Nickel Connectors Combo USB-A to USB-A Host or Charger Connector USB-A Peripheral Connector USB-A Carton Depth (mm) 400 Carton Height (mm) 318 Carton Quantity 28 Carton Weight Gross (g) 14192 Included in Package - 1 - 5 m USB 3.0 Active Extension Cable - M/F
- 1 - Universal Power Adapter
- 1 - Plug Adapters for North America, UK, Europe, and Australia
Included In Package for Label - 1 - Universal Power Adapter
- 1 - Plug Adapters for North America, UK, Europe, and Australia
- 1 - 5 m USB 3.0 Active Extension Cable - M/F
Package Depth (mm) 150 Package Height (mm) 52 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 474 Packaging Description 5m (16.4ft) USB 5Gbps Active Extension Cable - M/F Packaging Description India 5m USB 5Gbps Active Extension Cable - M/F Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist David Bromley Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
