Main Image
USB3DOCKH2DP
Universal Triple Video USB 3 0 Laptop Dock Station
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Universal Triple Video USB 3 0 Laptop Dock Station Product Number USB3DOCKH2DP UPC 065030860918 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Multi-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) Triple Monitor Dock Product Title (Short) Docking Station - Triple Monitor USB 3.0 Product Title (Medium) Triple Monitor Docking Station for Laptops - Mac & Windows - USB 3.0 - Up to 4K Product Title (Standard) Triple Monitor USB 3.0 Docking Station for Laptops, Mac & Windows, USB Fast Charge Port, Up to 4K, USB3DOCKH2DP, TAA Product Title (Long) Triple Monitor USB 3.0 Docking Station with 2x 4K DisplayPort & HDMI - 5 Port USB-A Hub (1x Fast-Charge), 3.5mm Audio, GbE - USB Type A Universal Laptop Dock for MacOS / Windows - TAA Product Title (AMZ) Triple Monitor USB 3.0 Docking Station, 2x 4K DisplayPort & HDMI, USB Type A Universal Laptop Dock, Windows/Mac, TAA Title Ingram (Part 1) Triple Monitor Docking Station Title Ingram (Part 2) USB 3.0 Port Replicator - 4K Website Product Headline Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant Bullet 1 TRIPLE DISPLAY DOCKING STATION: This universal USB 3.0 laptop dock lets users maximize their display capabilities with a triple monitor (1 x HDMI and 2 x DP) or dual-monitor setup, which will help to boost productivity Bullet 2 4K ULTRA HD RESOLUTIONS: Bring a lifelike picture to your monitor or display with this 4K USB docking station that supports resolutions up to 3840x2160 on one of the displays while supporting and 2048x1152 on the other two Bullet 3 CONNECT & CHARGE YOUR USB PERIPHERALS: Connect up to five USB devices with this USB 3.0 DisplayPort & HDMI docking station; For added convenience, you can quickly charge your USB devices using the integrated USB fast-charge port Bullet 4 CREATE A POWERFUL WORKSTATION: In addition to the five USB ports, the triple display docking station features a GbE RJ45 port and headset jack plus a separate 3.5mm audio and microphone port Bullet 5 OS COMPATIBILITY: This USB docking station works with Windows, Mac, and ChromeOS; Includes 1x 3.3ft (1m) USB 3.0 Type-A to B host cable; NOTE: USB-C hosts will need a USB 3.0 Type-C to B cable or USB 3.0 Type-C male to Type-A female adapter (not incl.) Bullets (Compact) 4K USB docking station supports 4K on one display - Triple display docking station has fast-charge port - USB 3.0 docking station has USB 3.0 ports and GbE - 3 YR warranty on universal laptop docking station with HDMI and all USB 3.0 port replicators Bullets (Consolidated) 4K USB triple monitor docking station supports resolution up to 3840 x 2160p on one display - Triple display docking station lets you connect and charge your USB devices with 5 x USB 3.0 ports including a fast-charge port - TAA compliant USB 3.0 docking station has 5x USB 3.0 (AKA USB 3.1 Gen 1) ports and a GbE port transforming your laptop into a workstation - StarTech.com 3-year warranty on this universal laptop docking station with HDMI/DisplayPort and all USB 3.0 port replicators Marketing Copy Marketing Copy (No HTML) Applications - Use three displays to work on multiple documents simultaneously in office applications
- View multiple monitors at a glance, in financial or investment firms
- Create a quick-connect workstation that supports your existing HDMI and DisplayPort monitors
Website Product Alert Website Search Keyword - 4k usb docking station
- byod
- computer docking station
- cyod
- docking station dual monitor
- docking station laptop
- docking station with displayport
- laptop dock
- laptop docking station
- laptop docking station dual monitor
- port replicator
- surface docking station
- surface pro 4 dock
- triple display docking station
- triple monitor docking station
- universal docking station
- universal laptop docking station
- universal laptop docking station with hdmi
- universal usb docking station
- usb 3 dock
- usb 3 docking station
- usb 3 port replicator
- usb 3.0 dock
- usb 3.0 docking station
- usb 3.0 dual monitor docking station
- usb 3.0 port replicator
- usb 3.0 universal docking station
- usb 3.0 universal laptop docking station
- usb 3.1 dock
- usb 3.1 docking station
- usb docking station
- usb laptop docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - 4K resolution is supported on the DisplayPort Video 1 port only. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements USB-enabled computer with an available USB 3.0 port Accessory Products - DP2HD4KS
- HDMIDVIMF
- DISPLPORT15L
- DISPLPORT10L
- DISPLPORT6L
- HDMM15
- HDMM10
- HDMM6
- USB31CAADP
- LTLOCK
- DP14MM2M
- ARMTRIO
- HDMMV2M
Related Products - USB3DDOCKFT
- USB3DOCKHDPC
- USB3SDOCKDD
- USB3VDOCK4DP
- USB3VDOCKH
- TB2DOCK4KDHC
- TBDOCKHDPBC
- USB3SMDOCKHV
- USB3SMDOCKV
- USB31GEHD

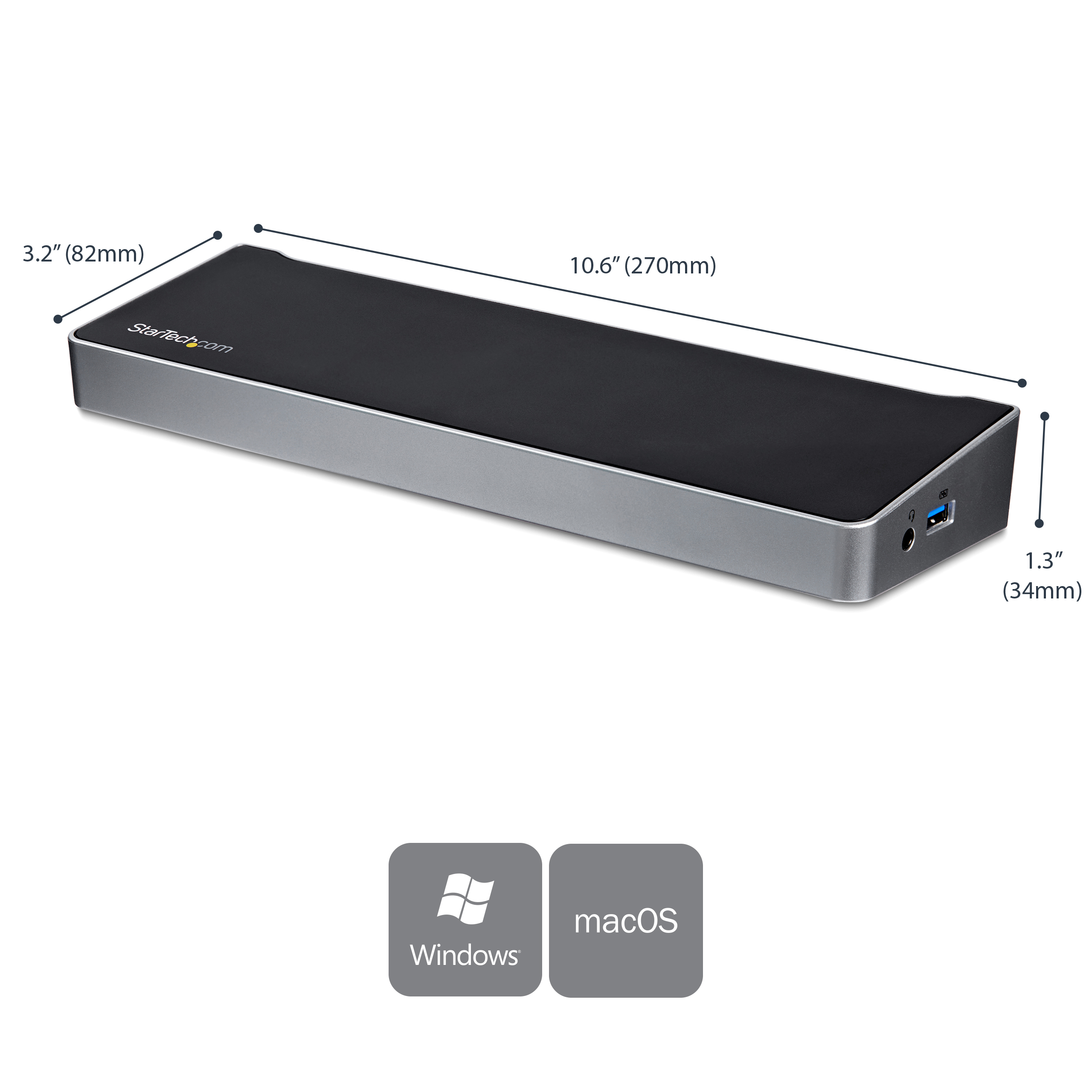

Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 6.5 A Output Voltage (V) 5 DC Power Consumption (In Watts) 32.5 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black & Silver Humidity 0~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 270 Product Width (mm) 82 Product Height (mm) 34 Product Weight (g) 376 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- macOS Mojave (10.14)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- Ubuntu
- macOS Tahoe (26.0)

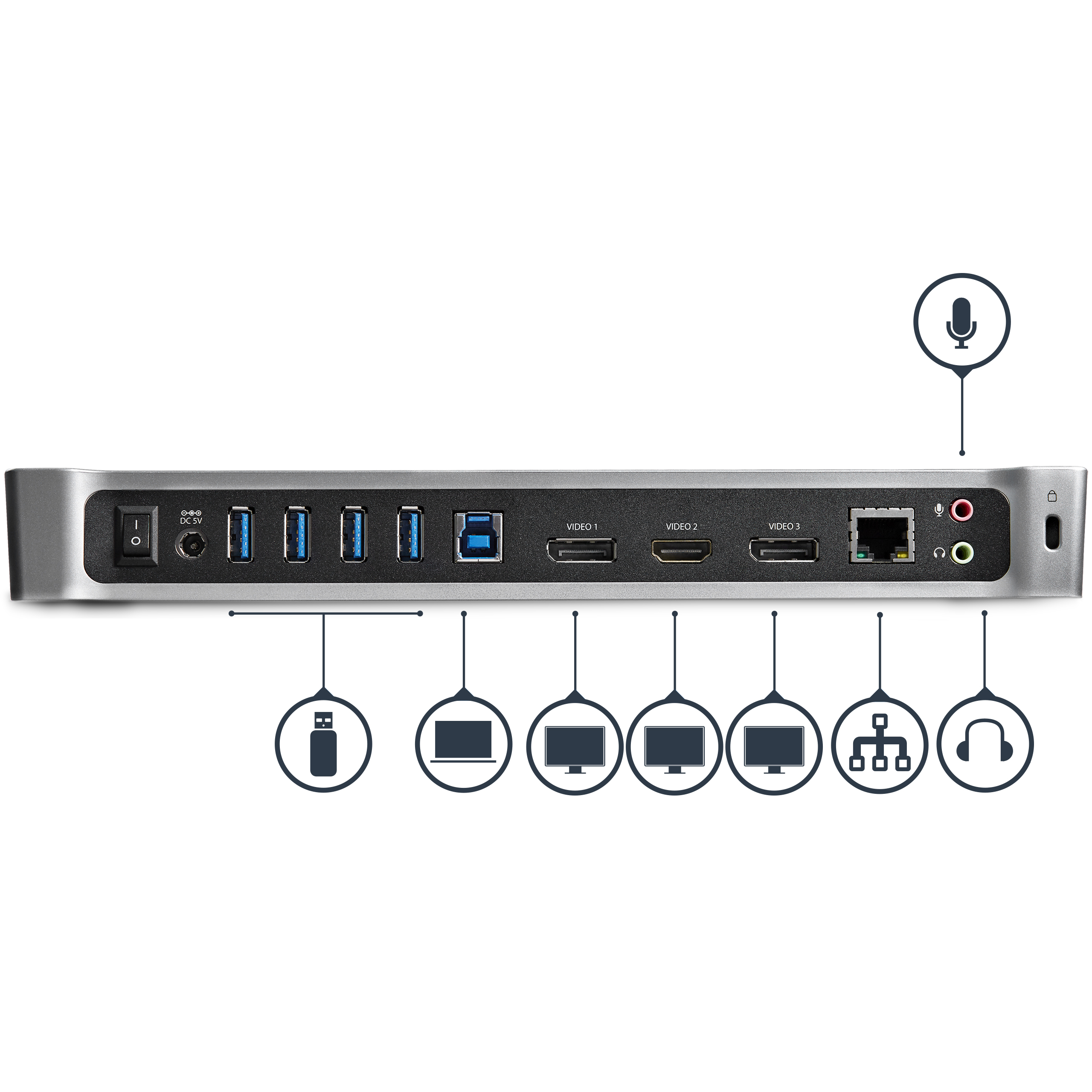

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DisplayPort
Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID - VIA/VLI - VL812
- Realtek - RTL8211F
- DisplayLink DL5911
- DisplayLink DL5915
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port USB-A Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Link (Green)
- 1 - Activity (Amber)
Number of Displays 3 Other Ports - Gigabit Ethernet

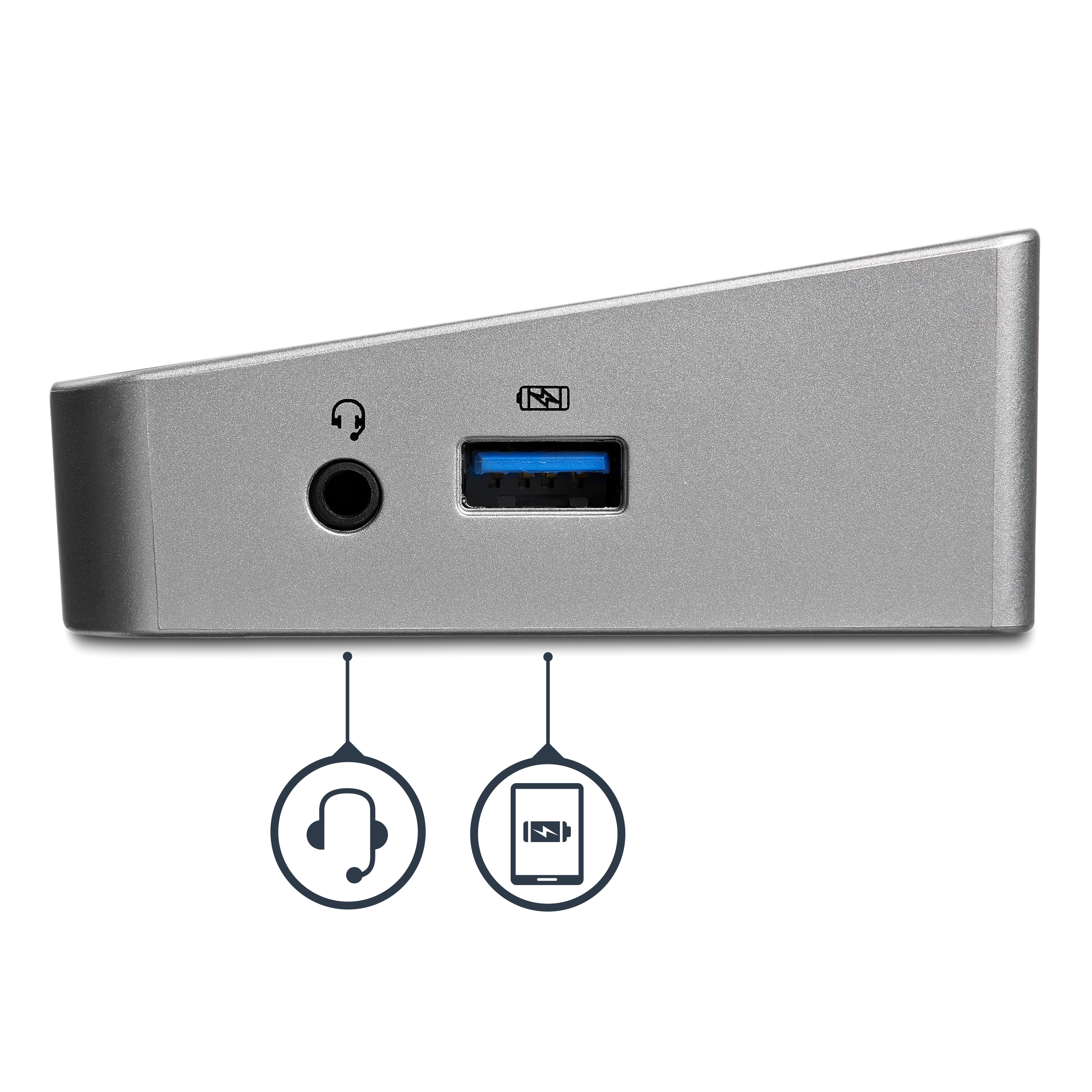

- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Speaker Audio Jack
- 3.5mm TRRS Mic Audio Jack

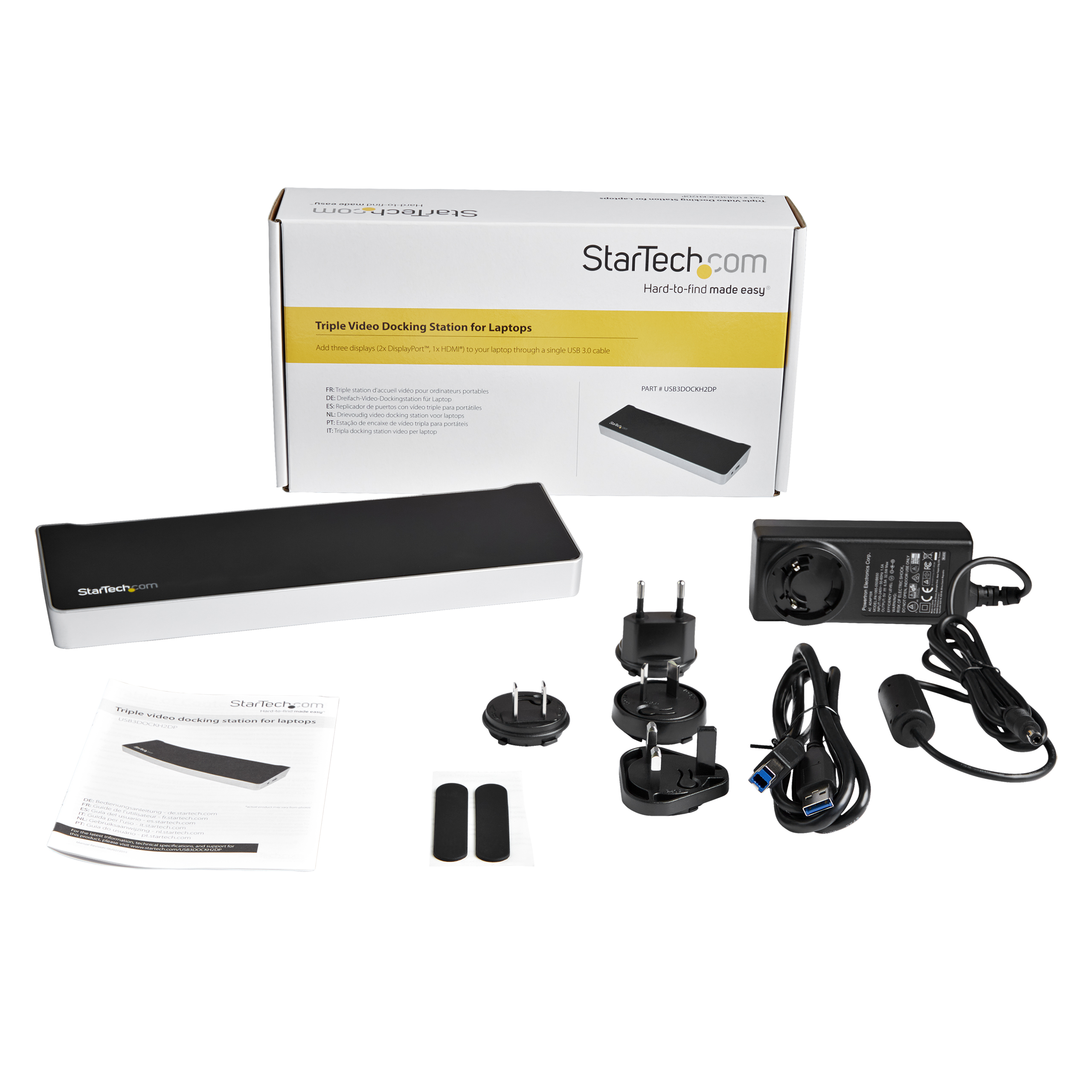

Carton Depth (mm) 374 Carton Height (mm) 396 Carton Quantity 10 Carton Weight Gross (g) 12172 Included in Package - 1 - triple-video laptop docking station
- 1 - 3.3 ft [1 m] USB 3.0 host cable
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - instruction manual
Number of Sub-Cartons 2 Package Depth (mm) 295 Package Height (mm) 70 Package Width (mm) 161 Package Quantity 1 Package Weight (g) 1046 Packaging Description Triple Video Docking Station for Laptops Sub-Carton Depth (mm) 308 Sub-Carton Height (mm) 182 Sub-Carton Width (mm) 358 Sub-Carton Quantity 5 Sub-Carton Weight (g) 5572 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-01-09 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-06-26 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
