Main Image
USB3DOCKHDPC
4K Laptop Docking Station w DP HDMI USB3 Dock
Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name 4K Laptop Docking Station w DP HDMI USB3 Dock Product Number USB3DOCKHDPC UPC 065030859233 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Multi-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 2-Monitor USB 3 Dock Product Title (Short) USB 3.0 Docking Station Dual HDMI/4K DP Product Title (Medium) StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI & 4K DP Product Title (Standard) USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Ethernet, USB Type A Universal Laptop Dock, TAA Product Title (Long) USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows - TAA Product Title (AMZ) USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows , TAA Title Ingram (Part 1) Dual Monitor USB 3.0 Docking Title Ingram (Part 2) Station with HDMI & 4K DP. Website Product Headline Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant Bullet 1 FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock Bullet 2 FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p) Bullet 3 USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks Bullet 4 WIDE OPERATING SYSTEM COMPATIBILITY: This universal laptop docking station fully supports major operating systems like Windows, macOS, and Chrome OS Bullet 5 PLENTY OF USB PORTS: This USB 3.0 port replicator has a 4-port downstream USB-A hub (5Gbps SuperSpeed) including one always-on BC 1.2 (1.5A) fast-charge port that can charge without a connected host Bullets (Compact) USB 3.0 Dual Monitor Docking Station with HDMI + DisplayPort/ 4x USB-A (5Gbps)/ 1x always-on fast-charge port/ GbE/ Audio Port/K-slot - Dual 2048x1152p video/4K single display - DisplayLink certified universal dock for Windows/macOS/Chrome OS laptop Bullets (Consolidated) USB 3.0 Dual Display Dock with HDMI + DisplayPort/4x USB-A (5Gbps)/GbE/Audio/K-slot - Flexible Monitor Resolutions: Dual DP + HDMI (2048 x 1152p) or Single DP (4K 30Hz)/HDMI (2560 x 1440p) - DisplayLink certified Type-A dock for new or legacy laptops (HP/ Dell/ Lenovo/ Surface/ Chromebook) - Universal docking station fully compatible w/Windows/macOS/Chrome OS - 4x USB-A 5Gbps ports including one always-on BC 1.2 (1.5A) fast-charge port that can charge without a connected laptop Marketing Copy Marketing Copy (No HTML) Applications - Classrooms
- Computer Labs
- Network and Systems Administration
Website Search Keyword - byod
- computer docking station
- cyod
- docking station dual monitor
- docking station laptop
- laptop dock
- laptop docking station
- laptop docking station dual monitor
- port replicator
- universal docking station
- universal laptop docking station
- universal usb docking station
- usb 3 dock
- usb 3 port replicator
- usb 3.0 dual monitor docking station
- usb 3.0 to hdmi
- usb 3.0 universal docking station
- usb 3.0 universal laptop docking station
- usb 3.1 dock
- usb docking station
- usb laptop docking station
- 4k usb docking station
- usb 3.1 docking station
- usb 3.0 port replicator
- usb 3.0 dock
- usb 3 docking station
- universal laptop docking station with hdmi
- surface docking station
- surface pro 4 dock
- docking station with displayport
- dual monitor docking station
- usb 3.0 docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements - If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- DisplayPort display must support 4K resolutions
Accessory Products - DP2HD4KS
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- HDMM3
- HDMM6
- HDMM10
- USB3SAB6BK
- USB3SAB10BK
- N6PATCH10BK
- S2510BMU33CB
- S2510SM12U33
- S352BU33HR
- DP14MM2M
- USB31CAADP
- HDMMV2M
Related Products - USB3SDOCKDD
- USB3DOCKH2DP
- USB3SMDOCKV
- USB31GEHD
- USB3SMDOCKHV
- TBDOCKHDPBC
- USB31GEVG
- TB2DOCK4KDHC
- USB3DDOCKFT
Constrained SKU Alternatives (Limited Stock) - DK30A2DHUUE
- USB3DDOCKFT

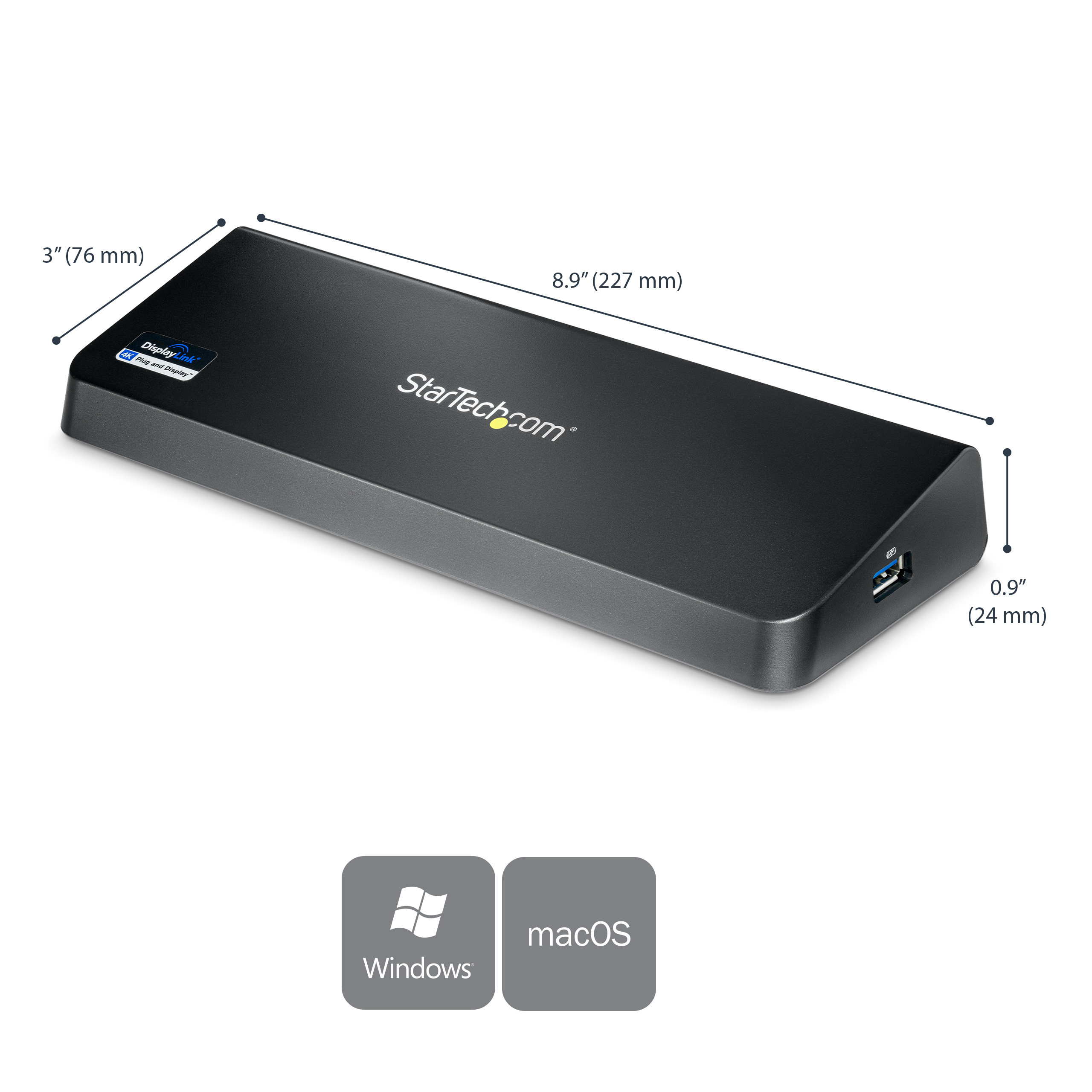

Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 6.5 A Output Voltage (V) 5 DC Power Consumption (In Watts) 32.5 Power Source AC Adapter Included Plug Type N Cable Length (mm) 609 Color Black Humidity 90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 227.000 Product Width (mm) 76.000 Product Height (mm) 24.000 Product Weight (g) 277.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

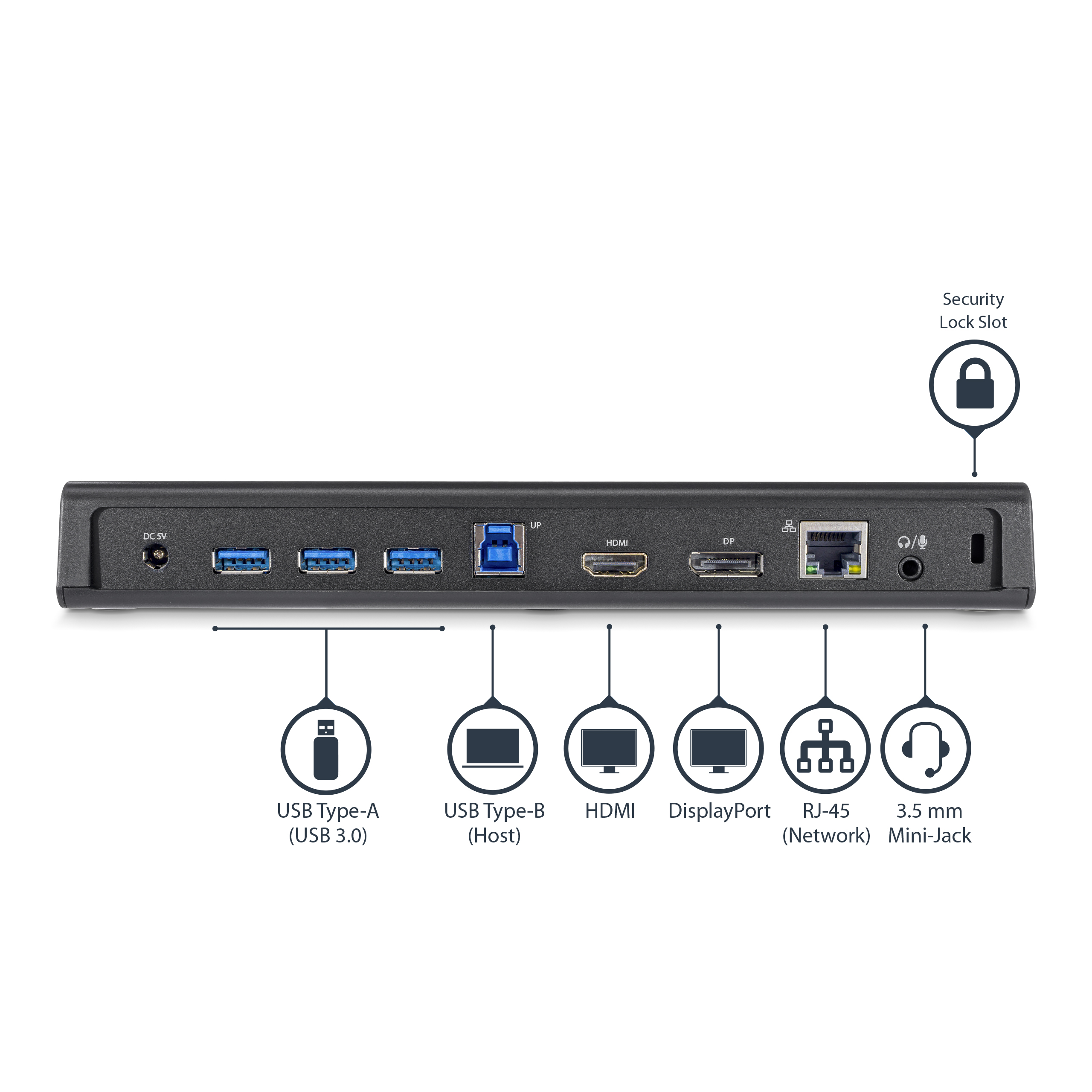

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DisplayPort
Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID - DisplayLink - DL-5900
- VIA/VLI - VL817
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port USB-A Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)
Number of Displays 2 Other Ports - Gigabit Ethernet

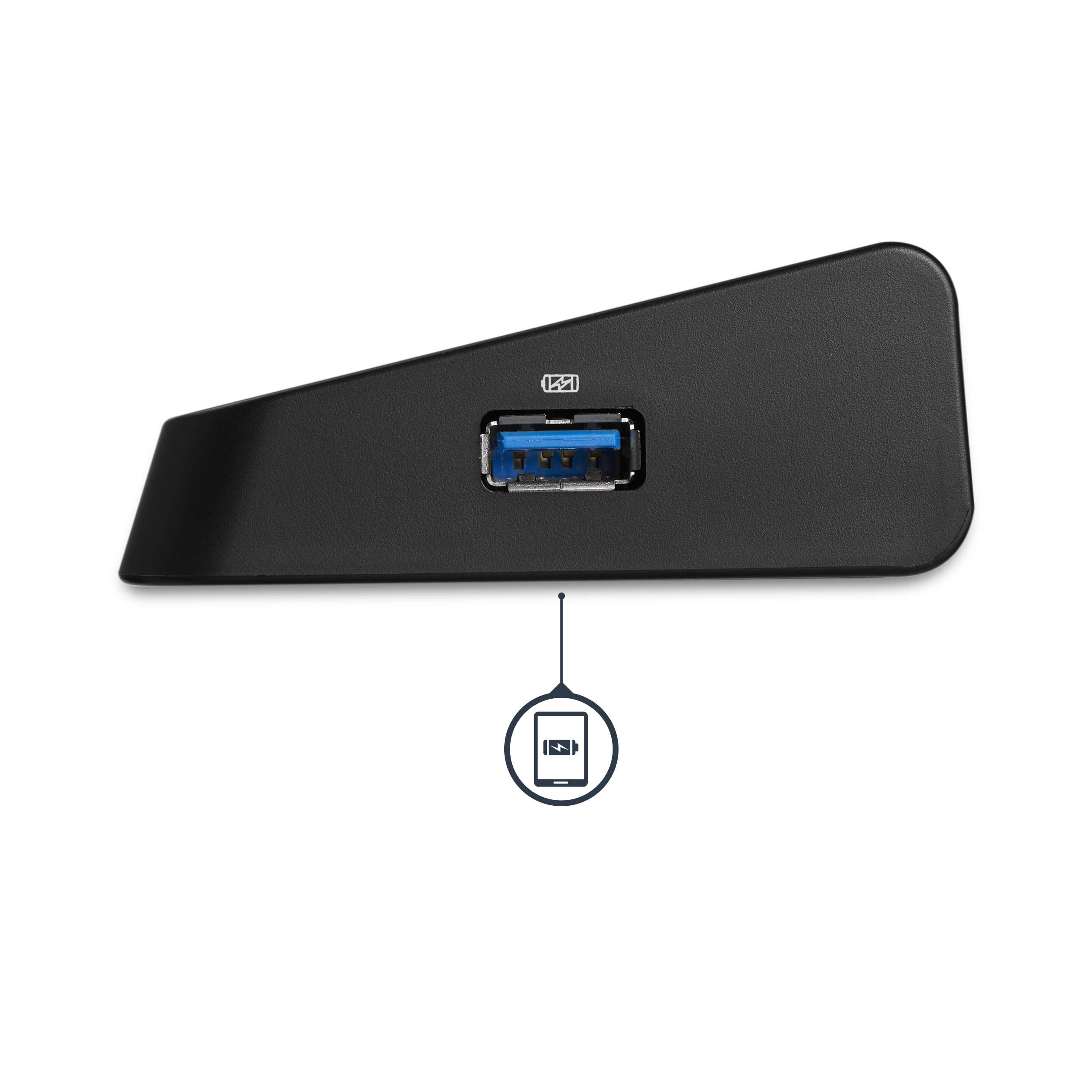

- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Speaker Audio Jack
- 3.5mm TRRS Mic Audio Jack

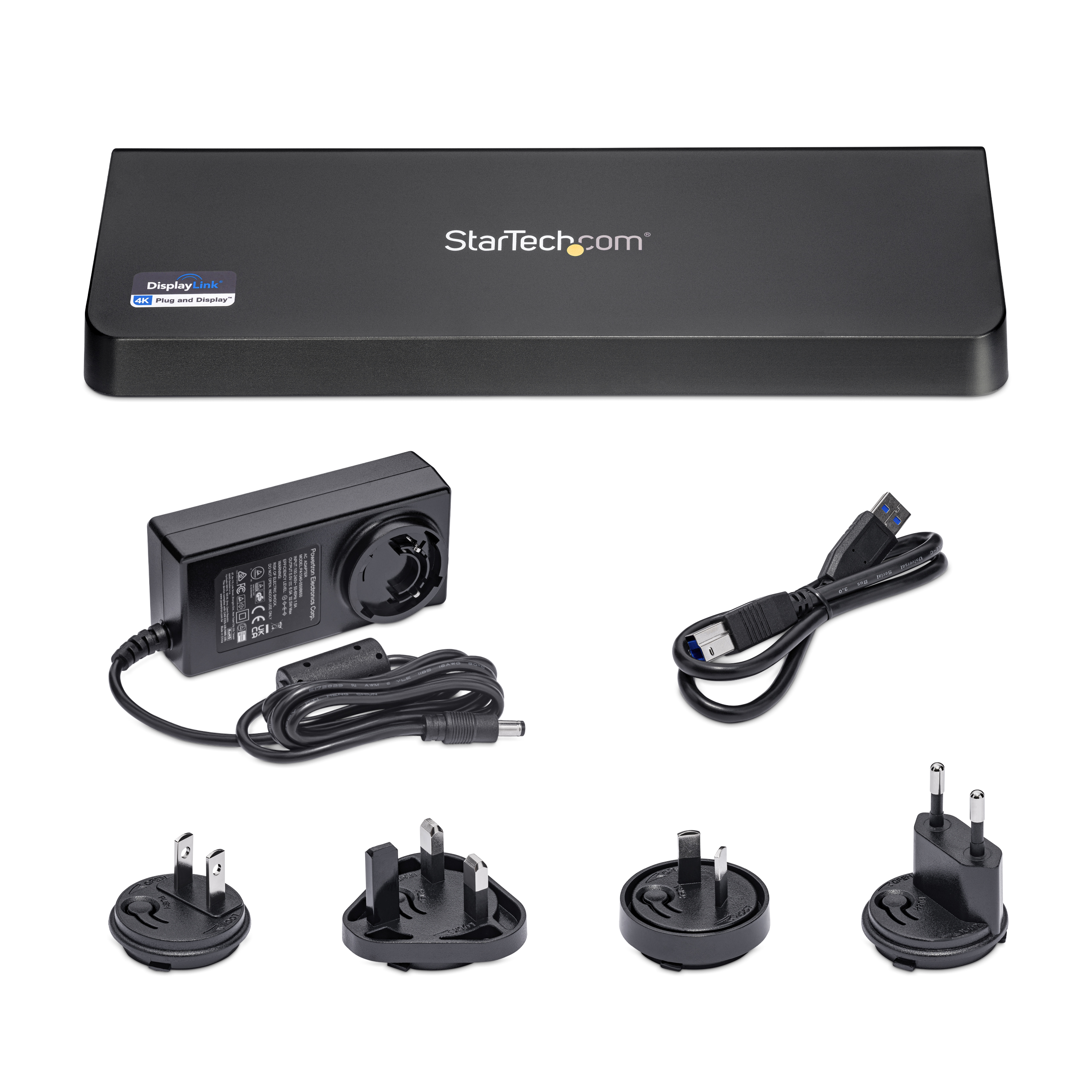

Carton Depth (mm) 445 Carton Height (mm) 307 Carton Quantity 10 Carton Weight Gross (g) 10578 Included in Package - 1 - USB 3.0 Laptop Docking Station
- 1 - Quick-Start Guide
- 3 - Power Cords (NA/JP, EU, UK)
- 1 - 2ft [61cm] USB 3.0 Cable
- 1 - Universal Power Adapter
Number of Sub-Cartons 2 Package Depth (mm) 253 Package Height (mm) 72 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 914 Packaging Description USB 3.0 Laptop Docking Station with Dual Video, 4K DisplayPort, HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 5 Sub-Carton Weight (g) 5785 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-07-23 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
