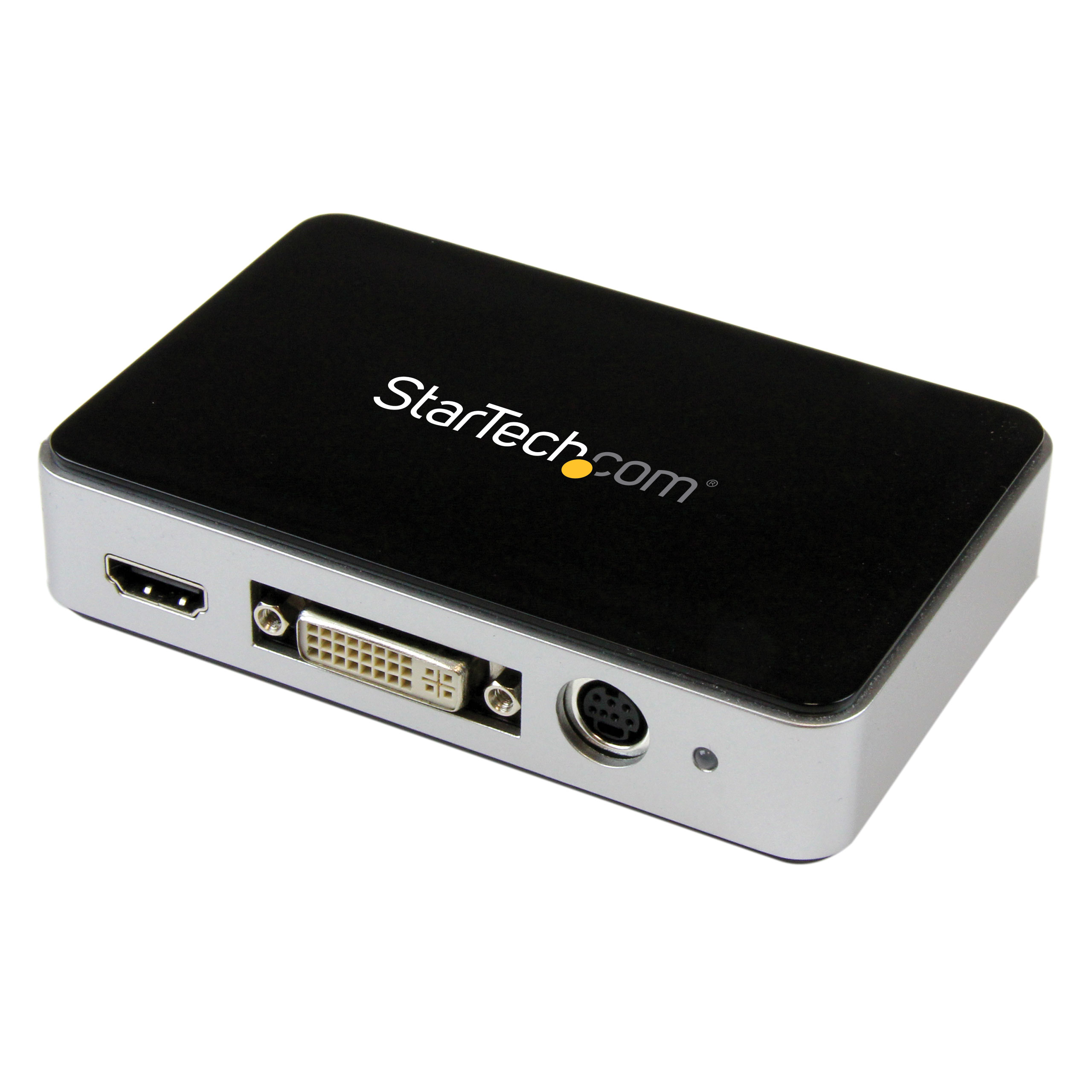

USB3HDCAP
USB 5Gbps HD Video Capture Device - 1080p
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name USB 5Gbps HD Video Capture Device - 1080p Product Number USB3HDCAP UPC 065030855952 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Video Capture Devices Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Family USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) USB 3.0 HD Capture Product Title (Short) USB 3.0 Video Capture Device - HDMI/DVI Product Title (Medium) USB 3.0 Video Capture Device - HDMI/DVI/VGA/Component HD Recorder - 1080p/60fps Product Title (Standard) HDMI Video Capture Device – 1080p – 60fps Game Capture Card – USB Video Capture Card – with HDMI DVI VGA, TAA Product Title (Long) USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps - TAA Product Title (AMZ) HDMI Video Capture Device - 1080p - 60fps Capture Card - USB Video Recorder - with HDMI DVI VGA , TAA (USB3HDCAP) Title Ingram (Part 1) USB 3.0 Video Capture Device - Title Ingram (Part 2) HDMI / DVI / VGA / CPNT -1080p60 Website Product Headline Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC Bullet 1 STUNNING QUALITY: Using USB 3.0 bandwidth, this HDMI video capture card enables you to record lossless 1080p video at 60fps Bullet 2 VERSATILE APPLICATIONS: This HDMI video capture device has H.264 video encoding for wide compatibility-even streaming live video feeds online with services such as Twitch Bullet 3 LEGACY TO LATEST: Using USB 3.0 bandwidth, record up to 1080p at 60fps from virtually any device using this video game recorder with support for HDMI, DVI, VGA, and Component video input sources Bullet 4 WIDE COMPATIBILITY: This device works specifically with USB 3.0 Windows 11, 10, 8/8.1, is DirectShow compatible, and is incompatible with ASmedia and Etron USB 3.0 host controllers Bullets (Consolidated) Capture High-Definition HDMI, DVI, VGA, or Component video to your PC - Capable of capturing lossless raw video making it compatible with Microsoft DirectShow - Record lossless video at 60 FPS ensuring every frame of content is saved - Capture with USB 3.0 bandwidth, enabling you to capture 1080p video at 60fps - H.264 video encoding for wide compatibility - Stream live video feeds online with streaming services such as twitch - Record video for tutorial training from varying video outputs Marketing Copy Marketing Copy (No HTML) This HDMI video capture device records 1080p video and audio to your USB 3.0 equipped computer, and can record from various sources (HDMI, VGA, DVI and component) making it a great solution for recording computers, camcorders, security systems or POS terminals. This video game recorder captures lossless video at 60 FPS ensuring every frame of content is saved. 60 FPS matches the output of most computers, which is great for recording the output when creating software training and tutorials. The included software uses a common codec to ensure your video captures are compatible most devices. The software also lets you schedule recordings and instantly stream from your video game capture device with online services such as Twitch. This USB video capture card can record lossless raw video, making it compatible with Microsoft DirectShow for recording video using third-party DirectShow software such as Open Broadcaster Software (OBS). With multiple input options, you can capture from a variety of sources like HDMI, DVI, VGA, and component. You can also use this HDMI video capture card with AV adapters to record other video sources like SDI. The easy-to-use software works with NTSC and PAL systems, making it a must for professional video archiving applications. USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Stream live video feeds online with streaming services such as twitch
- Use with ST122HD4KU HDMI splitter to capture HD video game play at 60 frames per second, while playing on a different display
- Record video for training and tutorial purposes from varying video output technologies
- Convert analog video to digital in professional video archiving applications
Website Search Keyword - hd pvr
- screen video capture
- video capture device
- capture card for xbox 360
- game capture hd
- hd capture card
- usb video capture
- hd video recorder
- hdmi video capture
- personal video recorder
- usb 3.0 capture
- record xbox 360 gameplay
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
- Will not record digitally encrypted content.
Accessory Products - HDMIMM6
- HDMIMM10
- CPNTHQ6
- CPNTHQ12
- MXT105HQ
- MXT101MMHQ10
- MXT101MMHQ
- DVIISMM15
- PEXUSB3S400
- PEXUSB3S4
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
- USB3SAB10
- AUDIORCA15
- MU6MMRCA
- USB3SAB10BK
Related Products - ECHDCAP
- SVID2USB23
- SVID2USB2NS
- PEXHDCAP
- SVID2USBM
- USB2HDCAP
- PEXHDCAP60L
Replacement Product UVCHDCAP Input Voltage 5V DC Output Voltage (V) 5 DC Color Black & Gray Humidity 20-80% RH Non-Condensing Operating Temperature 0°C to 35°C (32°F to 95°F) Primary Material Plastic Product Length (mm) 114.4 Product Width (mm) 75.5 Product Height (mm) 24.5 Product Weight (g) 104 Storage Temperature -5°C to 40°C (23°F to 1604°F) TAA Compliant Yes General Specifications This product is not compatible with Etron USB controllers, or ASMedia 1042 / 1042A USB controllers. Maximum Analog Resolutions 1920x1080 (1080p/30/50/60) Maximum Digital Resolutions MTBF (hours) 2,242,857 Hours OS Compatibility - Windows 8
- Windows 10
- Windows 11

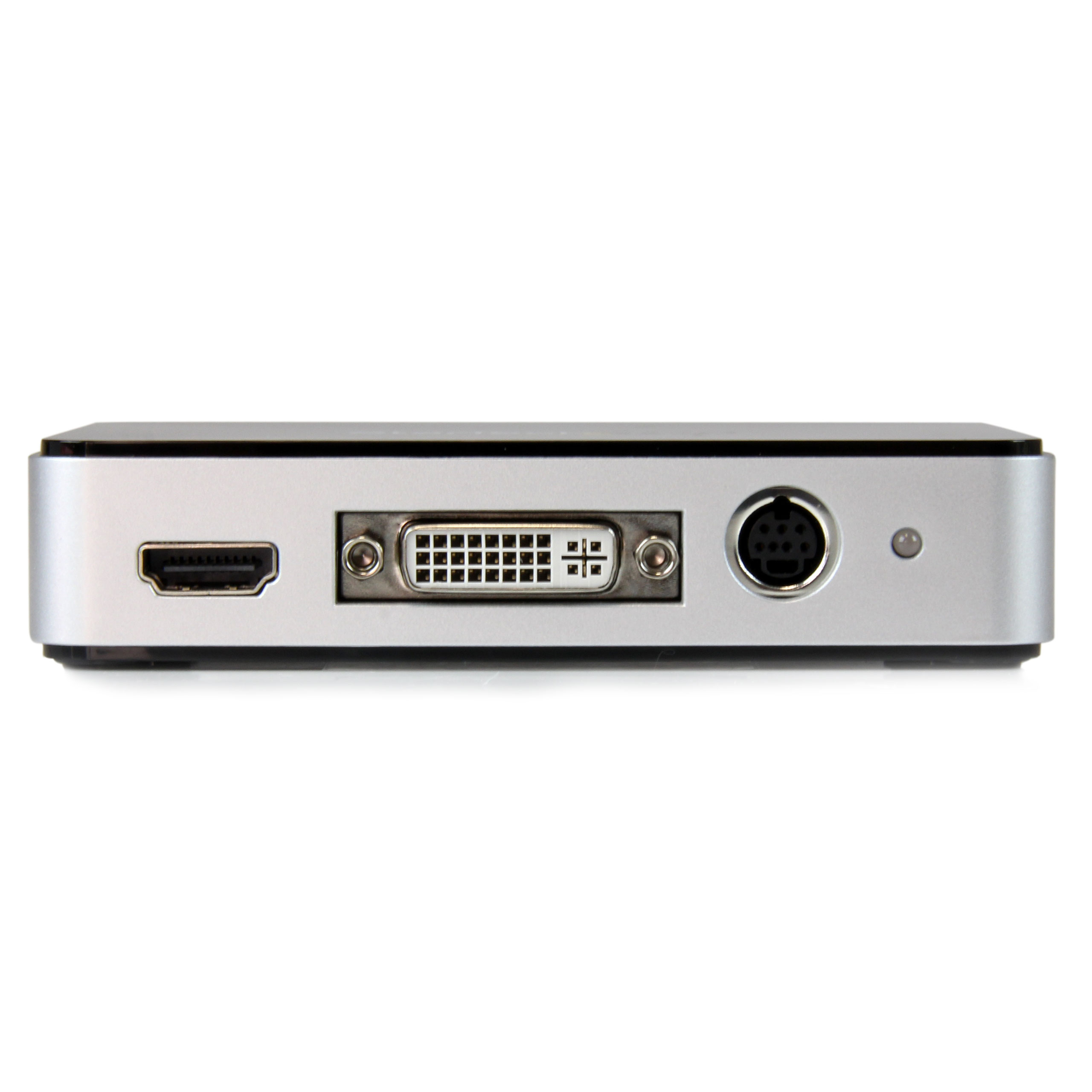

Supported Resolutions 1080i/p, 720p, 576i/p, 480i/p Wide Screen Supported Yes Audio Yes AV Input - HDMI
- DVI
- Component
- VGA
AV Output USB Chipset ID Mstar - MST3363CNK-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PA
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

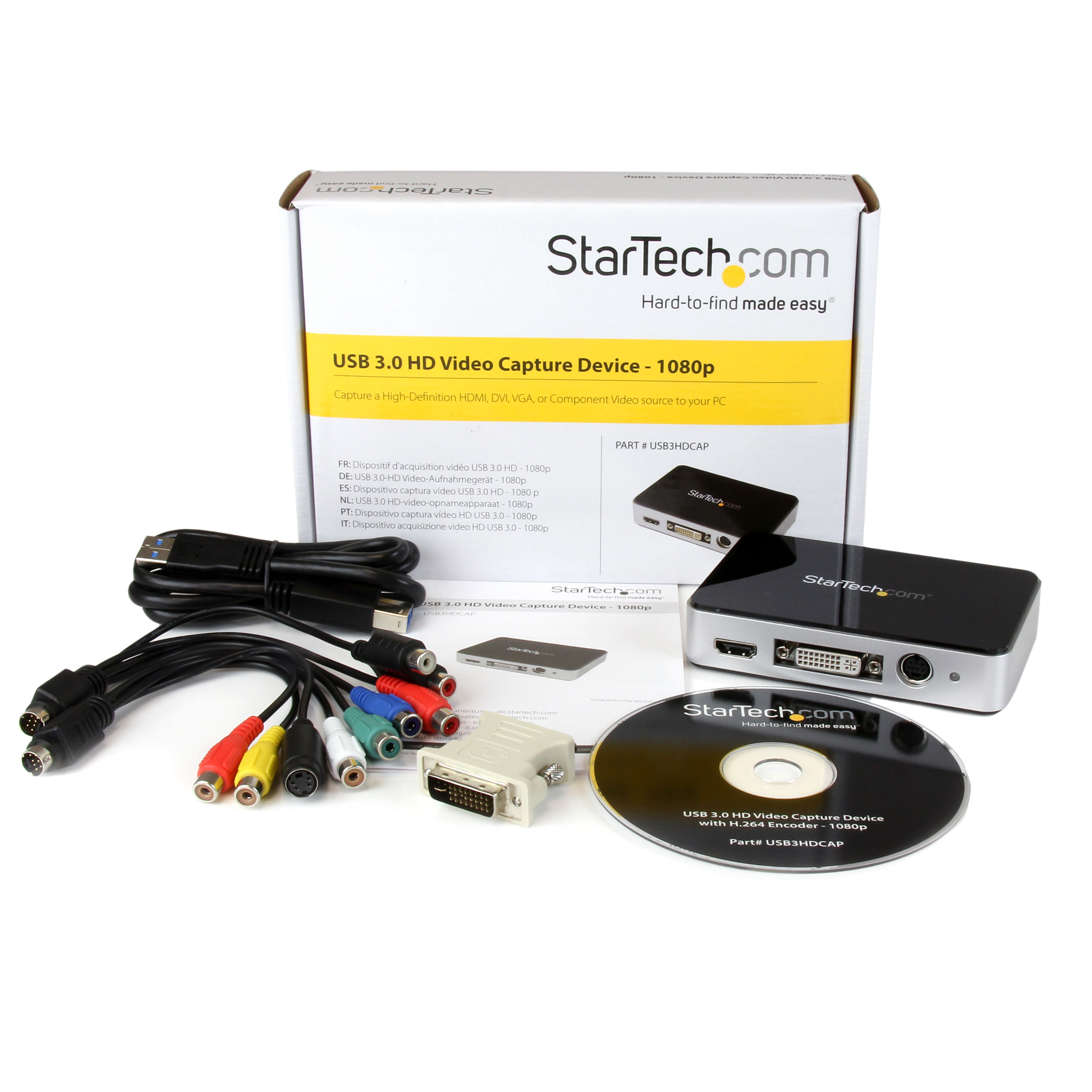

Carton Depth (mm) 484 Carton Height (mm) 471 Carton Quantity 48 Carton Weight Gross (g) 21304 Included in Package - 1 - USB 3.0 HD Video Capture Device
- 1 - A/V breakout cable
- 1 - DVI to VGA adapter
- 1 - USB 3.0 Cable
- 1 - Instruction manual
Included In Package for Label - 1 - USB 3.0 HD Video Capture Device
- 1 - A/V breakout cable
- 1 - DVI to VGA converter
- 1 - USB 3.0 Cable
- 1 - Instruction manual

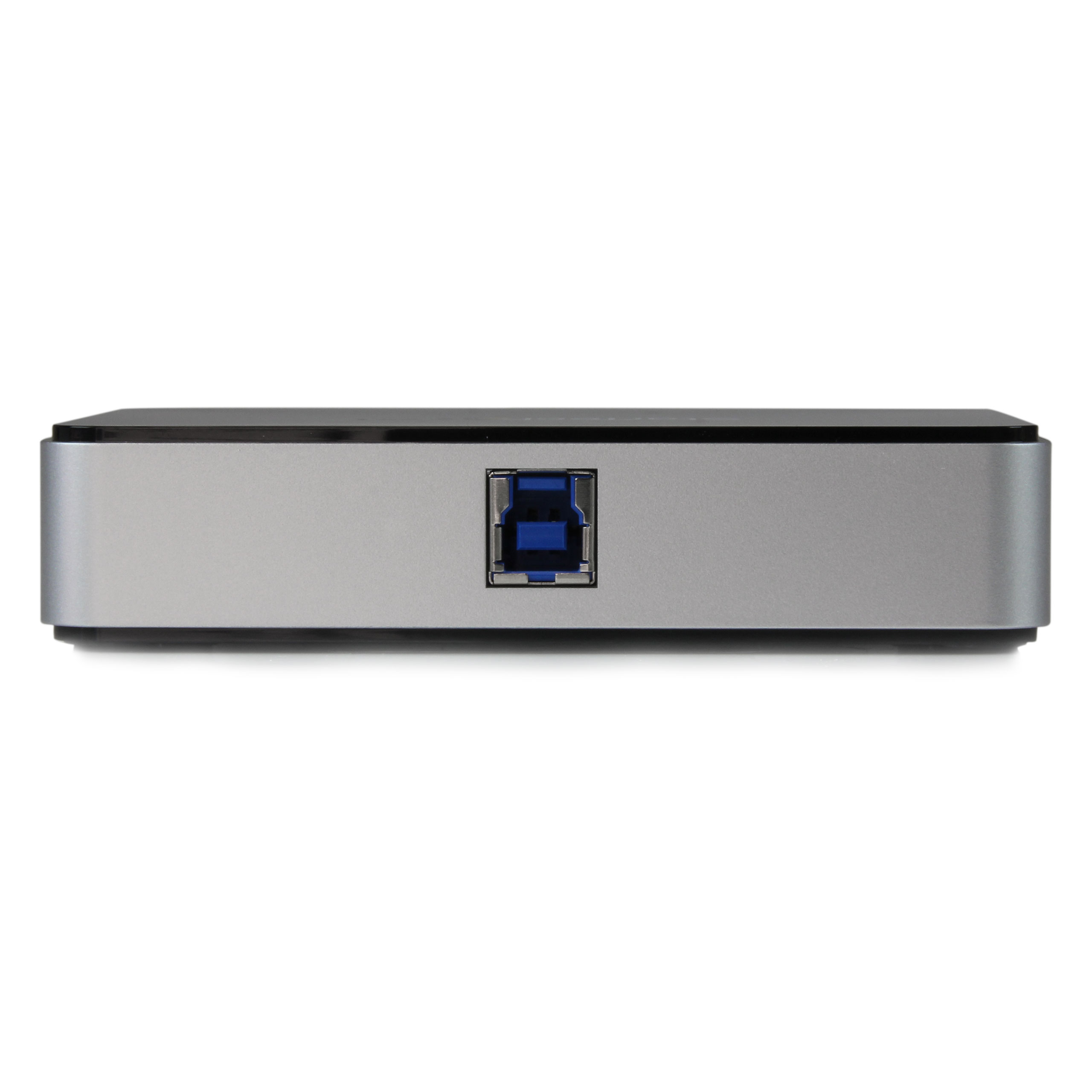

Package Depth (mm) 152 Package Height (mm) 56 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 416 Packaging Description USB 3.0 HD Video Capture Device - 1080p Packaging Description India USB 5Gbps HD Video Capture Device - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 RCA (Stereo Audio) Connector 4 (Quantity) 1 Connector 5 RCA (Component Video, YPbPr) Connector 5 (Quantity) 1 Connector 6 RCA (Composite Video) Connector 6 (Quantity) 1 Connector 7 VGA Connector 7 (Quantity) 1 Connector 8 S-Video (Y/C) Connector 8 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-26 Buying Center - AV & Collaboration Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
