USB3HDCAP2
USB 3.0 Video Capture Device - HDMI/DVI/VGA/Component 1200p

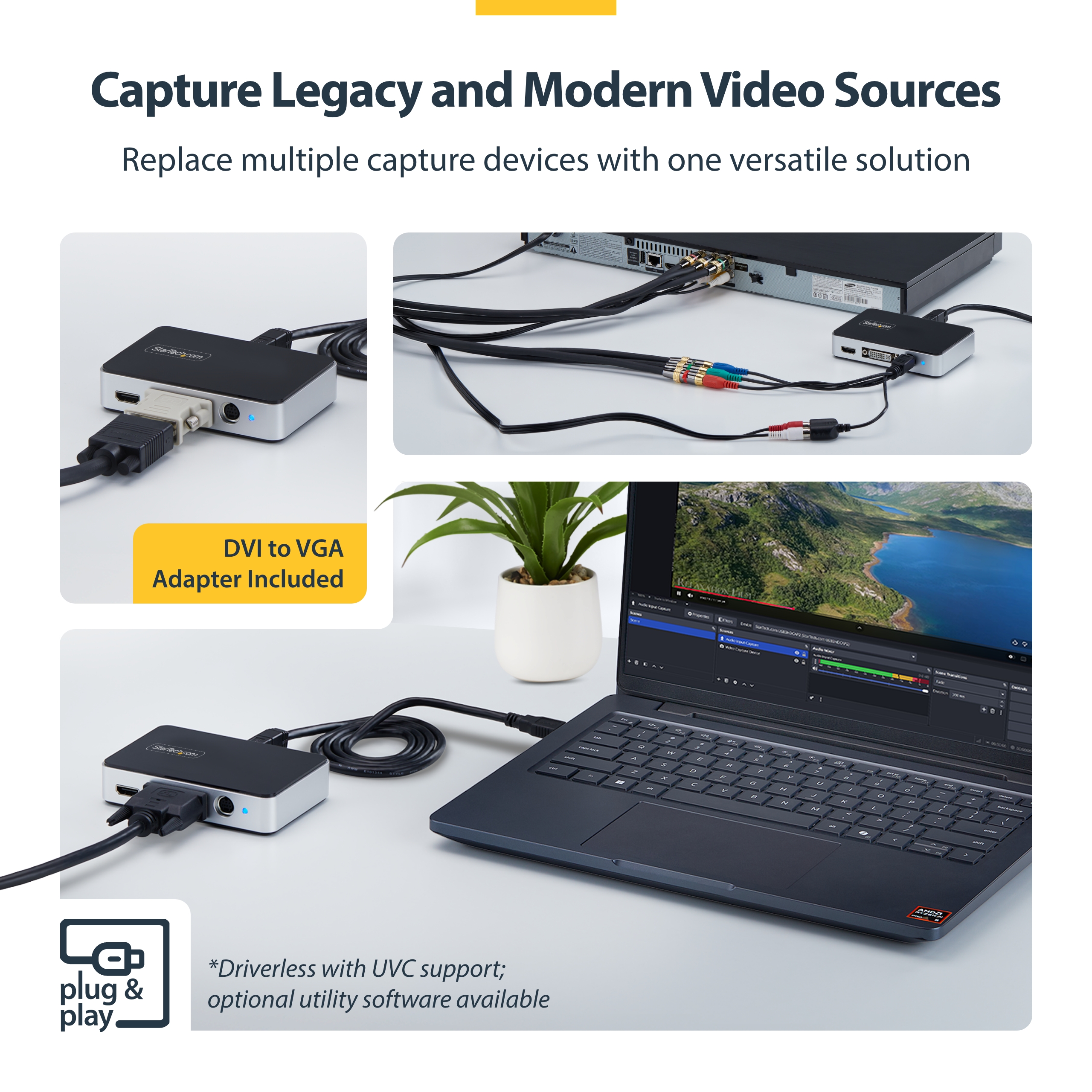

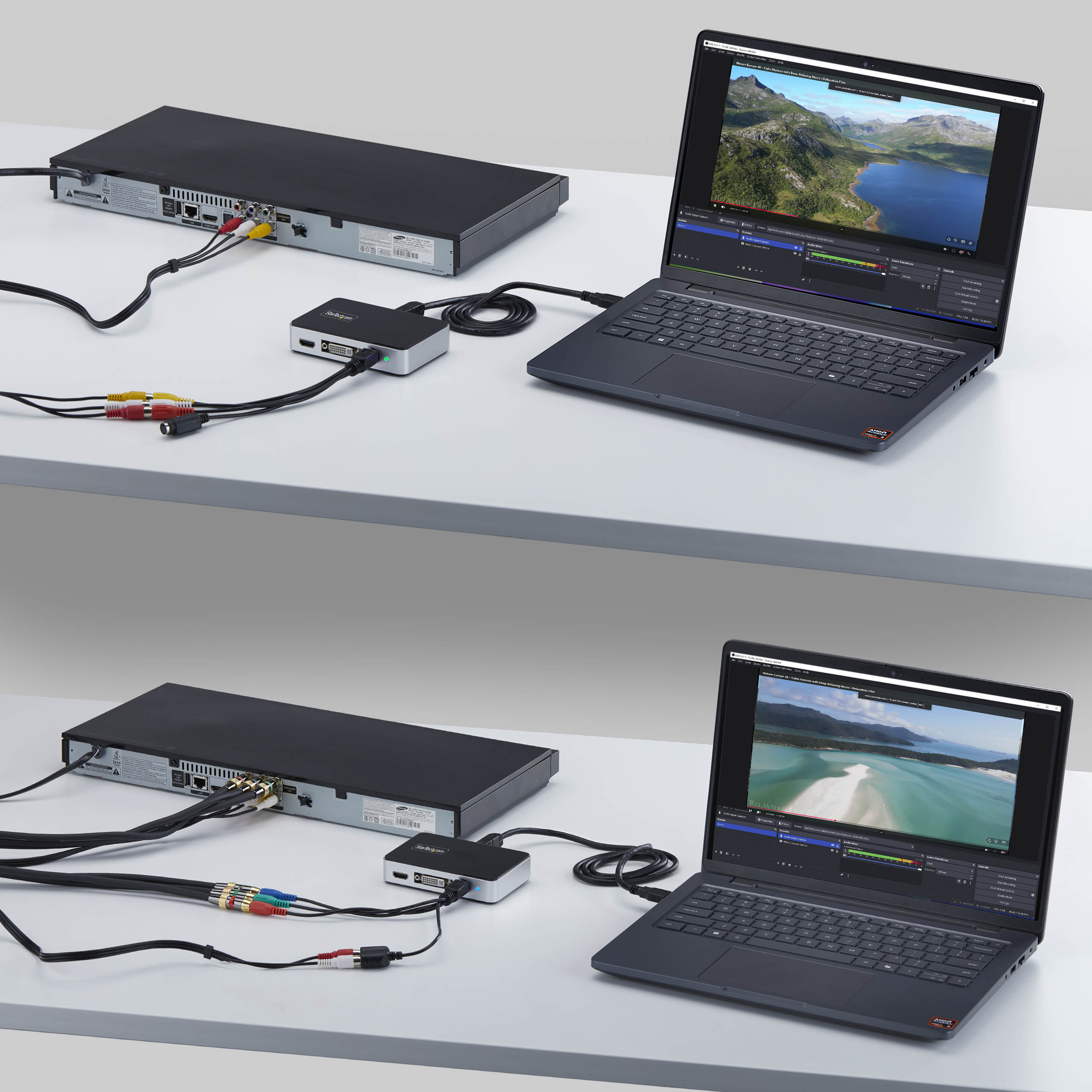

Capture digital and analog video (HDMI, DVI, VGA, Composite, Component, or S-Video) directly to your computer in HD
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name USB 3.0 Video Capture Device - HDMI/DVI/VGA/Component 1200p Product Number USB3HDCAP2 UPC 065030923477 Lifecycle status Pending Taxonomy Product > Other > Video Capture Devices Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Family USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) HDMI Video Capture Product Title (Short) HDMI to USB-A Video Capture Device, TAA Product Title (Medium) HDMI to USB-A Video Capture Device, Record Digital/Analog, 1080p 60fps, UVC/TAA Product Title (Standard) HDMI to USB-A Video Capture Device, 1080p 60fps, Record and Stream Digital and Analog Sources, UVC-Compatible, TAA-Compliant Product Title (Long) HDMI to USB-A Video Capture Device, 1080p 60fps, Record and Stream Digital and Analog Sources, Windows, macOS, Linux and UVC Compatible, TAA-Compliant Product Title (AMZ) HDMI to USB-A Video Capture Device, 1080p 60fps, Record and Stream Digital and Analog Sources, UVC-Compatible, TAA-Compliant Title Ingram (Part 1) HDMI to USB-A Video Capture Title Ingram (Part 2) Device - 1080p 60fps, UVC, TAA Website Product Headline Capture digital and analog video (HDMI, DVI, VGA, Composite, Component, or S-Video) directly to your computer in HD Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Record and stream HDMI/DVI/VGA/Component/S-Video/Composite sources w/ this USB capture device - Capture digital/analog AV sources at 1080p 60fps - Driverless on Windows/macOS/Linux; UVC support - Capture audio via RCA inputs for non-HDMI sources Bullets (Consolidated) Record and stream HDMI DVI VGA Component S-Video or Composite sources using this USB capture device - Digitize legacy AV sources like VHS and camcorders along with modern equipment all at 1080p 60fps - USB capture adapter is plug-and-play on Windows macOS and Linux with UVC support for fast deployment - Capture embedded audio via HDMI or use analog stereo through RCA inputs when working with non-HDMI sources Marketing Copy Marketing Copy (No HTML) Required Marketing Compliance Marks FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Accessory Products - HDMM6
- HDMIDVIMM6
- USB3SAB10BK
- MXTHQMM15A
- MXT101MM15
- SVID2COMP
- MUFMRCA
- MU3MMRCA
- MUMFRCA
- USB31CAADGCP
- USB31CAADGCPRA
Related Products - UVCHDCAP
- SVID2USB232
Replacement Product USB32DVCAPRO Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Primary Material Plastic Product Length (mm) 114.05 Product Width (mm) 74.4 Product Height (mm) 20.6 Product Weight (g) 100 TAA Compliant Yes Maximum Analog Resolutions HDMI/DVI-D Input: 1920x1080p 60fps </br> Video Output: 1920x1080p 60/50/30/25fps Maximum Digital Resolutions Maximum Supported Resolution 1080p OS Compatibility - Windows 11
- Windows 10
- Windows 8
- macOS Sequoia (15.0)
- macOS Sonoma (14.0)
- macOS Tahoe (26.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- Linux
Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Audio Yes AV Input - HDMI
- DVI
- Component
- VGA
- S-Video
- Audio RCA
- Composite
AV Output USB Chipset ID Analog Devices - ADV7604 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PA
- USB Video Class (UVC)

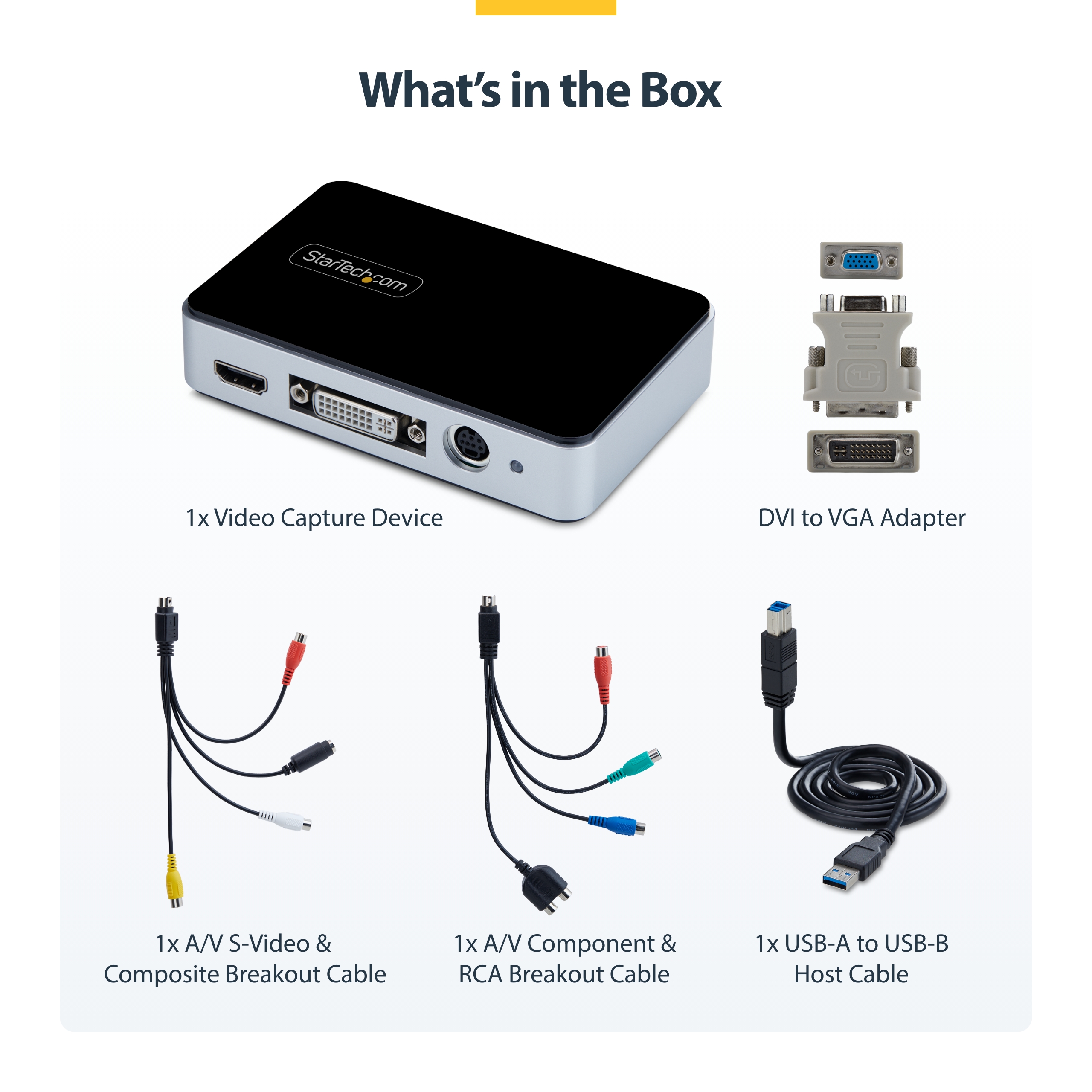

LED Indicators 1 - Status LED Indicator: </br> Solid Blue: When connected to a Host Computer via USB </br> Flashing Green: When capturing video Included in Package - 1 - USB Video Capture Device
- 1 - DVI to VGA Adapter
- 1 - USB-A to USB-B Cable 6ft (1.8m)
- 1 - Product Documentation
- 2 - A/V Breakout Cables

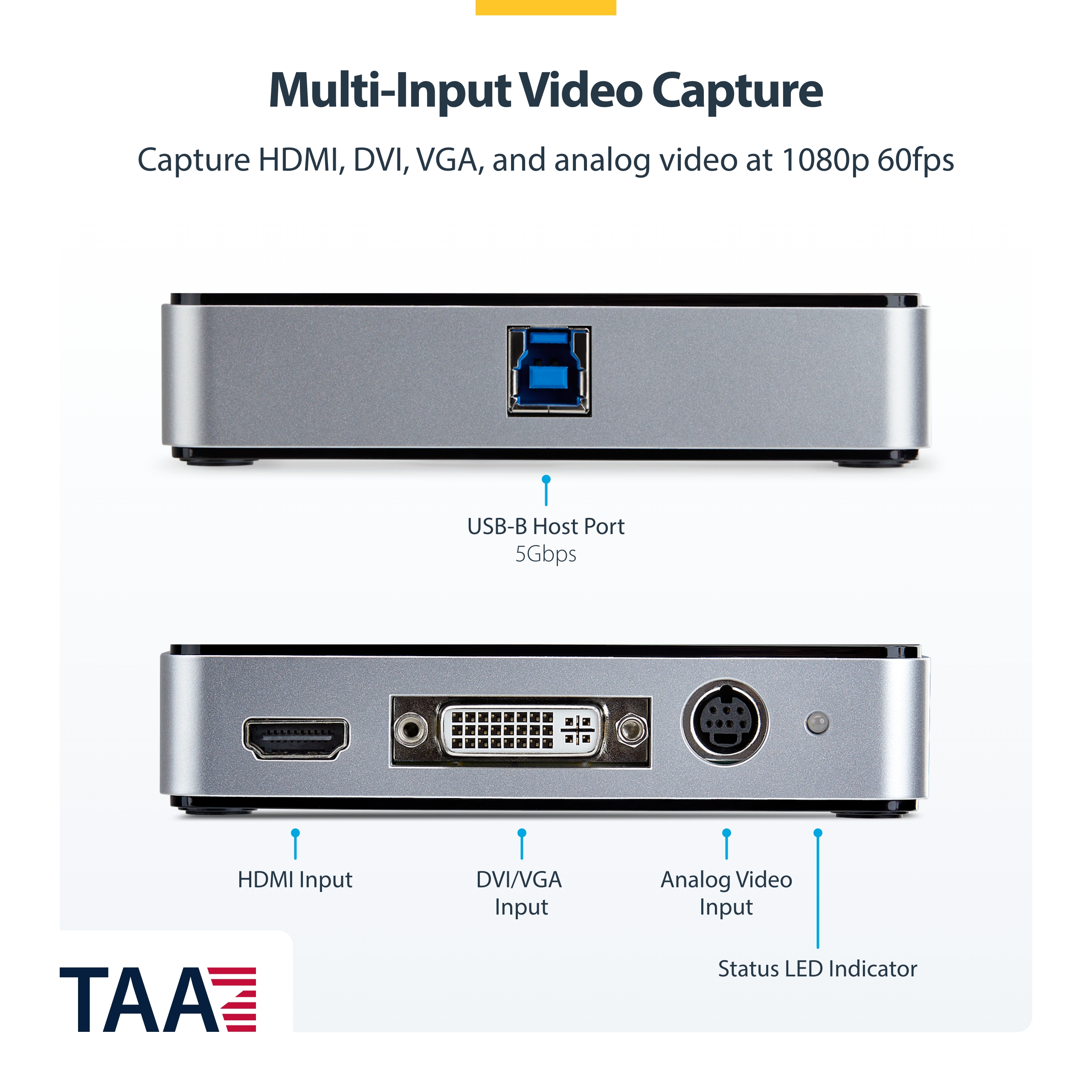

Packaging Description USB 3.0 Video Capture Device - Digital/Analog - Up to 1080p Packaging Description India USB 3.0 Video Capture Device - Digital/Analog - Up to 1080p Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 RCA (Stereo Audio) Connector 4 (Quantity) 1 Connector 5 RCA (Component Video, YPbPr) Connector 5 (Quantity) 1 Connector 6 RCA (Composite Video) Connector 6 (Quantity) 1 Connector 7 VGA Connector 7 (Quantity) 1 Connector 8 S-Video (Y/C) Connector 8 (Quantity) 1 A+ Required Actual Inbox Documents Created Compliance Insert & Online QSG Amazon Merchandising Manager Veronica Ye Amazon Only SKU No Amazon Visual Content Level Diamond Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps - TAA Comparable SKU 2 Comment HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - Works with USB-C/USB-A/Thunderbolt 3 - TAA Digital Content Due Date 2026-05-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology HDMI 1.4 / 1080p or 4K 30Hz Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-11-30 Target Production Release 2025-12-07 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Required
