USB3S2ESATA

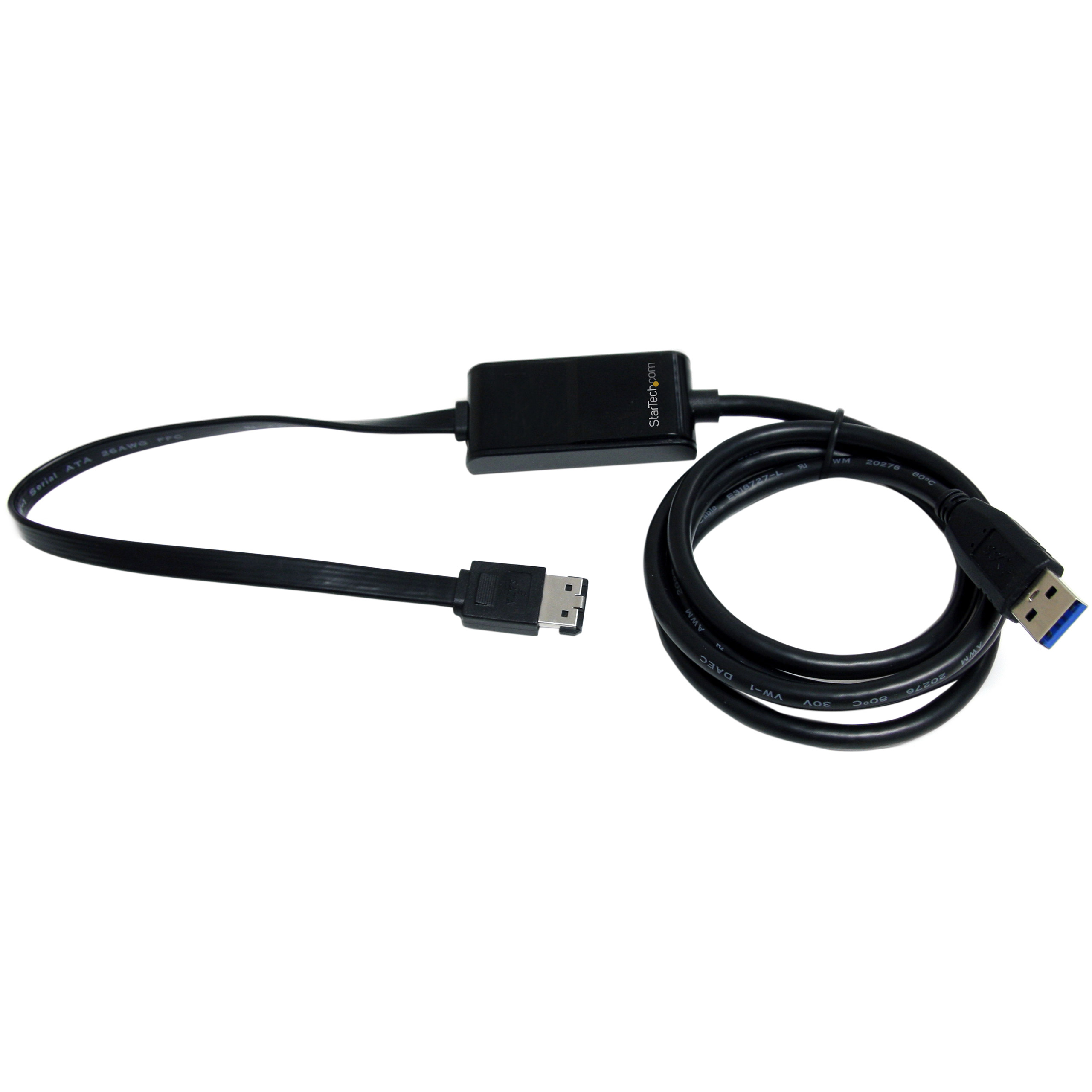

USB 3.0 to eSATA Adapter
Enable fast access to an eSATA device from a USB 3.0 port
Main Image
Product Images
Product Images
Product Images
Product Name USB 3.0 to eSATA Adapter Product Number USB3S2ESATA UPC 065030843171 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-A Adapters Family USB-A to eSATA Cable Adapter Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 3 ft USB 3.0 to eSATA Cable Adapter Product Title (Medium) x Product Title (Standard) 3 ft SuperSpeed USB 3.0 to eSATA Cable Adapter Product Title (Long) 3 ft SuperSpeed USB 3.0 to eSATA Cable Adapter Product Title (AMZ) 3ft USB 3.0 to eSATA Cable Adapter - USB 3.0 to eSATA External Hard Drive Adapter cable 3 feett (1 Meter) (USB3S2ESATA) Title Ingram (Part 1) 3 ft SuperSpeed USB 3.0 to eSATA Title Ingram (Part 2) Cable Adapter Website Product Headline Enable fast access to an eSATA device from a USB 3.0 port Bullet 1 SuperSpeed USB 3.0 compliant host interface, with supported data transfer rates of up to 5 Gbps Bullet 2 Built-in Link/Activity LED indicator Bullet 3 eSATA interface compliant with SATA revision 2 and other SATA revisions, with supported data transfer rates up to 3 Gbps Bullet 4 Integrated 1m (3.3ft) USB 3.0 cable and 30cm (1ft) eSATA cable Bullet 5 Plug-and-Play and Hot-Swap compatible Bullets (Consolidated) Enable fast access to an eSATA device from a USB 3.0 port - USB 3.0 to eSATA Adatper - USB 3.0 to eSATA Converter - USB 3.0 to eSATA Cable Marketing Copy Applications - Laptop users who do not want to bother with having to assemble or carry multiple cables
- Connect an eSATA enclosure via the more commonly available USB interface
- Home or office users who would not need to move the eSATA enclosure frequently (fixed distance/location)
Website Search Keyword - USB 3.0 to eSATA cable
- SuperSpeed USB 3.0 converter
- external SATA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes eSATA port does not support Port Multiplier. System and Cable Requirements Available USB port Accessory Products - PEXUSB3S2
- PEXUSB3S11
- ECUSB3S2
- ECUSB3S1
Related Products - USB3S2SATA
- USB2SATA25
- USB2SATAIDE
Replacement Product USB3S2ESATA3 Color Black Humidity 5% ~ 85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 1360 Product Weight (g) 81 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Drive Capacity Tested up to 2.0 TB OS Compatibility OS Independent Port Multiplier No SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 3.0 (5Gbps) Chipset ID LucidPort - USB300 LED Indicators 1 - Link/Activity Carton Depth (mm) 370 Carton Height (mm) 245 Carton Quantity 50 Carton Weight Gross (g) 7550 Included in Package - 1 - USB 3.0 to eSATA cable
- 1 - Instruction Manual
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 131 Packaging Description 3 ft USB 3.0 to eSATA Cable Adapter Packaging Description India 3 ft USB 3.0 to eSATA Cable Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 eSATA (7-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
