USB3S2SATA

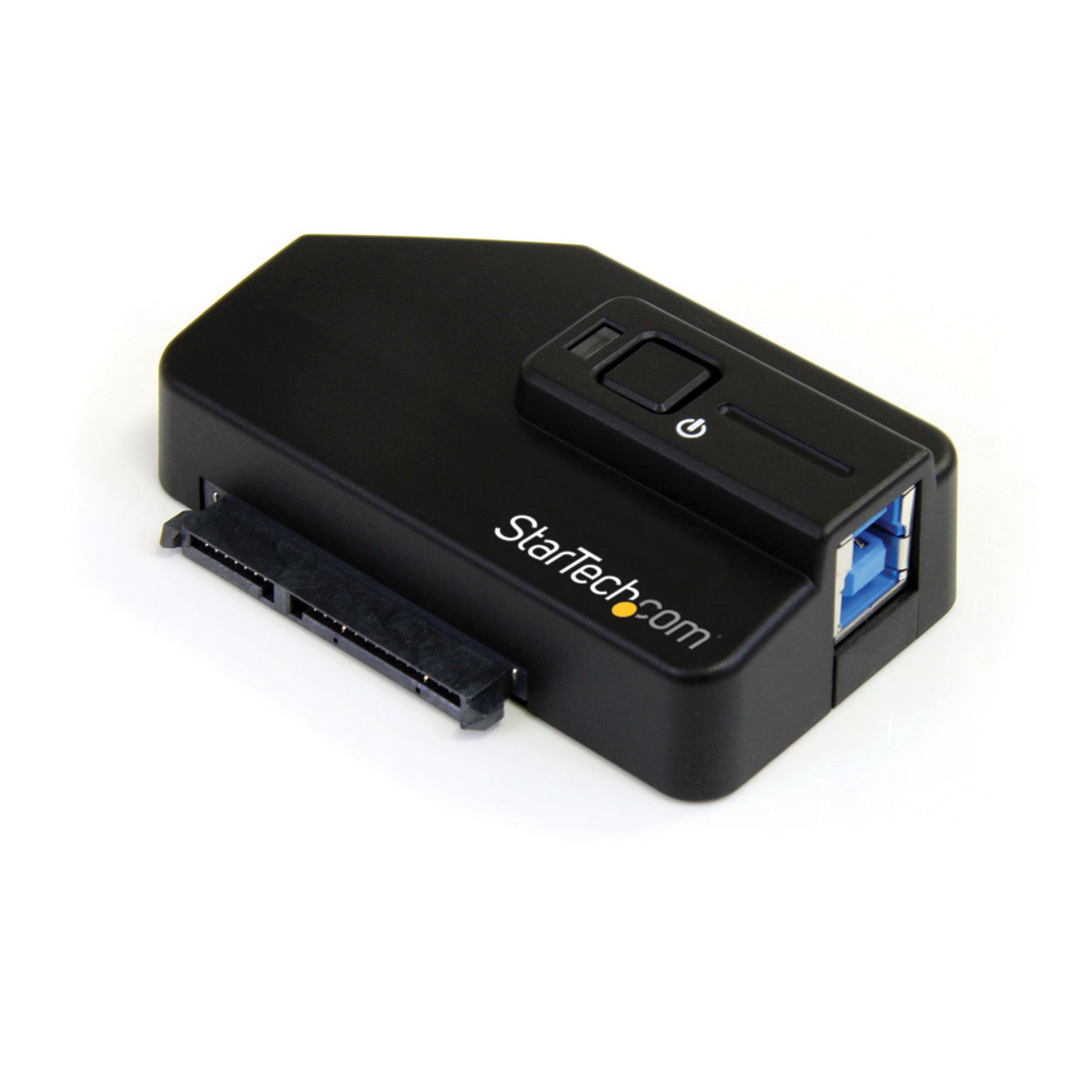

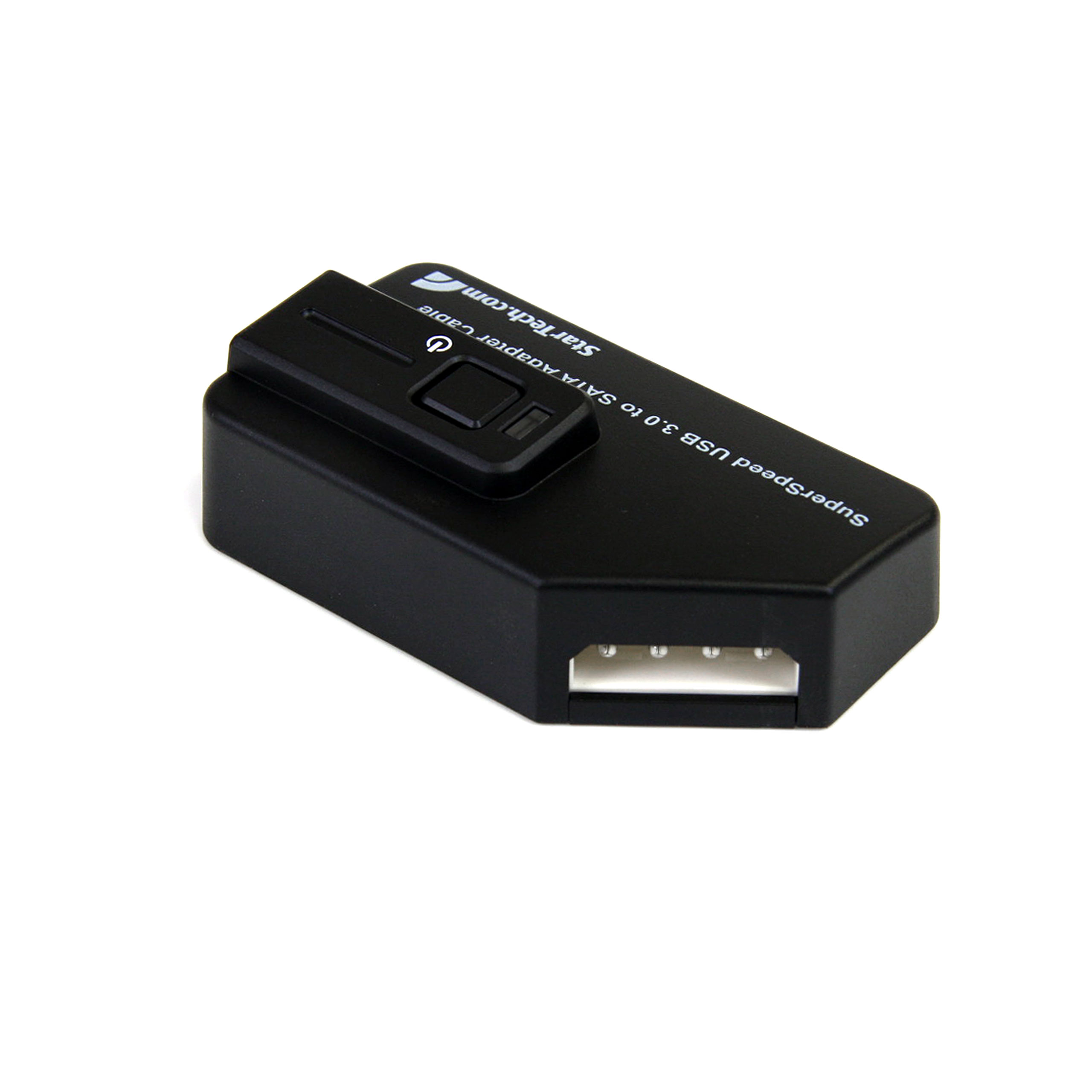

USB 3.0 to SATA External Adapter
Easily connect and transfer data from a 2.5in or 3.5in SATA drive to your PC or Notebook using USB 3.0
Main Image
Product Images
BOM Image
Product Name USB 3.0 to SATA External Adapter Product Number USB3S2SATA UPC 065030840088 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) SuperSpeed USB 3.0 SATA Adapter Cable Product Title (Standard) SuperSpeed USB 3.0 SATA Adapter Cable Product Title (Long) SuperSpeed USB 3.0 SATA Adapter Cable for 2.5in or 3.5in Hard Drives Title Ingram (Part 1) SuperSpeed USB 3.0 SATA Adapter Title Ingram (Part 2) Cable for 2.5in or 3.5in HDD Website Product Headline Easily connect and transfer data from a 2.5in or 3.5in SATA drive to your PC or Notebook using USB 3.0 Bullet 1 Maximum transfer rate of 5Gbps using USB 3.0; 480Mbps with USB 2.0 Bullet 2 Compliant with USB specification Rev 2.0 and 3.0 Bullet 3 Compliant with Serial ATA Rev 2.6 Bullet 4 USB attached SCSI protocol (UASP) and Advance Host Controller I/F (AHCI) Rev 1.1 compliant Bullet 5 Supports both 2.5in and 3.5in SATA Hard Drives (HDDs) and SATA Solid State Drives (SSDs) Marketing Copy Applications - Easily connect and access data from a 2.5in or 3.5in hard drive with USB 3.0
- Retrieve data from a hard drive without having to connect the drive internally
Website Search Keyword - USB to SATA
- USB 3.0
- SuperSpeed USB
- Sata Adapter
Accessory Products - ECUSB3S2
- PEXUSB3S2
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
Related Products - USB2SATA25
- USB2SATAIDE
- USB2SATA
- SATADOCK22UE
- SATADOCKU2
- SATADOCKU2E
- SATDOCK22R
- SATDOCK22UEC
- SATDOCKCRH
- UNIDOCK2U
- UNIDUPDOCK
- SAT2510BU3
- SAT3510BU3
- SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
Replacement Product USB3SSATAIDE Color Black Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 70 Product Width (mm) 46 Product Height (mm) 21 Product Weight (g) 82 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No OS Compatibility - Linux
- Mac OS X
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Windows 8

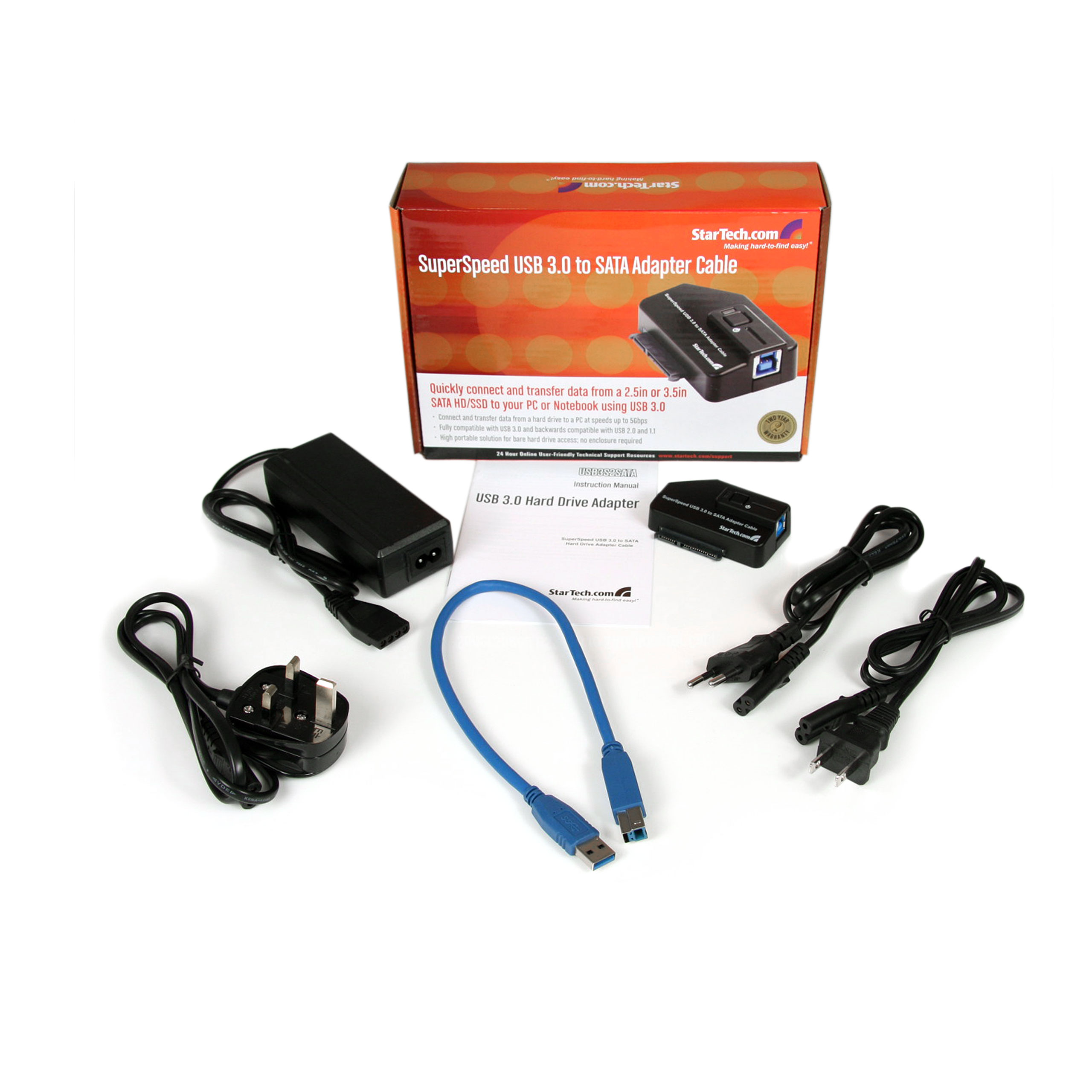

USB Type and Rate USB 3.0 (5Gbps) Chipset ID Symwave - SW6315 Compatible Drive Types SATA LED Indicators 1 - Yellow - Power/Activity Number of Drives 1 Carton Depth (mm) 463 Carton Height (mm) 338 Carton Quantity 20 Carton Weight Gross (g) 13200 Included in Package - 1 - USB 3.0 to SATA Adapter
- 1 - Manual
- 1 - Power Adapter and NA Power Cord
- 1 - EU Power Cord
- 1 - UK Power Cord
- 1 - 1ft USB 3.0 A to B Cable
Package Depth (mm) 56 Package Height (mm) 153 Package Width (mm) 225 Package Weight (g) 600 Packaging Description SuperSpeed USB 3.0 to SATA Adapter Packaging Description India SuperSpeed USB 3.0 to SATA Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
