USB3S2SATA3
USB 3 to SATA 3 Converter for 2.5 / 3.5 HDD Drives
Easily connect, transfer and backup data from a 2.5in or 3.5in SATA drive to your PC or Notebook using USB 3.0
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 to SATA 3 Converter for 2.5 / 3.5 HDD Drives Product Number USB3S2SATA3 UPC 065030850667 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-A Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) USB 3 to SATA III Product Title (Short) USB 3 to SATA III Adapter for 2.5 / 3.5 Product Title (Standard) USB 3.0 to SATA III Adapter for 2.5in or 3.5in Drives Product Title (Long) USB 3.0 to SATA III Adapter for 2.5in or 3.5in Drives Product Title (AMZ) SuperSpeed USB 3.0 to SATA III Adapter - USB 3 to SATA 3 Converter Adapter for 2.5in or 3.5in HDD and SSD Drives - 6 Gbps (USB3S2SATA3) Title Ingram (Part 1) USB 3 to SATA 3 Adapter Title Ingram (Part 2) Converter for 2.5 / 3.5 HDD Drives Website Product Headline Easily connect, transfer and backup data from a 2.5in or 3.5in SATA drive to your PC or Notebook using USB 3.0 Bullet 1 SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5Gbps Bullet 2 Supports both 2.5in and 3.5in SATA Hard Drives (HDD) and Solid State Drives (SSD) Bullet 3 Power/Activity LED indicator Bullet 4 UASP support Bullet 5 One Touch Backup (OTB) button with included backup software Bullets (Consolidated) Easily connect transfer and backup data from a 2.5in or 3.5in SATA drive to your PC or Notebook using USB 3.0 - USB 3.0 to SATA Adapter - USB 3.0 to SATA III - USB 3.0 to SATA 3 Adapter 6 Gbps - USB 3.0 to SATA Converter - USB 3.0 to SATA Cable Marketing Copy Applications - Easily connect and access data from a 2.5in or 3.5in HDD or SSD using SuperSpeed USB 3.0
- Retrieve data from a drive without having to connect the drive internally
Website Search Keyword - USB 3.0 to SATA Adapter
- USB 3.0 to SATA 3 Adapter
- USB 3.0 to SATA Converter
- USB 3.0 to SATA III
- USB 3.0 to SATA Cable
- USB3SSATAIDE
System and Cable Requirements Host computer system with available USB port (USB 3.0 recommended) Accessory Products - USB3SAB1
- USB3SAB6
- USB3SAB10BK
- PEXUSB3S400
- ECUSB3S22
- ECUSB3S11
- ECUSB3S254F
- USB3SAB10
- PEXUSB3S22
- PEXUSB3S4V
- USB3SAUB3BK
- USB3SAB6BK
- USB3SAB3
- USB3SPLATE
Related Products - SAT3510BU3
- SAT2510BU32
- SATDOCKU3S

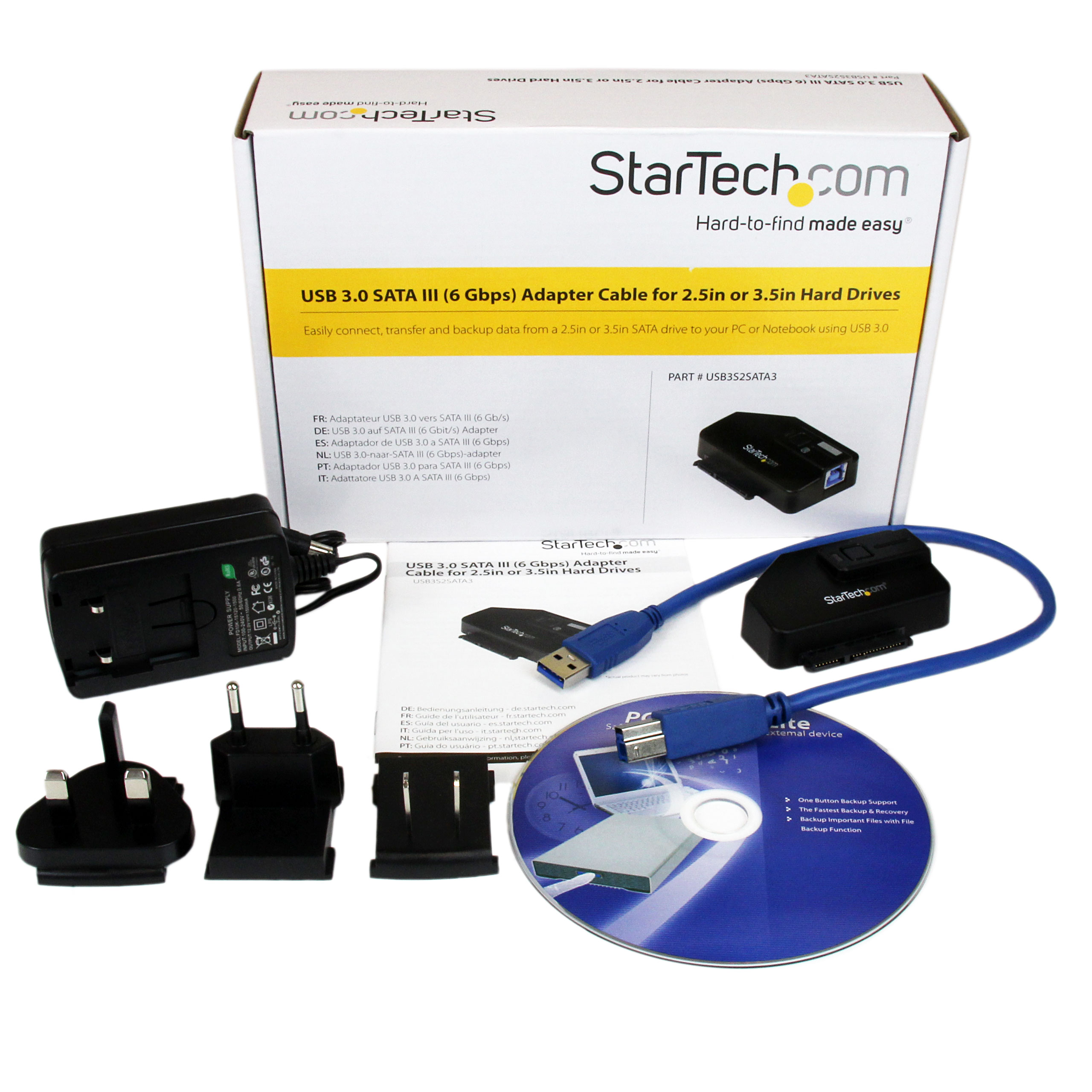

Replacement Product USB3SSATAIDE Input Current 0.6A Input Voltage 110V-240V AC Output Current 1.5 Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% ~ 85% RH Material Plastic Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) Product Length (mm) 69.4 Product Width (mm) 47.3 Product Height (mm) 21.6 Product Weight (g) 32.7 Storage Temperature 20°C ~ 60°C (68°F ~ 140°F) TAA Compliant No Max Drive Capacity Currently tested up to 4TB OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1051E Compatible Drive Types SATA Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Amber - Power (solid) /Activity (flashing) Number of Drives 1 Carton Depth (mm) 305 Carton Height (mm) 348 Carton Quantity 20 Carton Weight Gross (g) 7780 Included in Package - 1 - USB 3.0 to SATA Converter
- 1 - Universal Power Adapter
- 1 - Instruction Manual
- 1 - USB 3.0 A to B cable
- 3 - Power Adapter Plug (NA/ UK/ EU)
- 1 - Software CD
Package Depth (mm) 157 Package Height (mm) 55 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 354 Packaging Description USB 3.0 to SATA III (6 Gbps) Adapter Packaging Description India USB 3.0 to SATA III (6 Gbps) Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-04-12 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
