USB3SDOCKD

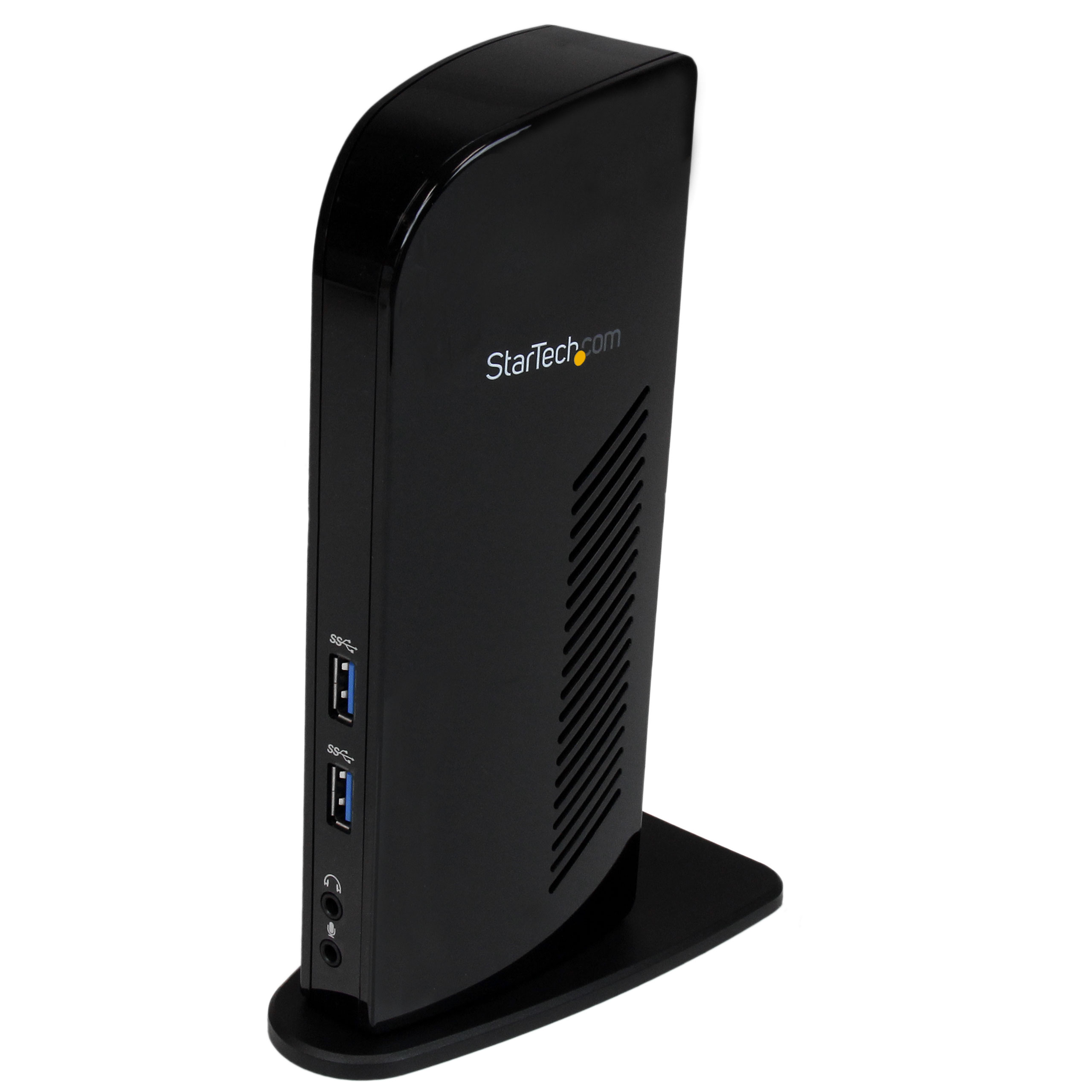

USB 3.0 Port Replicator Notebook Docking Station
Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 Port Replicator Notebook Docking Station Product Number USB3SDOCKD UPC 065030847681 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Single-Monitor Docks Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Short) DVI USB 3.0 Laptop Docking Station Product Title (Standard) Universal USB 3.0 Laptop Docking Station – DVI with Audio and Ethernet Product Title (Long) Universal USB 3.0 Laptop Docking Station - DVI Product Title (AMZ) Universal USB 3.0 Laptop Docking Station – DVI with Audio and Ethernet - USB 3 Port Replicator Notebook Dock (USB3SDOCKD) Title Ingram (Part 1) USB 3.0 Port Replicator Universa Title Ingram (Part 2) l Notebook Docking Station Website Product Headline Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port Bullet 1 DVI video output with DVI to VGA adapter included, offering mirror or extended desktop capabilities Bullet 2 Supports resolutions up to 1920 x 1200 Bullet 3 10/ 100/ 1000 Mbps compatible RJ45 Ethernet port Bullet 4 Fully compliant with USB 3.0 specification with support for transfer rates up to 5 Gbps Bullet 5 2 front panel USB 3.0 ports and 4 rear panel USB 2.0 ports Bullets (Consolidated) Add DVI video as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port - Compatible with USB 3.0 equipped laptops such as Lenovo ThinkPad T440 - Comparable to Lenovo 4X10A06687 - Universal Docking Station/USB 3.0 Docking Station/USB Laptop Docking Station/Notebook Dock/Laptop Dock and#8212; DVI video out with support for resolutions up to 1920x1200 - 2x USB 3.0 + 4x USB 2.0 Ports - BYOD Workstation/Hot Desking Workspace/Home Office Workstation Marketing Copy Applications - Add video, USB, Ethernet and Audio from a single USB connection, without having to open the computer system
- Add an external video output to a laptop or small form factor computer where the video card cannot be replaced

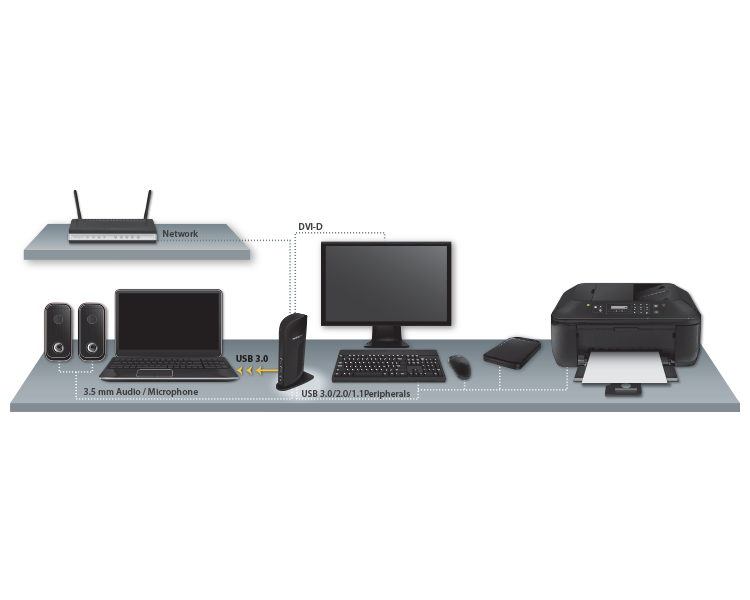

- Connect many different peripherals at home/office to a laptop and be able to disconnect them all from a single USB cable when leaving
Website Search Keyword - USB 3.0
- SuperSpeed USB3
- universal docking station
- laptop docking station
- notebook docking station
- port replicator
- dvi docking station
- Docking Stations
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions. System and Cable Requirements CPU: i3 Dual core 2.8GHz or better</br> RAM: 2GB or higher</br> Available USB 3.0 port Accessory Products - DVIMM6
- DVIDSMM10
- M45PATCH10BL
- 45PATCH10BK
- USB3SAB6
- USB3SAB10BK
- USB31CAADP
- SVA5M4NEUA
Related Products - USB3SDOCKHD
- USBVGADOCK2
- USBDOCK2
Replacement Product USB3VDOCKD Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Source AC Adapter Included Plug Type C Color Black Material Plastic Operating Temperature 10°C to 40°C (50°F to 104°F) Product Length (mm) 195.740 Product Width (mm) 77.000 Product Height (mm) 126.320 Product Weight (g) 364.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Digital Resolutions 1920 x 1200 Maximum Supported Resolution 1080p OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate - USB 3.0 - 4.8 Gbit/s
- USB 2.0 (480Mbps)
Video Output Port DVI Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Host Connection Port USB-A Industry Standards IEEE 802.3, 802.3u, and 802.3ab Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power (Blue)
- 1 - USB Hub Link (Blue)
Number of Displays 1 Other Ports - Gigabit Ethernet

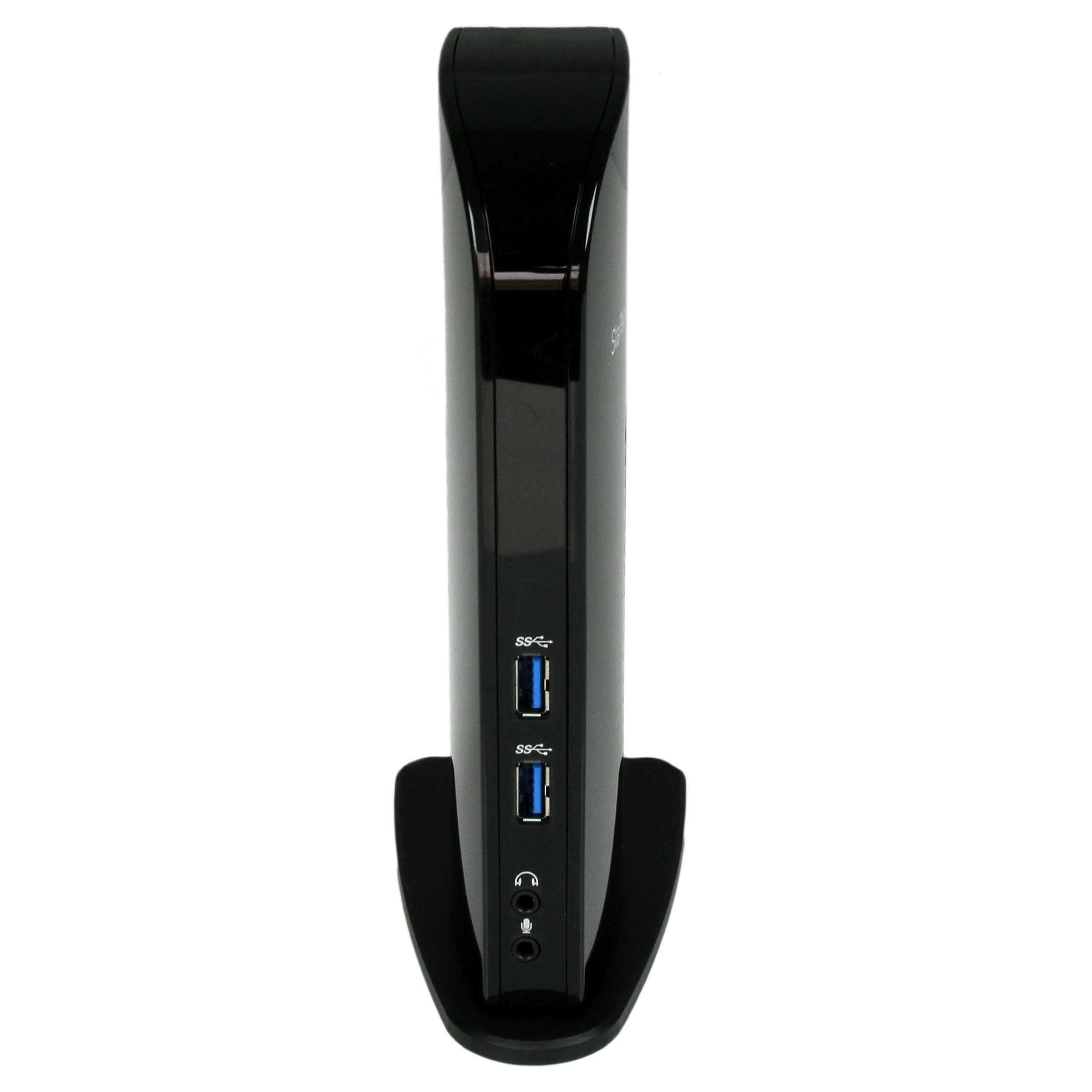

- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

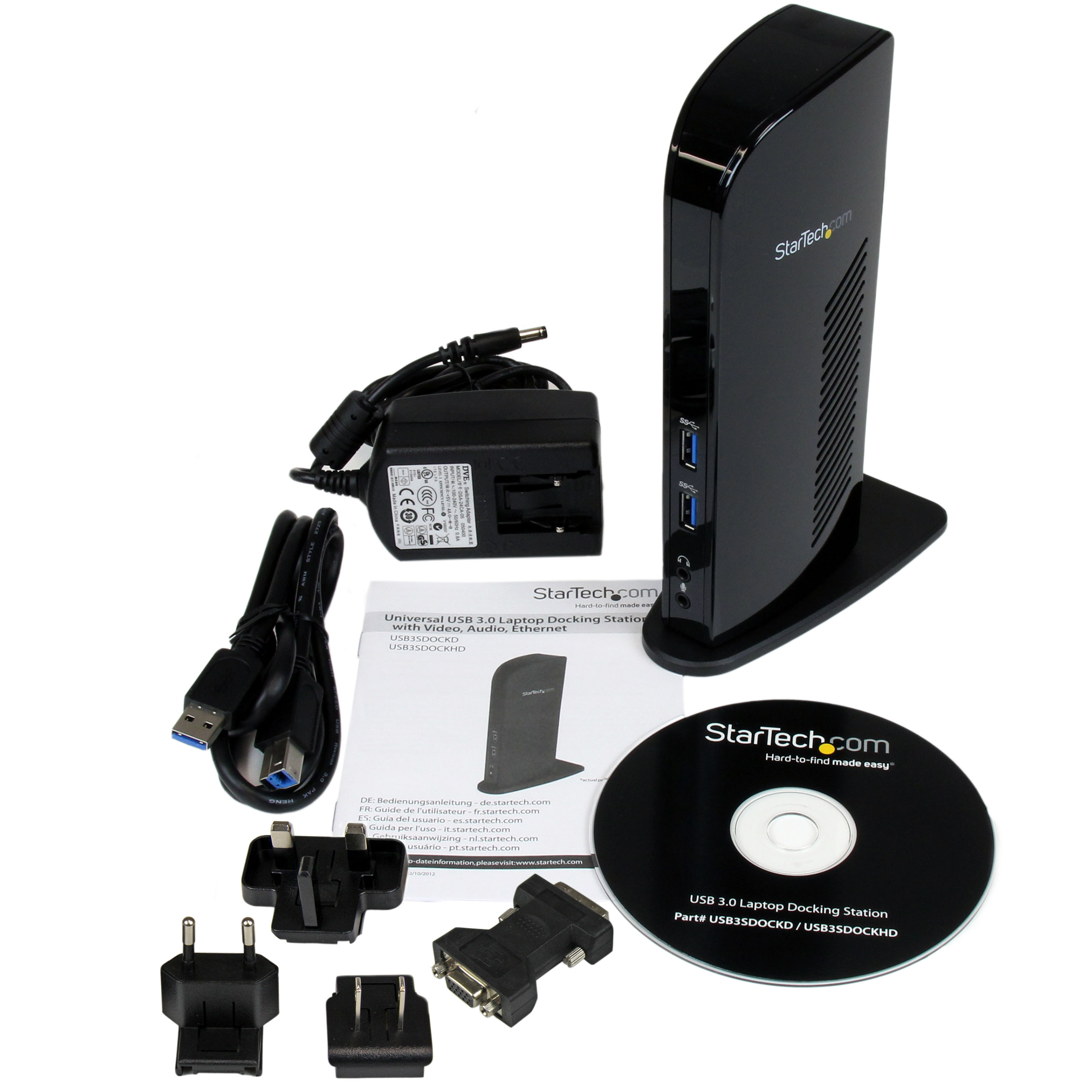

Carton Depth (mm) 290 Carton Height (mm) 350 Carton Quantity 6 Carton Weight Gross (g) 6520 Included in Package - 1 - USB 3.0 Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB 3.0 Docking Station
- 1 - DVI to VGA Adapter

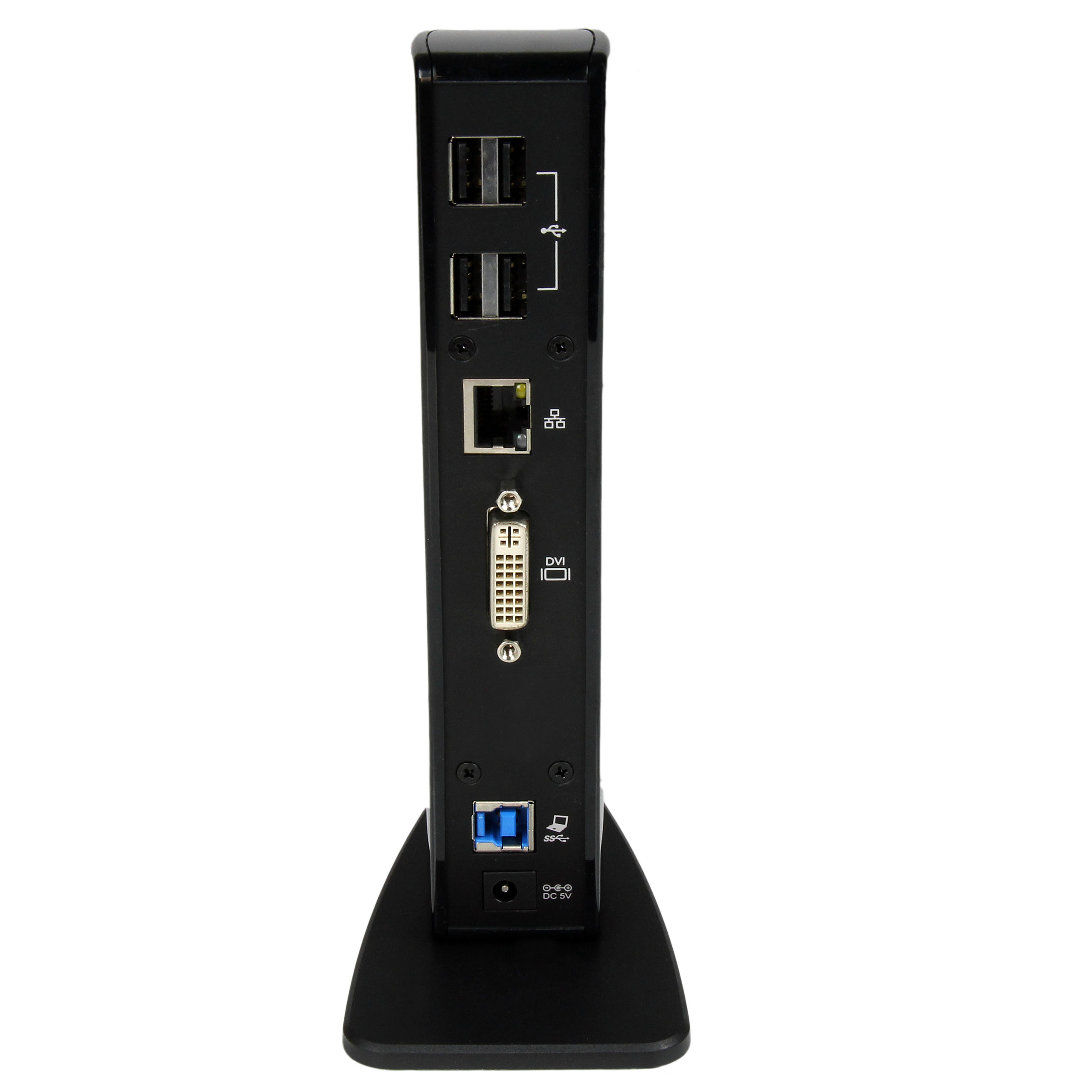

Package Depth (mm) 190 Package Height (mm) 110 Package Width (mm) 275 Package Quantity 1 Package Weight (g) 920 Packaging Description USB 3.0 DVI Laptop Docking Station Packaging Description India USB 3.0 DVI Laptop Docking Station Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 4 Connector 6 USB-A (5Gbps, 4.5W) Connector 6 (Quantity) 2 Amazon Merchandising Manager Kristian Haighton Buying Center - End User Compute Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
