USB3SMDOCKHV
Portable Laptop Docking Station - HDMI or VGA -USB
Create a mobile workstation using your Ultrabook™ or laptop USB 3.0 port via this portable USB 3.0 mini dock
Main Image
Product Images
Product Images
BOM Image
Product Name Portable Laptop Docking Station - HDMI or VGA -USB Product Number USB3SMDOCKHV UPC 065030858281 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Family USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX158X Product Title (Ultra-Short) Laptop Dock HDMI VGA Product Title (Short) Dock, Travel - USB 3.0, HDMI or VGA Product Title (Medium) Travel Docking Station for Laptops - HDMI or VGA - USB 3.0 - Mobile Laptop Dock Product Title (Standard) Travel Docking Station for Laptops - HDMI or VGA - USB 3.0 - Portable Universal Laptop Mini Dock Product Title (Long) Travel Docking Station for Laptops - HDMI or VGA - USB 3.0 Product Title (AMZ) USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) Title Ingram (Part 1) Portable Laptop Docking Station Title Ingram (Part 2) - HDMI VGA -USB 3.0 Laptop Dock Website Product Headline Create a mobile workstation using your Ultrabook™ or laptop USB 3.0 port via this portable USB 3.0 mini dock Bullet 1 HDMI® or VGA video output, USB 3.0 hub port, and GbE through just a single USB 3.0 connection Bullet 2 Compact and lightweight - multiple connection options in a travel-friendly casing designed for maximum portability Bullet 3 Built-in USB 3.0 cable, which can be tucked away neatly while not in use Bullet 4 USB bus-powered - No external power adapter required Bullet 5 Hassle-free setup - Latest drivers are automatically downloaded in Windows® systems when an active network connection is present Bullets (Compact) Create a mobile workstation using your laptop USB 3.0 port - Travel Docking Station for Laptops - HDMI or VGA - USB 3.0 - Compact Mobile Universal Laptop Mini Dock - HP EliteBook Folio - Microsoft Surface Pro 4 and Surface Book Laptop Docking Station Bullets (Consolidated) Create a mobile workstation using your Ultrabook or laptop USB 3.0 port - Travel Docking Station for Laptops - HDMI or VGA - USB 3.0 - Compact Mobile Universal Laptop Mini Dock - Compatible with HP EliteBook Folio/Lenovo X1 Carbon/Microsoft Surface Pro 4/Surface Pro 3/Surface 3/Surface Book - Portable Laptop Docking Station/Travel Adapter for Laptops/Notebook Mini Docking Station - USB 3.0 Laptop Dock w/ built-in cable - Compact and lightweight laptop accessory - BYOD Workstation Marketing Copy Marketing Copy (No HTML) The USB 3.0 docking station lets you transform your laptop or Ultrabook into a mobile workstation. The portable laptop docking station adds HDMI or VGA video output, a USB 3.0 hub port, and a Gigabit Ethernet RJ45 port, through a single USB 3.0 host connection. The USB to HDMI docking station helps you overcome the port limitations of modern mobile computers, making it ideal for your laptop or Surface Book. By consolidating four essential connection ports into one convenient device, the travel dock is the perfect laptop accessory. The USB adapter dock features a lightweight, compact design that fits nicely into your travel bag and features an integrated host connection cable that tucks neatly into the docking stations casing. The universal docking station offers HDMI video output with audio, or VGA video output, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation. Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to a Windows system with an active network connection. The USB 3.0 docking station is backed by a StarTech.com 3-year warranty and free lifetime technical support. Applications - Work from your Ultrabook or laptop easily, while you’re on the run or on the road, by adding essential connectivity options
- Connect your laptop to a wired Gigabit network in situations where a WiFi connection isn't available, such as in classrooms, offices, and hotels
- Use your Ultrabook or laptop as a multi-display workstation, through external monitor support, and run multiple applications on different screens
- Connect to your HDMI or VGA-equipped projector and display multimedia content at home, or engaging presentations in boardrooms
- Use an HDMI port-equipped television in a hotel room as a second display when traveling
- Add an extra display as well as wired Gigabit network access to your slimline laptop, while keeping your USB 3.0 port available for other connections
Website Search Keyword - mini docking station
- USB 3.0 mini docking station
- usb 3.0 laptop mini dock
- laptop mini dock
- portable docking station
- mobile docking station
- travel docking station
- usb 3.0 docking station
- ultrabook docking station
- macbook mini dock
- macbook docking station
- carbon mini dock
- lenovo mini dock
- lenovo docking station
- notebook mini dock adapter
- notebook mini docking station
- universal laptop mini docking station
- usb docking station
- docking station hdmi
- docking station vga
- usb to gigabit hdmi
- usb to gigabit vga
- usb to hdmi gigabit
- usb to vga gigabit
- usb to hdmi vga
- usb to gigabit with video
- usb to gigabit with hdmi
- usb to gigabit and hdmi
- usb to gigabit with vga
- usb to gigabit and vga
- usb hdmi dongle
- usb vga dongle
- usb mini dock adapter
- mini docking adapter
- usb video adapter
- usb 3 mini dock
- compact docking station
- compact mini docking station
- compact dock
- portable dock
- port replicator
- laptop accessory
- usb pass-through
- usb gigabit vga
- usb gigabit hdmi
- usb gigabit vga hdmi
- usb gigabit hdmi vga
- usb to gigabit
- usb gigabit
- usb gigabit ethernet vga
- usb vga gigabit ethernet
- usb to gigabit ethernet
- USB 3.0 to vga
- USB 3.0 to vga gigabit ethernet
- travel laptop docking station
- travel laptop dock
- mobile laptop docking station
- mobile laptop dock
- portable laptop docking station
- portable laptop dock
- compact laptop docking station
- compact laptop dock
- USB3SMDOCKV
- U342-SHG-001
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Only a single video output can be used at one time, HDMI® or VGA. If a display is connected to each video output port at the same time, then the HDMI® port will take priority
- Drivers for macOS systems are not automatically installed. Please see the support section for driver download.
System and Cable Requirements USB enabled computer system with available USB 3.0 port Accessory Products - HDDVIMF8IN
- HDMIDVIMF
- HDDVIMM3
- HDMIDVIMM6
- DVIVGAFMBK
- USB3SEXT6BK
- USB3SEXT1MBK
- N6PATCH10BK
- C6PATCH20OR
- HDMM10
- USB31CAADP
Related Products - USB31GEHD
- USB3SDOCKDD
- USB3SDOCKHDV
- USB32HDEH3
- USB32VGAEH3
- ST3300GU3B
- USB31000SPTB
- USB31GEVG
- USB3SMDOCKV
- USB3DDOCKFT
Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 93 Color Black Humidity 90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 125.000 Product Width (mm) 55.000 Product Height (mm) 17.000 Product Weight (g) 82.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Analog Resolutions Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 1080p OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- Ubuntu
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- VGA
Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID DisplayLink - DL-3700 Host Connection Port USB-A Industry Standards Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)

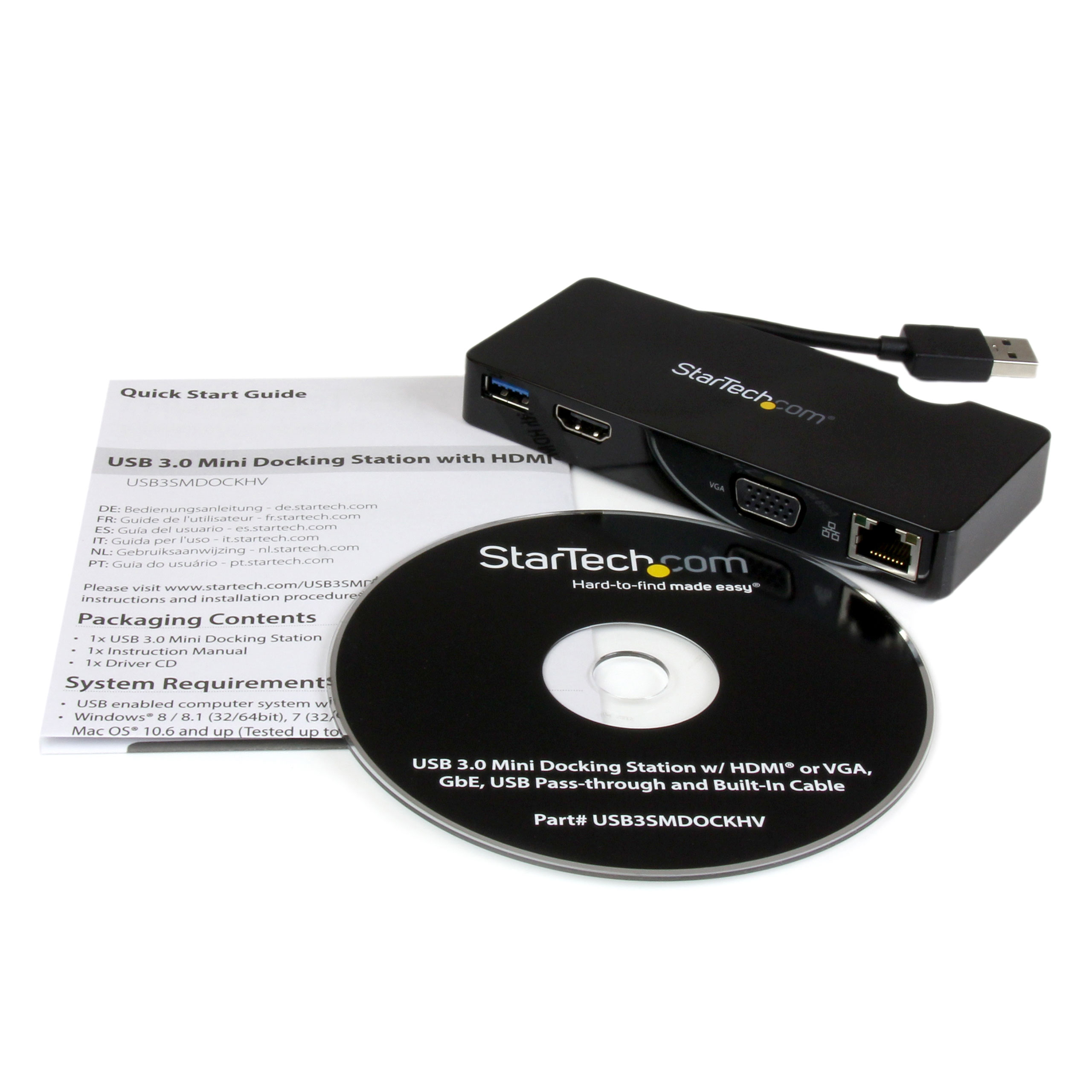

Number of Displays 1 Other Ports Gigabit Ethernet Carton Depth (mm) 452 Carton Height (mm) 311 Carton Quantity 40 Carton Weight Gross (g) 8368 Included in Package - 1 - USB 3.0 Mini Docking Station
- 1 - Driver CD
- 1 - Instruction Manual
Included In Package for Label - 1 - USB 3.0 Mini Docking Station
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 142 Package Height (mm) 43 Package Width (mm) 167 Package Weight (g) 200 Packaging Description USB 3.0 Mini Docking Station w/ HDMI® or VGA, and GbE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-12 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
