Main Image
USB3SMDOCKV

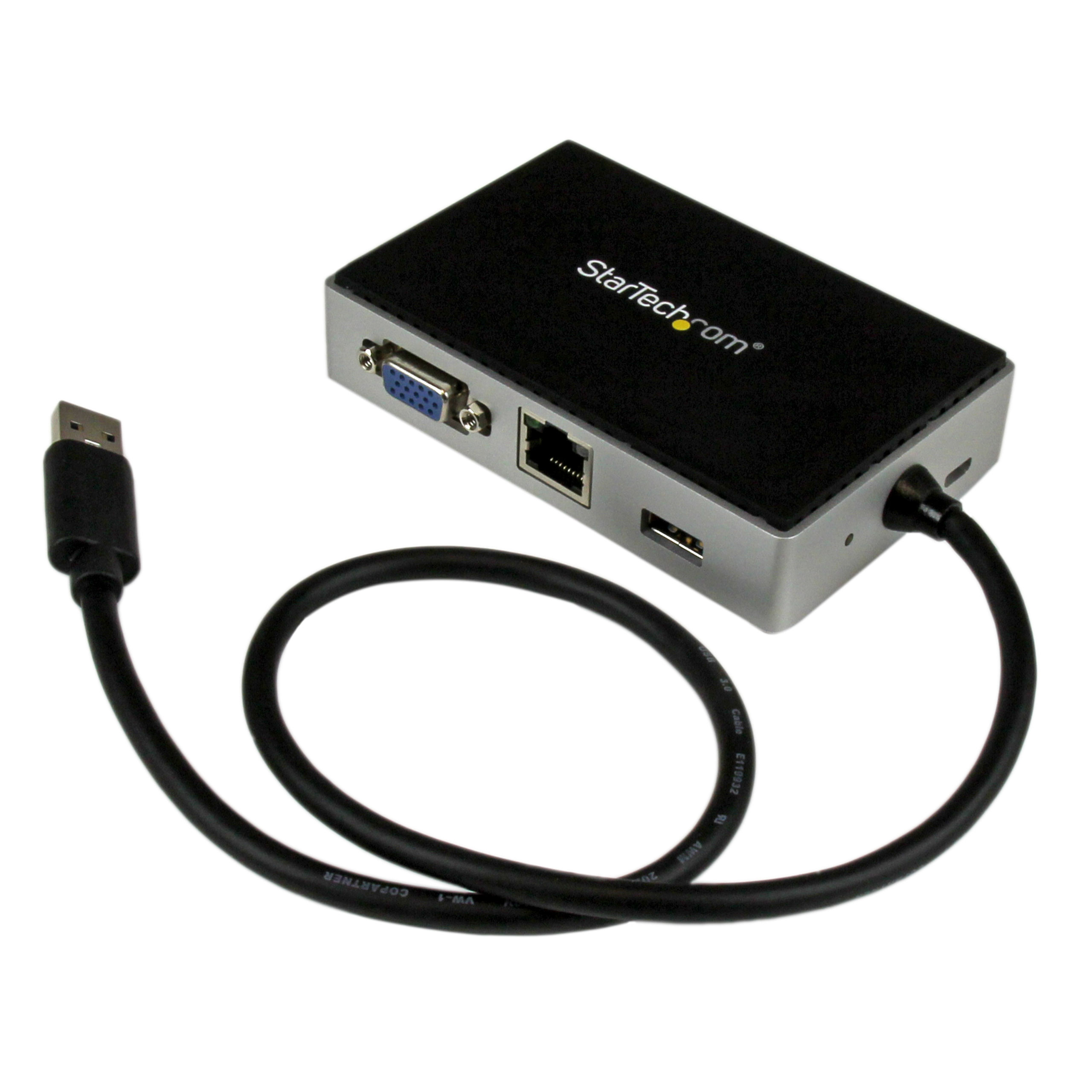

Portable Laptop Docking Station - VGA - USB 3.0
Easily create a workstation on the go and add video, Gigabit Ethernet, and a USB 3.0 port to any laptop
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Portable Laptop Docking Station - VGA - USB 3.0 Product Number USB3SMDOCKV UPC 065030858878 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-A Multiport Adapters Category Level 3 USB-A Multiport Adapters - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) Laptop Dock VGA Product Title (Short) Travel Dock for Laptops - VGA - USB 3.0 Product Title (Medium) Travel Docking Station for Laptops - VGA - USB 3.0 - Mobile Laptop Dock Product Title (Standard) Travel Docking Station for Laptops - VGA - USB 3.0 - Portable Universal Laptop Mini Dock Product Title (Long) Travel Docking Station for Laptops - VGA - USB 3.0 Product Title (AMZ) Travel Docking Station for Laptops - VGA - USB 3.0 - Portable Universal Laptop Mini Dock (USB3SMDOCKV) Title Ingram (Part 1) Portable Laptop Docking Station Title Ingram (Part 2) - VGA - USB 3.0 Laptop Dock Website Product Headline Easily create a workstation on the go and add video, Gigabit Ethernet, and a USB 3.0 port to any laptop Bullet 1 VGA video, USB 3.0 hub port, and GbE through a single USB 3.0 cable Bullet 2 Compact and lightweight for maximum portability — multiple connection options in a travel-friendly casing Bullet 3 Built-in, extended-length USB 3.0 cable for convenience and distance flexibility Bullet 4 USB bus-powered - No external power adapter required (optional auxiliary USB power cable included) Bullet 5 Hassle-free setup - Latest drivers are automatically downloaded in Windows systems when an active network connection is present Bullets (Consolidated) Create a workstation on the go and add video Gigabit Ethernet and a USB 3.0 port to any laptop - Travel Docking Station for Laptops - VGA - USB 3.0 - Compact Mobile Universal Laptop Mini Dock - Compatible with Asus Vivobook V551LA/V551LB/Microsoft Surface Pro 3/2 - Portable Laptop Docking Station/USB Laptop Mini Dock/Travel Adapter for Laptops/Notebook Mini Docking Station - Laptop Dock - Cable that tucks away neatly/Compact and lightweight laptop accessory - BYOD Workstations Marketing Copy Applications - Work from your Ultrabook or laptop easily, while you’re on the run or on the road, by adding essential connectivity options

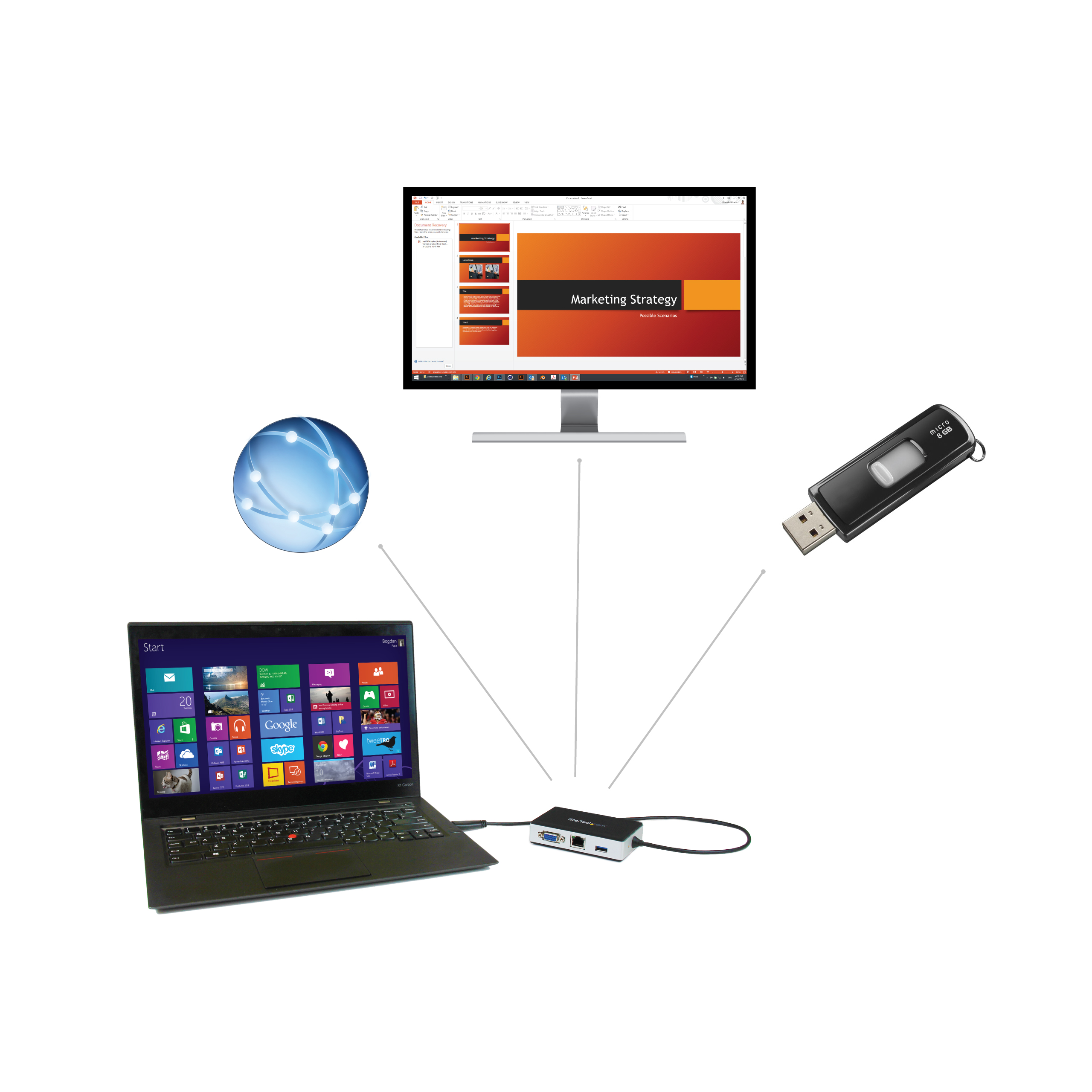

- Use your laptop as a multi-display workstation, through external monitor support
- Connect to your VGA-equipped projector and display multimedia content in boardrooms
- Connect your laptop to a wired Gigabit network in situations where a WiFi connection isn't available, such as in classrooms, offices, and hotels
Website Search Keyword - mini docking station
- USB 3.0 mini docking station
- usb 3.0 laptop mini dock
- laptop mini dock
- ultrabook docking station
- portable docking station
- mobile docking station
- macbook mini dock
- travel docking station
- macbook docking station
- usb 3.0 docking station
- carbon mini dock
- lenovo mini dock
- lenovo docking station
- notebook mini dock adapter
- notebook mini docking station
- universal laptop mini docking station
- usb docking station
- docking station vga
- usb to vga gigabit
- usb to gigabit with video
- usb to gigabit with vga
- usb to gigabit and vga
- usb vga dongle
- usb mini dock adapter
- mini docking adapter
- usb video adapter
- usb 3 mini dock
- usb to gigabit vga
- usb to vga
- compact docking station
- compact mini docking station
- compact dock
- portable dock
- port replicator
- laptop accessory
- usb pass-through
- usb gigabit vga
- usb to gigabit
- usb gigabit
- usb vga gigabit
- usb gigabit ethernet vga
- usb vga gigabit ethernet
- usb to gigabit ethernet
- USB 3.0 to vga
- USB 3.0 to vga gigabit ethernet
- travel laptop docking station
- travel laptop dock
- mobile laptop docking station
- mobile laptop dock
- portable laptop docking station
- portable laptop dock
- compact laptop docking station
- compact laptop dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes System and Cable Requirements USB enabled computer system with available USB 3.0 port Accessory Products - USB3SEXT1MBK
- USB3SEXT6BK
- N6PATCH10BK
- C6PATCH20OR
- DVIVGAFMBK
- MXT101MMHQ3
- MXT101MMLP6
- MXT101MMLP15
- USB31CAADP
Related Products - USB3SMDOCKHV
- USB31GEHD
- USB3SDOCKDD
- USB32VGAEH3
- ST3300GU3B
- USB31000SPTB
- USB31GEVG
- USB3DOCKH2DP
Replacement Product USB3SMDOCKHV Power Source USB-Powered Cable Length (mm) 534 Color Black & Silver Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 106 Product Width (mm) 68 Product Height (mm) 25 Product Weight (g) 126 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Analog Resolutions 2048x1152 (VGA) Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID DisplayLink - DL-3700 Industry Standards Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power
- 1 - Link/Activity
- 1 - Link

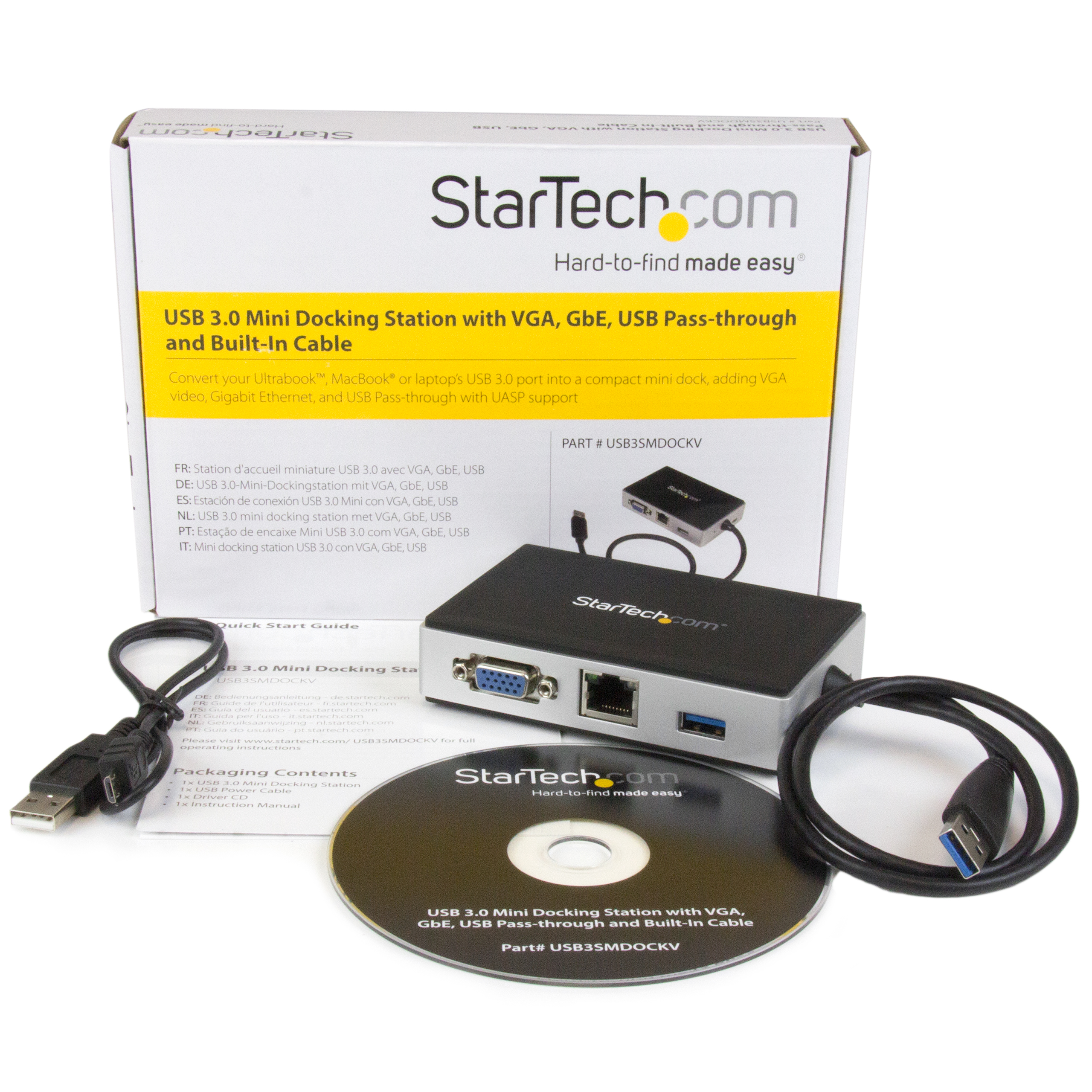

Carton Depth (mm) 420 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 11000 Included in Package - 1 - USB 3.0 Mini Docking Station
- 1 - USB Power Cable
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 207 Package Height (mm) 47 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 260 Packaging Description USB 3.0 Mini Docking Station w/ VGA, GbE, USB Packaging Description India USB 3.0 Mini Docking Station w/ VGA, GbE, USB Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 1 Connector 5 USB Micro-B (480Mbps, 2.5W) Connector 5 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-02 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
