Main Image
USB3SPLATE

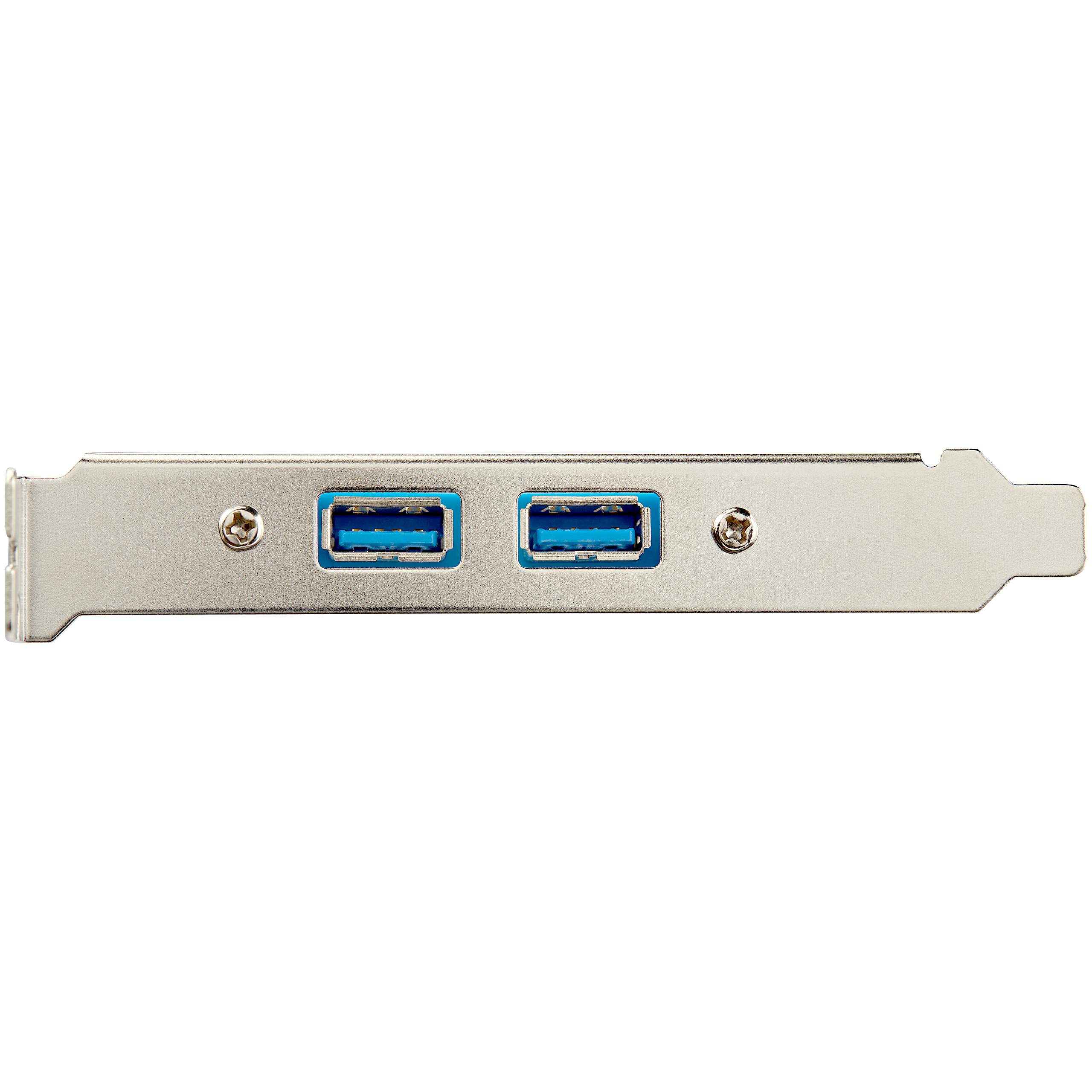

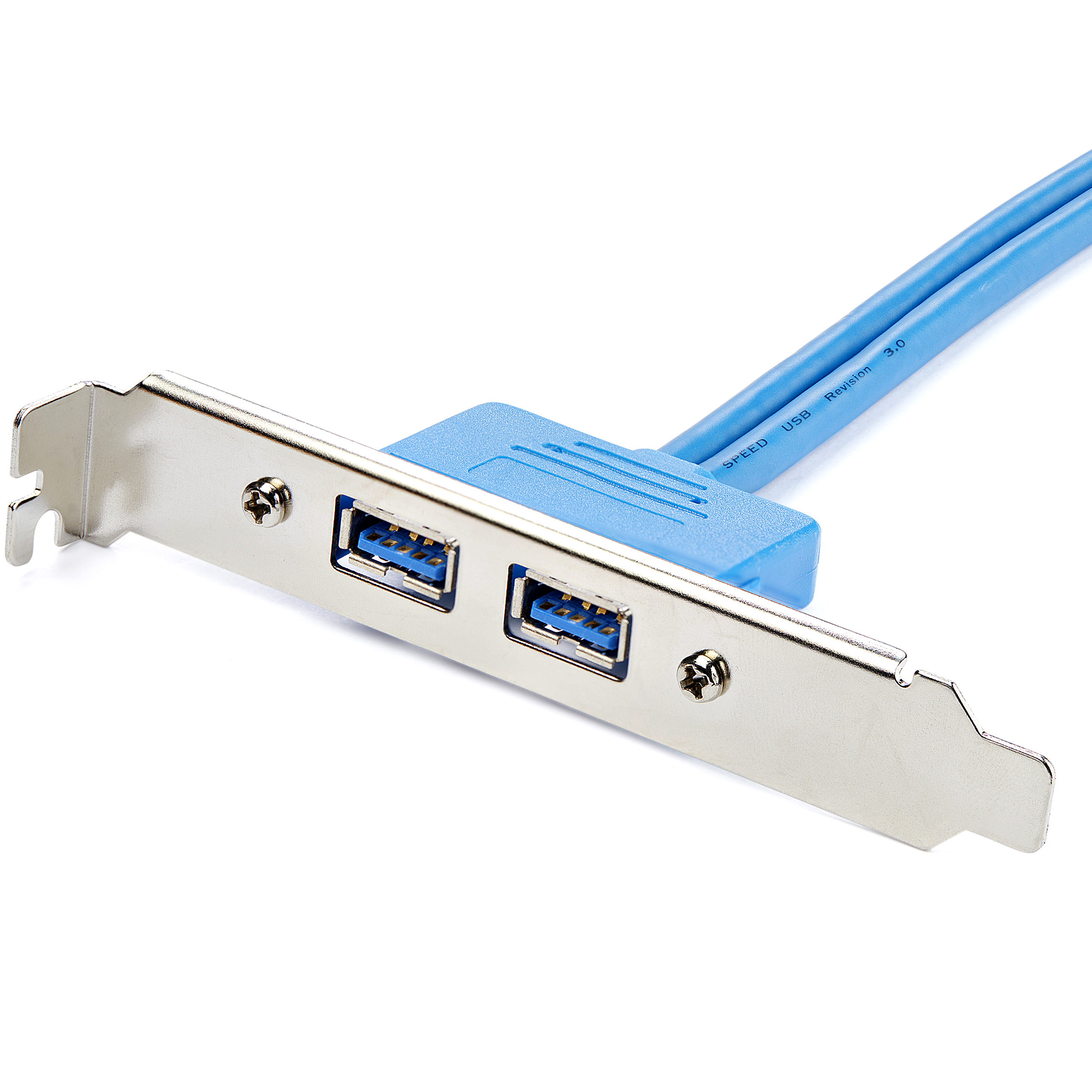

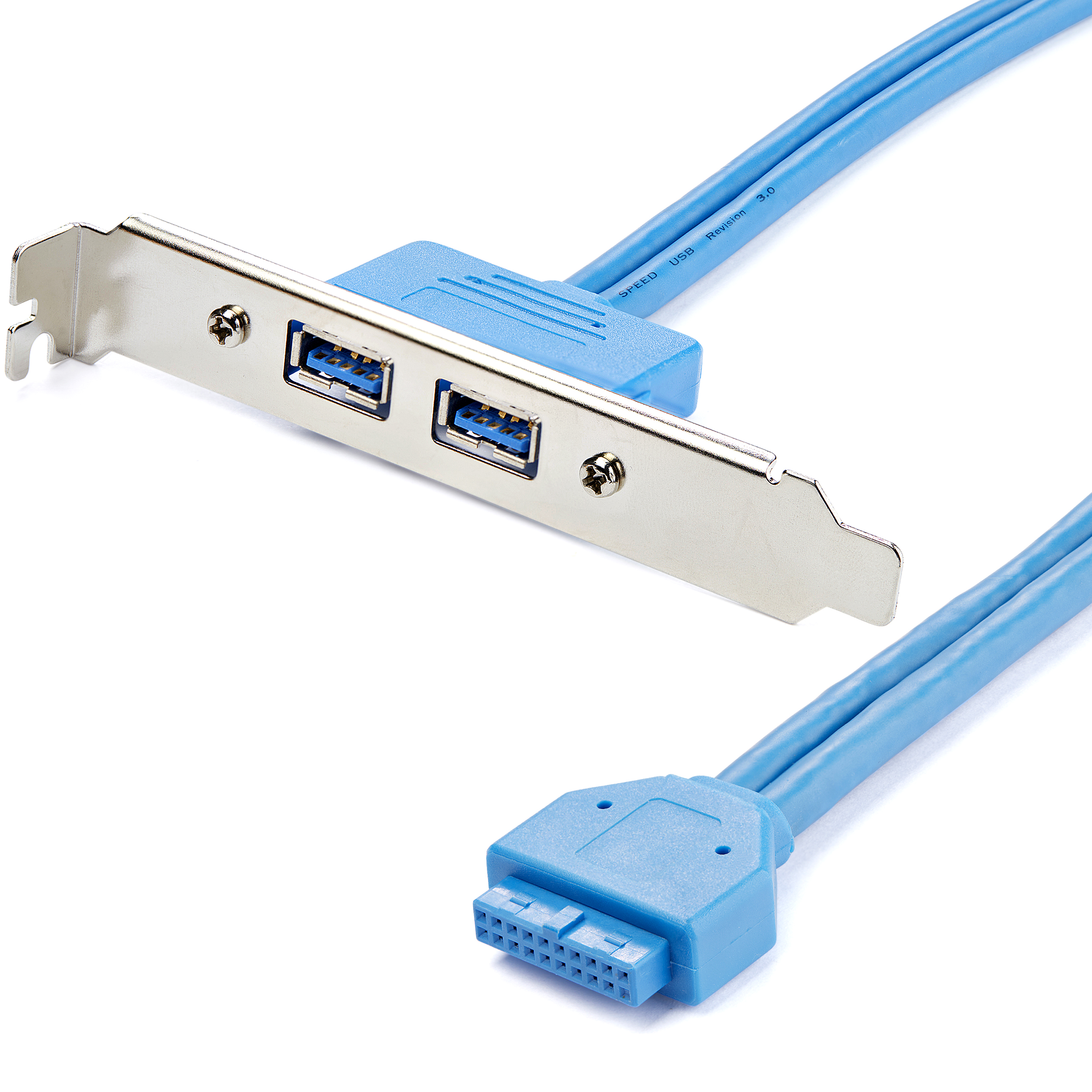

2 Port USB 3 0 A Female Slot Plate Adapter
Add 2 USB 3.2 Gen1 A Female Ports to the Back of your Computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port USB 3 0 A Female Slot Plate Adapter Product Number USB3SPLATE UPC 065030845281 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB Internal and Panel Mount Cables Category Level 3 USB Plate Adapters Family Other Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX067X Product Title (Short) 2 Port USB 3 A Female Slot Plate Adapter Product Title (Medium) x Product Title (Standard) 2 Port USB 3.0 (5Gbps) A Female Slot Plate Adapter Product Title (Long) 2 Port USB 3.0 (5Gbps) A Female Slot Plate Adapter Product Title (AMZ) 2 Port USB 3.0 (5Gbps) A Female Slot Plate Adapter - USB 3.0 motherboard Adapter - USB 3 plate - USB 3.0 header Adapter (USB3SPLATE) Title Ingram (Part 1) 2 Port USB 3.0 A Female Slot Pla Title Ingram (Part 2) te Adapter Website Product Headline Add 2 USB 3.2 Gen1 A Female Ports to the Back of your Computer Bullet 1 Easily add two SuperSpeed USB 3.2 Gen1 ports to a PC Bullets (Consolidated) USB panel - USB Type A (F) to 20 pin IDC (F) - 1.6 ft - blue Marketing Copy Website Search Keyword USB 3.0 Slot Plate Adapter Cable Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - USBPLATE
- USB3SPNLAFHD
- USBPLATE4
- USB3SPLATELP
- USBPLATELP
- USBPLATEB
- USBPNLAFAM1
Cable Length (mm) 500 Color Blue Primary Material Plastic Product Length (mm) 500.000 Product Width (mm) 190.000 Product Height (mm) 20.000 Product Weight (g) 65.000 TAA Compliant No Wire Gauge 28 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connectors Combo USB-A to IDC Host or Charger Connector USB-A Peripheral Connector IDC Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 360 Carton Height (mm) 338 Carton Quantity 150 Carton Weight Gross (g) 14324 Included in Package 1 - 2 Port USB 3.0 A Female Slot Plate Adapter Included In Package for Label 1 - 2 Port USB 3.0 A Female Slot Plate Converter Number of Sub-Cartons 15 Package Depth (mm) 200 Package Height (mm) 220 Package Width (mm) 0.1 Package Quantity 1 Package Weight (g) 70 Packaging Description 2 Port USB 3.0 A Female Slot Plate Adapter Packaging Description India 2 Port USB 3.0 A Female Slot Plate Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 IDC (20-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
