USB3SSATAIDE

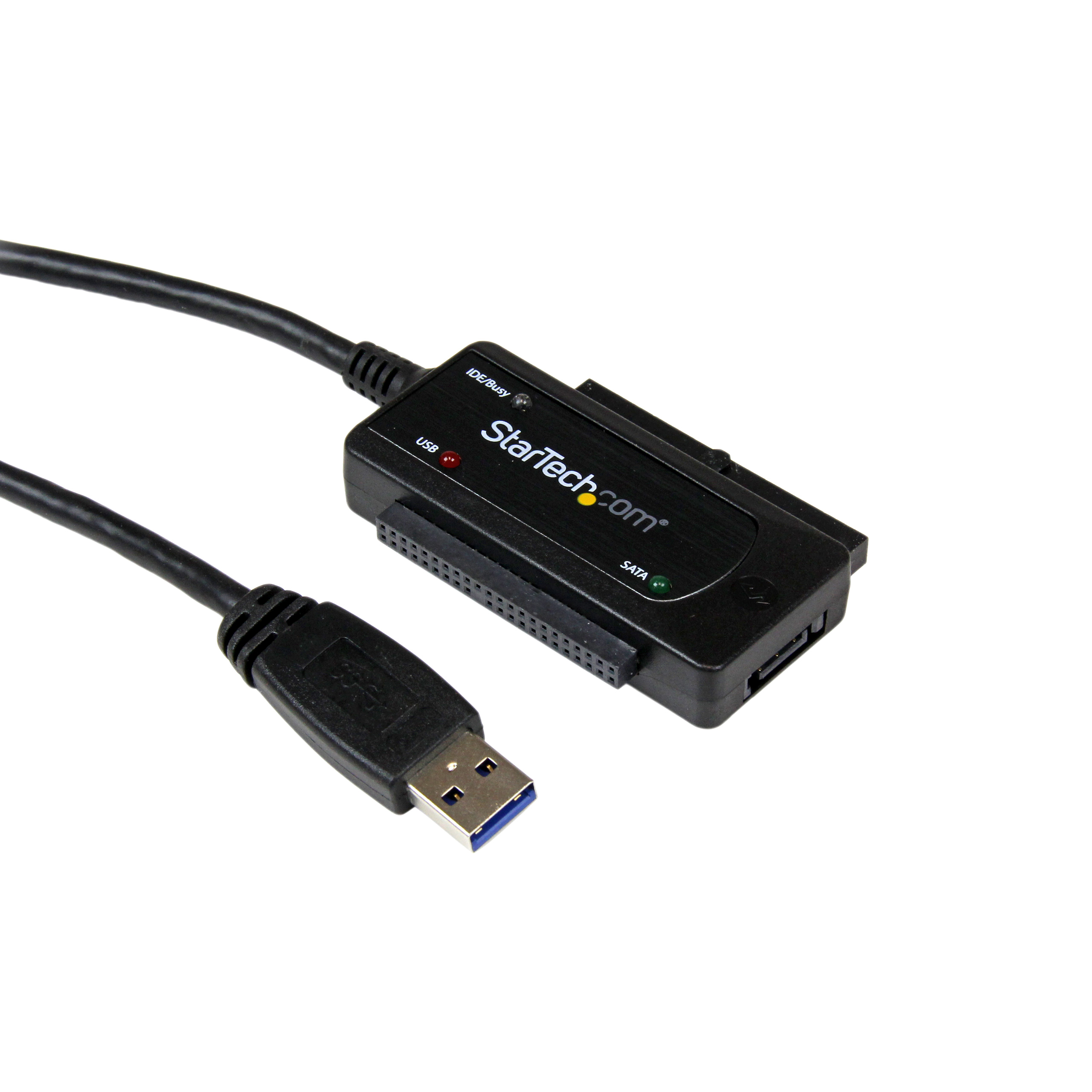

USB 3 0 to SATA IDE Adapter

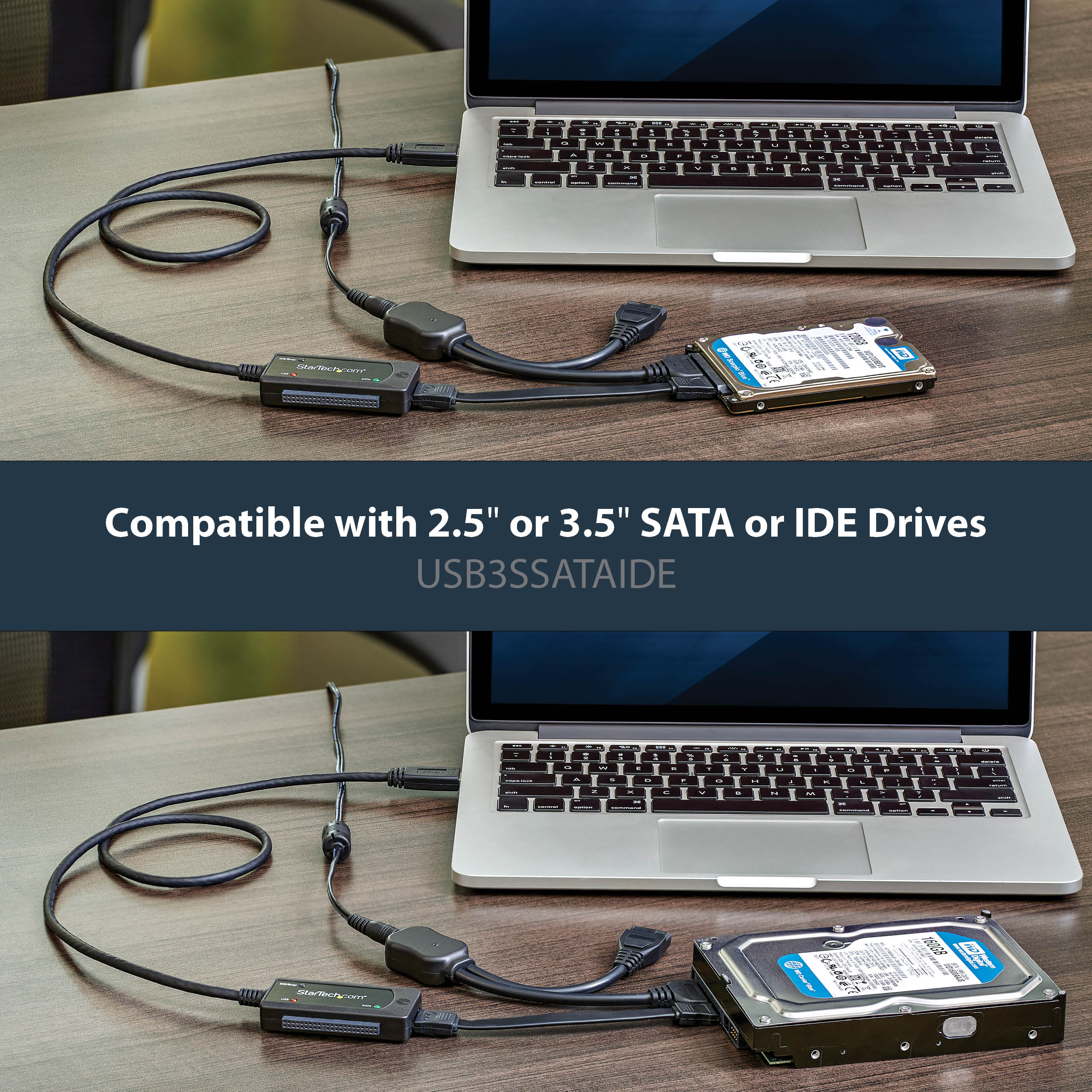

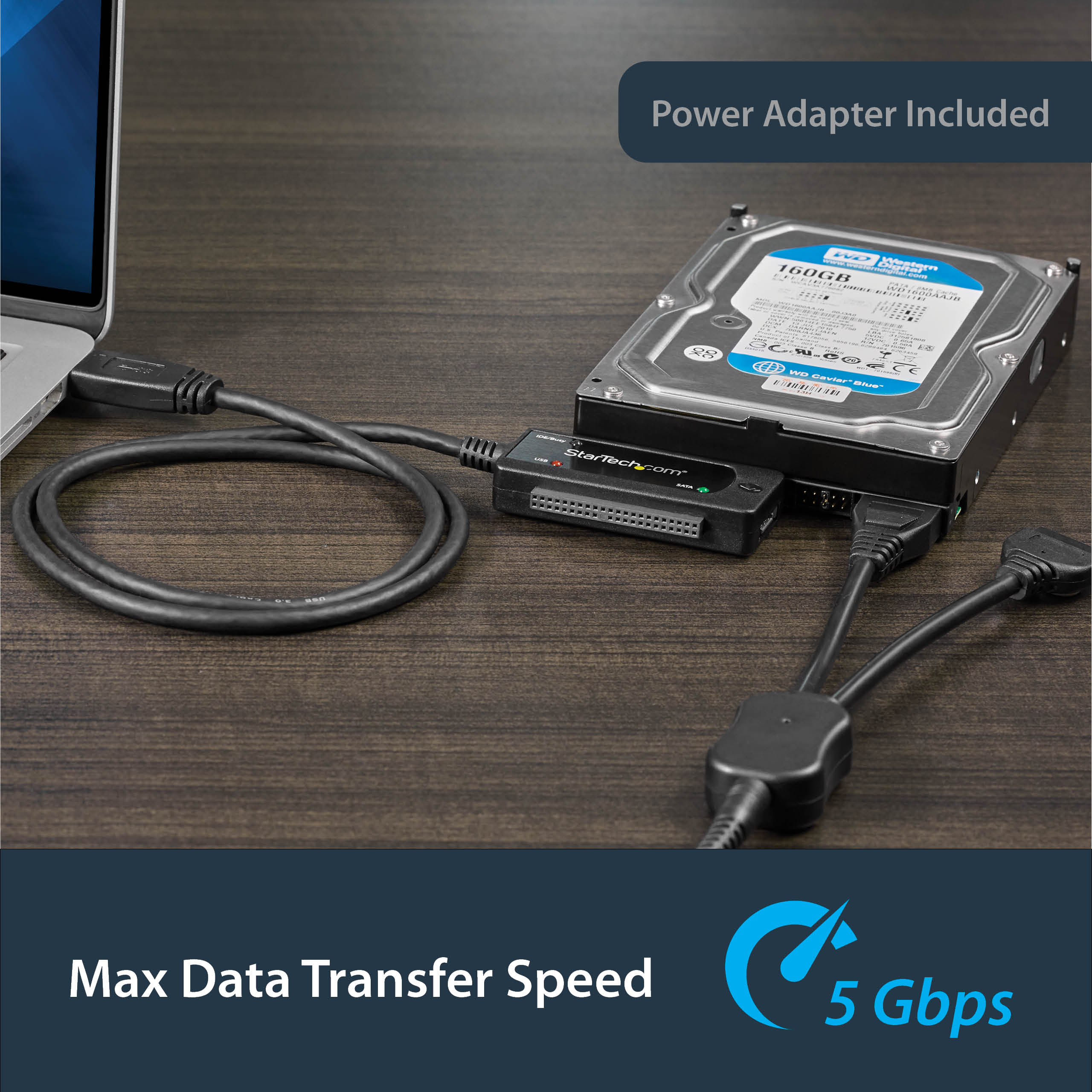

Connect a 2.5in / 3.5in SATA or IDE Hard Drive through a USB 3.0 Port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 0 to SATA IDE Adapter Product Number USB3SSATAIDE UPC 065030851091 Lifecycle status End of Life Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-A Adapters Family USB to SATA/IDE Cable Adapter Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) USB 3.0 to SATA/IDE Product Title (Short) USB 3.0 to SATA / IDE Hard Drive Adapter Product Title (Standard) USB 3.0 to SATA or IDE Hard Drive Adapter Converter Product Title (Long) USB 3.0 to SATA IDE Adapter - 2.5in / 3.5in - External Hard Drive to USB Converter - Hard Drive Transfer Cable Product Title (AMZ) USB 3.0 to SATA IDE Adapter - 2.5in / 3.5in - External Hard Drive to USB Converter – Hard Drive Transfer Cable (USB3SSATAIDE) Title Ingram (Part 1) USB3 to SATA IDE Cable Title Ingram (Part 2) Converter Adapter 2.5 / 3.5 HDD Website Product Headline Connect a 2.5in / 3.5in SATA or IDE Hard Drive through a USB 3.0 Port Bullet 1 EXTREMELY VERSATILE: This USB 3.0 to SATA IDE Adapter has built in connectors for both 2.5in and 3.5in SATA hard drives (HDDs) and SATA solid state drives (SSDs) and IDE hard drives Bullet 2 COMPACT DESIGN: This hard drive data transfer cable features a compact, portable form factor design that fits perfect in your laptop bag, making it ideal for professionals on the go Bullet 3 HIGH TRANSFER SPEEDS: For fast access to external storage, this hard drive transfer converter supports transfer rates up to 5Gbps using USB 3.0 Bullet 4 PLUG-AND-PLAY: Designed with convenience in mind, this SATA and IDE hard drive adapter is hot swap and plug-and-play compatible Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB 3.0 to SATA and IDE adapter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Connect a 2.5in / 3.5in SATA or IDE Hard Drive through a USB 3.0 Port - SATA to USB 3.0 HDD Adapter Cable - USB 3.0 to SATA Converter - USB 3.0 to SATA IDE Adapter - IDE to USB 3.0 Adapter - USB 3 Hard Drive Adapter - 5 Gbit/s USB 3.0 Super-Speed Bullets (Consolidated) Connect a 2.5in/3.5in SATA or IDE Hard Drive through a USB 3.0 Port - SATA to USB 3.0 HDD Adapter Cable - USB 3.0 to SATA Converter - USB 3.0 to SATA IDE Adapter - IDE to USB 3.0 Adapter - USB 3 Hard Drive Adapter - 5 Gbit/s USB 3.0 Super-Speed Marketing Copy Marketing Copy (No HTML) Applications - Service technicians who need to test or retrieve data from old hard drives
- Technicians who travel and deal with many different types of hard drives
- Connect your 2.5" and 3.5" drives to almost any notebook or desktop
- Ideal for testing and quickly swapping drives
- Easily connect and access data from a 2.5in or 3.5in hard drive with USB 3.0
- Retrieve data from a hard drive without having to connect the drive internally
Website Search Keyword - USB 3.0 to IDE
- SATA Adapter Cable
- Adapter Cable
- USB 3.0 to SATA
- USB3SSATAIDE
- U338-06N
- U338000
- U338-000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. Accessory Products - SATA6
- SATA8
- SATA12
- SATA18
- SATA24
- SATA36
- SATA6LA1
- SATA12LA1
- SATA18LA1
- SATA18LSA1
- SATARA36
- SATA24RA1
- SATA36RA1
- SATA6RA1
- SATA8RA1
- LSATA12RA1
- LSATA18RA1
- LSATA6
- LSATA8
- LSATA12
- LSATA18
- LSATA24
- LSATARND6R1
- LSATARND18R1
- LSATA18RA2
- LSATARND6
- LSATARND12
- LSATARND12R1
- LSATARND18
- LSATARND24
- IDE_
- IDE66_36
- IDE66

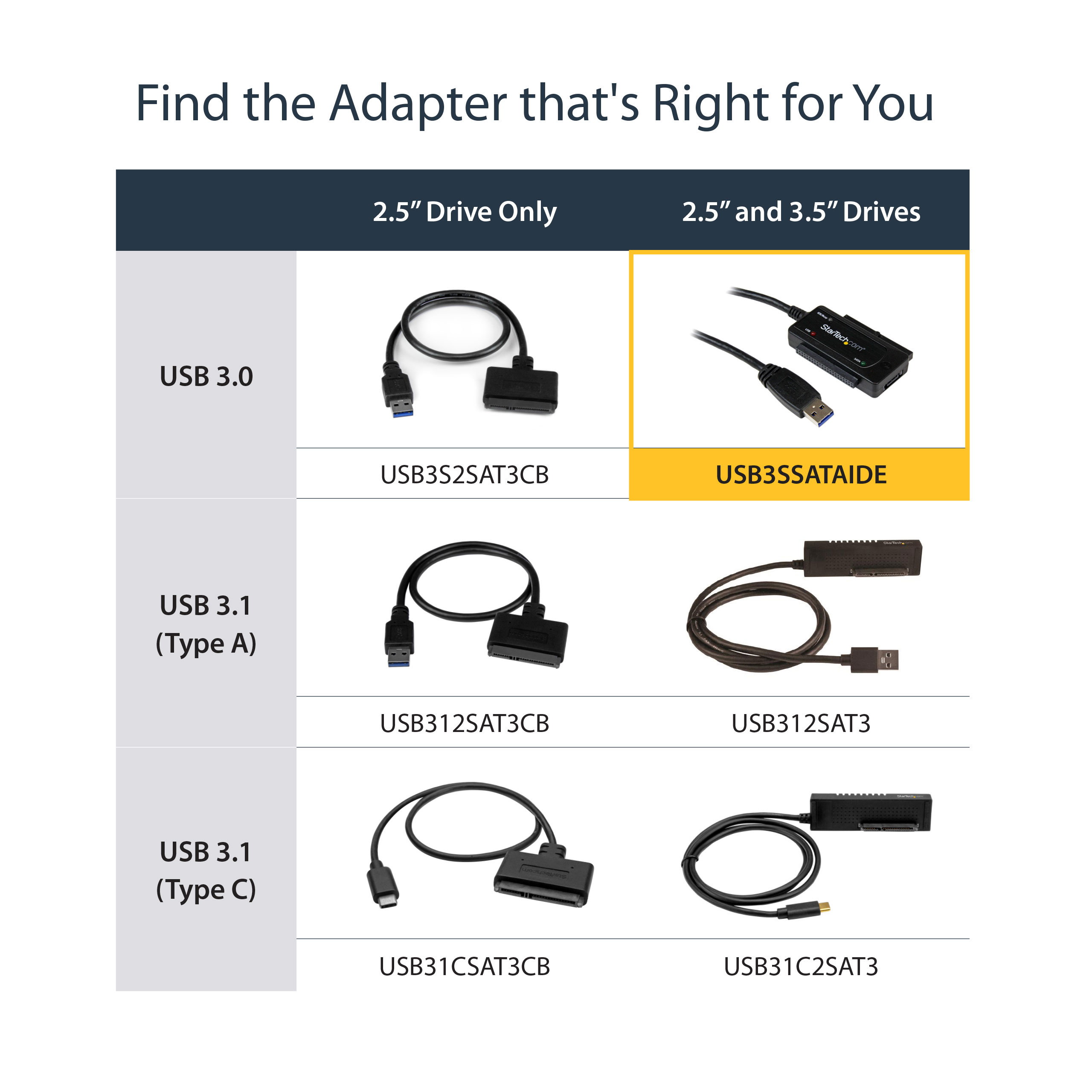

Related Products - USB2SATAIDE
- USB3S2SAT3CB
- USB312SAT3CB
- USB31CSAT3CB
- USB31C2SAT3
- USB312SAT3
- USB3S2ESATA
- USB3S2ESATA3
- UNIDUPDOCK
Output Current 2A Power Source AC Adapter Included Color Black Humidity 5% ~ 85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 869.500 Product Width (mm) 43.000 Product Height (mm) 18.000 Product Weight (g) 58.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 4.8 Gbps MTBF (hours) 35,000 hours OS Compatibility OS Independent RAID No USB Type and Rate USB 3.0 - 4.8 Gbit/s Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Innostor - IS611 Compatible Drive Types SATA & IDE Interface/Bridge SATA & IDE LED Indicators - 1 - USB Link

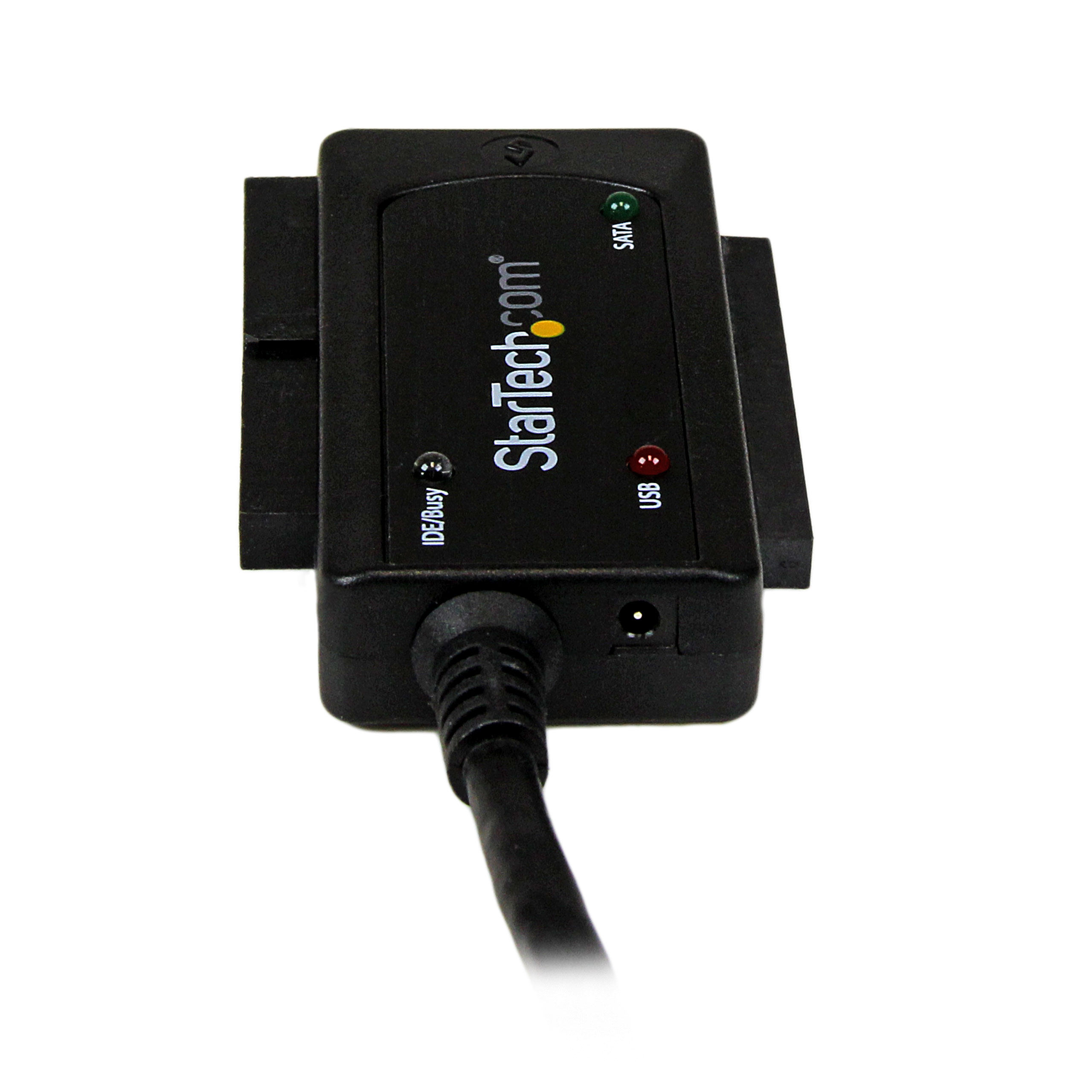

- 1 - IDE Detect/Activity
- 1 - SATA Detect/Activity

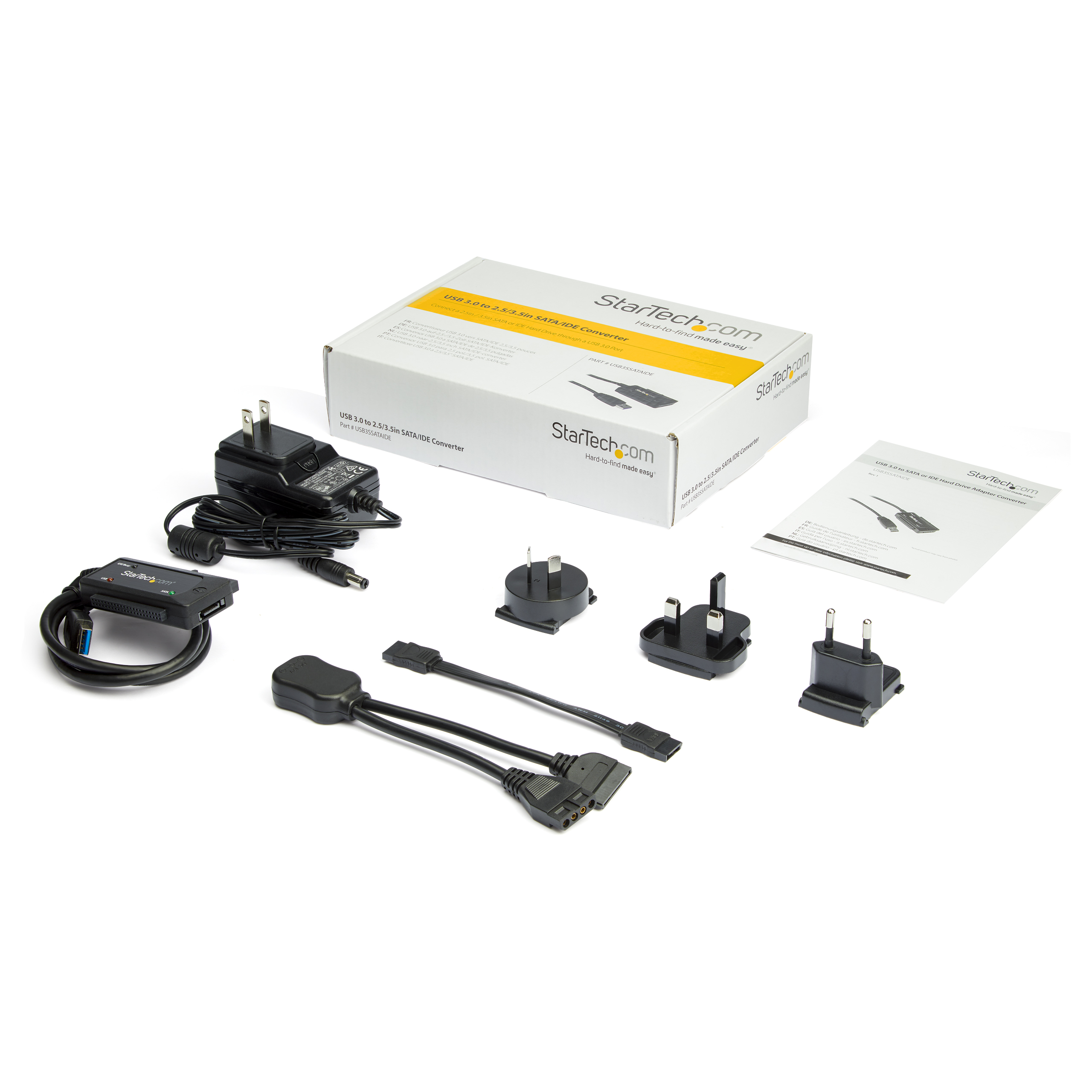

Number of Drives 1 Carton Depth (mm) 442 Carton Height (mm) 280 Carton Quantity 30 Carton Weight Gross (g) 13420 Included in Package - 1 - USB 3.0 to SATA/IDE converter
- 1 - power adapter breakout cable
- 1 - universal power adapter (NA/JP, UK, EU, AU)
- 1 - SATA data cable
- 1 - instruction manual
Package Depth (mm) 152 Package Height (mm) 50 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 414 Packaging Description USB 3.0 to 2.5/3.5in SATA/IDE Converter Packaging Description India USB 3.0 to 2.5/3.5in SATA/IDE Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA 2.5in (ATA/133, Power) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-03-26 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
