Main Image
USB3VDOCK4DP

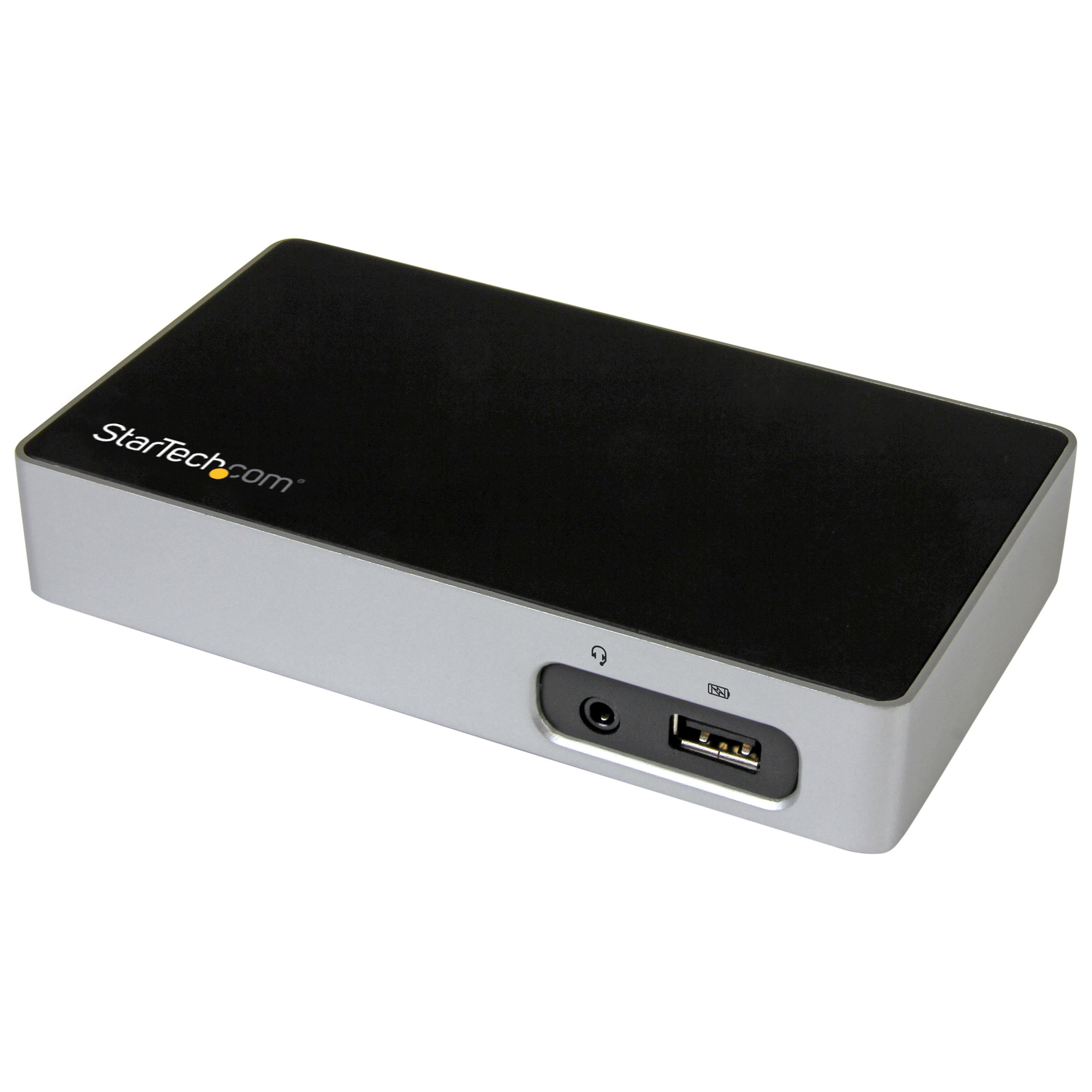

Universal USB 3.0 Laptop Dock for Hot Desks -4K DP

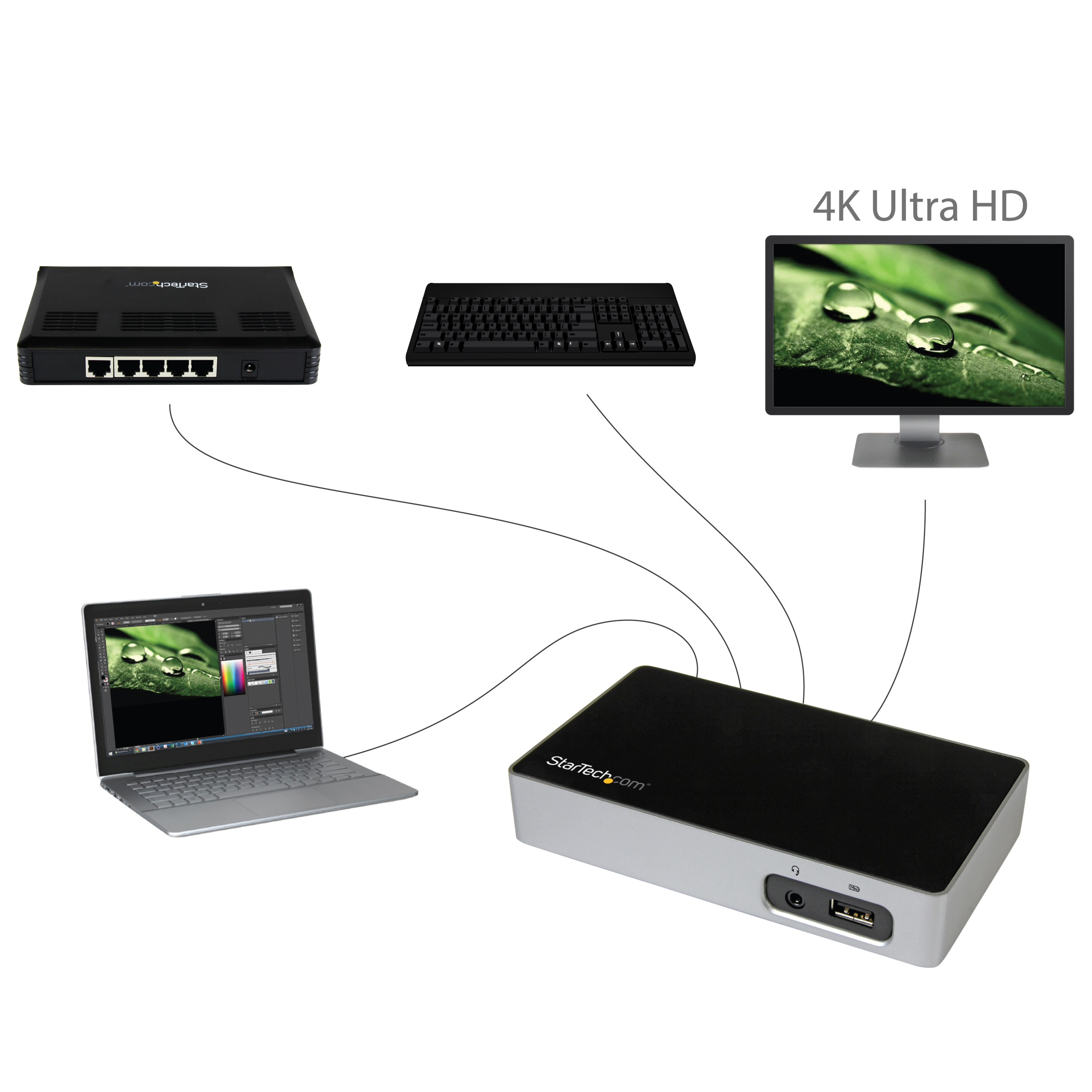

Set up a permanent or hoteling (hot desking) 4K workstation where fewer peripheral and device ports are needed, and in an area where desk space is limited
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Universal USB 3.0 Laptop Dock for Hot Desks -4K DP Product Number USB3VDOCK4DP UPC 065030861830 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Single-Monitor Docks Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 4K DP Laptop Dock Product Title (Short) Dock, USB 3.0, 4K DisplayPort Product Title (Medium) 4K DisplayPort Docking Station for Laptops - USB 3.0- 4K Ultra HD Universal Dock Product Title (Standard) StarTech.com USB 3.0 Docking Station - Compatible with Windows / macOS - Supports a Single 4K Ultra HD DisplayPort Display - USB3VDOCK4DP Product Title (Long) 4K DisplayPort Docking Station for Laptops - USB 3.0 Product Title (AMZ) 4K DisplayPort Docking Station for Laptops / USB 3.0 / Universal Laptop Docking Station / 4K Ultra HD Doc (USB3VDOCK4DP) Title Ingram (Part 1) Universal USB 3.0 Laptop Dock Title Ingram (Part 2) for Hot Desks - 4K DisplayPort Website Product Headline Set up a permanent or hoteling (hot desking) 4K workstation where fewer peripheral and device ports are needed, and in an area where desk space is limited Bullet 1 Add essential ports to your laptop and create a permanent, 4K single-video workstation, or a short-term (hotel or hot desk) workspace Bullet 2 Create a 4K Ultra HD (3840 x 2160p) workstation in your office or any environment with space constraints, with a compact, small-footprint housing that offers simpler device port connectivity Bullet 3 A cost-effective way to add ports to your laptop, such as 4K DisplayPort, USB fast-charge, USB 3.0, Gigabit Ethernet, and a headset jack Bullet 4 Always-on USB fast-charge port supports device charging without a laptop connection, and USB Battery Charging Specification 1.2 Bullet 5 Three USB 3.0 ports — two standard ports and one fast-charge and sync Bullets (Compact) Set up a permanent or short-term 4K workstation where fewer peripheral & device ports are needed & in an area where desk space is limited - Create an Ultra HD workarea - 4K DisplayPort - Fast-Charge - GbE - Compact - Supports Windows Mac & Chrome OS Bullets (Consolidated) Universal laptop dock compatible with all Windows PC and MacBook laptops equipped with USB-A ports - Connect a 4K Ultra HD display to this laptop dock using the DisplayPort port - Small in design this USB docking station takes up very little room on a desk - USB dock features three USB-A ports including a Fast-Charge port for charging mobile devices - Hook peripherals up to the USB docking station and connect a PC or MacBook laptop with a USB-A cable Marketing Copy Marketing Copy (No HTML) Applications - Create a 4K hoteling, guest workstation (hot desk) for BYOD (Bring Your Own Device) users, or for CYOD (Choose Your Own Device) applications where companies offer a selection of laptops that can be used at one workstation
- Take full advantage of Ultra HD technology, and connect a single 4K monitor with higher resolutions and superior quality, even if your laptop video card doesn't natively support it
- Save money by using a dock with only the ports you need, or by deploying just one universal laptop docking station for several employees or guests
- Works with most USB 3.0 equipped laptops, such as your Ultrabook™, Microsoft® Surface™ Pro, Surface Book, Surface 3, Lenovo® Yoga, MacBook, and many Windows based tablets

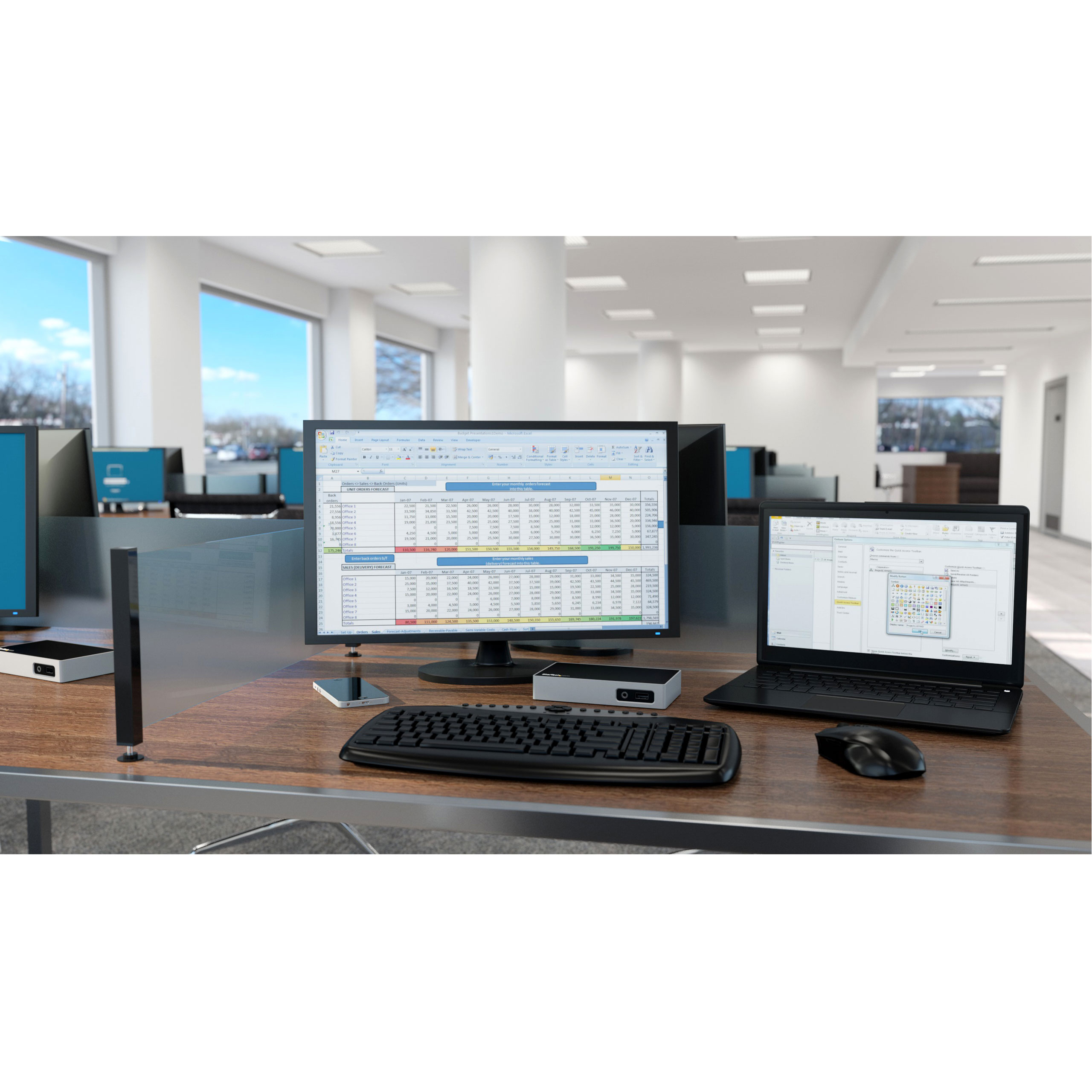

- Create a single-video workstation that’s ideal for small or home offices, as well as small, medium, and large businesses
Website Search Keyword - hot desk laptop docking station
- 4K DisplayPort docking station
- hot desk dock
- hot desk docking station
- 4K DisplayPort laptop docking station
- 4K DisplayPort laptop dock
- 4K DisplayPort dock
- compact docking station
- usb 3.0 laptop docking station
- Port Replicator
- Laptop docking station
- USB 3 Laptop Docking Station
- laptop dock
- Universal Laptop Docking Station
- Lenovo dock
- 4K DisplayPort usb 3.0 laptop docking station
- docking station for laptops
- notebook dock
- ultrabook docking station
- USB 3.0 Laptop Dock
- ultrabook dock
- macbook pro dock
- macbook pro docking station
- macbook docking station
- notebook docking station
- laptop accessory
- apple docking station
- macbook pro retina
- usb fast charge
- macbook air dock
- macbook dock
- usb docking station
- carbon dock
- lenovo docking station
- hp docking station
- dell docking station
- thinkpad docking station
- surface pro 3 docking station
- surface pro 3 dock
- ms surface pro 3 docking station
- ms surface pro 3 dock
- surface 3 docking station
- surface 3 dock
- ms surface 3 docking station
- ms surface 3 dock
- BYOD docking station
- CYOD docking station
- laptop port replicator
- universal laptop dock
- 4K DisplayPort docking station for laptops
- fast charge docking station
- 4k dp docking station
- 4k dp dock
- 4k dp laptop docking station
- ultra hd docking station
- UltraHD docking station
- UltraHD dock
- Ultra HD dock
- USB 3.0 4K Laptop Docking Station
- 4k laptop docking station
- 4K USB 3.0 Laptop Docking Station
- 4k docking station
- 4k x 2k laptop docking station
- 4k laptop dock
- high-definition docking station
- 4k dock
- Ultra High Definition
- HD dock
- HD docking station
- 4K2K
- 4K x 2K
- high-definition dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
System and Cable Requirements USB-enabled computer with an available USB 3.0 port Accessory Products - DISPLPORT6L
- DISPLPORT3L
- UNI251BMU33
- S3510BMU33B
- S352BU33HR
- MUYHSMFF
- USB3SAB10BK
- 45PATCH3BK
- USBLT1MGN
- USB31CAADP
- LTLOCK
Related Products - USB3VDOCKD
- USB3VDOCKH
- USB3SMDOCK4K
- USB3DDOCKFT
- USB3DOCKH2DP
- USB3DOCKHDPC
- USB3SDOCKDD
- TB2DOCK4KDHC
Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 4 A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black & Silver Humidity 20~80% RH Material Plastic Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 139.000 Product Width (mm) 79.000 Product Height (mm) 26.000 Product Weight (g) 142.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Link (Green)
- 1 - Activity (Amber)

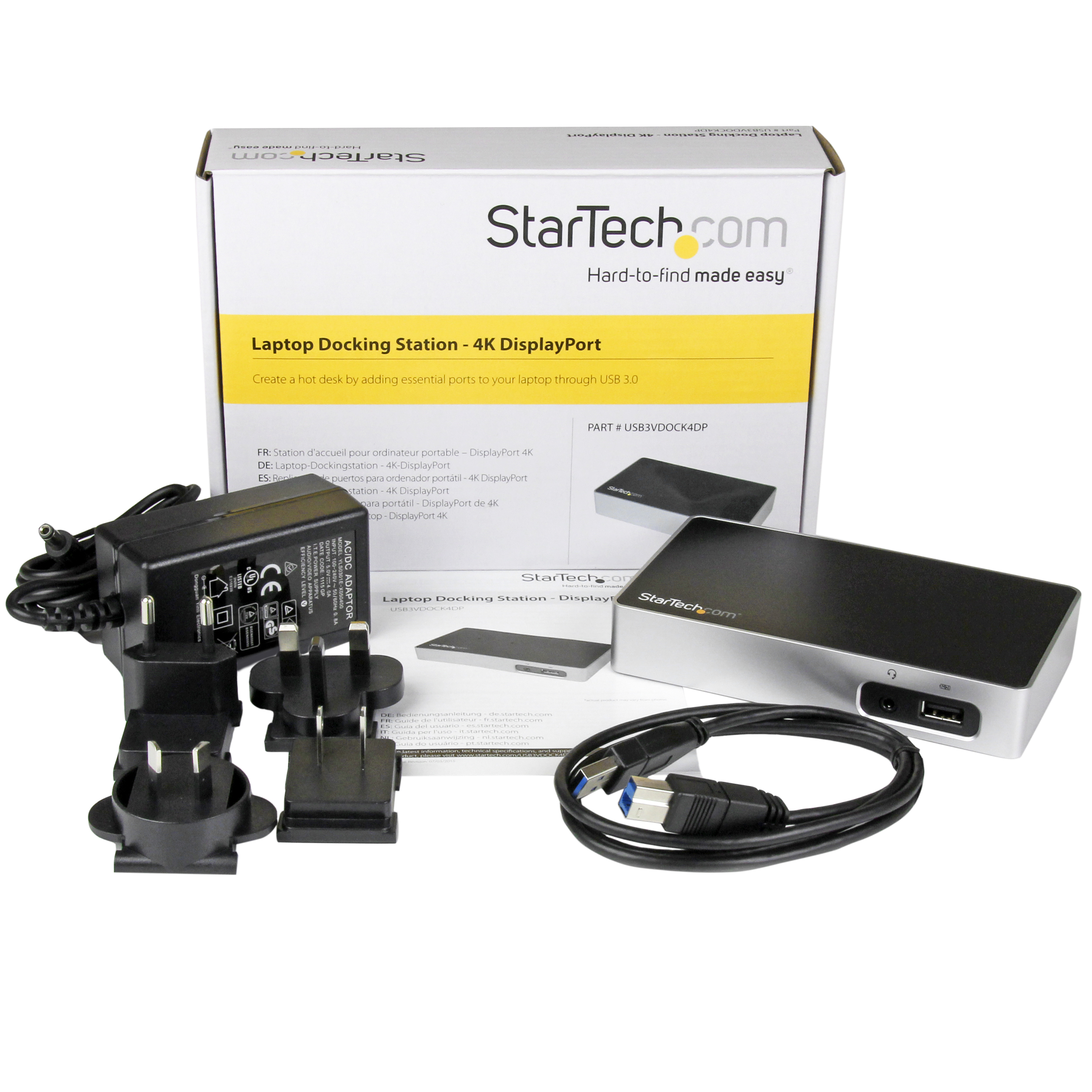

Carton Depth (mm) 322 Carton Height (mm) 235 Carton Quantity 20 Carton Weight Gross (g) 10710 Included in Package - 1 - laptop docking station
- 1 - 3.6 ft [1100 mm] USB 3.0 host cable
- 1 - universal power adapter (NA/EU/UK/ANZ)
- 1 - instruction manual

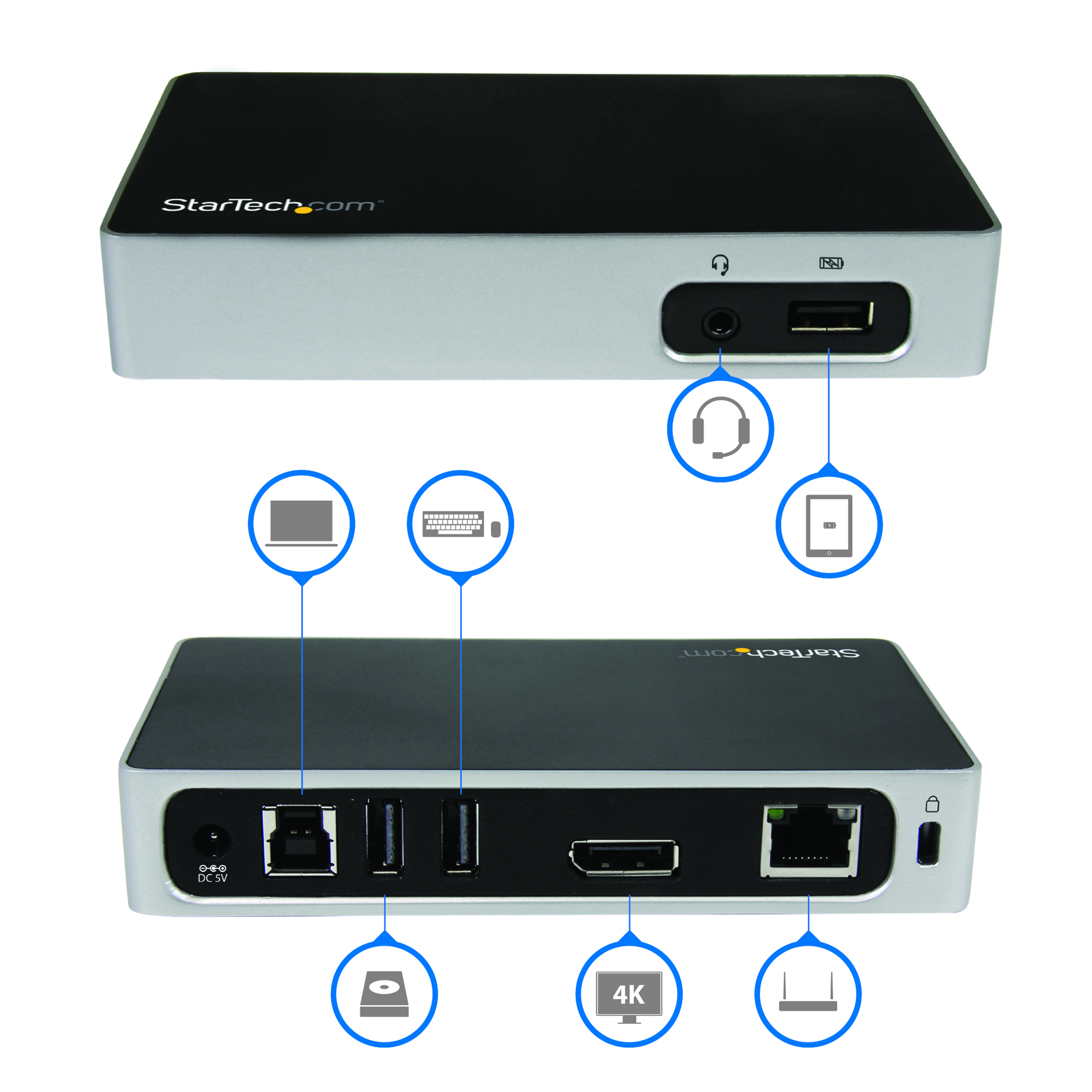

Package Depth (mm) 214 Package Height (mm) 53 Package Width (mm) 151 Package Quantity 1 Package Weight (g) 556 Packaging Description Laptop Docking Station - 4K DisplayPort Packaging Description India Laptop Docking Station - 4K DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 3.5mm (4 Conductors, TRRS) Connector 5 (Quantity) 1 Connector 6 USB-B (5Gbps, 4.5W) Connector 6 (Quantity) 1 Connector 7 Security Lock Slot Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-04-10 Buying Center - End User Compute Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-10-02 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None
