USBDOCK2

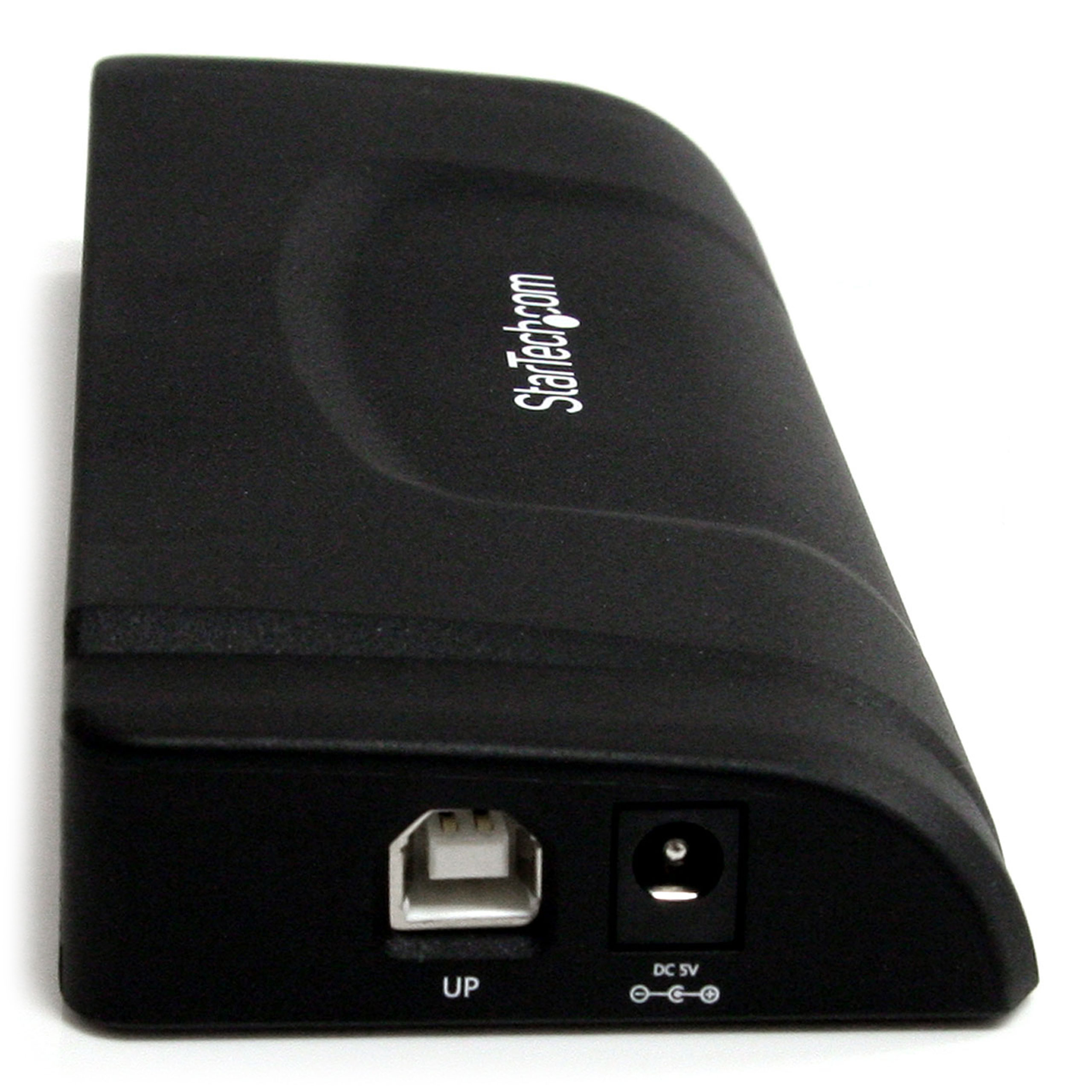

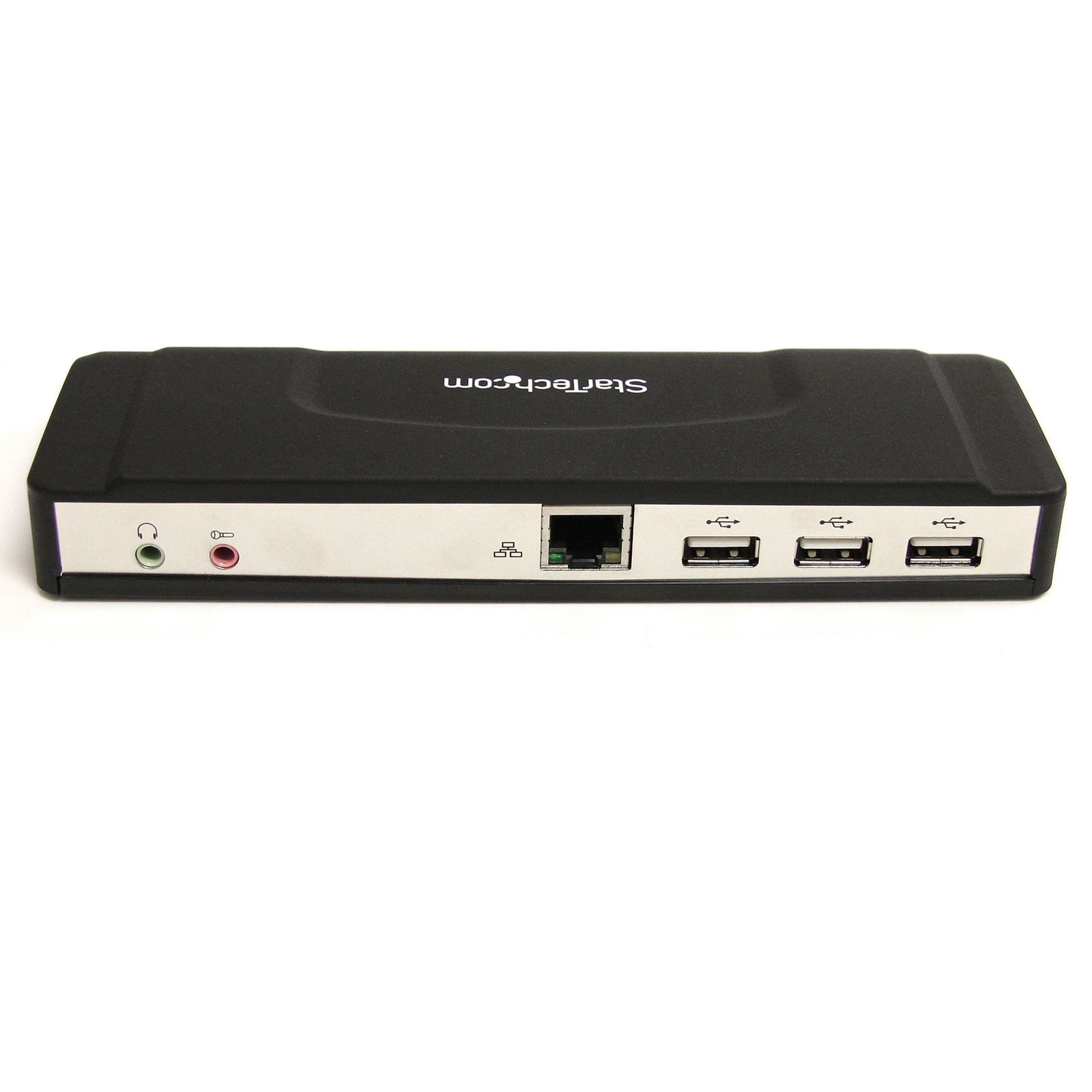

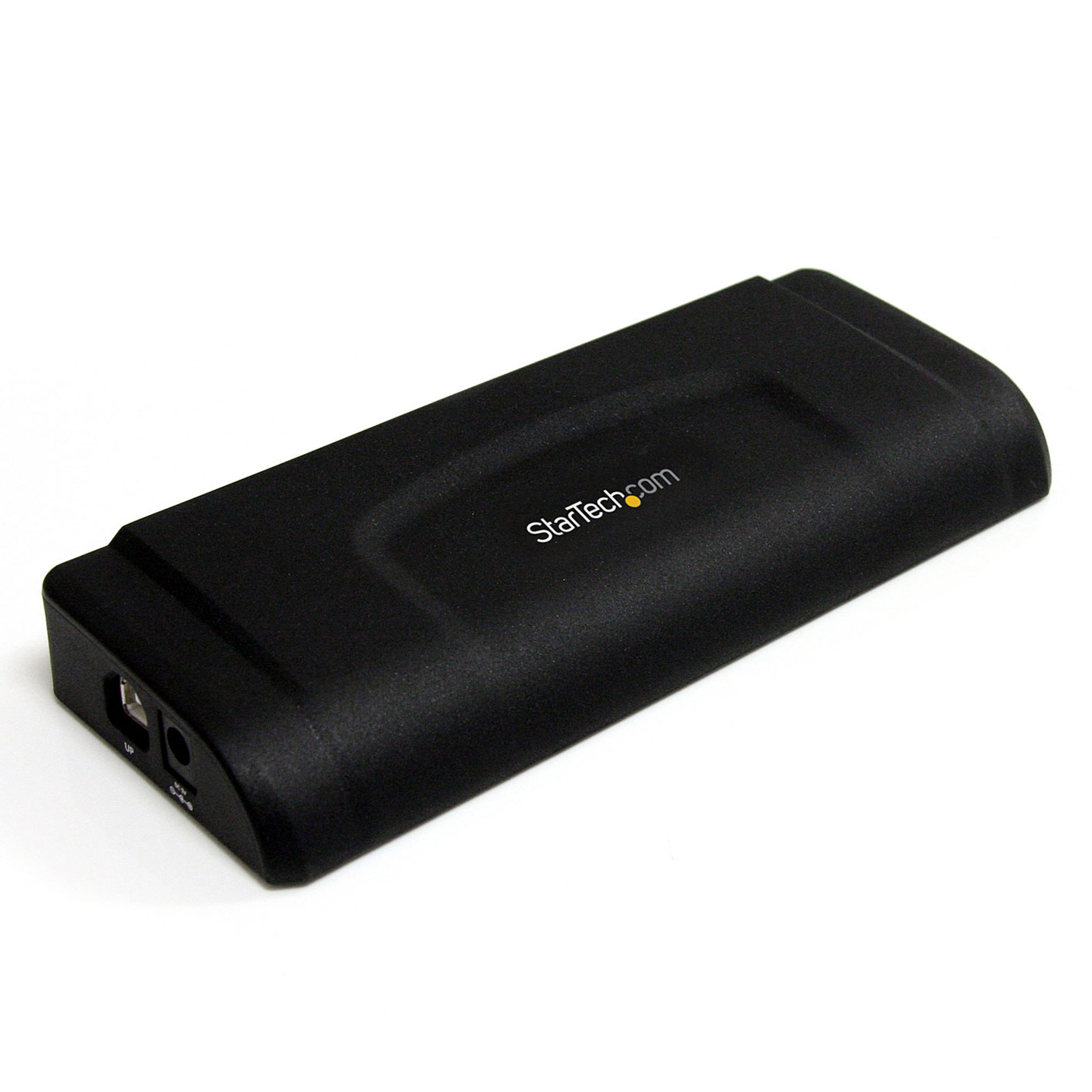

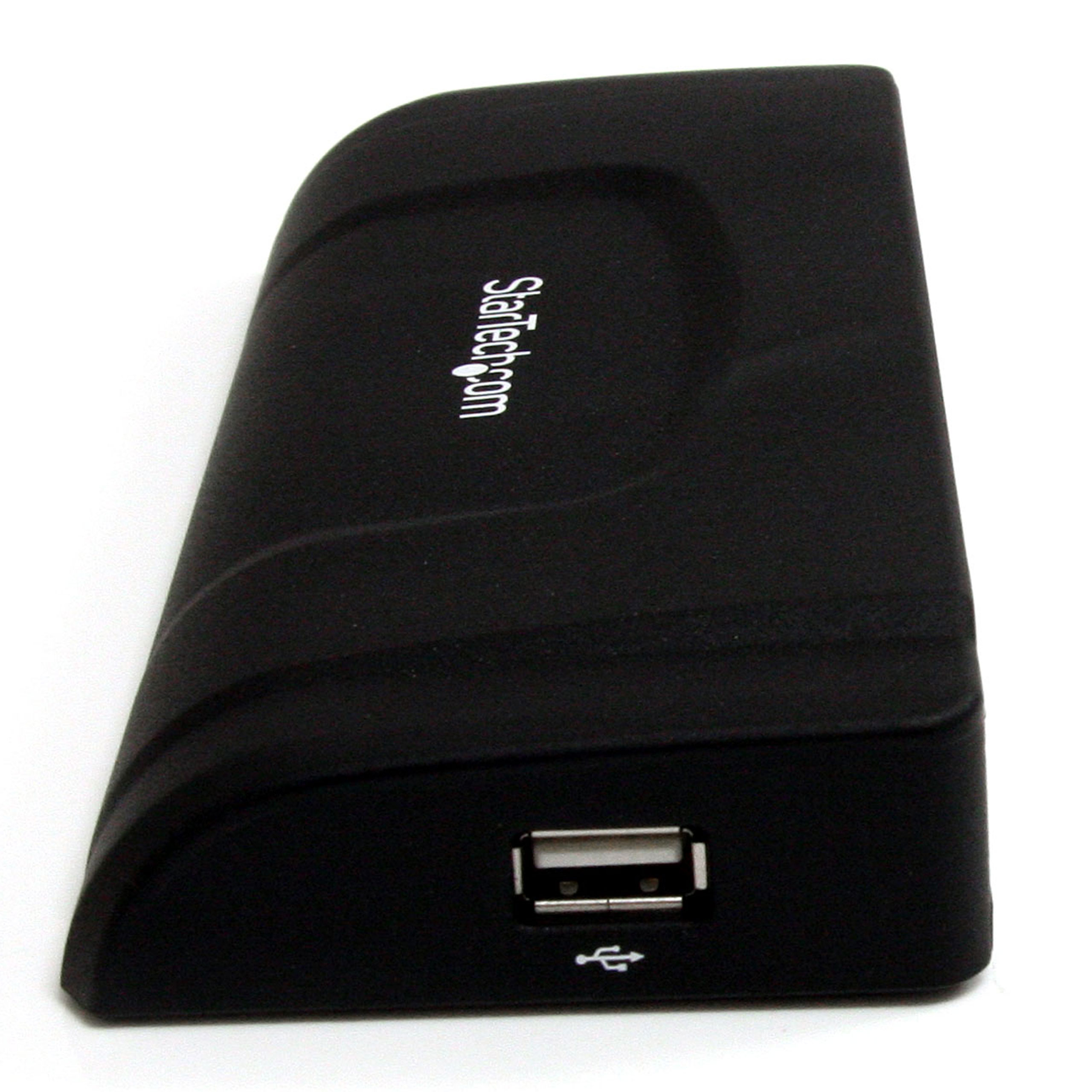

USB Docking Station Universal Laptop Dock
Add Ethernet, audio and four additional USB 2.0 ports to a laptop or netbook through a single USB connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB Docking Station Universal Laptop Dock Product Number USBDOCK2 UPC 065030838863 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Laptop USB 2.0 Docking Station w/ Audio Product Title (Standard) Universal Laptop USB 2.0 Docking Station with Audio and Ethernet Product Title (Long) Universal Laptop USB 2.0 Docking Station with Audio and Ethernet Product Title (AMZ) Universal Laptop USB 2.0 Docking station with Audio and Ethernet - universal Laptop Docking station (USBDOCK2) Title Ingram (Part 1) Universal Laptop USB 2.0 Docking Title Ingram (Part 2) Station w/ Audio & Ethernet Website Product Headline Add Ethernet, audio and four additional USB 2.0 ports to a laptop or netbook through a single USB connection Bullet 1 Compliant with the USB 2.0 standard, for data transfer rates up to 480Mbps Bullet 2 Backward compatible with USB 1.0/1.1 Bullet 3 10/100Mbps Ethernet port, headphone and microphone audio support and 4-port USB hub Bullet 4 Compact, light-weight design Bullet 5 Powered directly from the USB port, but includes optional power adapter Marketing Copy Applications - Expand or upgrade your desktop, laptop or netbook I/O capabilities
- Create a simple, single connection interface for network, audio and up to 4 USB peripherals at your desk or work station
- A portable solution for providing extra connectors to small, ultra light laptops or netbooks
Website Search Keyword - USB Laptop Docking Station
- USB Docking Station
- Notebook Docking Station
- Port Replicator
- Netbook Docking Station
- laptop docking station
- usb hub
- usb to ethernet
- usb to audio
- Docking Stations
System and Cable Requirements 1 x Free USB port Accessory Products - M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH50BL
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB6
- USB2HAB6T
- MU6MMRCA
Related Products - USBVGADOCK2
- USB5N1DOCK
- USB6N1DOCK
Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 183 Product Width (mm) 70 Product Height (mm) 25 Product Weight (g) 185 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No OS Compatibility - Mac OS X Mavericks (10.9)
- Linux
- Windows 8
- Windows 7
Chipset ID LED Indicators - 1 - RJ45 Link
- 1 - RJ45 Activity

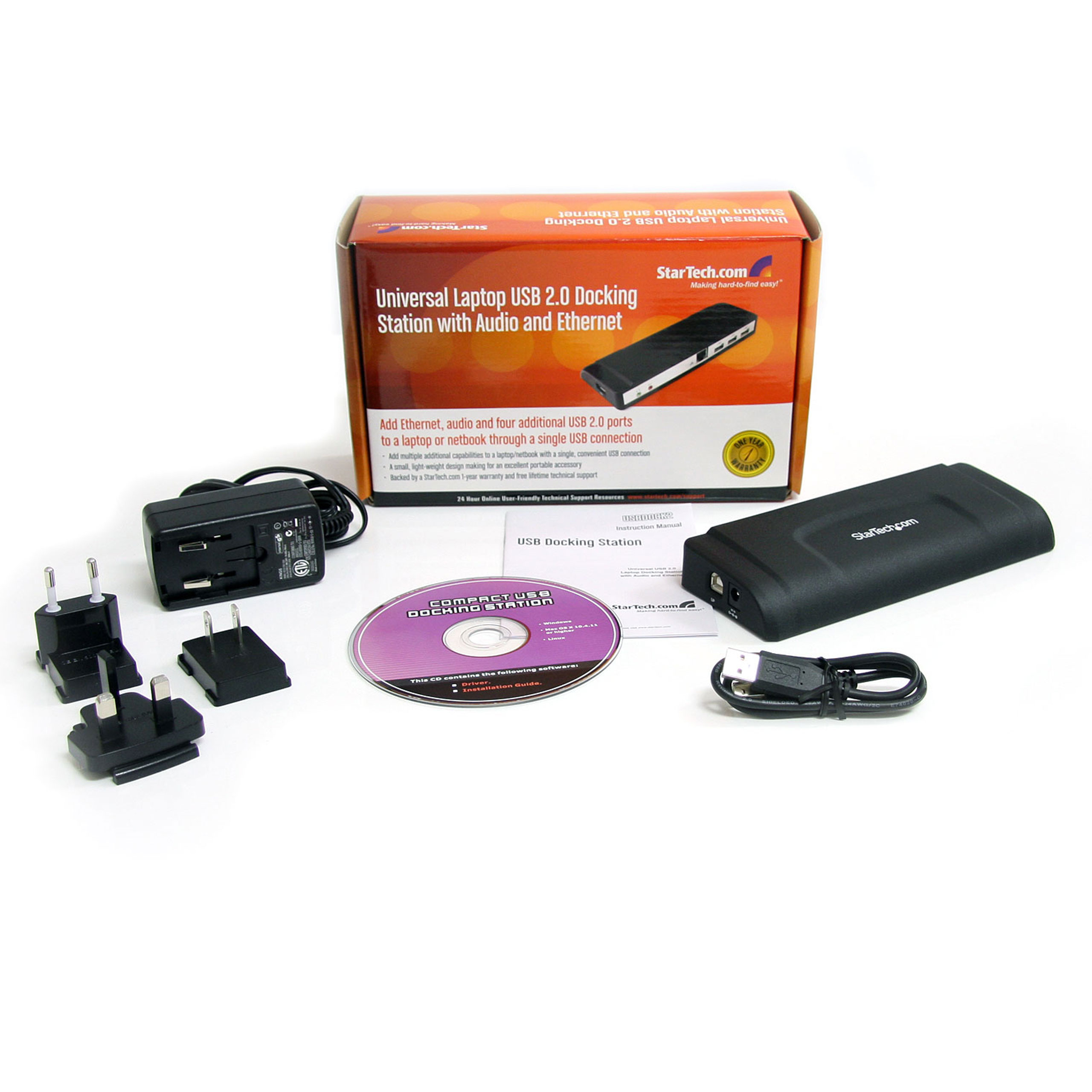

Carton Depth (mm) 505 Carton Height (mm) 330 Carton Quantity 12 Carton Weight Gross (g) 9480 Included in Package - 1 - USB Docking Station
- 1 - Universal Power Adapter
- 1 - Driver CD
- 1 - USB cable
- 1 - Instruction Manual
- 3 - Power Adapter Plug (NA/UK/EU)
Package Depth (mm) 75 Package Height (mm) 145 Package Width (mm) 230 Package Weight (g) 690 Packaging Description USB 2.0 Laptop Docking Station w/Audio Packaging Description India USB 2.0 Laptop Docking Station w/Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-B (480Mbps, 2.5W) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
