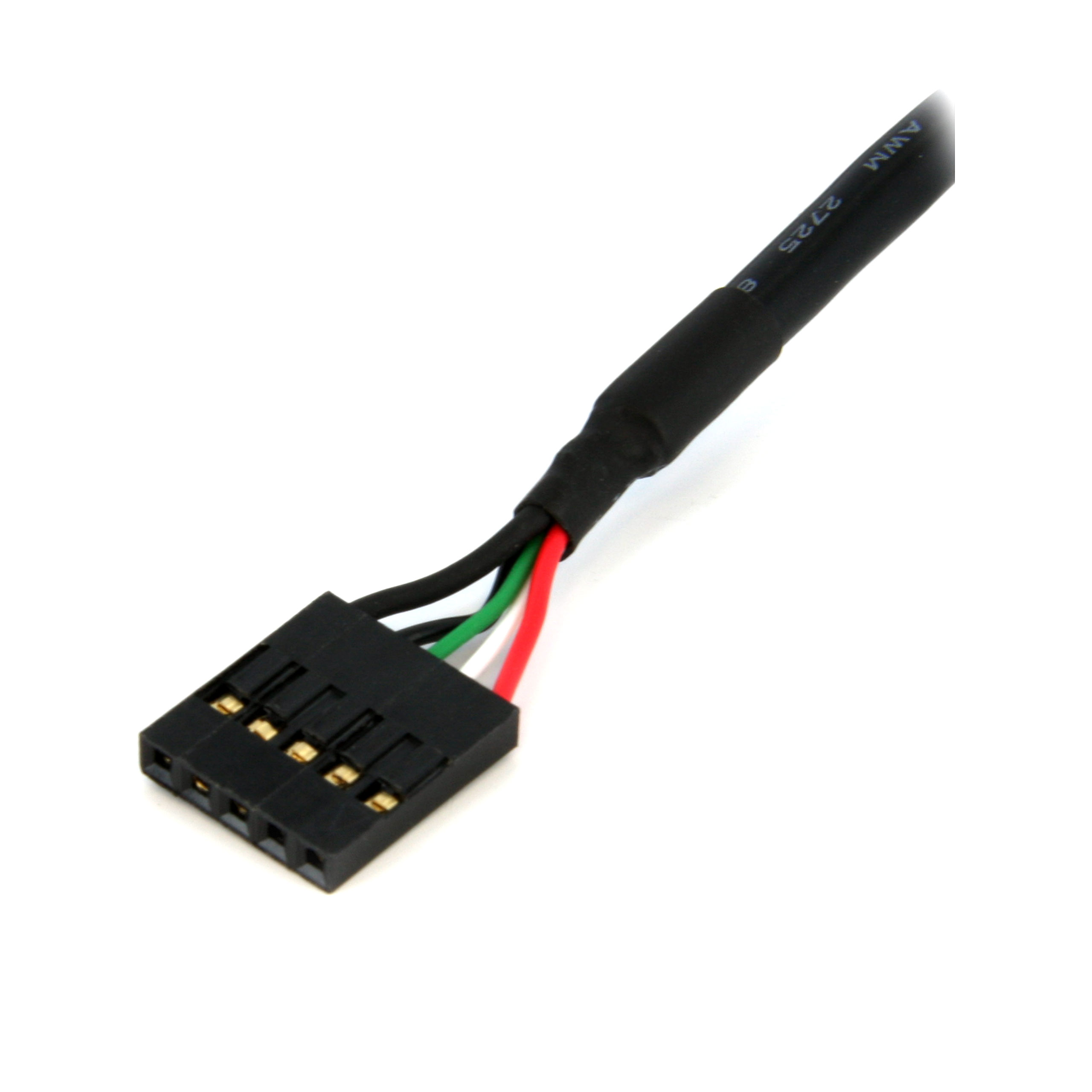

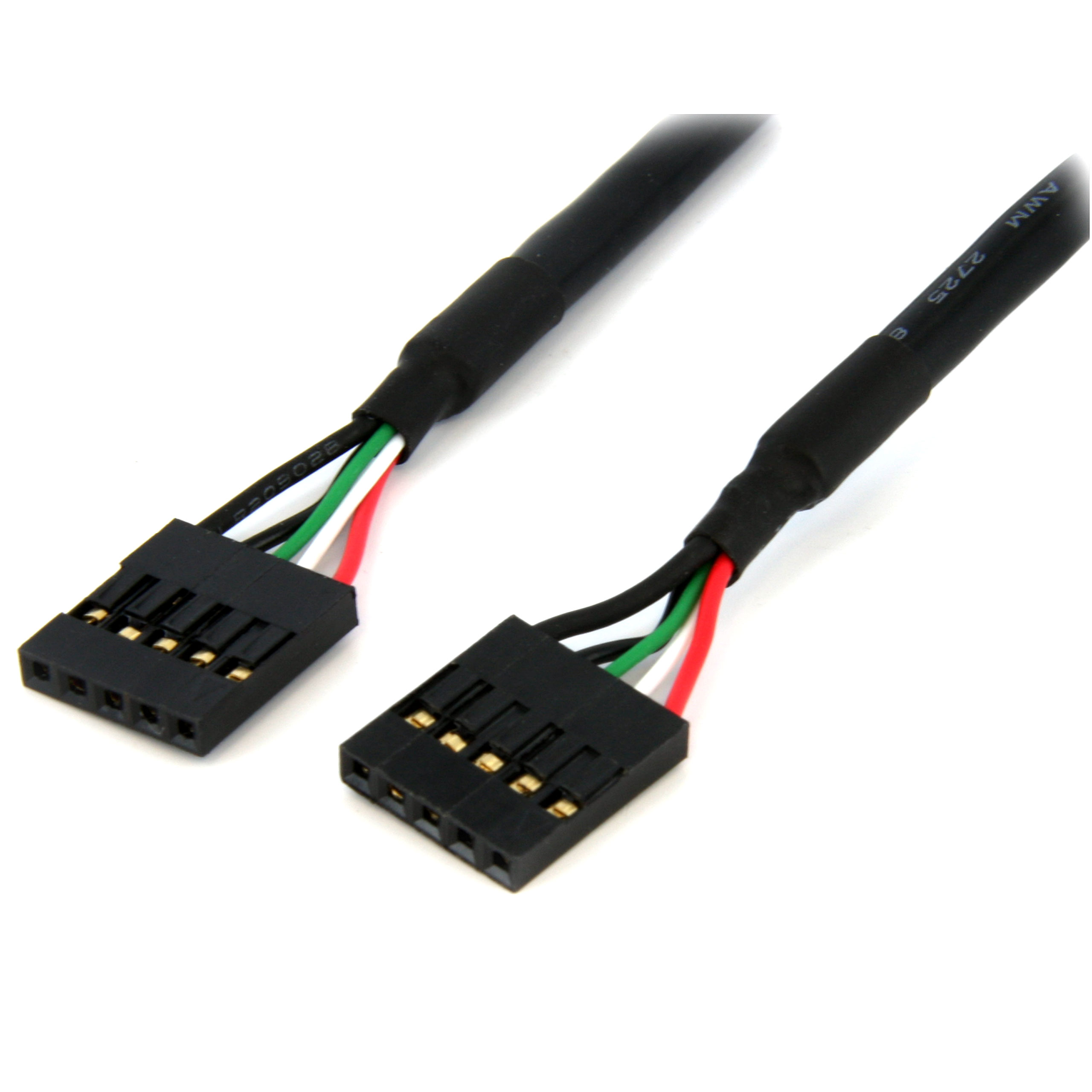

12in Internal 5 pin USB IDC Motherboard Header Cable F F

Connect a front panel USB hub or card reader directly to a motherboard header connector

Main Image

Product Images

Product Name	12in Internal 5 pin USB IDC Motherboard Header Cable F F
Product Number	USBINT5PIN12
UPC	065030894913
Lifecycle status	End of Life
Warranty	Lifetime
Taxonomy	Product > Cables > Internal Data & Power
Category Level 1	USB and Thunderbolt Cables
Category Level 2	USB Internal and Panel Mount Cables
Category Level 3	USB Header Cables
Family	Other
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX100X

Product Title (Ultra-Short)	12in USB IDC Cable
Product Title (Short)	12in USB IDC Motherboard Header Cable
Product Title (Medium)	12in Internal 5 pin USB IDC Motherboard Header Cable - F/F
Product Title (Standard)	12in Internal USB IDC Motherboard Header Cable
Product Title (Long)	12in Internal 5 pin USB IDC Motherboard Header Cable - F/F
Product Title (AMZ)	5 Pin USB 2.0 Header - 12 in USB IDC Motherboard Header Cable - F/F (USBINT5PIN12)
Title Ingram (Part 1)	12in Internal 5 pin USB
Title Ingram (Part 2)	IDC Motherboard Header Cable
Website Product Headline	Connect a front panel USB hub or card reader directly to a motherboard header connector
Bullet 1	Uses standard USB 2.0 pin out and colors assignments
Bullet 2	12in in length
Bullets (Compact)	12in Internal 5 pin USB IDC Motherboard Header Cable - F/F
Bullets (Consolidated)	F/F - USB cable - 5 pin IDC (F) to 5 pin IDC (F) - USB 2.0 - 1 ft - black
Marketing Copy
Applications	Connect front panel USB ports to the motherboard or expansion card Connect Rear USB Expansion boards to the motherboard
Website Search Keyword	IDC Connection 5 pin USB 4 pin USB USB 2.0 Internal USB Motherboard Header

Required Regulatory Compliance Marks

CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

Related Products
USBMBADAPT
USBMBADAPT2
USBPNLAFHD1
Constrained SKU Alternatives (Limited Stock) USBINT5PIN

Carton Depth (mm)	380
Carton Height (mm)	310
Carton Quantity	300
Carton Weight Gross (g)	6190
Number of Sub-Cartons	30
Package Depth (mm)	125
Package Height (mm)	0.07
Package Width (mm)	225
Package Quantity	1
Package Weight (g)	17.3
Packaging Description	12in Internal USB IDC Motherboard Header Cable
Packaging Description India	12in Internal USB IDC Motherboard Header Cable
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Quantity	10
Sub-Carton Weight (g)	190

Connector 1 IDC (5-Pin)
Connector 1 (Quantity) 1
Connector 2 IDC (5-Pin)
Connector 2 (Quantity) 1
