USBPLATE

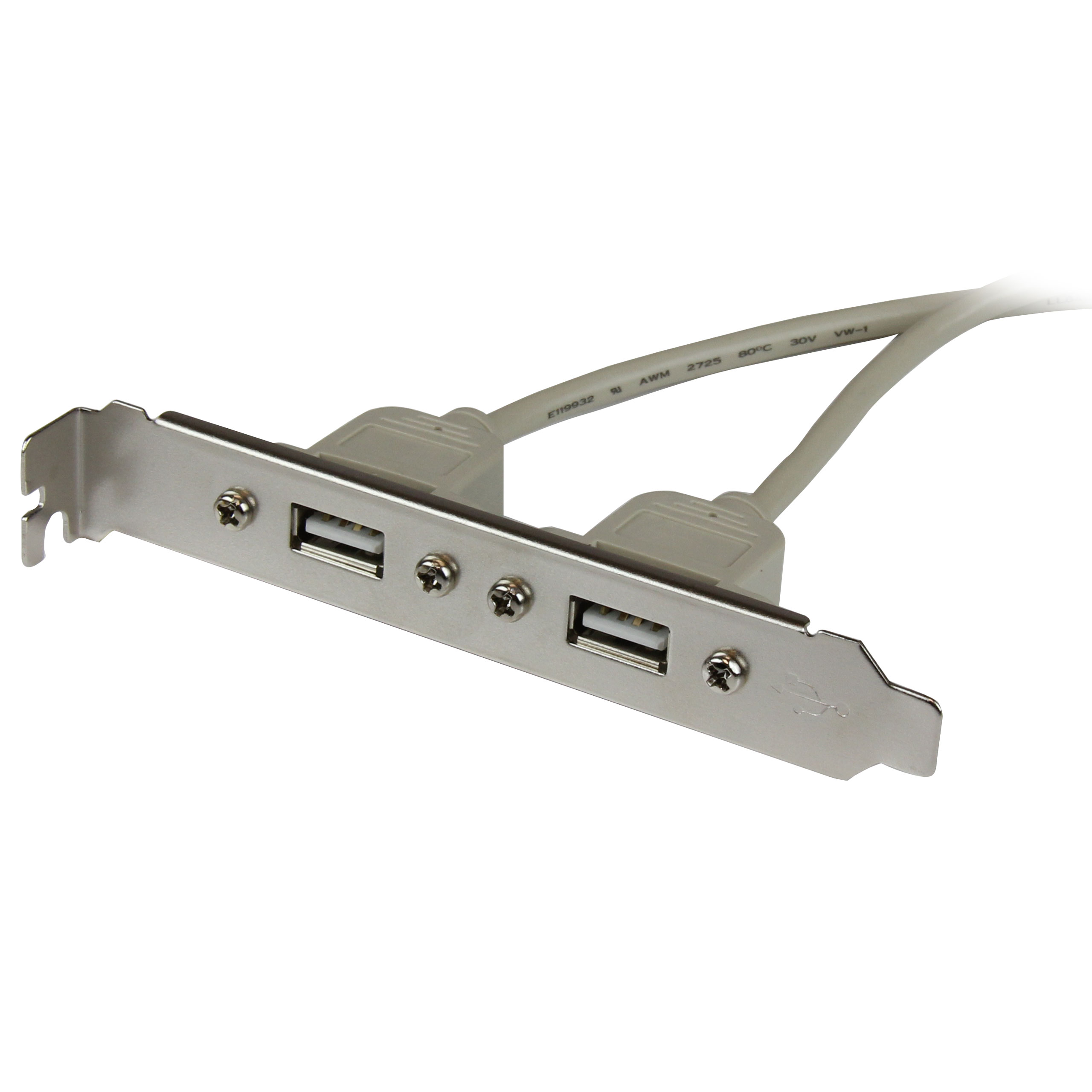

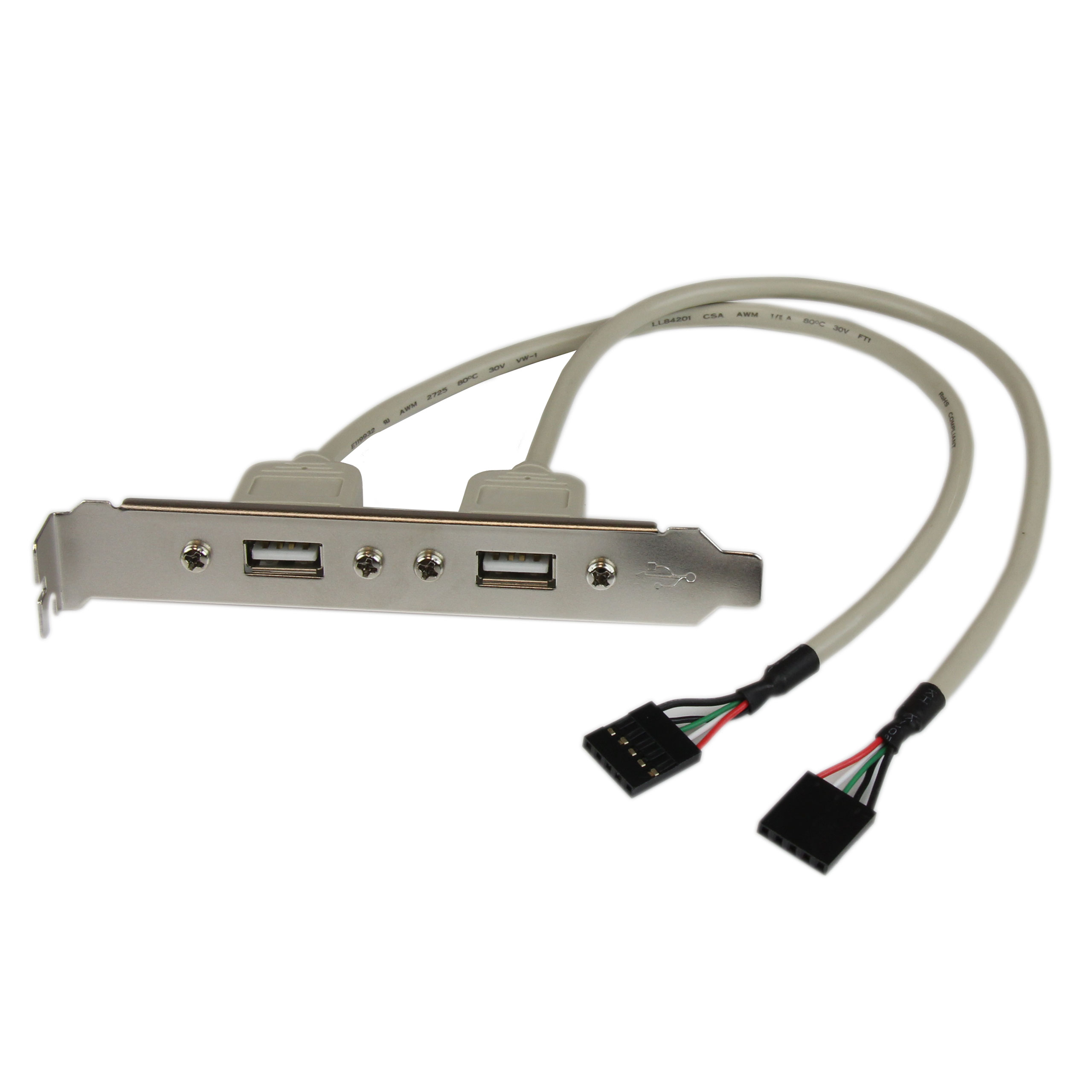

2-Outlet USB Plate For PC Motherboards
Provides two USB port connections to a motherboard
Main Image
Product Images
Product Images
Product Name 2-Outlet USB Plate For PC Motherboards Product Number USBPLATE UPC 065030778886 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB Internal and Panel Mount Cables Category Level 3 USB Plate Adapters Family Other Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) 2 Port USB A Slot Plate Adapter Product Title (Standard) 2 Port USB A Female Slot Plate Adapter Cable Product Title (Long) 2 Port USB A Female Slot Plate Adapter Product Title (AMZ) 2 Port USB A Female Slot Plate Adapter - USB panel - USB (F) to 5 pin in-line (F) (USBPLATE) Title Ingram (Part 1) 2 Port USB A Slot Plate Adapter Title Ingram (Part 2) . Website Product Headline Provides two USB port connections to a motherboard Bullet 1 Two standard A-type USB outlets mounted on a plate with 11.25 inch (285.75mm) cable to the 5 pin connectors Bullet 2 Supports 4 or 5 pin motherboard connections Bullet 3 Separate cables support a single row of 8/10 pins or 2 rows of 4/5 Bullet 4 USB V2.0 compliant Bullets (Consolidated) USB panel - USB (F) to 5 pin in-line (F) Marketing Copy Applications - Check your motherboard's manual for it's USB pinout diagram

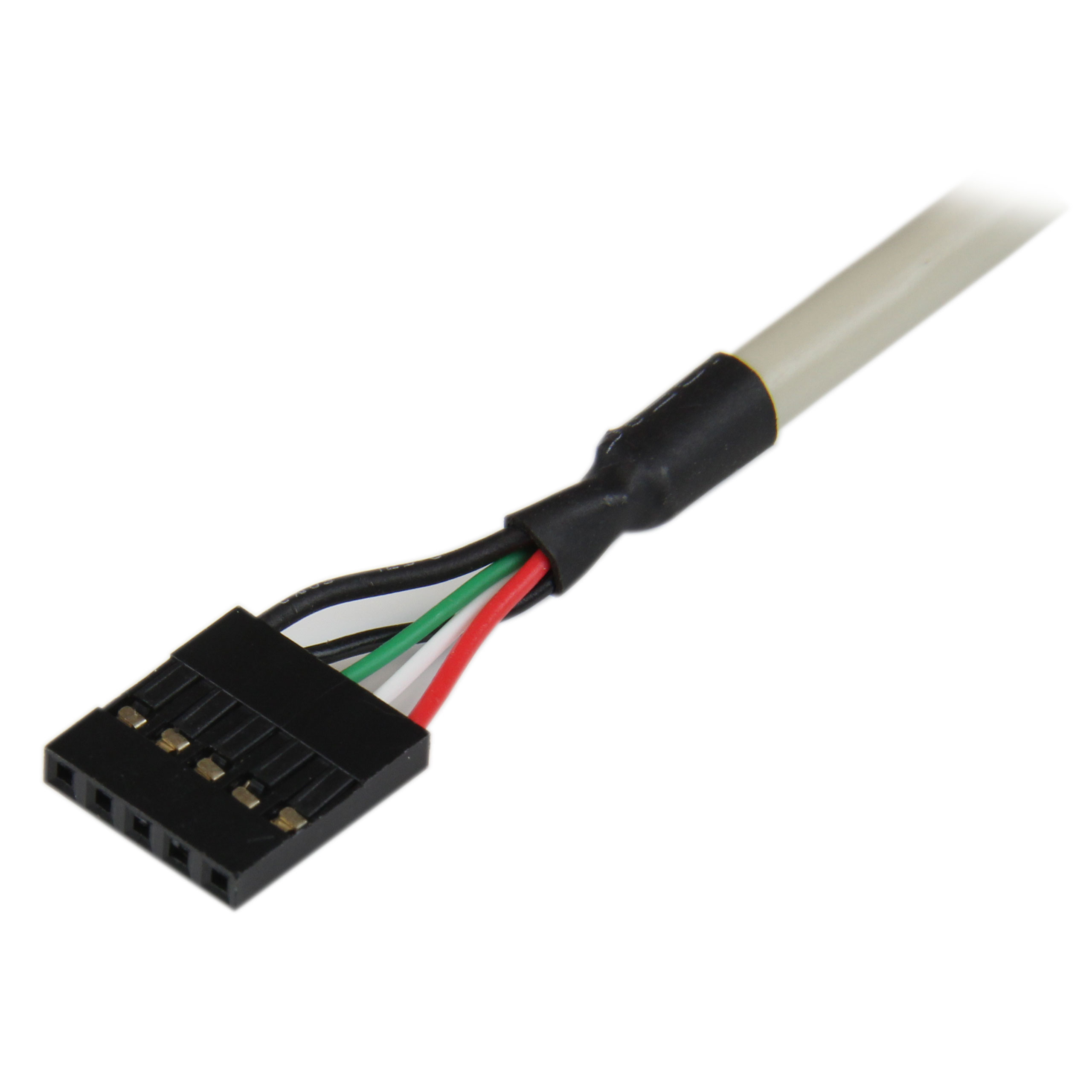

- USBPLATE wiring scheme: Red=Power, Green=Signal, White=Signal, Black=Ground
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - PCI2USB
- USBPLATEB
- USBPLATE4
- USBPLATE4B
Cable Length (mm) 285.75 Color Gray Primary Material Plastic Product Length (mm) 55.000 Product Width (mm) 287.000 Product Height (mm) 0.000 Product Weight (g) 120.000 TAA Compliant No Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 372 Carton Height (mm) 282 Carton Quantity 160 Carton Weight Gross (g) 10674 Included in Package 1 - 2 OUTLET USB PLATE Included In Package for Label 1 - 2 Outlet USB Plate Number of Sub-Cartons 16 Package Depth (mm) 125 Package Height (mm) 19 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 60 Packaging Description 2 Port USB A Female Slot Plate Adapter Packaging Description India 2 Port USB A Female Slot Plate Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 614 Connector 1 IDC (5-Pin) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
