USBPLATELP

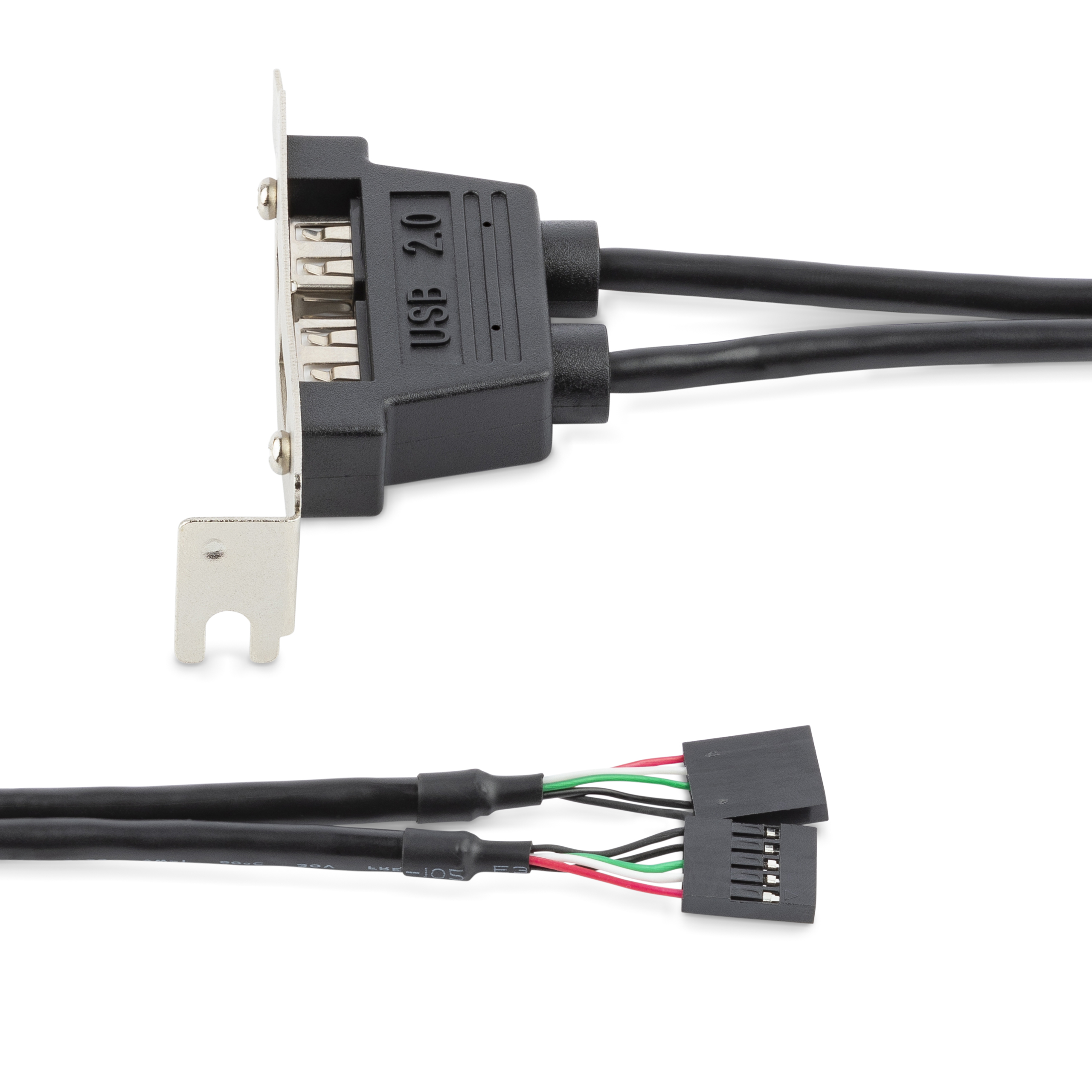

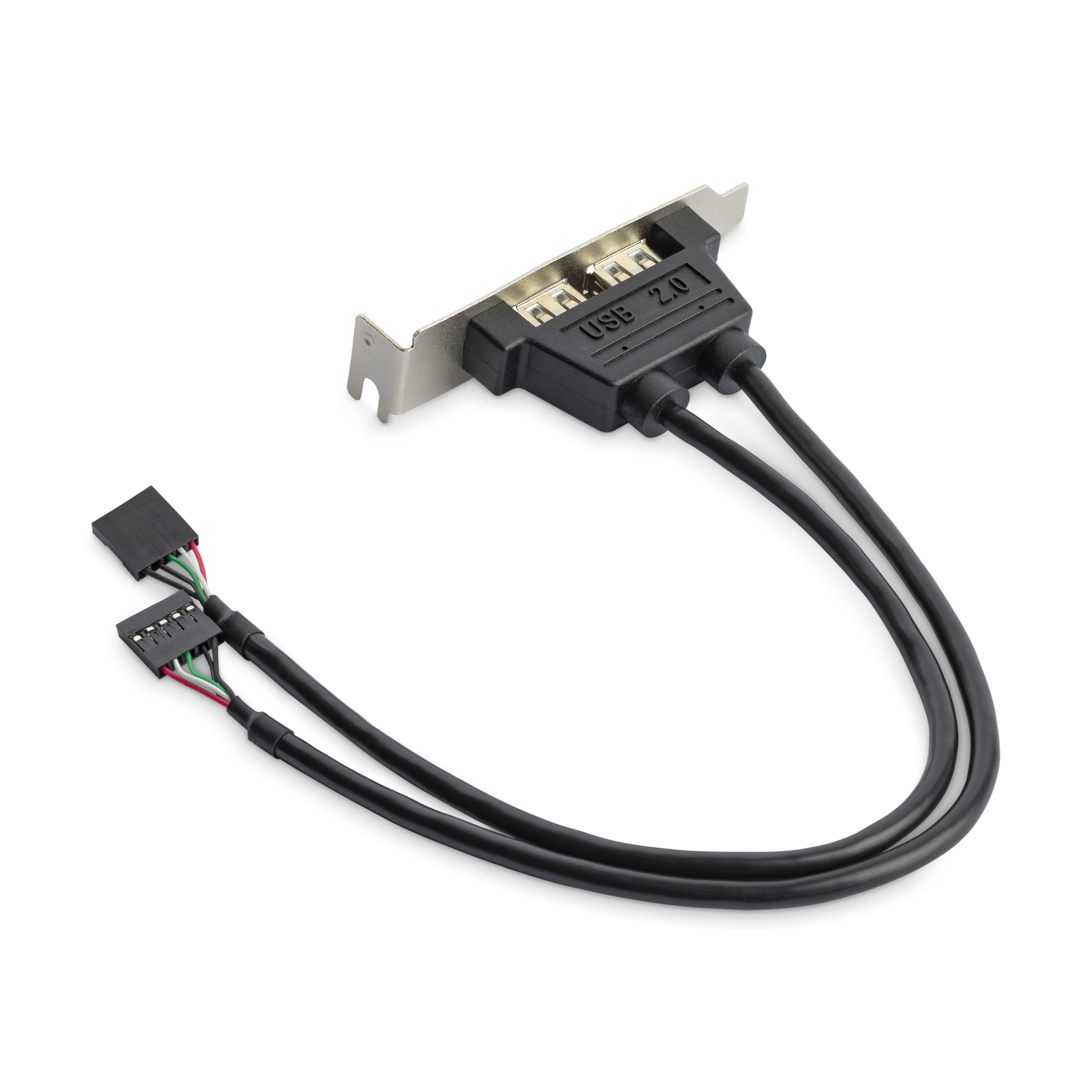

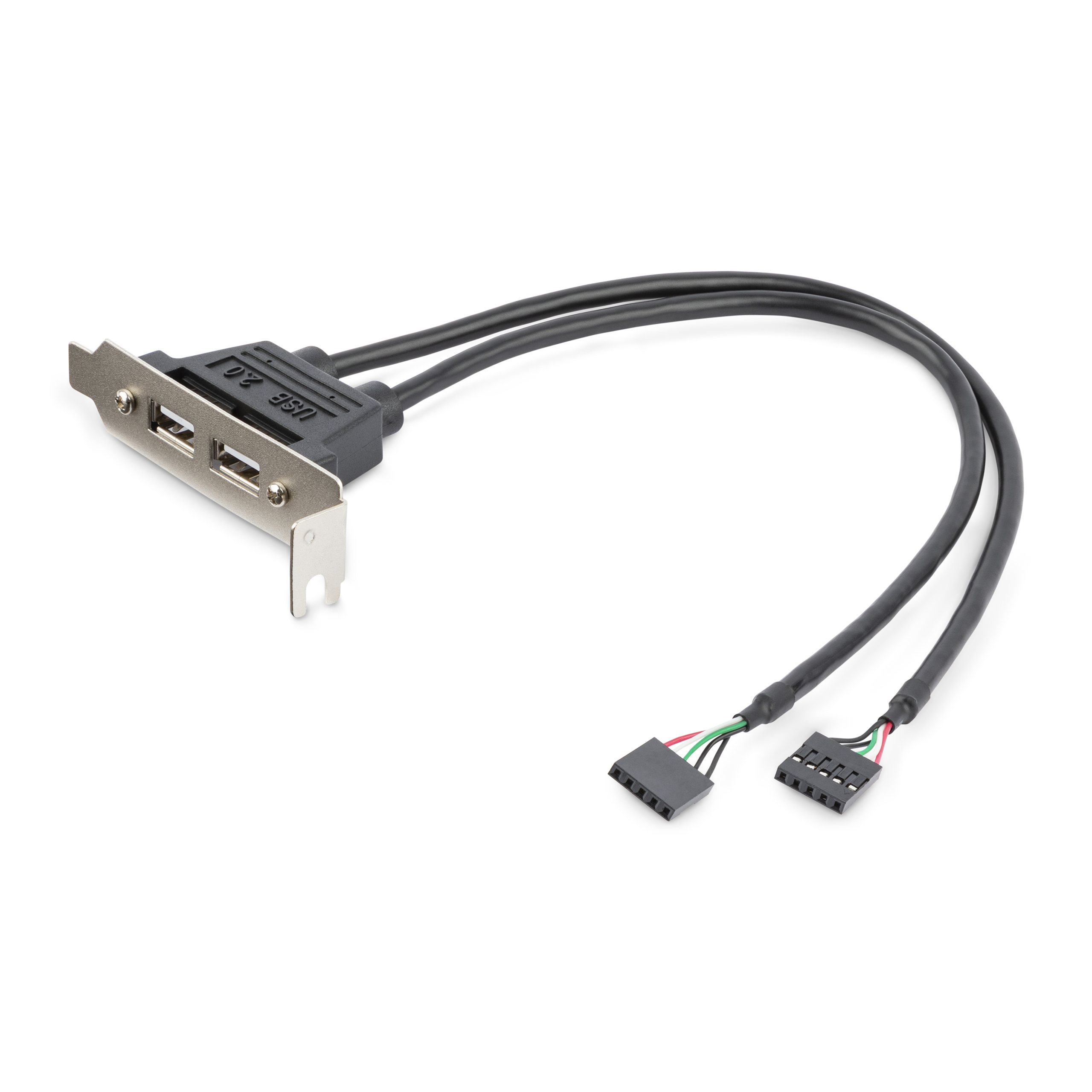

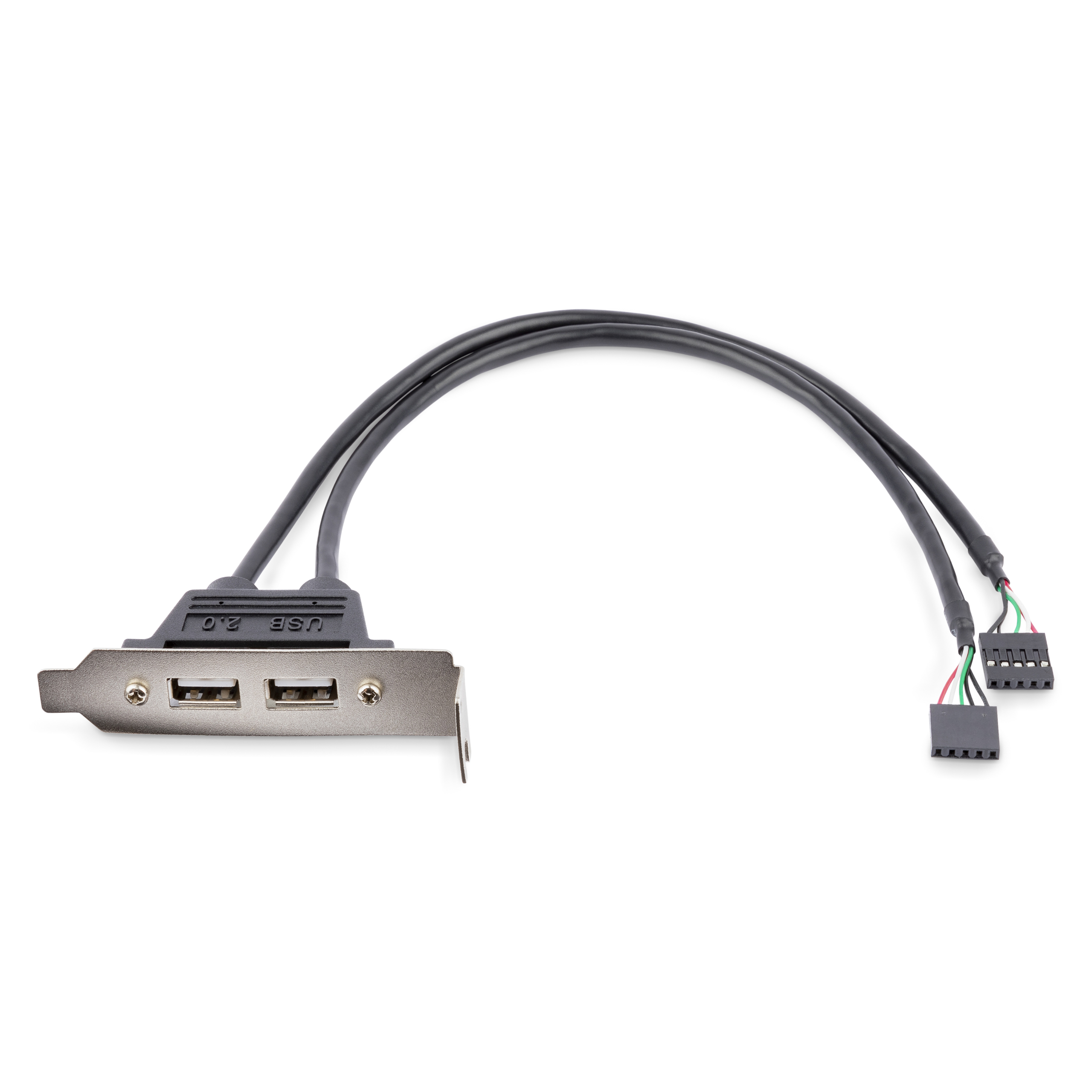

2 Port USB Bracket - LP USB A Slot Plate Adapter
Add two external USB 2.0 ports to your small form factor PC
Main Image
Product Images
Product Images
Product Images
Product Name 2 Port USB Bracket - LP USB A Slot Plate Adapter Product Number USBPLATELP UPC 065030831772 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB Internal and Panel Mount Cables Category Level 3 USB Plate Adapters Family Other Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX100X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX100X Country of Origin History (3) China Country of Origin Revision (3) XXXXXX021X Country of Origin History (4) Vietnam Country of Origin Revision (4) XXXXXX147X Product Title (Ultra-Short) 2 port USB Slot Adpt Product Title (Short) 2 Port USB LP Slot Plate Adapter Product Title (Medium) x Product Title (Standard) 2 Port USB A Female Low Profile Slot Plate Adapter Product Title (Long) 2 Port USB A Female Low Profile Slot Plate Adapter Product Title (AMZ) 2 Port USB A Female Low Profile Slot Plate Adapter - 2 Port USB Bracket - USB 2.0 A Female (USBPLATELP) Title Ingram (Part 1) 2 Port USB Bracket - Low Profile Title Ingram (Part 2) Slot Plate Adapter Website Product Headline Add two external USB 2.0 ports to your small form factor PC Bullet 1 2x USB 'A' female ports Bullet 2 2x IDC-5 female connectors Bullet 3 Supports 4 or 5 pin motherboard connections Bullet 4 Supports high-speed USB data transfer rates of up to 480 Mbps Bullet 5 Offers 11.25" in cable length Bullets (Consolidated) USB panel - USB (F) to 5 pin in-line (F) Marketing Copy Applications Add two USB 2.0 female ports to the back of a small form factor computer case Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
Cable Length (mm) 285 Color Gray Humidity 30%-75% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 320.000 Product Width (mm) 81.2 Product Height (mm) 18.6 Product Weight (g) 44.000 Storage Temperature -10°C to 30°C (14°F to 86°F) TAA Compliant No USB Type and Rate USB 2.0 (480Mbps) Carton Depth (mm) 348 Carton Height (mm) 310 Carton Quantity 200 Carton Weight Gross (g) 10466 Included in Package 1 - 2 Port USB A Female Low Profile Slot Plate Adapter Included In Package for Label 1 - 2 Port USB A Female Low Profile Slot Plate Converter Number of Sub-Cartons 20 Package Depth (mm) 127 Package Height (mm) 21 Package Width (mm) 182 Package Quantity 1 Package Weight (g) 48 Packaging Description 2 Port USB A Female Low Profile Slot Plate Adapter Packaging Description India 2 Port USB A Female Low Profile Slot Plate Converter Sub-Carton Depth (mm) 280 Sub-Carton Height (mm) 68 Sub-Carton Width (mm) 190 Sub-Carton Quantity 10 Sub-Carton Weight (g) 484 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 IDC (5-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist David Bromley Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
