UVCHDCAP
HDMI capture device - USB video capture
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name HDMI capture device - USB video capture Product Number UVCHDCAP UPC 065030876025 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Video Capture Devices Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-C Capture Family USB-C Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) HDMI Capture Device Product Title (Short) HDMI to USB C Video Capture Device - UVC Product Title (Medium) HDMI to USB C Video Capture Device - UVC - 1080p - 60fps - Plug & Play Product Title (Standard) HDMI to USB C Video Capture Device UVC 1080p 60fps, External USB 3.0 HDMI Audio/Video Capture/Live Streaming/Recorder, TAA Product Title (Long) HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - Works with USB-C/USB-A/Thunderbolt 3 - TAA Product Title (AMZ) HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - comp with USB-C/USB-A/Thunderbolt 3 , TAA Title Ingram (Part 1) HDMI to USB C Video Capture Title Ingram (Part 2) Device with UVC - 1080p - 60fps Website Product Headline HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included Bullet 1 HD VIDEO CAPTURE: USB 5Gbps capture device records unprotected HDMI video at 1080p 60fps with low latency; Includes HDMI pass-through, 3.5mm stereo audio input, and supports H.264 encoding (MJPEG, MPEG-2, MPEG-4) Bullet 2 APPLICATIONS: Experience HDMI playback while recording conference calls, camera feeds or live streaming at 1080p60 with 3rd party software, such as OBS; Live streaming on YouTube and other platforms with RTSP, RTMP; Works with Teams and Zoom Bullet 3 FLEXIBLE STREAMING APPLICATIONS: Record or stream HDMI video content for conference calls, camera feeds, or training sessions at 1080p60 using third-party software; Supports RTSP, RTMP, and integration with Teams and Zoom Bullet 4 PORTABLE AND DURABLE DESIGN: Housed in a lightweight aluminum enclosure, this compact capture adapter is ideal for mobile setups in classrooms, studios, or AV environments; Connect directly to USB-A, USB-C, or Thunderbolt hosts computers Bullet 5 THE IT PRO’s CHOICE: Our video capture devices are lab-tested for UVC compatibility, ensuring broad software support and integration in professional AV and IT environments; Backed by free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) HDMI video capture device records to USB-C/TB3/USB-A computer - HD 1080p 60fps/2ch audio/H.264 (MPEG-4) – Auto install (UVC) - Windows/Mac/Linux; Recorder works w/DirectShow/QuickTime - Use w/incl or 3rd party software (OBS) - Works w/ Teams & Zoom Bullets (Consolidated) Records unprotected HDMI video at 1080p 60fps with low latency; HDMI pass-through, 3.5mm stereo audio input, supports H.264 encoding - Windows and macOS compatible; UVC protocol support and works with DirectShow and QuickTime-based applications, including OBS - Stream HDMI video content 1080p60 using third-party software; Supports RTSP, RTMP, and integration with Teams and Zoom - Lightweight aluminum enclosure - Connect directly to USB-A, USB-C, or Thunderbolt hosts computers Marketing Copy Marketing Copy (No HTML) Applications - Capture meetings, presentations or conference calls directly to your computer
- Upload recorded videos or live broadcast your signal to any online video platform
- Record training and tutorial videos from your laptop or game console
Website Search Keyword - 4K
- 4k 30hz
- 4k hdmi capture
- 4k hdmi capture card
- 4k hdmi capture device
- 4k hdmi recorder
- 4k uhd
- 4k ultra hd
- 4k video capture
- 4k video capture device
- 4K30
- capture card
- Conference call video capture
- DirectShow
- DirectShow video capture
- game capture
- game capture card
- game capture device
- H.264 capture
- hd capture card
- hd video capture
- hdmi capture
- hdmi capture card
- hdmi capture card 1080p
- hdmi capture device for live streaming
- hdmi capture usb c
- hdmi grabber
- hdmi recorder
- hdmi to usb 3.0 video capture
- hdmi to usb c capture
- hdmi to usb c video capture
- hdmi to usb c video capture device
- hdmi to usb uvc
- hdmi to usb video capture
- hdmi to uvc
- hdmi video capture
- hdmi video capture card
- hdmi video capture device
- hdmi video capture for mac
- hdmi video recorder
- Meeting video capture
- no device drivers
- no drivers to install
- pc capture card
- QuickTime
- quicktime screen recording
- quicktime screen recording with audio
- Quicktime video capture
- screen recorder
- Training video capture
- uhd
- ultra hd
- USB 3.0 capture card
- USB 3.0 Capture Device
- USB 3.0 HDMI capture
- usb 3.0 hdmi video capture
- usb 3.0 video capture
- USB 3.0 video capture card
- usb 3.0 video capture device
- usb c capture card
- usb c capture device
- USB c HDMI capture
- usb c hdmi recorder
- usb c video capture
- USB c video capture card
- usb c video capture device
- usb capture card
- usb type c hdmi capture
- usb type c video capture device
- usb uvc
- usb video capture
- usb video capture card
- usb video capture device
- USB Video Class
- usb video class driver
- USB video class video capture
- USB-C Video Capture
- uvc capture card
- uvc capture device
- uvc driver
- uvc hdmi
- uvc hdmi capture
- uvc hdmi capture card
- uvc hdmi grabber card
- uvc usb capture
- uvc usb hdmi capture card
- uvc usb video capture
- uvc video
- uvc video capture
- uvc video grabber
- video capture
- Video Capture Adapter
- video capture card
- video capture device
- video game capture
- xbox one game capture
- xbox recording device
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers. Accessory Products - MU3MMS
- MU6MMS
- MU10MMS
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU15MMS
- USB3SAB10
- USB3SAB10BK
Related Products - USB2HDCAPS
- USB2HDCAPM
- USB2HDCAP
- PEXHDCAP2
- PEXHDCAP60L
- ECHDCAP
- SVID2USB23
- SVID2USB2
Input Voltage 5V DC Output Voltage (V) 5 DC Color Silver & Black Humidity 20-80% RH Non-Condensing Operating Temperature 0°C to 40°C Primary Material Aluminum Product Length (mm) 92.000 Product Width (mm) 60.000 Product Height (mm) 23.000 Product Weight (g) 86.000 Storage Temperature -5°C to 40°C TAA Compliant Yes Maximum Digital Resolutions 1920 x 1080 60 FPS MTBF (hours) 2,878,791 hours OS Compatibility - Windows 8
- Windows 10
- Linux
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Supported Resolutions 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output USB Chipset ID Mstar - MST3363CNK-170 Converter Type Format Converter Industry Standards - MPEG4 (H.264)
- USB Video Class (UVC)

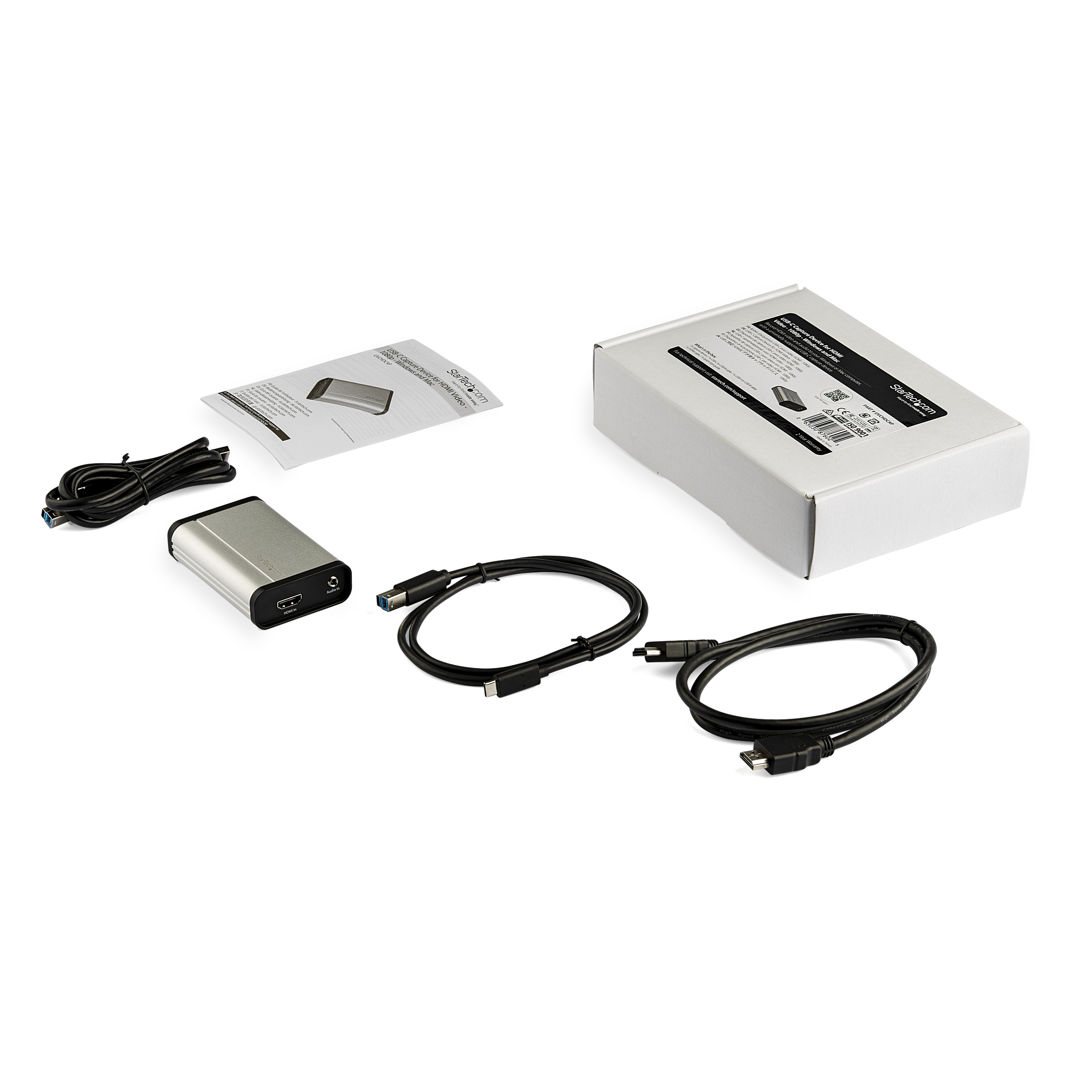

Carton Depth (mm) 466 Carton Height (mm) 468 Carton Quantity 48 Carton Weight Gross (g) 20798 Included in Package - 1 - capture device
- 1 - USB-C to USB-B cable (1m)
- 1 - HDMI cable (1m)
- 1 - quick-start guide
- 1 - USB-A to USB-B cable (1m)
Included In Package for Label - 1 - Capture Device
- 1 - USB-C To USB-B Cable (1M)
- 1 - HDMI Cable (1M)
- 1 - USB-A To USB-B Cable (1M)
- 1 - Quick-Start Guide
Package Depth (mm) 153 Package Height (mm) 56 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 400 Packaging Description USB-C Capture Device for HDMI Video - 1080p Packaging Description India USB-C Capture Device for HDMI Video - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB-B (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-03-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2018-04-20 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-03-23 Target Production Release 2018-03-09 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
