Main Image
VCSVIDVGA
Main Image

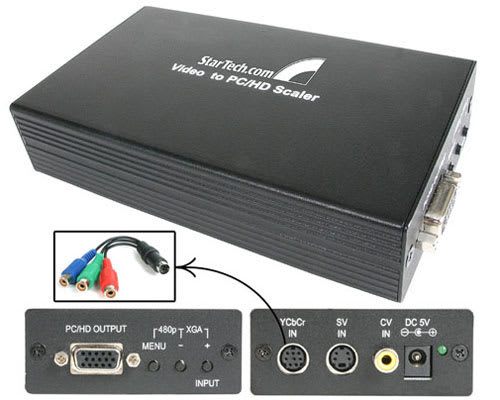

Product Name Video to VGA converter for Panasonic KVS JS8000 Product Number VCSVIDVGA UPC 065030816861 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Long) Specialized Video Converter for the Panasonic KVS JS8000 Kitchen Video System Bullet 1 Adjust picture brightness, contrast, color, RGB level and horizontal/vertical positioning Bullet 2 A 48 MByte frame buffer eliminates image tear/video hiccupping Bullet 3 Includes a memory recall feature that automatically reinstates the setting last used Marketing Copy Applications - Designed specifically for the Panasonic KVS JS8000 Kitchen Video System
- Upgrade the displays in a restaurant kitchen using standard VGA (CRT or flat panel) monitors
Website Search Keyword - KVS
- kitchen
- restaurant
- kitchen video system
- JS8000
Color Black Product Length (mm) 146 Product Width (mm) 77 Product Height (mm) 30 Product Weight (g) 240 TAA Compliant No General Specifications - 1080i: 1920 x 1080, 50/60 Hz, YPbPr/RGBHV, pseudo-interlaced
- 480p: 720 x 480, 50/60 Hz, YPbPr/RGBHV, progressive scan
- 576p: 720 x 576, 50/60 Hz, YPbPr/RGBHV, progressive scan
- 720p: 1280 x 720, 50/60 Hz, YPbPr/RGBHV, progressive scan
- Input Formats: Composite, S-Video, YCbCr component or RGB interlaced
- Input Signal Levels: Video @ 1V p-p, 75 ohm
- Output Format: YPbPr/HDTV
- Power Adapter Specifications: 5V DC @ 2A, center positive
- SVGA: 800 x 600 @ 50/56/60/72/75/85 Hz, RGBHV, progressive scan
- SXGA: 1280 x 1024 @ 50/60 Hz, RGBHV, progressive scan
- VGA: 640 x 480 @ 50/60/72/75/85 Hz, RGBHV, progressive scan
- WXGA: 1280 x 768 @ 50/60 Hz, RGBHV, progressive scan
- XGA: 1024 x 768 @ 50/60/70/75/85 Hz, RGBHV, progressive scan
- : Note: This product is designed for a specialized application.
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - 3 foot (1 meter) Composite RCA Cable
- 1 - 4’ (1.2 meter) VGA cable M-M
- 1 - User’s manual
- 1 - Video to HDTV/VGA Scaler
- 1 - Wall-mount power adapter
- 1 - YCbCr RCA to 8 pin DIN adapter
Package Depth (mm) 137 Package Height (mm) 62 Package Width (mm) 254 Package Weight (g) 800 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 4 Connector 3 S-Video (Y/C) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
