VDSL-LAN-EXTENDER-1G
10 100 1000 BASE T over VDSL2 LAN Extender 1 km

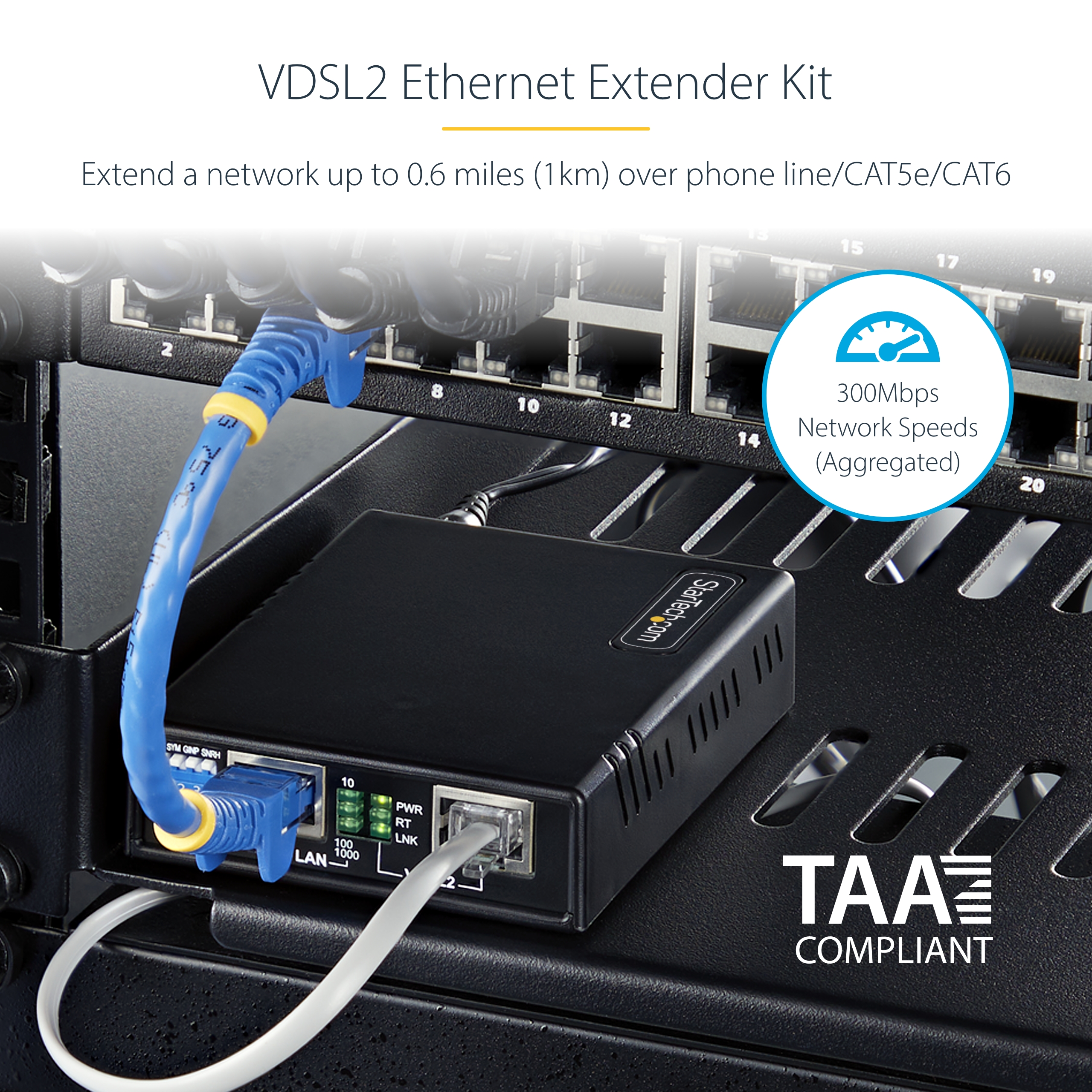

Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 10 100 1000 BASE T over VDSL2 LAN Extender 1 km Product Number VDSL-LAN-EXTENDER-1G UPC 065030899925 Lifecycle status Active Warranty 2 Years Weighted Opportunity 152334 Taxonomy Product > Extenders > Ethernet Extenders Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) VDSL2 LAN Extender Product Title (Short) VDSL2 Ethernet Extender Kit, Up to 1km Product Title (Medium) VDSL2 Ethernet Extender Kit, Up to 0.6mi (1km), Long Range Network Repeater Product Title (Standard) VDSL2 Ethernet Extender Kit over Single Pair Wire Up to 0.6mi (1km), LAN Repeater over RJ11/CAT5e/6, Replaces 110VDSLEXT, TAA Product Title (Long) VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT - TAA Product Title (AMZ) VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range Repeater, Replace for 110VDSLEXT, TAA Title Ingram (Part 1) VDSL2 Ethernet Extender - Title Ingram (Part 2) Long Range Network Repeater Website Product Headline Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP Bullet 1 VDSL2 EXTENDER: Extend a network over VDSL2, using UTP/single pair wire, CAT5e/6, or phone line cabling; Up to 0.6mi (1km); Up to 300Mbps (aggregated) at shorter distances; Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards Bullet 2 8 PROFILE CONFIGURATIONS: Customize the installation with DIP switch selectable settings; Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance Bullet 3 INTUITIVE INDICATORS: Gigabit Ethernet Extender features four LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity Bullet 4 VERSATILE MOUNTING OPTIONS: TAA-compliant Long Range LAN Booster can be mounted on a wall using the included mounting hardware, or placed on a shelf or other surface; Includes two power adapters, one for each VDSL Extender unit Bullet 5 APPLICATIONS: Works with third-party VDSL2 IP DSLAMs in CPE (RT) mode; Extends a network to remote areas, supporting applications such as video surveillance/digital signage; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension Bullets (Compact) VDSL2 Ethernet Extender over UTP/single pair wire, phone line cable up to 0.6mi (1km); Extender capable of up to 300Mbps; DIP switch selectable settings; Works w/ 3rd party VDSL2 IP DSLAMs; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic Bullets (Consolidated) - Extend a network over VDSL2 using UTP/single pair wire, phone line cabling up to 0.6mi (1km); Ethernet Extender is capable of up to 300Mbps (aggregated) - DIP switch selectable settings (8 profile configs available) - LEDs for network status including LAN speed/link status/power/remote or master mode - Wall mounting hardware and two power adapters included - Works with 3rd party VDSL2 IP DSLAMs in remote mode; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension Marketing Copy Marketing Copy (No HTML) Applications - Establish reliable data connections for a variety of applications, including process monitoring, control systems, and automation

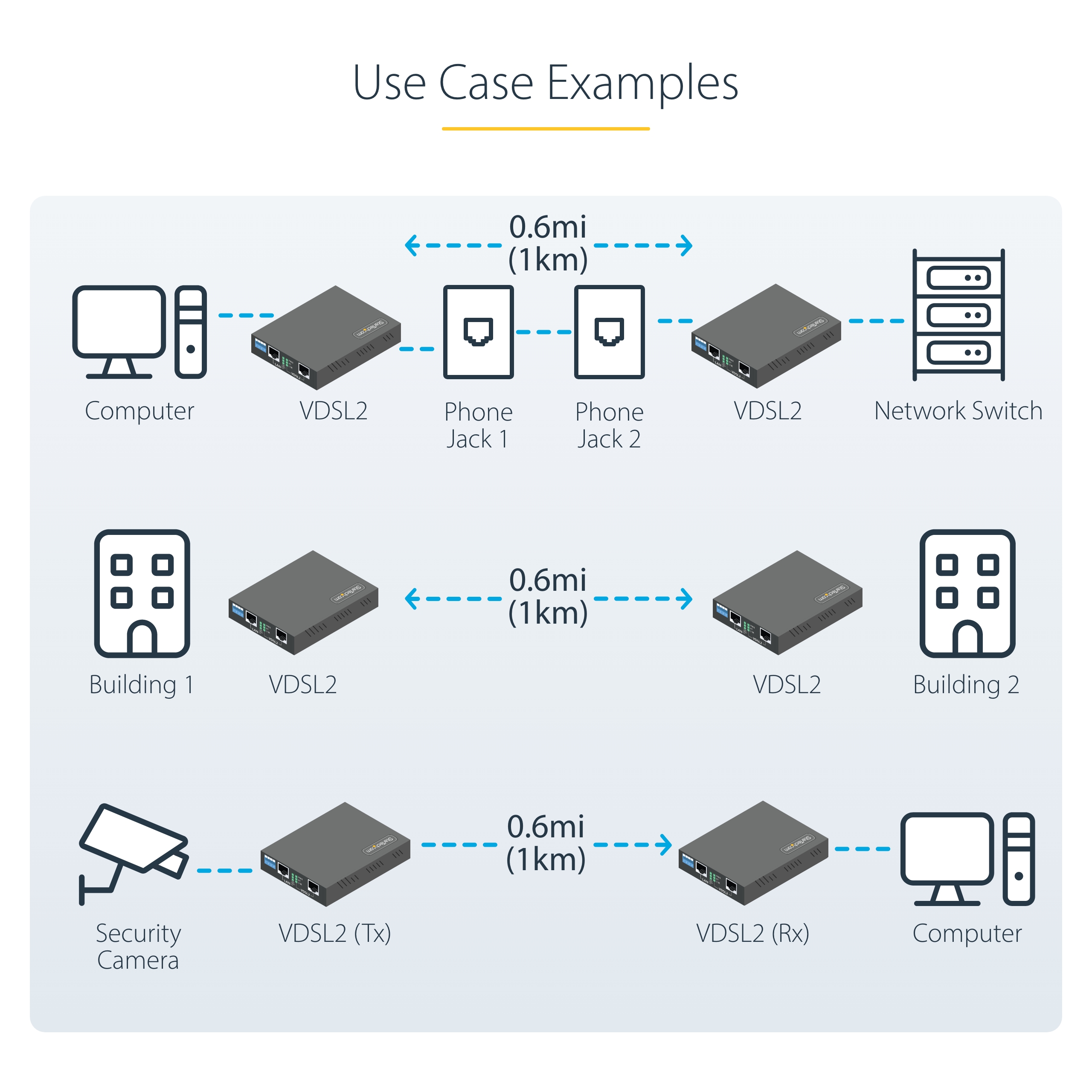

- Extend the reach of VDSL2 for IP-based video surveillance systems
- Connect remote offices or branch locations to the main office infrastructure
Website Search Keyword - 2 wire
- two wire
- Ethernet extension
- network extender
- network extension
- lan extender
- phone extender
- phone line extender
- remote network
- DSL extender
- VDSL extender
- copper extender
- 10/100 extender
- RJ45 extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Maximum distance was achieved using 26AWG UTP cabling Accessory Products - POEINJ1G
- N6PATCH10BL
- N6PATCH50BK
- N6PATCH150BK
- RJ4511TOOL
Related Products 110VDSLEXT Input Current 0.5 Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 3.8W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 95% RH (non-condensing) Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 97.000 Product Width (mm) 74.000 Product Height (mm) 23.000 Product Weight (g) 116.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes General Specifications On-board Surge Protection Jumbo Frame Support No Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate 300Mbps (150 upstream/150 downstream) MTBF (hours) 50,000 Hours OS Compatibility OS Independent Cabling Cat 5e UTP or better Chipset ID RTL8685FB-CG Industry Standards LED Indicators - 1 - Power

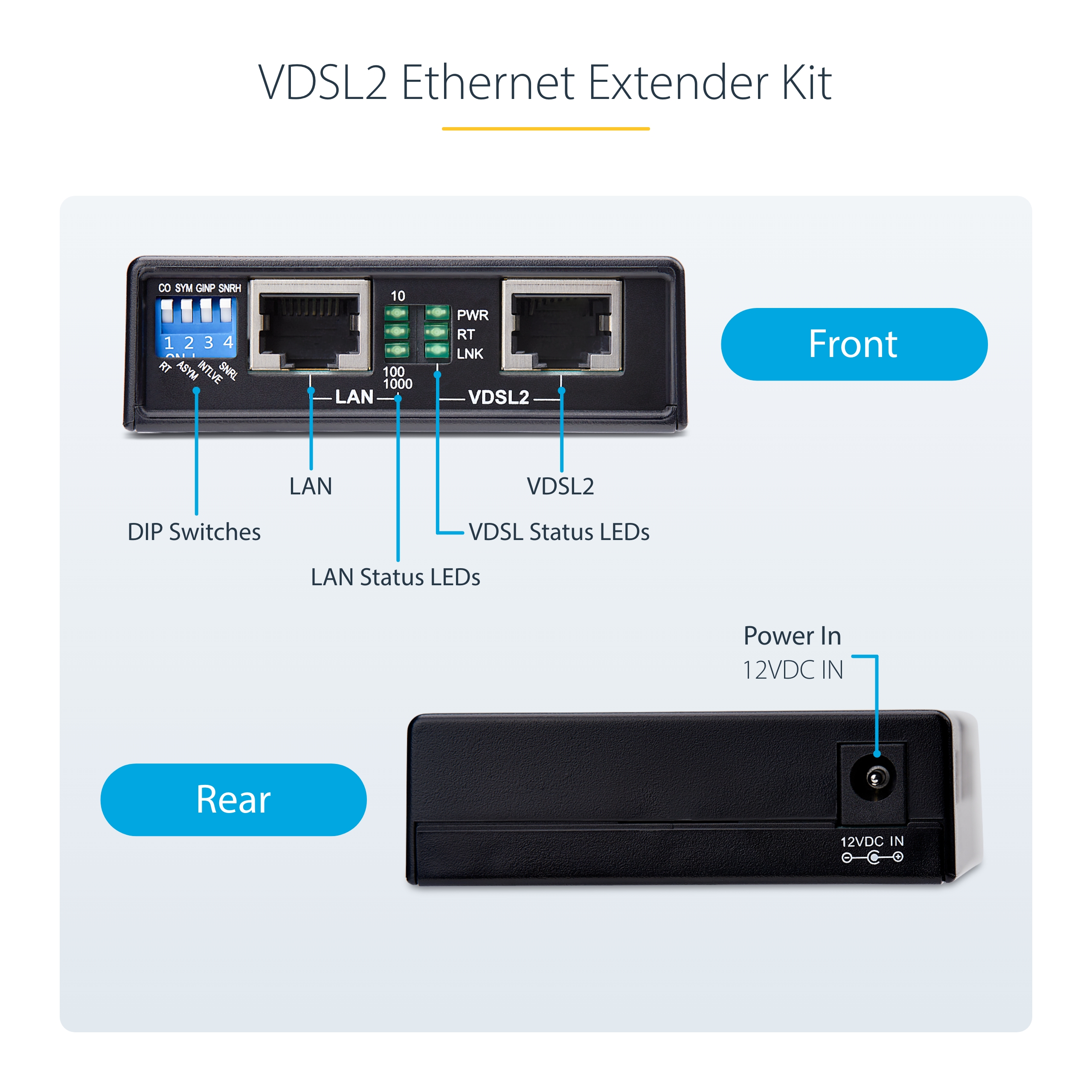

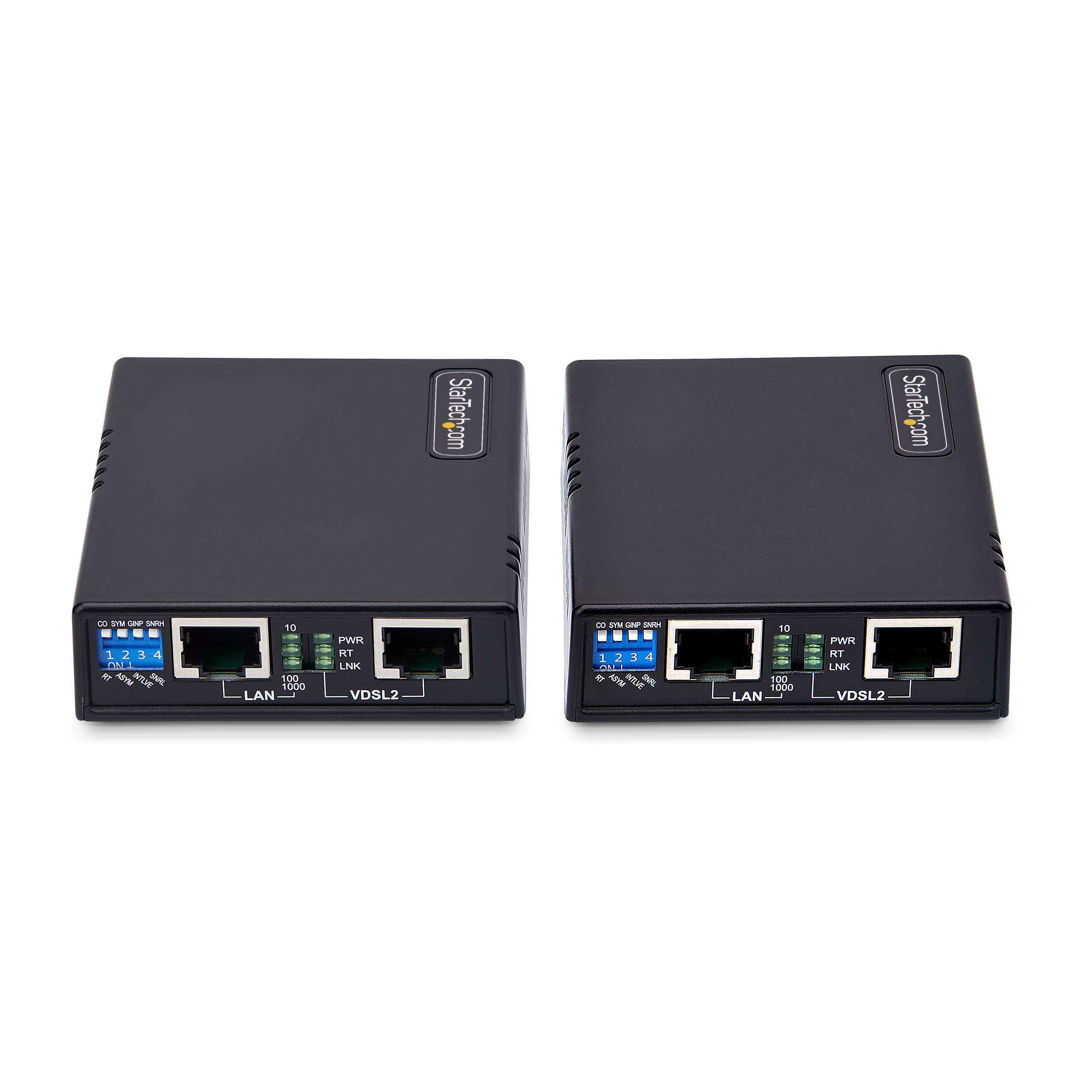

- 3 - LAN: 10/100/100Mbps
- 1 - Remote/Master Mode
- 1 - VDSL Link

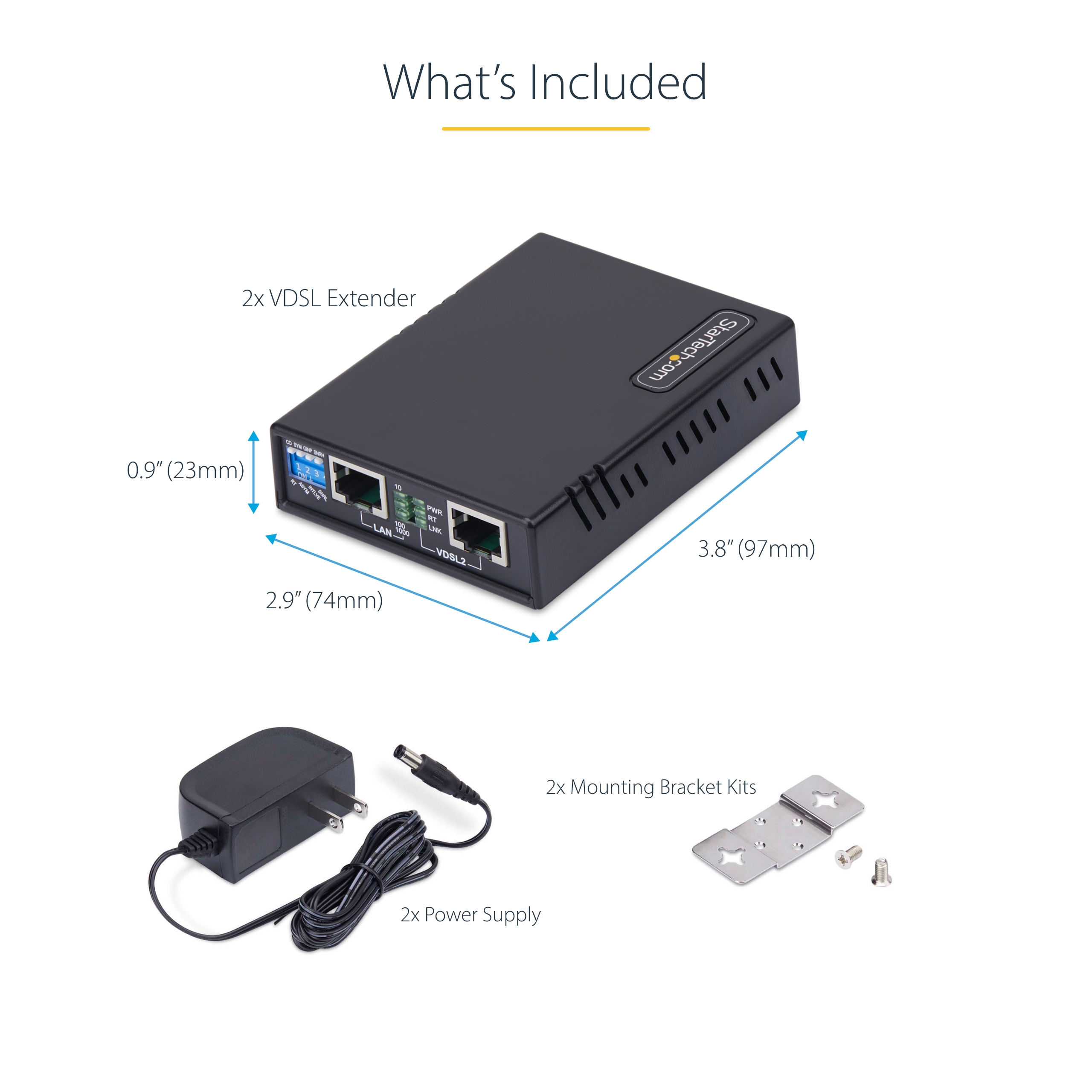

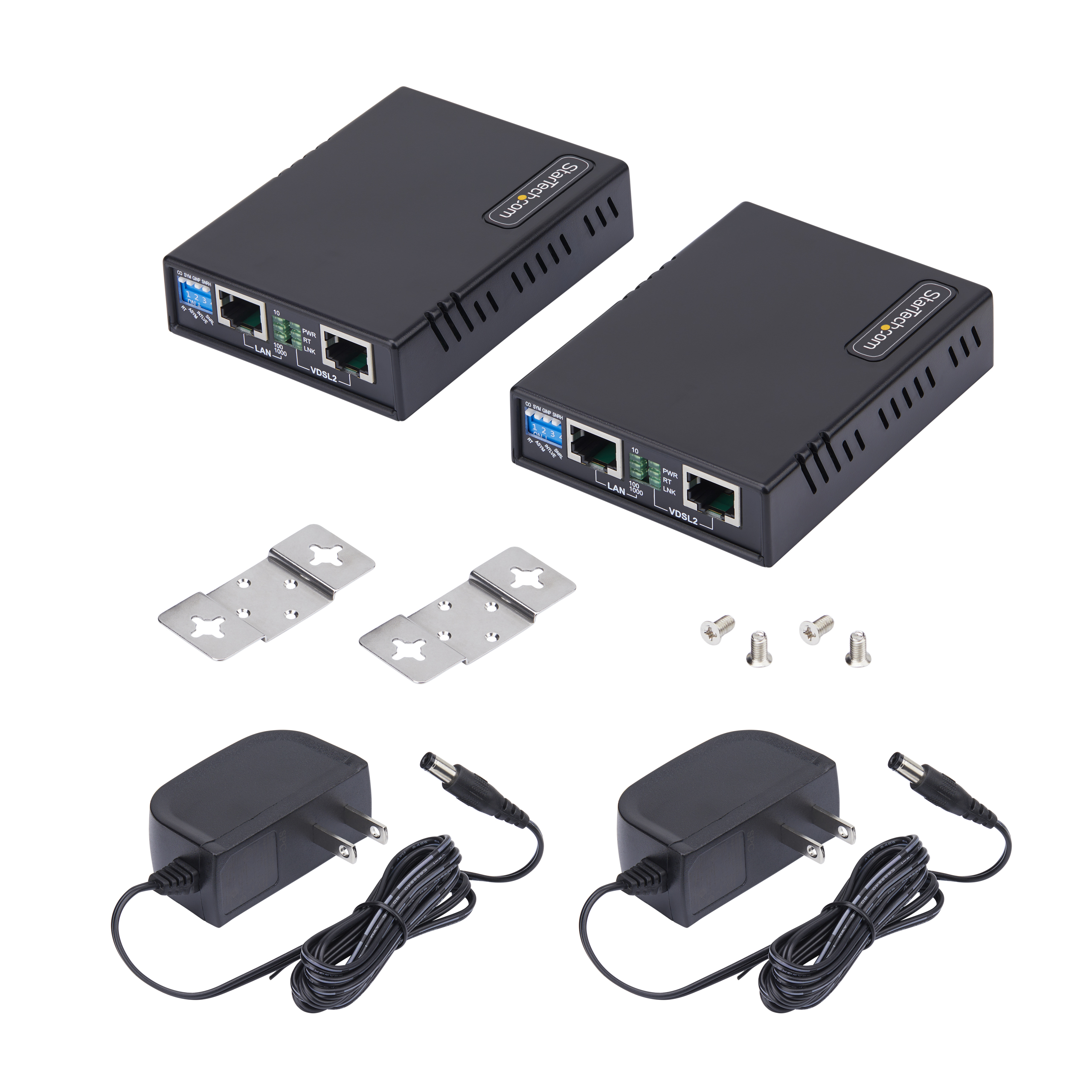

Rack-Mountable No Carton Depth (mm) 510 Carton Height (mm) 430 Carton Quantity 15 Carton Weight Gross (g) 11250 Included in Package - 2 - VDSL Extender
- 2 - Power Supply
- 1 - Quick-Start Guide

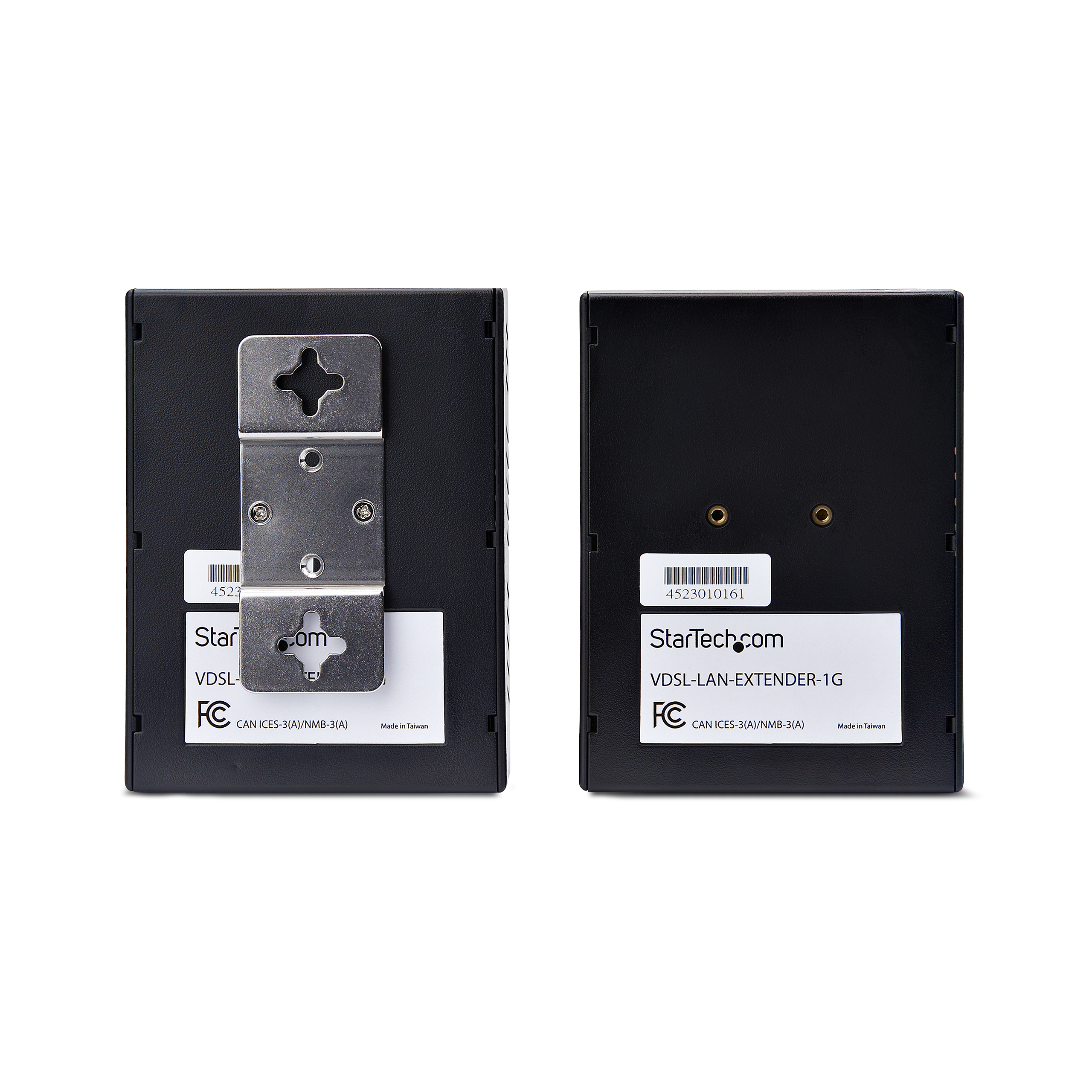

- 2 - Mounting Bracket Kits
Package Depth (mm) 150 Package Height (mm) 130 Package Width (mm) 180 Package Quantity 1 Package Weight (g) 668 Packaging Description 10/100/1000 Mbps VDSL2 Ethernet Extender Kit - 1km Packaging Description India 10/100/1000 Mbps VDSL2 Ethernet Extender Kit - 1km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-09-20 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 10/100 Mbps version Comparable SKU 2 Comment N/A Digital Content Due Date 2023-12-29 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-09-13 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
