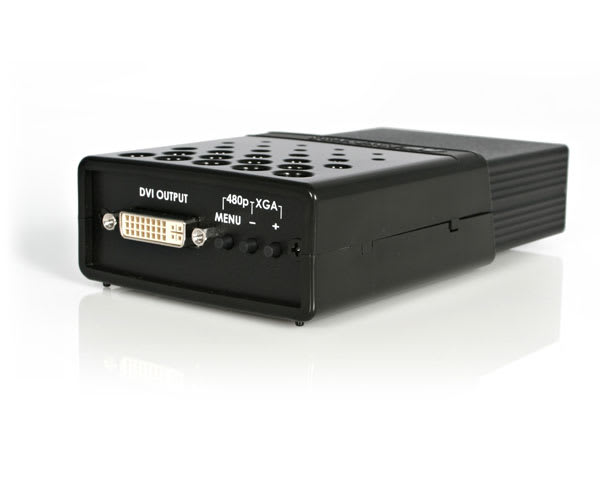

Product Name VGA to DVI-I Scaler/Video Converter Product Number VGA2DVII UPC 065030812023 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) VGA to DVI-I Video Converter with Scaler Product Title (Standard) StarTech.com VGA to DVI-I Video Converter with Scaler Product Title (Long) VGA to DVI-I Video Converter with Scaler Title Ingram (Part 1) VGA to DVI-I Video Converter wit Title Ingram (Part 2) h Scaler Bullet 1 Adjust picture brightness, contrast, color, RGB level and horizontal/vertical positioning Bullet 2 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 3 A 48 MByte frame buffer eliminates image tear/video hiccupping Bullet 4 Includes a memory recall feature that automatically reinstates the setting last used Bullet 5 Includes a plastic bracket for wall mounts or side panel installation Marketing Copy Applications - Display VGA feeds on DVI monitors, high-definition plasma screen TVs and DVI input projectors
- Home Theatre
- Security
- Education
- Medical
- Conference Rooms
Accessory Products - MXT101MMHQ
- MXT105MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
Related Products ICVGA2DVI Color Black Product Length (mm) 152 Product Width (mm) 76 Product Height (mm) 30 Product Weight (g) 300 TAA Compliant No General Specifications - Input Formats: Analog RGBHV, YPbPr, YCbCr
- Input Signal Levels: RGBHV @ 0.7V p-p, 75 ohm
- : H/V @ 3 to 5V p-p TTL
- : Y @ 1V p-p 75 ohm
- : Pb/Cb, Pr/Cr @ 0.7V p-p, 75 ohm
- Output Signal Levels: Digital data bitstream
- Output Format: Digital RGBHV, Analog RGBHV or YPbPr (through DVI to VGA)
- VGA: 640 x 480 @ 60/72/75/85 Hz
- VESA85: 640 x 400 @ 85 Hz
- VGA70: 720 x 400 @ 70 Hz
- SVGA: 800 x 600 @ 60/72/75/85 Hz
- XGA: 1024 x 768 @ 60/70/75/85 Hz
- Mac: 1152 x 864 @ 70/75 Hz
- WXGA: 1280 x 960 @ 60 Hz
- 1280A: 1280 x 960 @ 60 Hz
- SXGA: 1280 x 1024 @ 60 Hz
- 1080i: 1920 x 1080 @ 60 Hz
- 720p: 1280 x 720 @ 60 Hz
- 576p: 720 x 576 @ 50 Hz
- 480p: 720 x 576 @ 50 Hz
- 576i: 720 x 576 @ 50 Hz
- 480i: 720 x 480 @ 60 Hz
- VGA: 640 x 480 @ 60/72/75/85 Hz
- Mac: 1052 x 864 @ 70/75 Hz
- WXGA: 1280 x 768 @ 60 Hz
- SXGA: 1280 x 1024 @ 60/75 Hz
- 576p: 720 s 576 @ 50 Hz
- 480p: 720 x 480 @ 60 Hz
- Power Adapter: 5V DC @ 2.6A, center positive

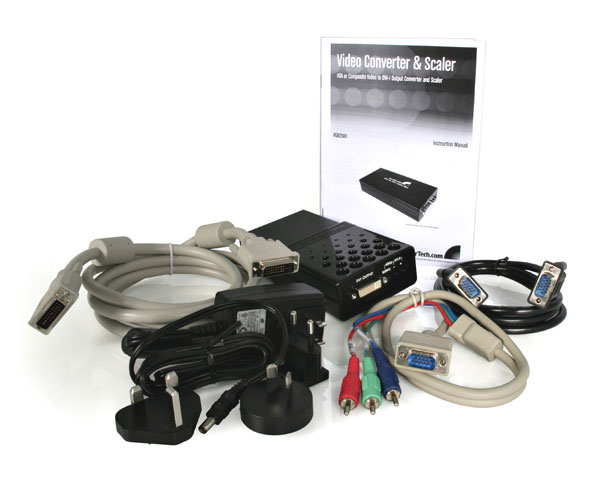

AV Input VGA AV Output DVI Carton Depth (mm) 410 Carton Height (mm) 320 Carton Quantity 10 Carton Weight Gross (g) 12900 Included in Package - 1 - VGA to DVI-I Scaler
- 1 - 4 foot (1.2 meter) HD-15 VGA cable
- 1 - 3 foot (1 meter) YCbCr RCA to 15-pin VGA adapter
- 1 - 6 foot (1.8 meter) DVI-D DVI cable M-M
- 1 - Wall-mount power adapter
- 1 - User’s manual
- 1 - Plastic Bracket
Package Depth (mm) 73 Package Height (mm) 186 Package Width (mm) 282 Package Weight (g) 1170 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
