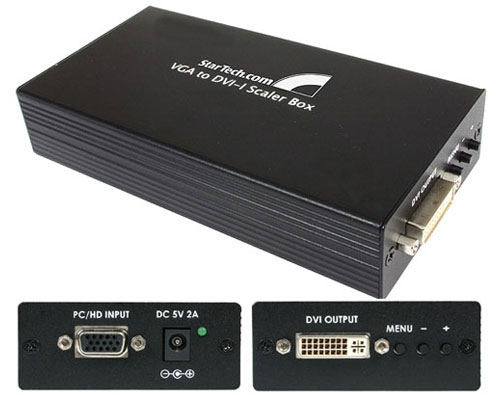

VGA2DVIIGB
Main Image
Product Name VGA / HDTV to DVI-I Scaler / Converter Product Number VGA2DVIIGB UPC 065030812061 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) VGA / HDTV to DVI-I Scaler / Converter Bullet 1 A 48 MByte frame buffer eliminates image tear/video hiccupping Bullet 2 Adjust picture brightness, contrast, colour, RGB level and horizontal/vertical positioning Bullet 3 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 4 Includes a memory recall feature that automatically reinstates the setting last used Marketing Copy Applications - Conference Rooms
- Display VGA feeds on DVI monitors, high-definition plasma screen TVs and DVI input projectors
- Education
- Home Theatre
- Medical
- Security
Accessory Products - DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM6
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- MXT105MMHQ
Related Products VID2DVIDTVGB Color Black Product Length (mm) 152 Product Width (mm) 76 Product Height (mm) 30 Product Weight (g) 300 TAA Compliant No General Specifications - Input Formats: Analog RGBHV, YPbPr, YCbCr
- Input Signal Levels: RGBHV @ 0.7V p-p, 75 ohm
- : H/V @ 3 to 5V p-p TTL
- : Y @ 1V p-p 75 ohm
- : Pb/Cb, Pr/Cr @ 0.7V p-p, 75 ohm
- Output Signal Levels: Digital data bitstream
- Output Format: Digital RGBHV, Analog RGBHV or YPbPr (through DVI to VGA
- Power Adapter Specifications: 5V DC @ 2A, center positive
- VGA: 640 x 480 @ 60/72/75/85 Hz
- VESA85: 640 x 400 @ 85 Hz
- VGA70: 720 x 400 @ 70 Hz
- SVGA: 800 x 600 @ 60/72/75/85 Hz
- XGA: 1024 x 768 @ 60/70/75/85 Hz
- Mac: 1152 x 864 @ 70/75 Hz
- WXGA: 1280 x 960 @ 60 Hz
- 1280A: 1280 x 960 @ 60 Hz
- SXGA: 1280 x 1024 @ 60 Hz
- 1080i: 1920 x 1080 @ 60 Hz
- 720p: 1280 x 720 @ 60 Hz
- 576p: 720 x 576 @ 50 Hz
- 480p: 720 x 576 @ 50 Hz
- 576i: 720 x 576 @ 50 Hz
- 480i: 720 x 480 @ 60 Hz
- VGA: 640 x 480 @ 60/72/75/85 Hz
- Mac: 1052 x 864 @ 70/75 Hz
- WXGA: 1280 x 768 @ 60 Hz
- SXGA: 1280 x 1024 @ 60/75 Hz
- 576p: 720 s 576 @ 50 Hz
- 480p: 720 x 480 @ 60 Hz
AV Input VGA AV Output DVI Included in Package - 1 - 3 foot (1 meter) YCbCr RCA to 15-pin VGA adapter
- 1 - 4 foot (1.2 meter) HD-15 VGA cable
- 1 - 6 foot (1.8 meter) DVI-D DVI cable M-M
- 1 - User’s manual
- 1 - VGA to DVI-I Scaler
- 1 - Wall-mount power adapter
Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 en-US Content Approved Yes
