Main Image
VGA2HD2

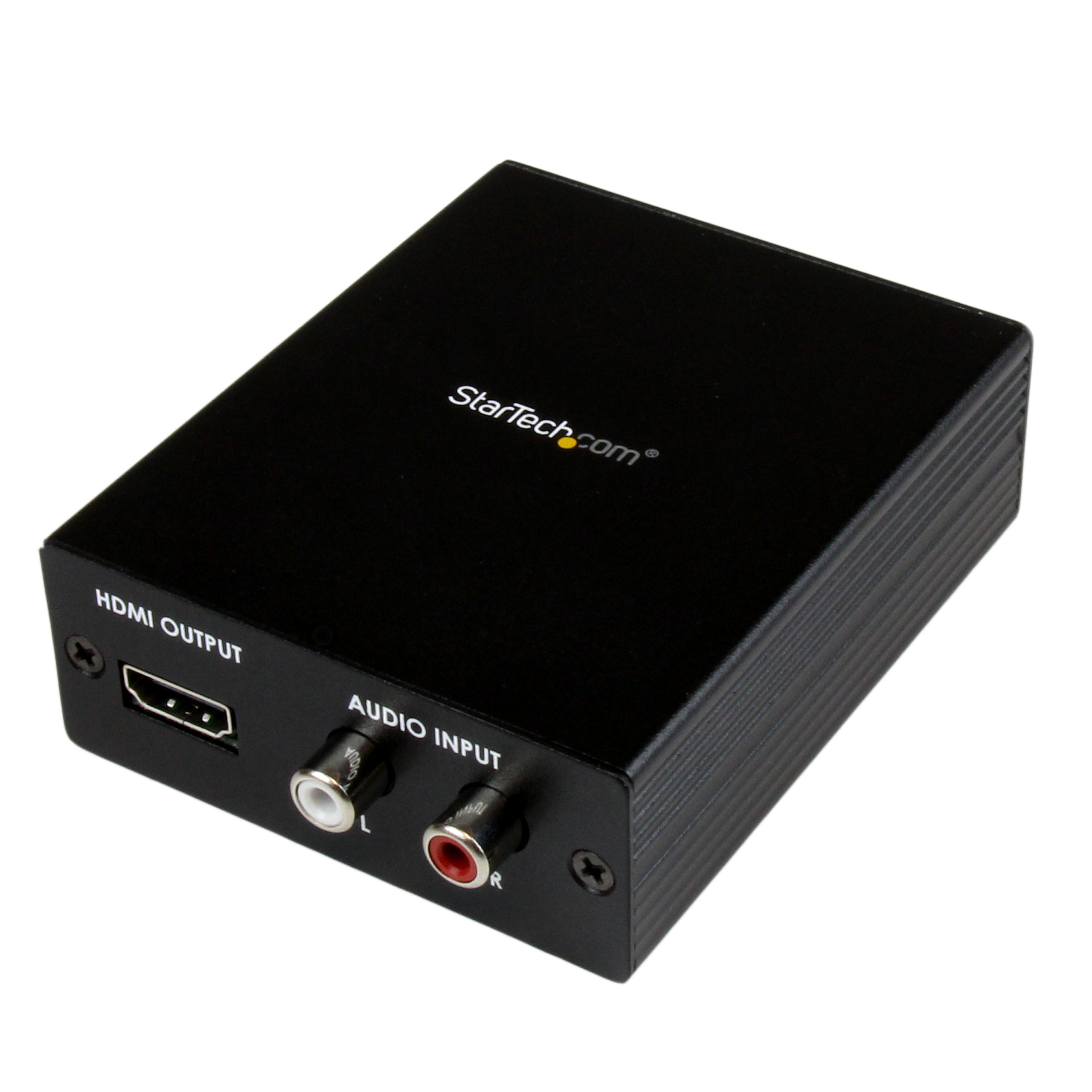

VGA or Component to HDMI Converter
Connect your VGA or Component video source to an HDMI® display
Main Image
Product Images
Product Images
BOM Image
Product Name VGA or Component to HDMI Converter Product Number VGA2HD2 UPC 065030848732 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 VGA Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) VGA a HDMI y Audio Product Title (Short) Component / VGA (PC) to HDMI Converter Product Title (Standard) Component / VGA Video and Audio to HDMI® Converter - PC to HDMI - 1920x1200 Product Title (Long) Component / VGA Video and Audio to HDMI Converter - PC to HDMI - 1920x1200 - TAA Product Title (AMZ) Component (YPbPr) / VGA To HDMI Converter With Audio - PC to HDMI - resolutions up to 1080p (HDTV) and 1920 x 1200 (PC) (VGA2HD2) Title Ingram (Part 1) Component YPbPr / VGA to HDMI Co Title Ingram (Part 2) nverter with Audio - PC to HDMI Website Product Headline Connect your VGA or Component video source to an HDMI® display Bullet 1 Supports YPbPr (component input) and HD15 PC VGA input Bullet 2 Supports input resolutions up to 1080p (HDTV) and 1920 x 1200 (PC) Bullet 3 Includes Component to VGA adapter cable Bullets (Consolidated) Connect your VGA or Component Video source to an HDMI display - VGA to HDMI Converter with audio - component to HDMI Converter - YPbPR to HDMI Converter - PC to HDMI Converter - VGA to HDMI Converter - 1920x1200 (1080p) - Includes Component to VGA adapter cable Marketing Copy Applications - Converting an analog video output signal from a computer for use with an HDTV
- Removing the clutter at the back of a monitor/display, by replacing multiple cables with a single HDMI® cable
- Connect a laptop computer to a boardroom projector or display, for on-screen presentations
Website Search Keyword P116-000-HDMI Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Accessory Products - SVUSBPOWER
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM8
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HD15CPNTMM3
- HD15CPNTMF
- AUDIORCA15
- AUDIORCA30
- AUDIORCA50
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - VGA2HDMIPRO
- VGAHD2HDMI
Replacement Product VGA2HDU Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1.2A Output Voltage (V) 5 DC Power Consumption (In Watts) 6 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 110.000 Product Width (mm) 78.000 Product Height (mm) 30.000 Product Weight (g) 188.000 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant Yes Supported Resolutions Maximum of 1080p for HD Input, and 1920x1200 for PC input Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - VGA
- Audio RCA
- Component YCbCr

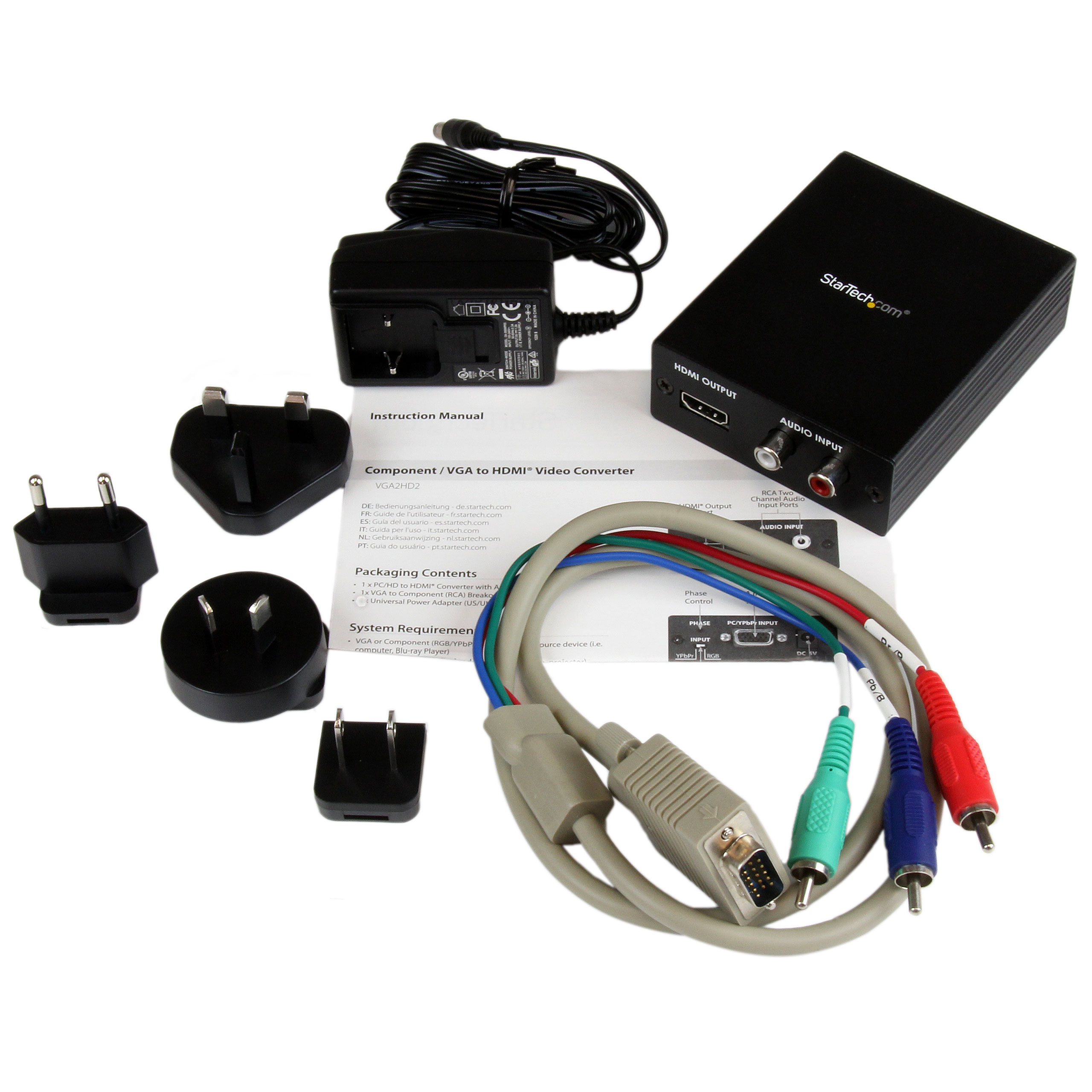

AV Output HDMI Converter Type Format Converter Carton Depth (mm) 380 Carton Height (mm) 342 Carton Quantity 30 Carton Weight Gross (g) 17250 Included in Package - 1 - PC/HD to HDMI Converter with Audio
- 1 - Universal Power Adapter (US/UK/EU/AUS)
- 1 - VGA to Component (RCA) Breakout Cable
Package Depth (mm) 120 Package Height (mm) 60 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 548 Packaging Description Component / VGA to HDMI® Video Converter Packaging Description India Component / VGA to HDMI® Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 1 Connector 3 RCA (Component Video, YPbPr) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-03 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
