Main Image
VGA2HDPRO2

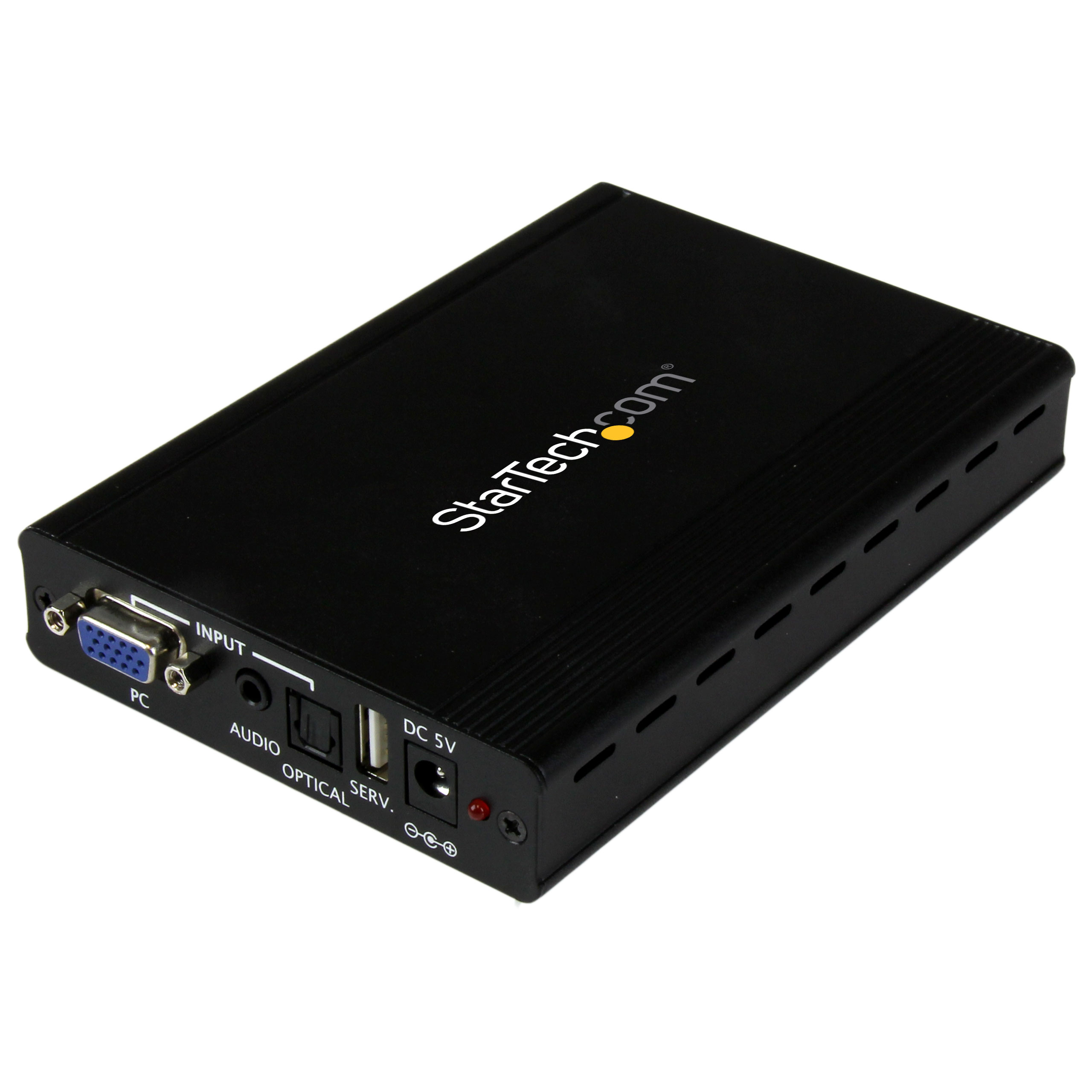

VGA to HDMI Converter with Scaler
Convert and scale your legacy VGA source into an HDMI video signal, for compatibility with newer displays
Main Image
Product Images
Product Images
BOM Image
Product Name VGA to HDMI Converter with Scaler Product Number VGA2HDPRO2 UPC 065030859998 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 VGA Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) VGA to HDMI Scaler Product Title (Short) VGA to HDMI Scaler - 1920x1200 Product Title (Medium) VGA to HDMI Converter with Scaler – 1920x1200 Product Title (Standard) VGA to HDMI Converter with Scaler – 1920x1200 Product Title (Long) VGA to HDMI Scaler - 1920x1200 - TAA Product Title (AMZ) VGA to HDMI Converter - Analog VGA to digital HDMI Scaler with Audio - 1920x1200 (VGA2HDPRO2) Title Ingram (Part 1) VGA to HDMI Converter w\ Scaler Title Ingram (Part 2) & Audio - 1920x1200 Website Product Headline Convert and scale your legacy VGA source into an HDMI video signal, for compatibility with newer displays Bullet 1 Supports 3.5mm analog audio or SPDIF digital audio inputs Bullet 2 Customize your analog VGA source to work with any HDMI display, with the built-in video scaler Bullet 3 Supports high-definition resolutions up to 1920x1200 or 1080p Bullet 4 Enjoy hassle-free operation with an intuitive on-screen menu and automatic display detection Bullet 5 Avoid upgrading your VGA equipment by scaling your source to an HDMI display Bullets (Consolidated) Convert and scale your legacy VGA source to HDMI for compatibility with newer displays - Compatible with VGA-enabled computers and HDMI televisions monitors and projectors - Supports HD TV resolutions up to 1080p and PC resolutions up to 1920x1200 - VGA to HDMI scaler/VGA to HDMI adapter/VGA to HDMI converter/Analog to Digital Video Scaler/video and audio to HDMI - Combine and scale analog VGA video and 3.5mm audio or SPDIF audio to a fully digital HDMI output - Replacement for VGA2HDMIRPO Marketing Copy Marketing Copy (No HTML) Applications - Convert analog video and audio to digital HDMI content
- Add your VGA video source to a video distribution solution, that only accepts digital content
- Watch content from an older computer on an HD TV
Website Search Keyword - HDMI scaler
- HDMI to VGA scaler
- HDMI to vga adapter
- hdmi to vga converter
- HDMI to VGA
- high definition scaler
- HD scaler
- VGA2HDMIPRO
- P116-000-HDSC1
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- THINTOS6
- THINTOS10
- THINTOS15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA5M3NEUA
Related Products - VGA2HD2
- VGA2HDU
- BOX4HDECP
- VS440HDMI

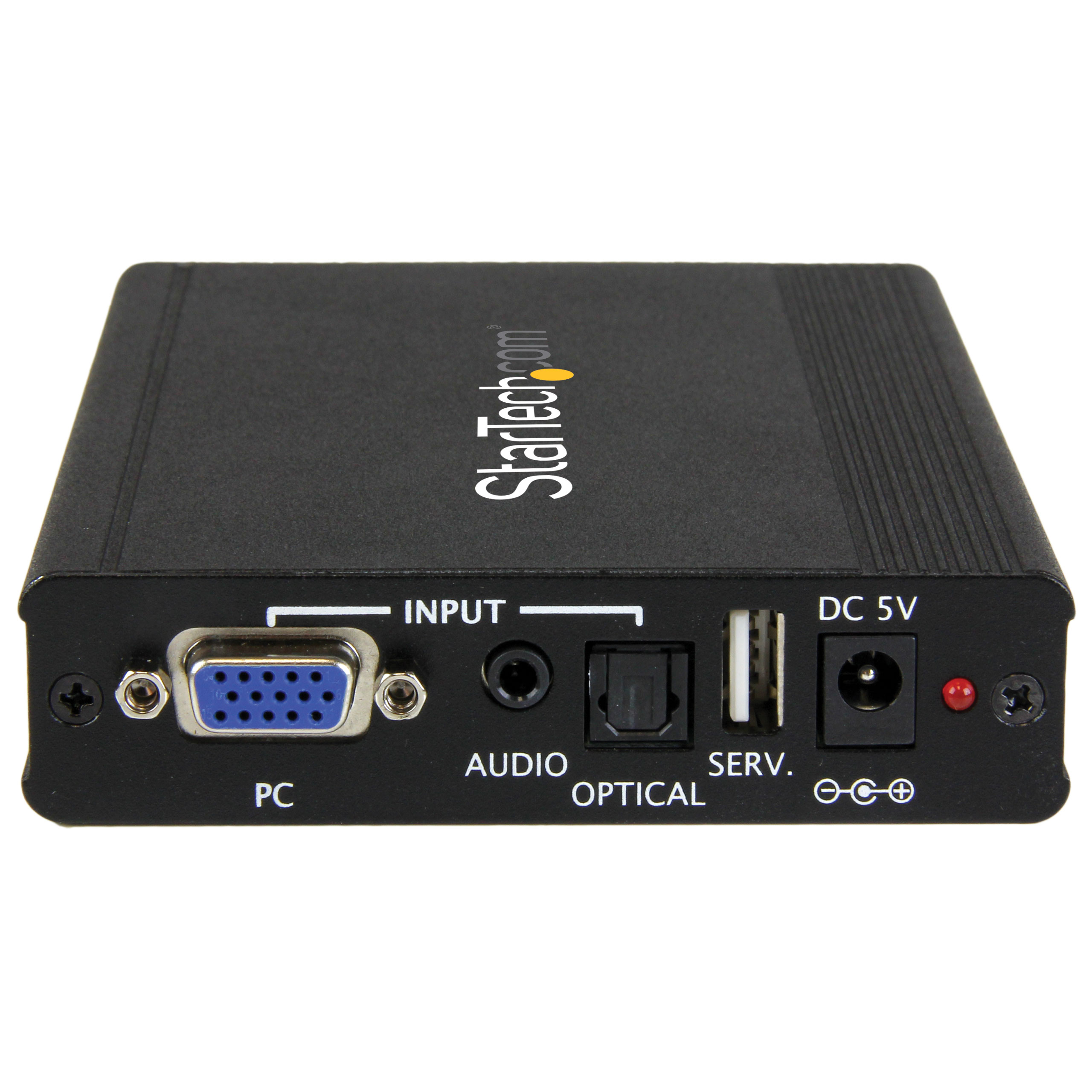

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2.6 A Output Voltage (V) 5 DC Power Consumption (In Watts) 13 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~90% RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 147.000 Product Width (mm) 102.000 Product Height (mm) 25.000 Product Weight (g) 326.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions 1920 x 1200 OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - VGA
- 3.5 mm Stereo Audio
- Toslink

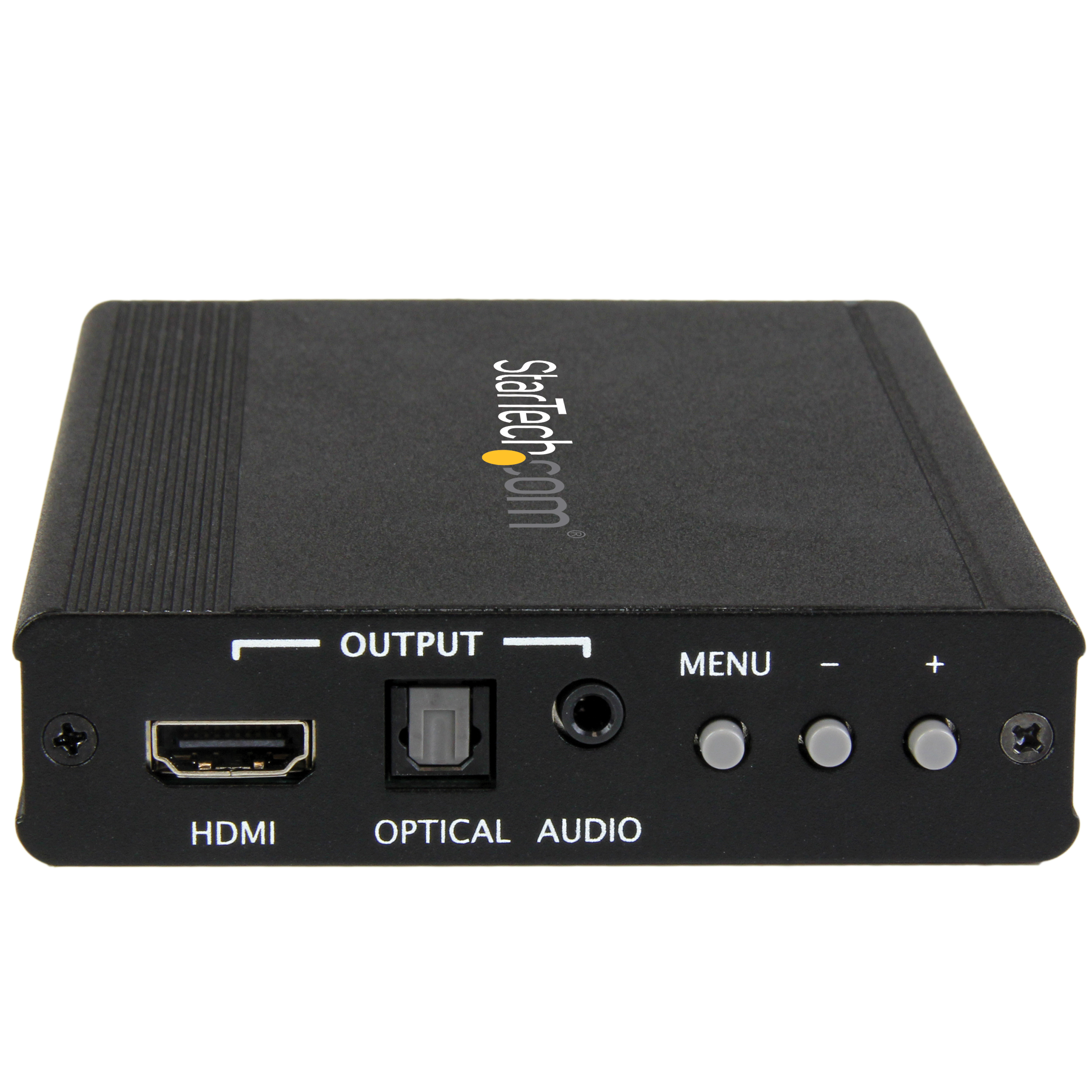

AV Output - HDMI
- 3.5 mm Stereo Audio
- Toslink

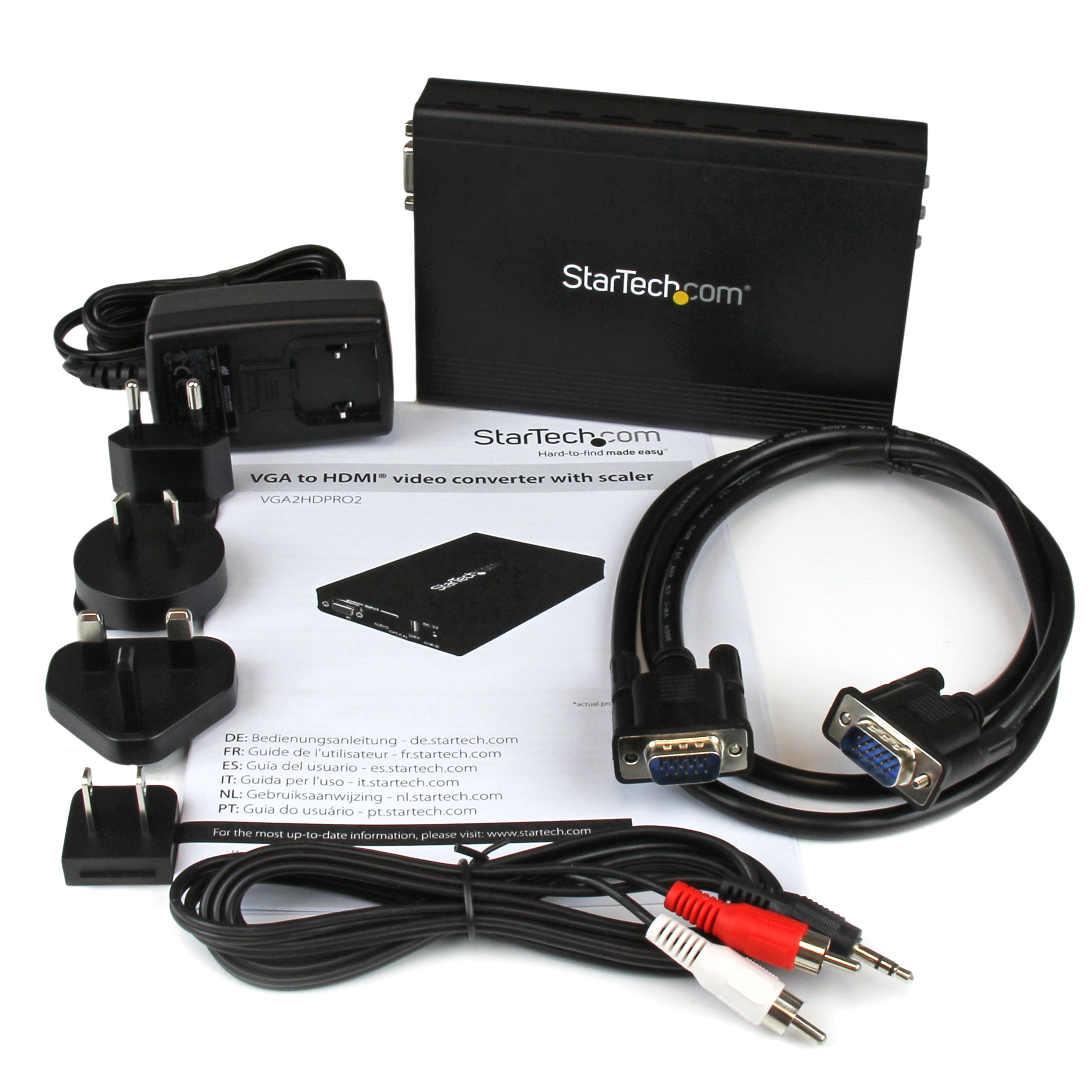

Converter Type Scaler LED Indicators 1 - Power LED Carton Depth (mm) 310 Carton Height (mm) 390 Carton Quantity 10 Carton Weight Gross (g) 9778 Included in Package - 1 - VGA to HDMI Converter / Scaler
- 1 - 4ft (1.2m) VGA Cable
- 1 - 6ft (1.8m) 3.5mm to RCA Cable
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Quick install guide
Package Depth (mm) 184 Package Height (mm) 70 Package Width (mm) 284 Package Quantity 1 Package Weight (g) 898 Packaging Description VGA to HDMI® video converter with scaler Packaging Description India VGA to HDMI® video converter with scaler Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm / Mini-TOSLINK Combo (TRS / Optical S/PDIF) Connector 2 (Quantity) 1 Connector 3 TOSLINK (Optical S/PDIF) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Connector 6 TOSLINK (Optical S/PDIF) Connector 6 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-10-03 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-03-09 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
