VGA2TV2WAYGB
Main Image

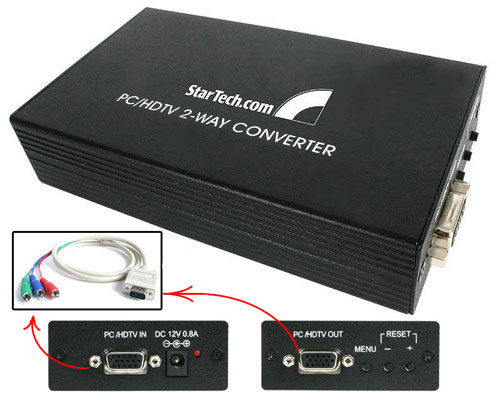

Product Name 2-Way VGA to HDTV / HDTV to VGA Scaler / Converter Product Number VGA2TV2WAYGB UPC 065030812078 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) 2-Way VGA to HDTV / HDTV to VGA Scaler / Converter Bullet 1 Adjust picture brightness, contrast, colour, RGB level and horizontal/vertical positioning Bullet 2 Automatically optimizes the resolution of video feeds to provide top image quality and brightness Bullet 3 Combines the functions of a video scaler, scan-converter and format converter Bullet 4 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 5 Includes a memory recall feature that automatically reinstates the setting last used Marketing Copy Applications - Conference Room
- Display VGA feeds on HDTV sets
- Education
- Home Theatre
- Medical
- Security
- Watch video feeds from DVD players, satellite/digital cable receiver boxes, VCRs and more on VGA displays or HDTV sets
Accessory Products - MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- MXT105MMHQ
Related Products - VID2DVIDTV
- VID2VGATV
Color Black Product Length (mm) 140 Product Width (mm) 75 Product Height (mm) 30 Product Weight (g) 280 TAA Compliant No General Specifications - Input Formats: RGB, YPbPr, YCbCr
- Input Signal Levels: RGB @ 0.7V p-p, 75 ohm
- : H&V Sync @ 3-5V p-p TTL
- : Y @ 1V p-p, 75 ohm
- : Pb, Pr @ 0.7V p-p, 75 ohm
- Video Adjustments: Brightness, Contrast, Colour, RGB levels
- Power Adapter Specifications: 12V DC @ 800 mA, center positive
- VGA: 640 x 480 @ 60/72/75/85 Hz, RGBHV, progressive scan
- VESA85: 640 x 400 @ 80 Hz, RGBHV, progressive scan
- VGA70: 720 x 400 @ 70 Hz, RGBHV, progressive scan
- SVGA: 800 x 600 @ 60/72/75/85 Hz, RGBHV, progressive scan
- XGA: 1024 x 768 @ 60/70/75/85 Hz, RGBHV, progressive scan
- Mac: 1152x 864 @ 70/75 Hz, RGBHV, progressive scan
- WXGA: 1280 x 768 @ 60 Hz, RGBHV, progressive scan
- 1280A: 1280 x 960 @ 60 Hz, RGBHV, progressive scan
- SXGA: 1280 x 1024 @ 60/75 Hz, RGBHV, progressive scan
- 480p: 720 x 480 @ 60 Hz, YPbPr/RGBHV, progressive scan
- 480i: 720 x 480 @ 60 Hz, YCbCr/RGBHV, interlaced
- 576p: 720 x 576 @ 50 Hz, YPbPr/RGBHV, progressive scan
- 576i: 720 x 576 @ 50 Hz, YCbCr/RGBHV, interlaced
- 720p: 1280 x 720 @ 60 Hz, YPbPr/RGBHV, progressive scan
- 1080i: 1920 x 1080 @ 60 Hz, YCbCr/RGBHV, interlaced
- 1080i/540p: 1920 x 1080 @ 60 Hz, YPbPr/RGBHV, pseudo-interlaced
AV Input - Component
- VGA
AV Output - VGA
- Component
Included in Package - 1 - 3 foot (1 meter) 15-pin D-sub to YPbPr to RCA adapter
- 1 - 4 foot (1.2 meter) HD-15 VGA cable M-M
- 1 - User’s manual
- 1 - VGA to HDTV/HDTV to VGA Scaler/Converter
Connector 1 VGA Connector 1 (Quantity) 2 en-US Content Approved Yes
