VGA2VID
High Res VGA to Composite S Video Converter
Connect a PC with VGA output to a composite or S-Video TV
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name High Res VGA to Composite S Video Converter Product Number VGA2VID UPC 065030830591 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 VGA Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) Adaptador VGA a RCA S-Video Product Title (Short) VGA to Composite or S-Video Converter Product Title (Medium) x Product Title (Standard) High Resolution VGA to Composite (RCA) or S-Video Converter, PC to TV, TAA Product Title (Long) High Resolution VGA to Composite (RCA) or S-Video Converter - PC to TV - TAA Product Title (AMZ) High Resolution VGA to Composite (RCA) or S-Video Converter - PC to TV Video Adapter - 1600x1200 RGB to TV , TAA (VGA2VID) Title Ingram (Part 1) High Resolution VGA to Composite Title Ingram (Part 2) or S-Video Converter Website Product Headline Connect a PC with VGA output to a composite or S-Video TV Bullet 1 Provides output in both composite and S-Video formats Bullet 2 Supports NTSC and PAL compatible displays Bullet 3 High resolution inputs from your PC up to 1600x1200 Bullet 4 Image underscan and overscan selectable switch Bullets (Consolidated) Connect a PC with VGA output to a composite or S-Video TV - VGA to HDMI Adapter - VGA to HDMI Video Converter - VGA to HDTV - Supports Resolutions up to 1600x1200 - Supports NTSC and PAL compatible displays Marketing Copy Applications - An inexpensive way to increase the size of a computer display
- Displays computer screen images on your TV
- Great for boardroom meetings, tradeshows, lectures, and CRT digital signage solutions
- Use your TV to display computer presentations, surfing the Internet, playing video games and more
Website Search Keyword - Video Converter
- High Resolution
- VGA
- Composite
- S-Video
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- SVIDHQ6
- SVIDHQ25
- SVIDHQ50
- RCAVIDHQ6
Related Products - VGA2HDU
- VGA2HD2
- VGA2HDPRO2
- HDVGADP2HD
- BOX4HDECP
- VGA2NTSCPRO
Replacement Product VGA2VID2 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2.6 A Output Voltage (V) 5 DC Power Consumption (In Watts) 13 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 100.000 Product Width (mm) 64.000 Product Height (mm) 18.500 Product Weight (g) 102.000 TAA Compliant Yes Supported Resolutions PC Input - Up to 1600x1200 @ 60Hz Output - 640x480 Active or Passive Adapter Active Audio No AV Input VGA AV Output - Composite
- S-Video

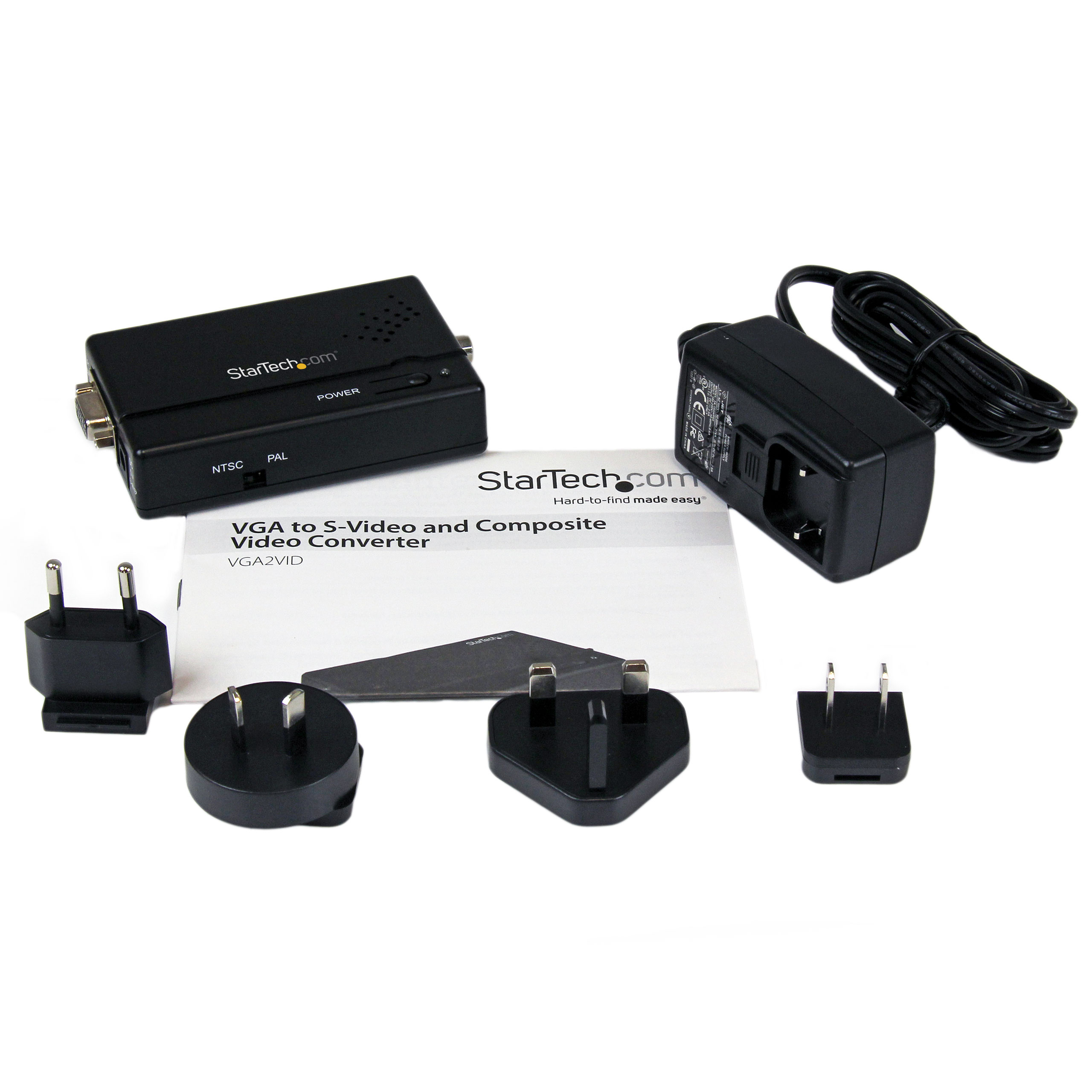

Chipset ID Converter Type Format Converter Carton Depth (mm) 380 Carton Height (mm) 340 Carton Quantity 30 Carton Weight Gross (g) 12718 Included in Package - 1 - VGA to Composite/S-Video Converter
- 1 - User Manual
- 1 - Universal Power Adapter (US/UK/EU/AUS)
Package Depth (mm) 118 Package Height (mm) 62 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 392 Packaging Description VGA to S-Video and Composite Video Converter Packaging Description India VGA to S-Video and Composite Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
