VGAPATTERN

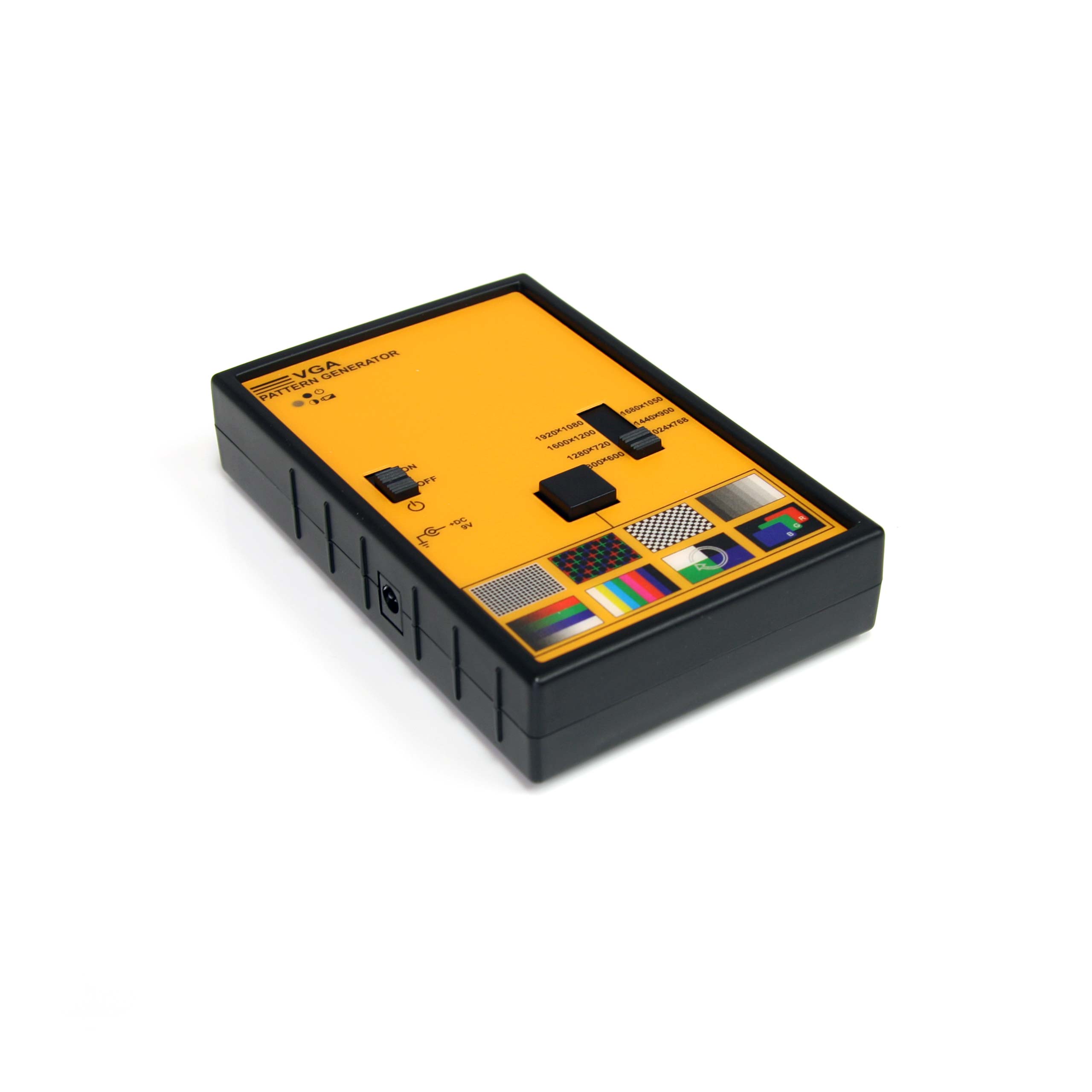

Video Test Pattern Generator - VGA
Test and calibrate your VGA monitors, displays and projectors.
Main Image
Product Images
Product Images
BOM Image
Product Name Video Test Pattern Generator - VGA Product Number VGAPATTERN UPC 065030841917 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA Video Test Pattern Generator Product Title (Standard) VGA Video Test Pattern Signal Generator Product Title (Long) VGA Video Test Pattern Signal Generator Title Ingram (Part 1) VGA Video Test Pattern Signal Ge Title Ingram (Part 2) nerator Website Product Headline Test and calibrate your VGA monitors, displays and projectors. Bullet 1 8 built-in video test patterns Bullet 2 Easy to use resolution selector switch and pattern selection button Bullet 3 Power using the the supplied AC adapter or a 9V battery Bullet 4 Supports resolutions up to 1920x1080 @ 60Hz Bullet 5 Test color and linear functionality Marketing Copy Applications - As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies
- Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a VGA display
- Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment
- Save time and money by quickly determining what may need to be corrected with a VGA display / HDTV
- Use in a retail setting to show side-by-side comparisons of quality
- Use to test and maintain studio equipment such as VGA displays, cabling, and recording equipment
Website Search Keyword - A/V Tester
- Calibrate
- Calibration
- VGA Video Test Pattern Signal Generator Audio
- linearity
- signal generator
- Video Test
- VGA Test
- Pattern Generator
- Pattern Tester
- Resolution Tester
Accessory Products - MXT101MMHD6
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25

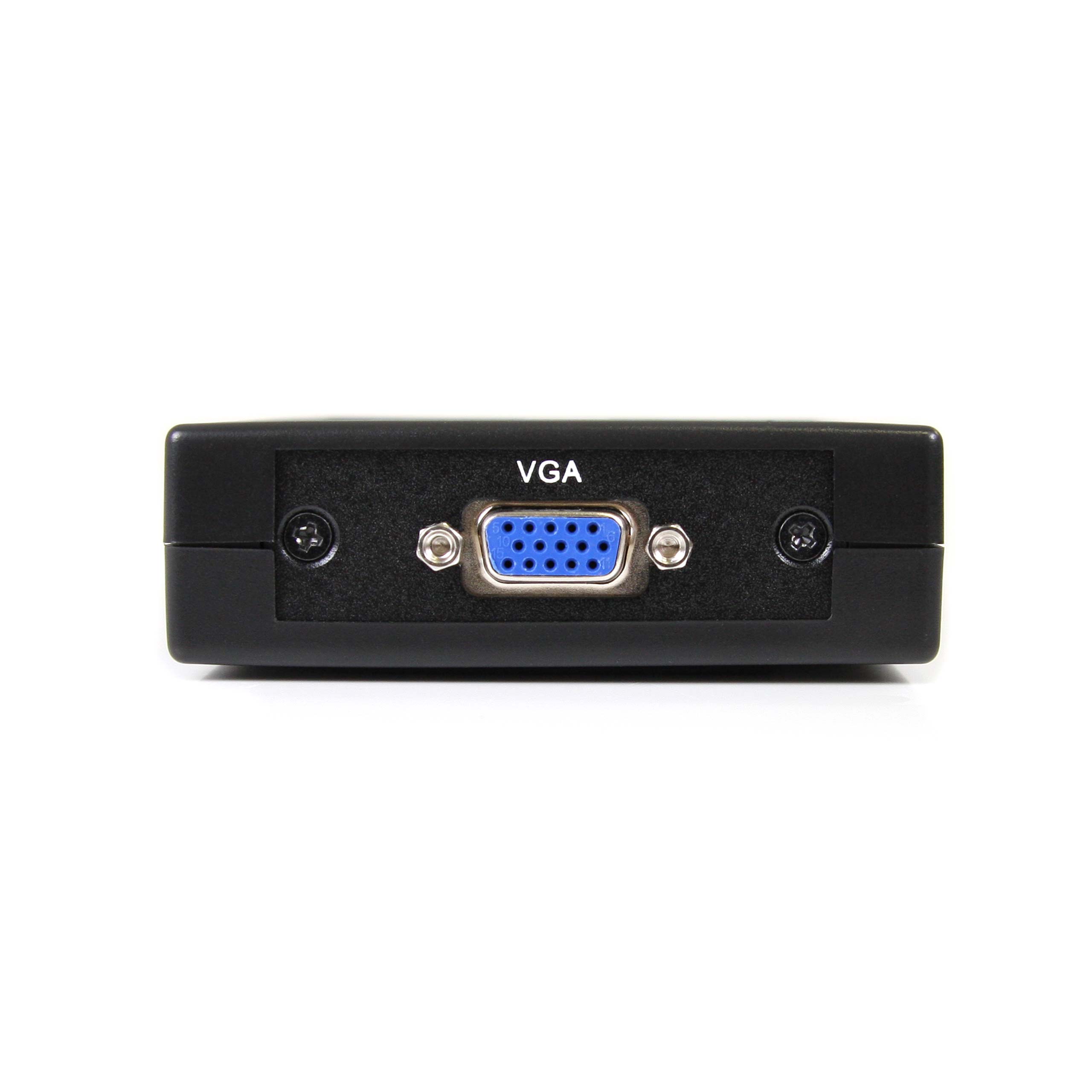

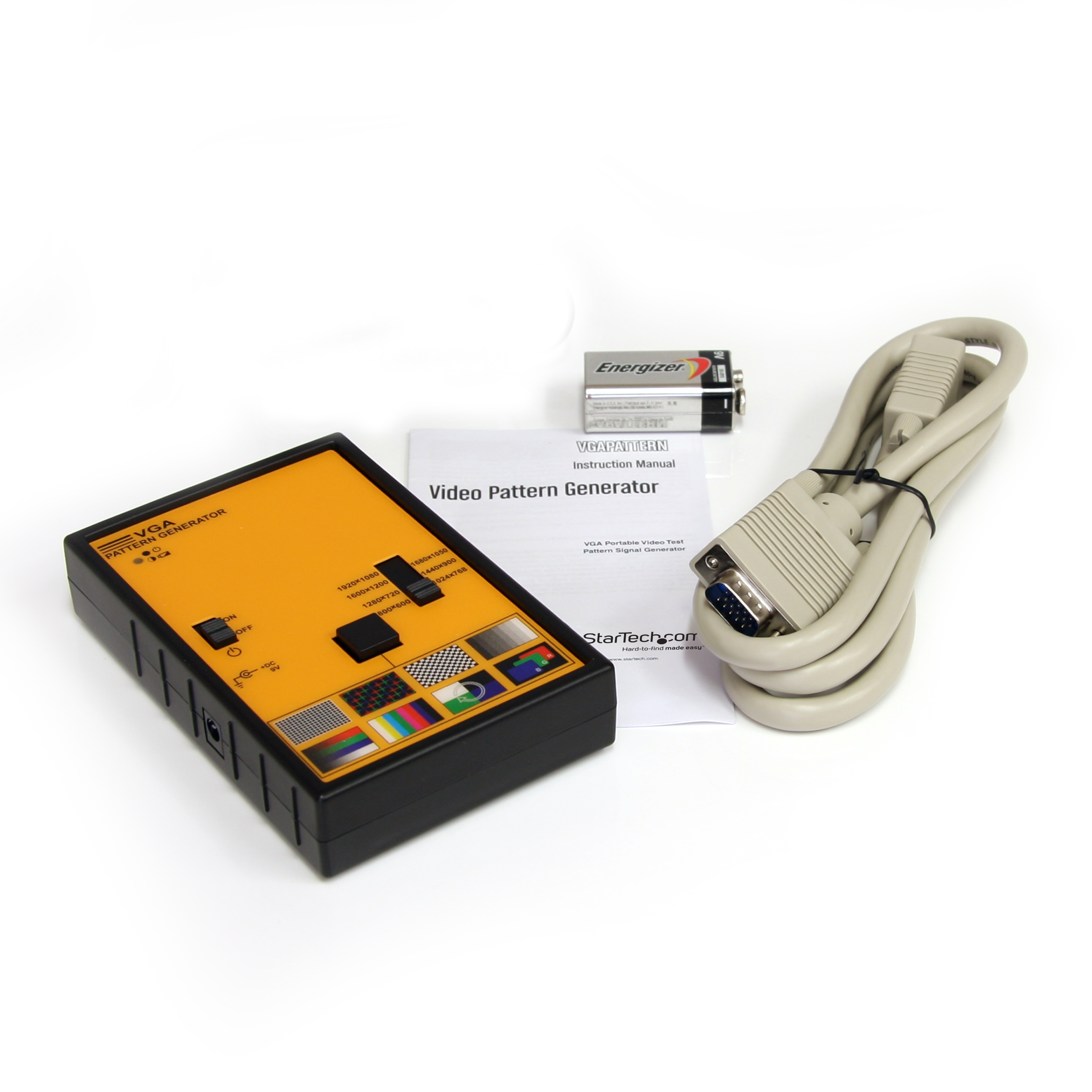

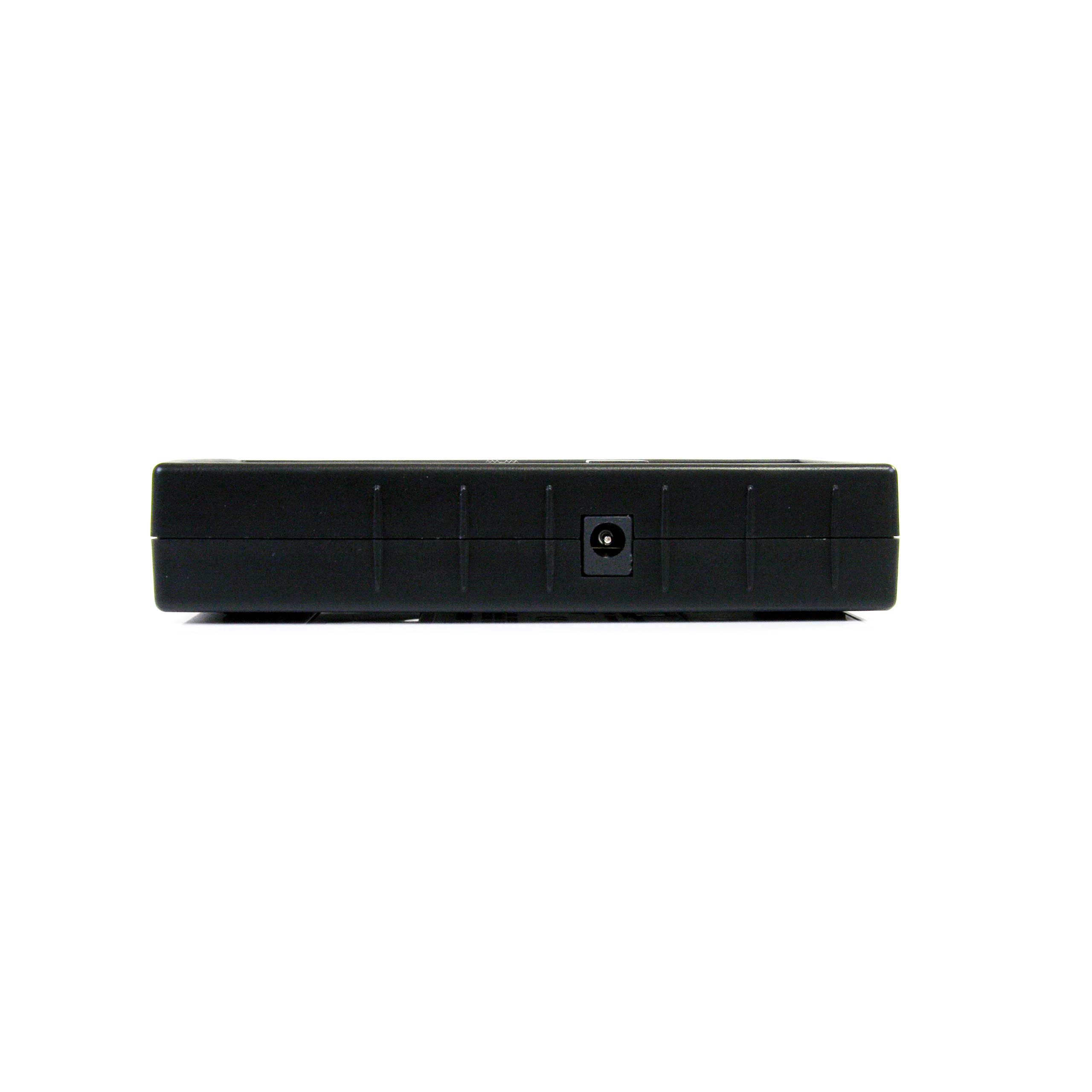

Related Products HDMIPATTERN2 Equivalent Part Number in the EU VGAPATTERNEU Equivalent Part Number in the UK VGAPATTERNGB Input Current 15mA Input Voltage 115V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 0%~95% Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 132 Product Width (mm) 87 Product Height (mm) 28 Product Weight (g) 150 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications Video Test Patterns: 8 Supported Resolutions 1920x1080 (60Hz), 1680x1050 (60Hz), 1600x1200 (60Hz), 1440x900 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) and 800x600 (60Hz) AV Output VGA LED Indicators 1 - Power indicator (Solid - power on, Flashing - low battery) Carton Depth (mm) 490 Carton Height (mm) 452 Carton Quantity 20 Carton Weight Gross (g) 19200 Included in Package - 1 - VGA Cable - 1.2M
- 1 - VGA Test Pattern Generator
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - 9V Battery
Package Depth (mm) 90 Package Height (mm) 215 Package Width (mm) 220 Package Weight (g) 910 Packaging Description VGA Video Test Pattern Signal Generator Packaging Description India VGA Video Test Pattern Signal Generator Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
