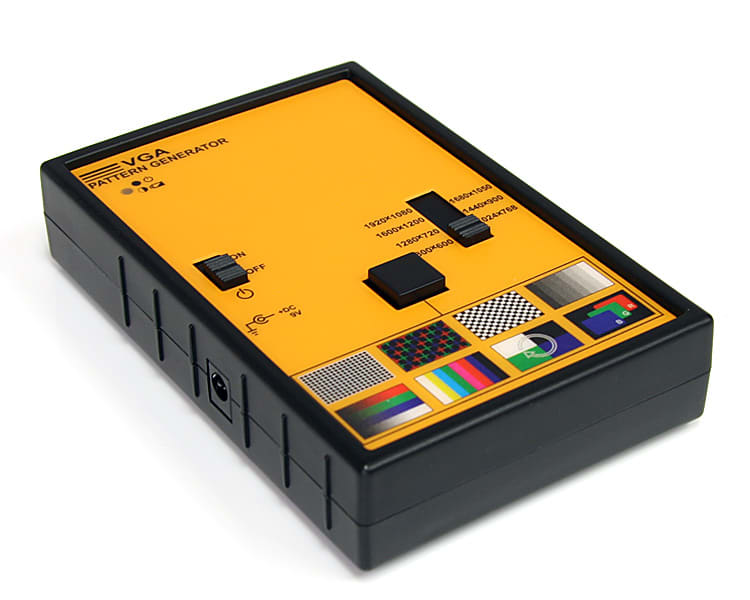

Video Test Pattern Generator - VGA
Test and calibrate your VGA monitors, displays and projectors
Main Image
Product Images
Product Images
Product Images
Product Name Video Test Pattern Generator - VGA Product Number VGAPATTERNEU UPC 065030843256 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA Video Test Pattern Generator Product Title (Standard) VGA Video Test Pattern Signal Generator Product Title (Long) VGA Video Test Pattern Signal Generator Product Title (AMZ) VGA Video Test Pattern Signal Generator (VGAPATTERNEU) Title Ingram (Part 1) VGA Video Test Pattern Signal Ge Title Ingram (Part 2) nerator Website Product Headline Test and calibrate your VGA monitors, displays and projectors Bullet 1 8 built-in video test patterns Bullet 2 Easy to use resolution selector switch and pattern selection button Bullet 3 Power using the the supplied AC adapter or a 9V battery Bullet 4 Supports resolutions up to 1920x1080 @ 60Hz Bullet 5 Test color and linear functionality Marketing Copy Applications - As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies
- Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a VGA display
- Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment
- Save time and money by quickly determining what may need to be corrected with a VGA display / HDTV
- Use in a retail setting to show side-by-side comparisons of quality
- Use to test and maintain studio equipment such as VGA displays, cabling, and recording equipment
Website Search Keyword - A/V Tester
- Calibrate
- Calibration
- linearity
- Pattern Generator
- Pattern Tester
- Resolution Tester
- signal generator
- VGA Test
- VGA Video Test Pattern Signal Generator Audio
- Video Test
Accessory Products - MXT101MMHD6
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- SVA9M2NEUA

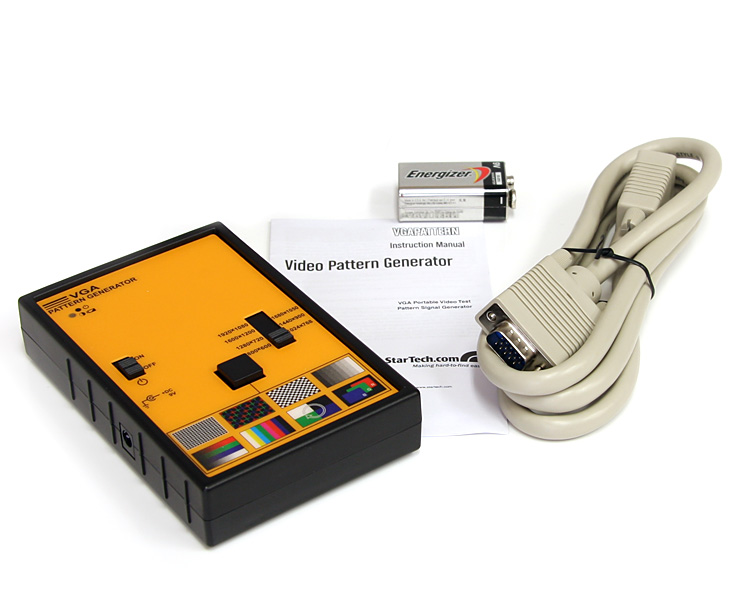

Related Products HDMIPATTERN2 Input Current 15mA Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 0%~95% Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 160 Product Width (mm) 85 Product Height (mm) 30 Product Weight (g) 160 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications Video Test Patterns: 8 Supported Resolutions 1920x1080 (60Hz), 1680x1050 (60Hz), 1600x1200 (60Hz), 1440x900 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) and 800x600 (60Hz) AV Output VGA LED Indicators 1 - Power indicator (Solid - power on, Flashing - low battery) Carton Depth (mm) 490 Carton Height (mm) 450 Carton Quantity 15 Carton Weight Gross (g) 14600 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - VGA Cable - 1.2M
- 1 - VGA Test Pattern Generator
- 1 - 9V Battery
Package Depth (mm) 210 Package Height (mm) 92 Package Width (mm) 225 Package Weight (g) 880 Packaging Description VGA Video Test Pattern Generator Packaging Description India VGA Video Test Pattern Generator Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
