Main Image
VID2DVIDTV

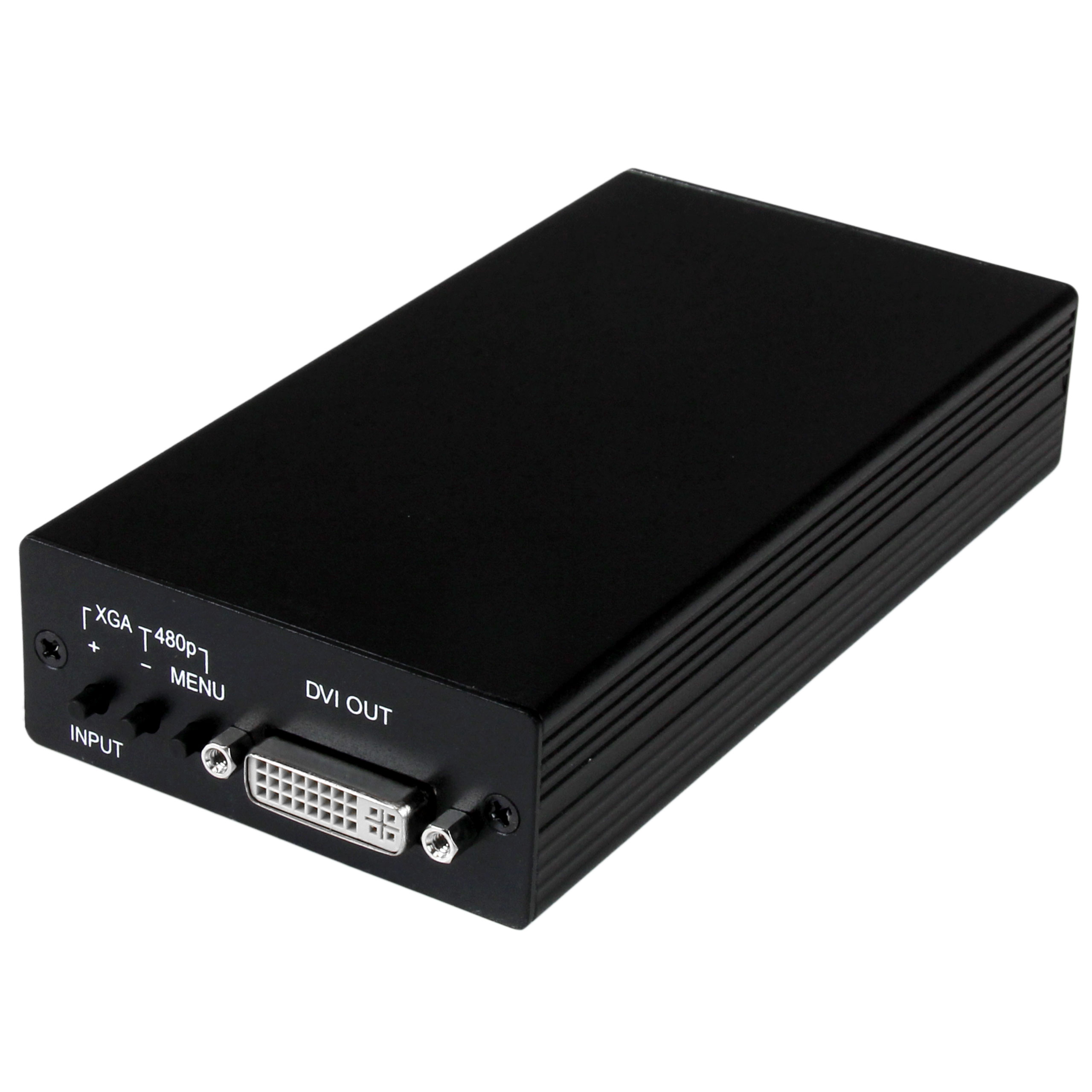

Video to DVI/HDTV Scaler/Video Converter
Convert and scale a composite or S-Video signal to work with a DVI monitor
Main Image
Product Images
Product Images
BOM Image
Product Name Video to DVI/HDTV Scaler/Video Converter Product Number VID2DVIDTV UPC 065030812016 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) . Product Title (Short) Composite S-Video to DVI Video Converter Product Title (Medium) x Product Title (Standard) . Product Title (Long) Composite and S-Video to DVI-D Video Converter with Scaler Product Title (AMZ) Composite and S-Video to DVI-D Video Converter with Scaler (VID2DVIDTV) Title Ingram (Part 1) Composite and S-Video to DVI-D V Title Ingram (Part 2) ideo Converter with Scaler Website Product Headline Convert and scale a composite or S-Video signal to work with a DVI monitor Bullet 1 Adjust picture brightness, contrast, color, and RGB levels Bullet 2 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 3 A 48 MByte frame buffer eliminates image tear/video hiccupping Bullet 4 Includes a memory recall feature that automatically reinstates the setting last used Bullet 5 Includes a plastic bracket for wall mounts or side panel installation Bullets (Consolidated) Video converter - 48 MB - RGB - component video - composite video - S-video - DVI - black Marketing Copy Applications - Display video feeds from DVD players, VCRs and more on DVI monitors, plasma displays, DVI input projectors and HDTVs
- Home Theatre
- Security
- Educational
- Medical
- Conference Room
Website Search Keyword Video to DVI-D Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Multiple refresh rates supported on PC output - See product manual for full list Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- SVIDHQ50
- SVA5M3NEUA
Related Products - VID2VGATV
- VGA2TV2WAY
Input Voltage 100 - 240 AC Output Current 2.6A Output Voltage (V) 5 DC Power Consumption (In Watts) 13 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Product Length (mm) 146 Product Width (mm) 77 Product Height (mm) 30 Product Weight (g) 280 TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio No AV Input - Composite

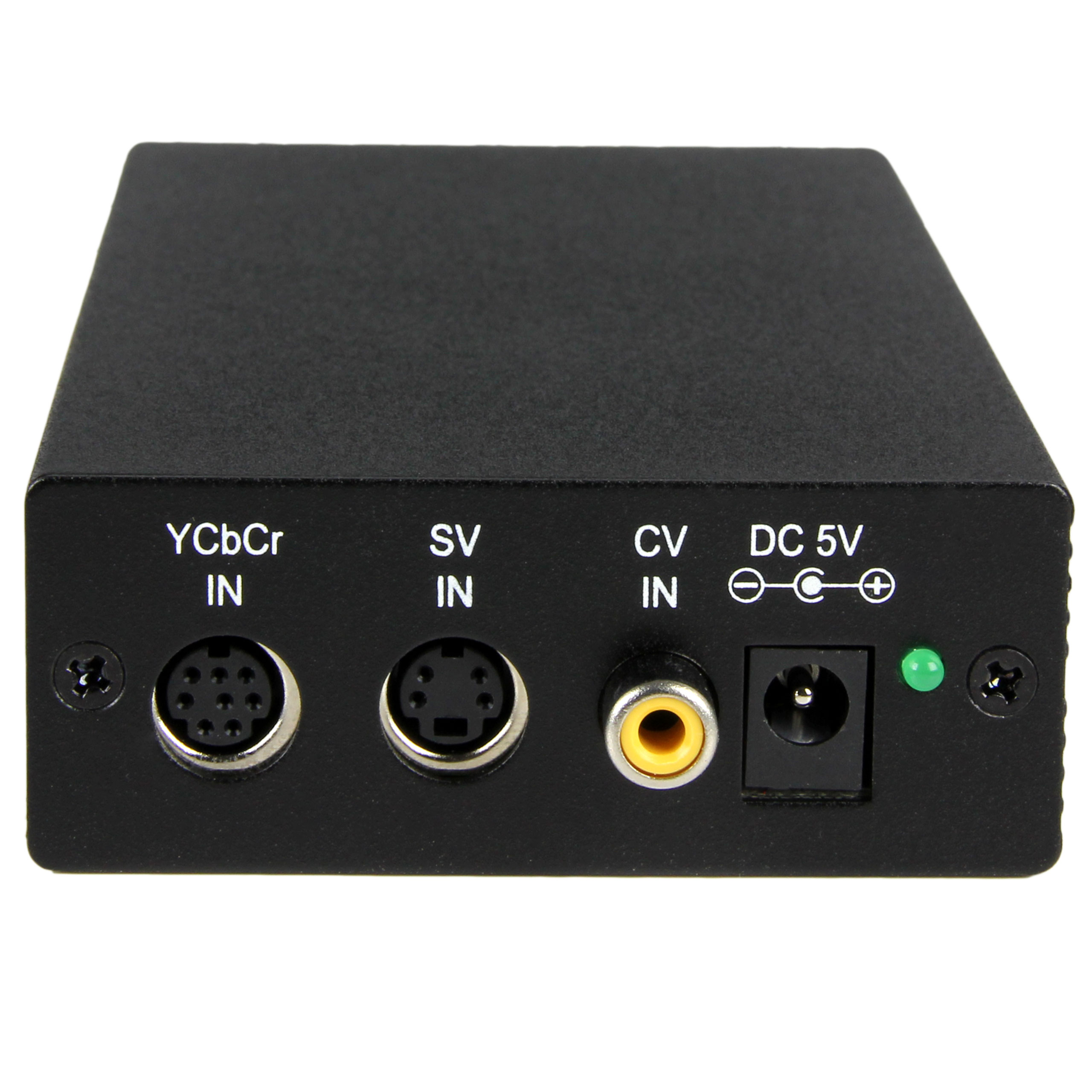

- S-Video
- Component

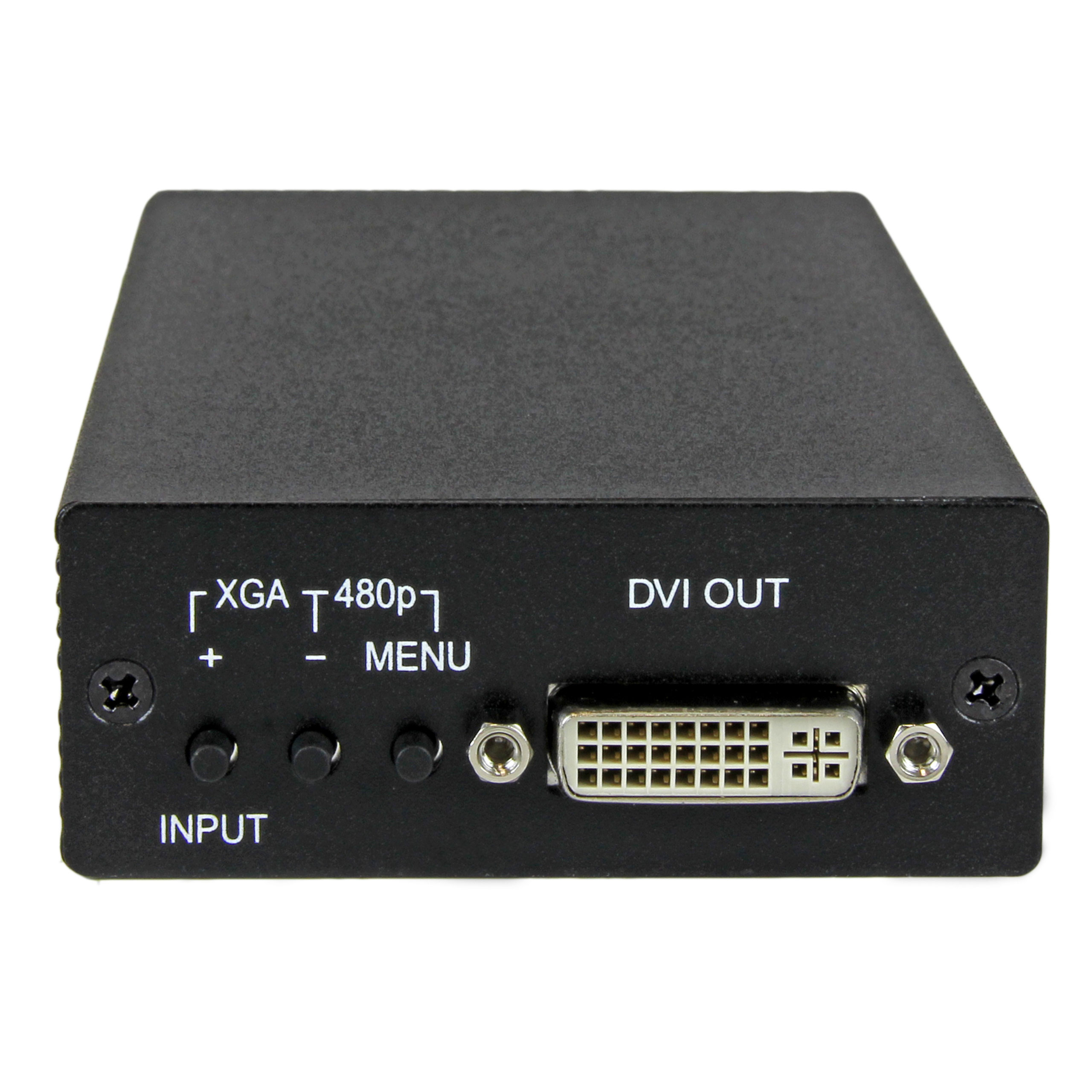

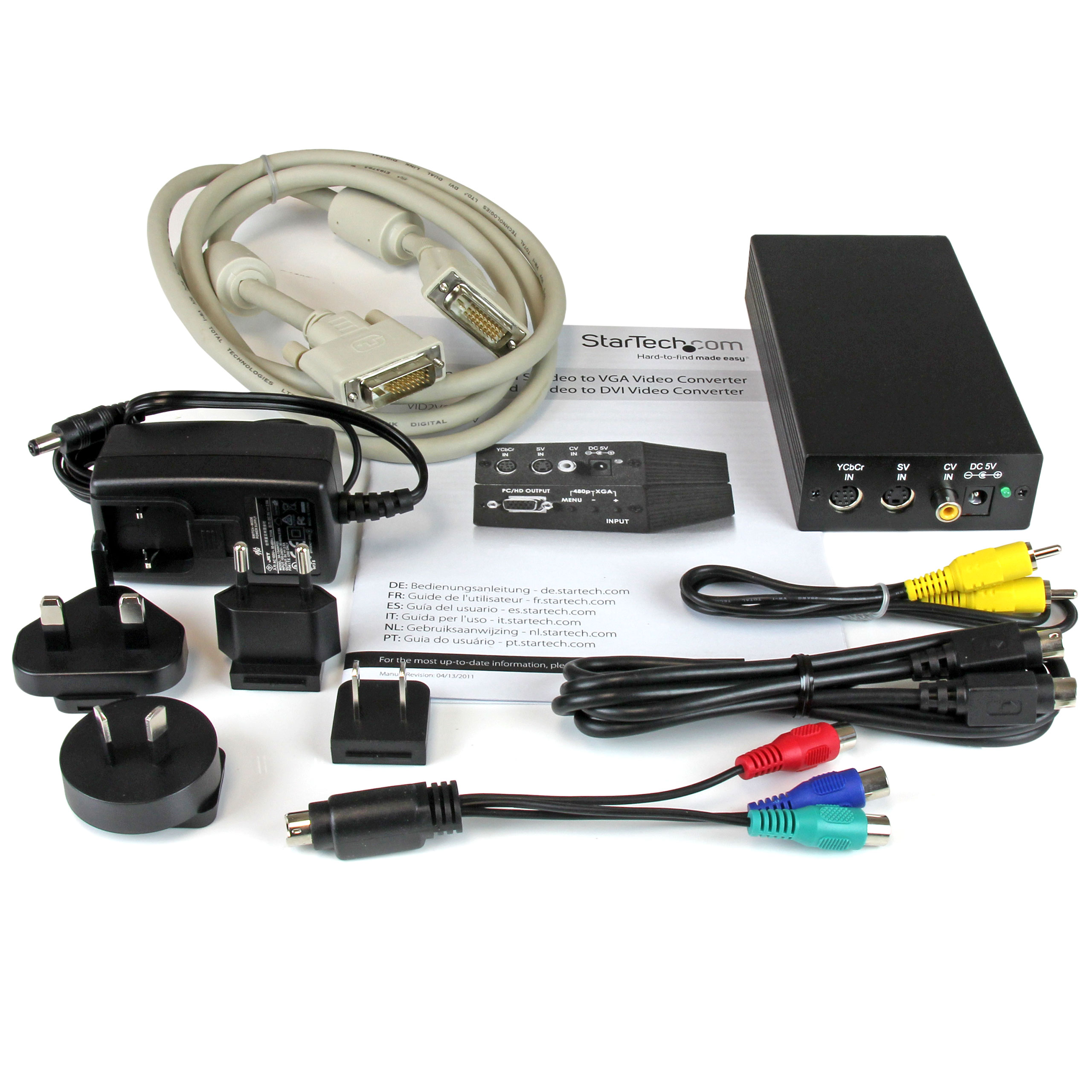

AV Output DVI Converter Type Scaler Carton Depth (mm) 410 Carton Height (mm) 320 Carton Quantity 10 Carton Weight Gross (g) 11900 Included in Package - 1 - Video to DVI/HDTV Scaler
- 1 - 3 foot (1 meter) Composite RCA cable
- 1 - YCbCr RCA to 8 pin DIN adapter
- 1 - 6 foot (1.8 meter) DVI-D DVI cable M-M
- 1 - Wall-mount power adapter
- 1 - User’s manual
- 1 - Plastic Bracket
Package Depth (mm) 72 Package Height (mm) 186 Package Width (mm) 283 Package Quantity 1 Package Weight (g) 1070 Packaging Description Composite and S-Video to DVI Video Converter Packaging Description India Composite and S-Video to DVI Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 RCA (Composite Video) Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
