Main Image
VID2HDCON

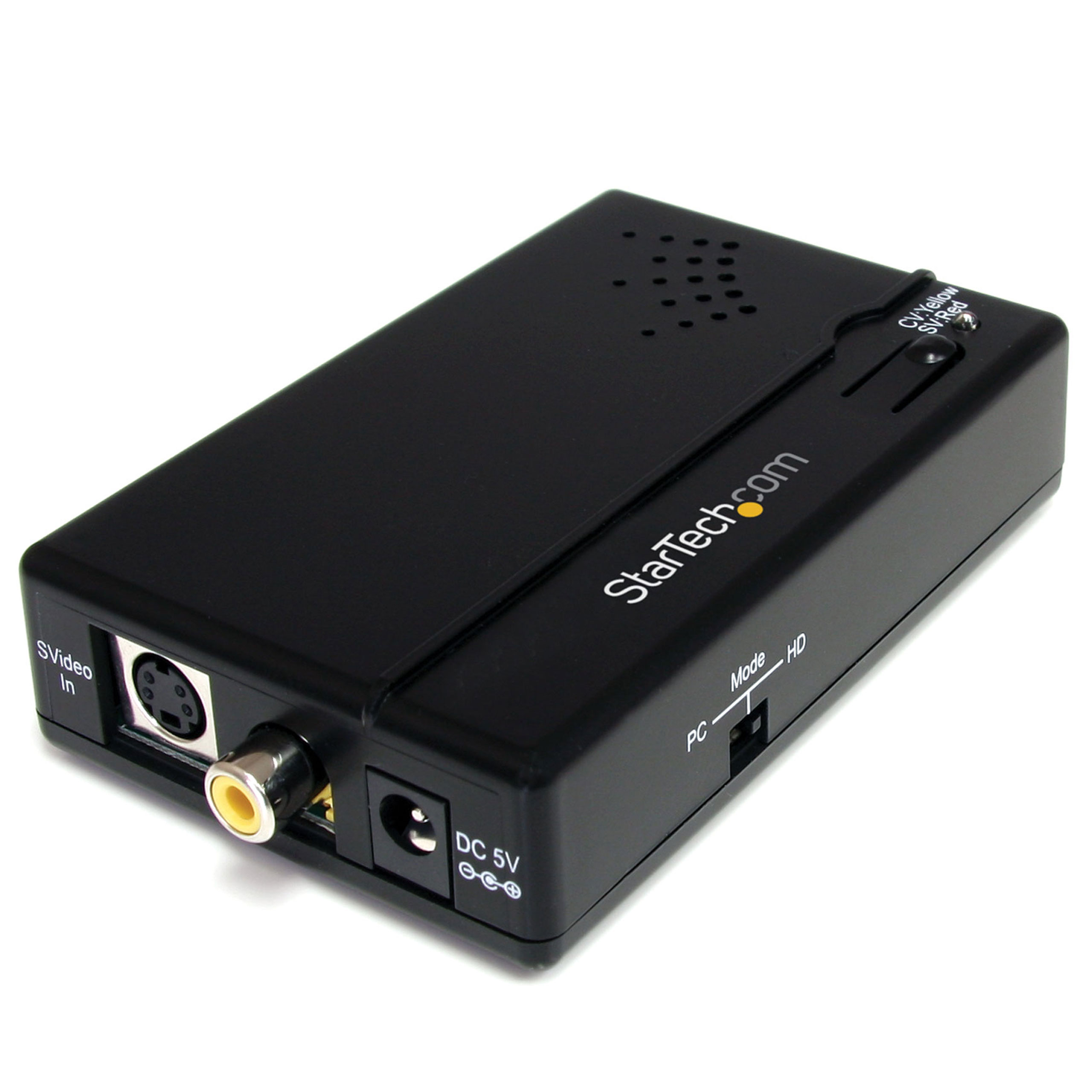

Composite and S-Video to HDMI Video Converter
Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI®
Main Image
Product Images
Product Images
BOM Image
Product Name Composite and S-Video to HDMI Video Converter Product Number VID2HDCON UPC 065030845274 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) S-Video to HDMI Product Title (Short) Composite and S-Video to HDMI® Converter Product Title (Standard) Composite and S-Video to HDMI® Converter with Audio, TAA Product Title (Long) Composite and S-Video to HDMI Converter with Audio - TAA Product Title (AMZ) Composite and S-Video to HDMI Converter with Audio - Video converter - composite video, S-video - HDMI - black , TAA (VID2HDCON) Title Ingram (Part 1) Composite and S-Video to HDMI® C Title Ingram (Part 2) onverter with Audio Website Product Headline Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI® Bullet 1 Functions with NTSC and PAL systems Bullet 2 PC/TV resolution selector switch for compatibility with many different displays Bullet 3 Advance 3D motion adaptive de-interlace Bullet 4 50/60 Hz frame rate conversion Bullet 5 On Screen Display Bullets (Consolidated) Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI® - Composite to HDMI Converter - S-Video to HDMI - SVideo to HDMI - RCA to HDMI Converter - Composite and S Video to HDMI - Up to 1600x1200 (PC) or 1080p (TV) Marketing Copy Applications Convert VCRs, DVD players, camcorders, video game consoles and other home theater devices to work on HDMI displays Website Search Keyword - s video to hdmi
- composite to hdmi
- s video composite converter
- s-video to hdmi converter
- composite to hdmi converter
- s video to hdmi adaptor
- s video to hdmi connector
- s video to hdmi adapter
- composite s-video converter
- composite to hdmi adaptor
- composite to hdmi adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SVA5M3NEUA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - VID2HDMITV
- VID2VGATV
- VID2DVIDTV
- COMP2VGA
- SVID2USB23
- VGA2VID

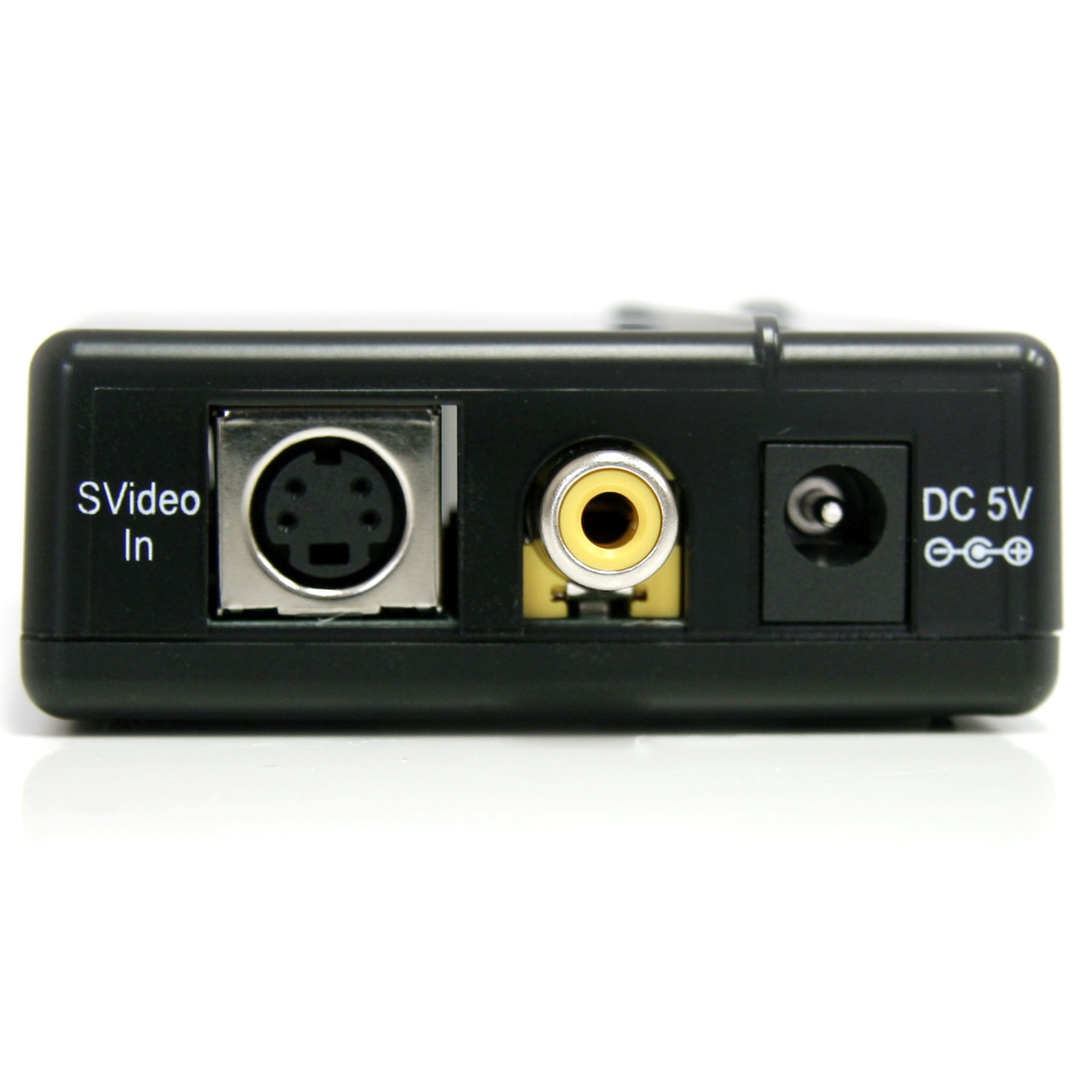

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1.2A Output Voltage (V) 5 DC Power Consumption (In Watts) 2.5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 100.000 Product Width (mm) 64.000 Product Height (mm) 25.000 Product Weight (g) 84.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio Yes AV Input - Composite
- S-Video
- 3.5 mm Stereo Audio

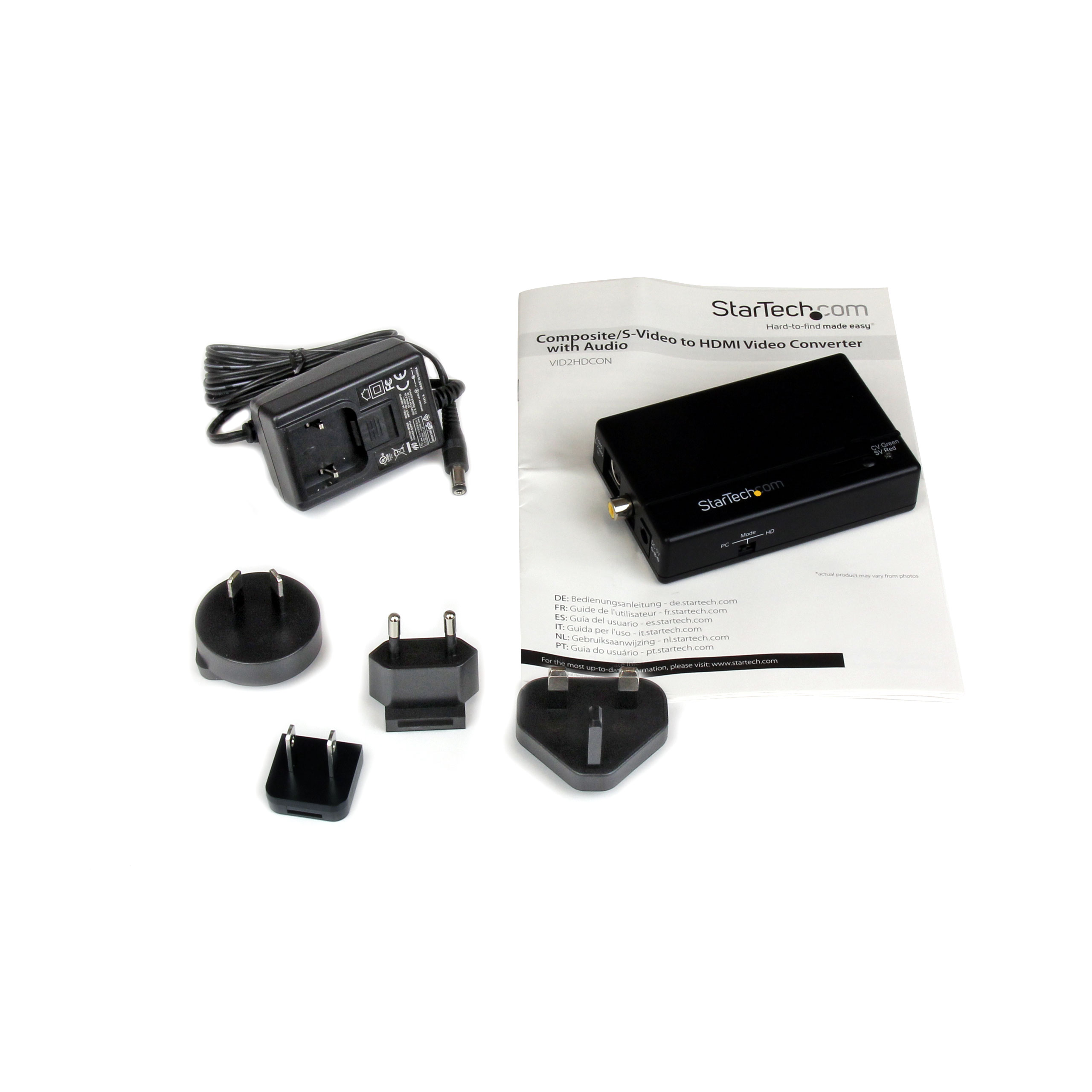

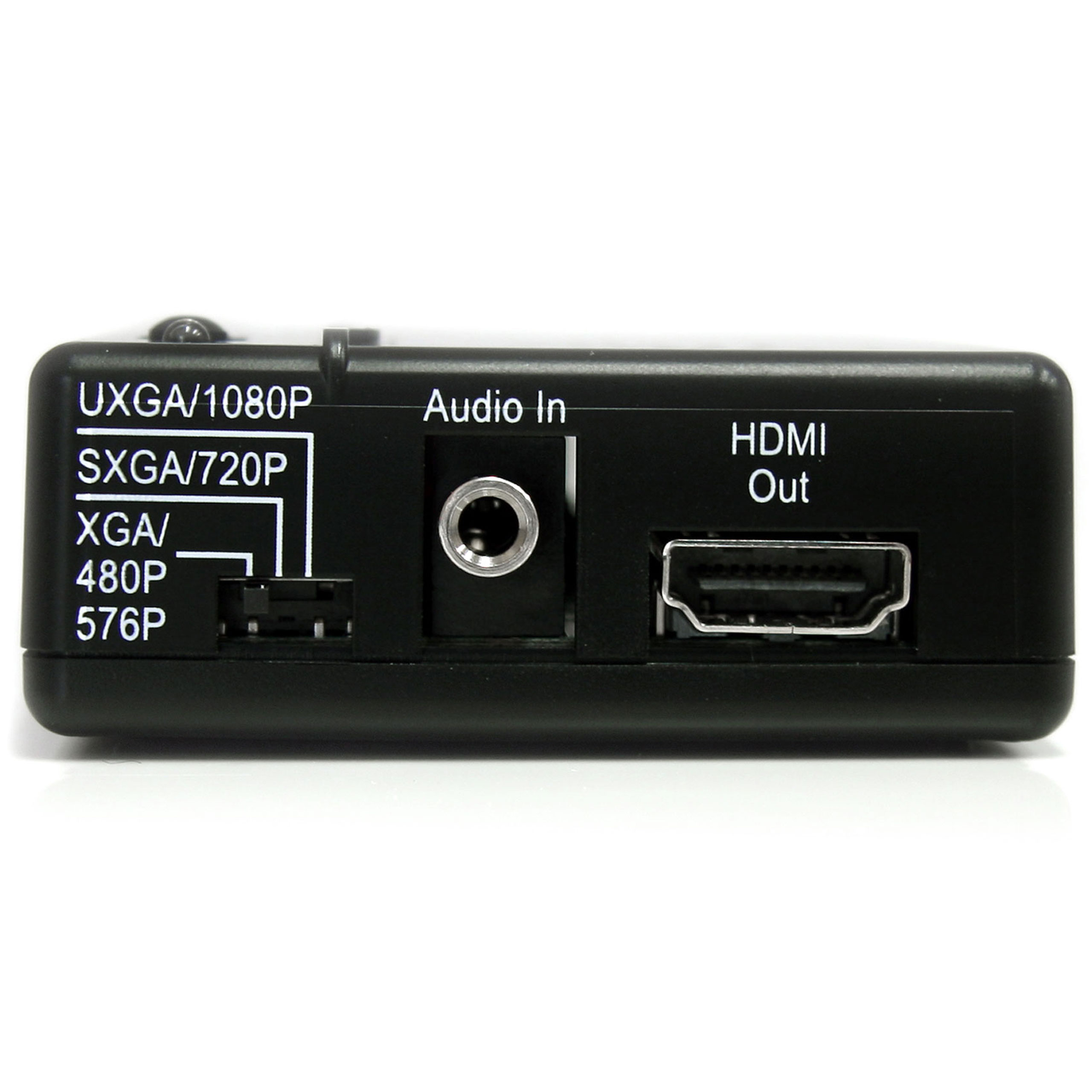

AV Output HDMI Converter Type Scaler Industry Standards NTSC 3.58 and PAL LED Indicators 1 - Red - S-Video, Yellow - Composite Video Carton Depth (mm) 318 Carton Height (mm) 278 Carton Quantity 30 Carton Weight Gross (g) 10494 Included in Package - 1 - Composite/S-Video to HDMI Converter
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
Package Depth (mm) 122 Package Height (mm) 58 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 318 Packaging Description Composite and S-Video to HDMI® Converter Packaging Description India Composite and S-Video to HDMI® Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Composite Video) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
