VID2HDCON2
Composite and S-Video to HDMI Converter with Audio
Analog to HDMI® Upscaler| Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI®
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Composite and S-Video to HDMI Converter with Audio Product Number VID2HDCON2 UPC 065030882620 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Family No Family Country of Origin Europe & Japan China Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) Composite Converter Product Title (Short) Converter - Composite to HDMI - 720p Product Title (Medium) S-Video or Composite to HDMI Converter with Audio - 720p - NTSC & PAL Product Title (Standard) S-Video or Composite to HDMI Converter with Audio - 720p - NTSC & PAL - Analog to HDMI Upscaler - Mac & Windows (VID2HDCON2) Product Title (Long) S-Video or Composite to HDMI Converter with Audio - 720p - NTSC and PAL Product Title (AMZ) S-Video or Composite to HDMI Converter with Audio - 720p - NTSC & PAL - Analog to HDMI Upscaler - Mac & Windows (VID2HDCON2) Title Ingram (Part 1) S-Video or Composite to HDMI Title Ingram (Part 2) Converter with Audio - 720p Website Product Headline Analog to HDMI® Upscaler| Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI® Bullet 1 CONVERT YOUR ANALOG SIGNAL: Use this S-Video to HDMI converter to convert and upscale S-Video or analog composite input to HDMI video output Bullet 2 ENJOY HIGH-DEFINITION PICTURE QUALITY: With support for standard HD resolutions up to 720p, this AV to HDMI converter ensures you won’t have to sacrifice picture quality Bullet 3 COMPATIBILITY: This audio video converter box accepts both NTSC and PAL input formats, allowing seamless audio-video conversion across different regional standards for enhanced versatility Bullet 4 PLUG-AND-PLAY: To ensure an easy setup, this HDMI upscaler offers a pure hardware design, with no software installation required Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this composite or S Video to HDMI adapter is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Use the converter to convert S-Video or analog composite to HDMI - Supporting resolutions up to 720p, this AV to HDMI converter delivers HD picture quality - For an easy setup, the upscaler offers a pure hardware design, with no software installation Bullets (Consolidated) - Use this S-Video to HDMI converter to convert/upscale S-Video or analog composite input to HDMI video output - With support for standard HD resolutions up to 720p, this AV to HDMI converter ensures you won’t have to sacrifice picture quality - To ensure an easy setup, this HDMI upscaler offers a pure hardware design, with no software installation required - This audio video converter box also accepts both NTSC and PAL inputs - Backed for two years, including free lifetime technical assistance Marketing Copy Marketing Copy (No HTML) Applications - Display video from a legacy gaming console, DVD player or VCR onto an HDMI display or TV
- Adapt VHS video in the classroom to newer HD televisions
- Convert legacy medical imaging equipment for display on computer monitors
- Display camcorder output on televisions or monitors equipped with HDMI input
- Monitor security cameras with analog composite signaling using HDMI monitors or televisions
- Use in boardrooms for connecting legacy video equipment to new projectors
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - SVA5M3NEUA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVID2COMP
- AUDIORCA30
- SVIDHQ50
Related Products - VID2HDCON
- VID2HDMITV
- VID2VGATV
- VID2DVIDTV
- COMP2VGA
- SVID2USB23
- VGA2VID
Input Voltage 100 - 240 AC Output Current 1 Output Voltage (V) 5 DC Power Consumption (In Watts) 2.5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~85% RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 154.000 Product Width (mm) 75 Product Height (mm) 23 Product Weight (g) 258 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Supported Resolutions HDMI: 1280x720 (720p) / 60Hz Active or Passive Adapter Active Audio Yes AV Input - Composite
- S-Video
- Audio RCA
AV Output HDMI Converter Type Scaler Industry Standards NTSC 3.58 and PAL 4.43 LED Indicators - 1 - Power LED
- 2 - Composite Video, S-Video LED

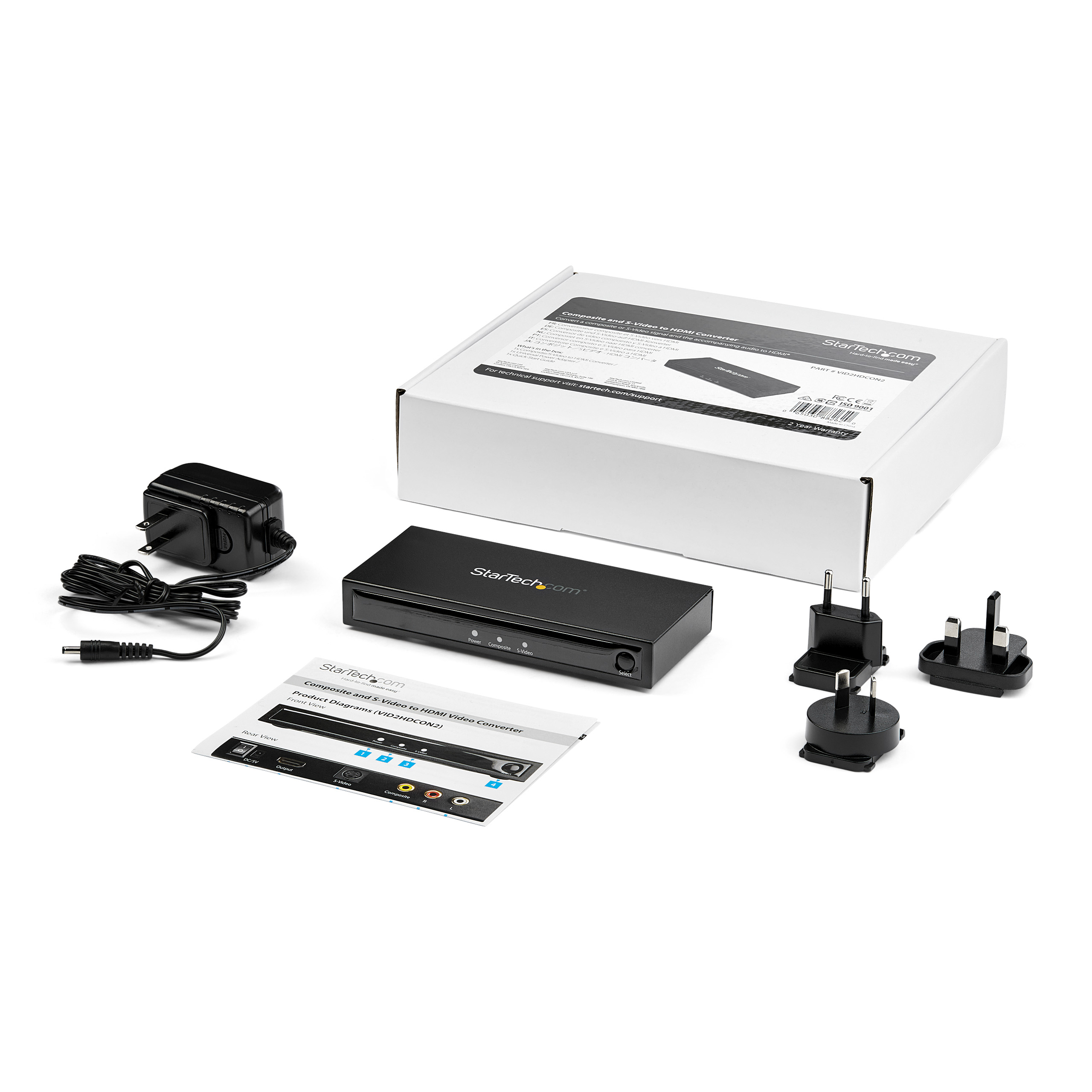

Carton Depth (mm) 426 Carton Height (mm) 306 Carton Quantity 16 Carton Weight Gross (g) 10292 Included in Package - 1 - Composite/S-Video to HDMI Converter
- 1 - Universal Power Adapter
- 1 - Quick-Start Guide
Package Depth (mm) 203 Package Height (mm) 61 Package Width (mm) 253 Package Quantity 1 Package Weight (g) 558 Packaging Description Composite and S-Video to HDMI Converter Packaging Description India Composite and S-Video to HDMI Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Composite Video) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RCA (Composite Video, Stereo Audio) Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-06-28 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-06-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-05-23 Target Production Release 2019-08-02 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
